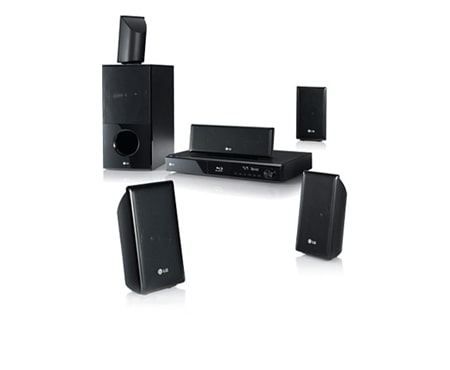

5.1 Blu-ray home theater system

  • HB905SA

  • Black
  • Discontinued Product

Key Features

  • BD Live
  • NetCast™ Entertainment Access
  • i-Pod direct dock
  • DLNA-Digital Living Network Alliance
Connectivity
Audio Input(Optical) 2
Audio In Yes
Audio Input(Audio L/R) Yes
Component Out Yes
Ethernet(RJ45) Yes
Front Display FLD
FL Dimmer Yes
HDMI Out 1
ipod direct dock Yes
Output Terminal(FL/FR/C/SW/SL/SR/SBL/SBR) Yes/Yes/Yes/Yes/Yes/Yes/No/No
Radio Antenna FM Yes
Radio Antenna AM Yes
Speaker Terminal(Composing of channel) 5.1 Ch
USB 2.0 Yes
Video Out Composite Yes
Physical
Size (W x H x D) mm - Center Speaker 200 x 103 x 86
Size (W x H x D) mm - Main 430 x 62.5 x 281
Size (W x H x D) mm - Front Speaker 100 x 186 x 97
Size (W x H x D) mm - Rear Speaker 100 x 186 x 97
Size (W x H x D) mm - Subwoofer 198 x 385 x 275
Amplifier
Power Output (4Ω) Total 1100W
Power Output - Front 180Wx2
Power Output Center 180W
Power Output Surround 180Wx2
Power Output - Subwoofer 200W(Passive)
Audio Sound Mode
Auto EQ Yes
Bass Booster Yes
Cinema Mode Yes
Clear Voice Yes
DSP(LG Sound Gallery)Natural EQ Yes
Game Equalizer Yes
MP3 Up-Scaling Yes
Night Mode Yes
VSM Plus Yes
Accessories
Batteries Yes
DLNA Set-up Disc Yes
HDMI Cable Yes
Instruction Manual Yes
AM Loop Antenna Yes
Carton Box Type Tip on
RCA Code(Video), Yellow, 1P Yes
Remote Control Unit Yes
Speaker Cable Yes(6 EA)
Warranty Card Yes
Application
Bonus View (BD profile 1.1) Yes
Network / BD Live (BD profile 2.0) Yes
Youtube Yes
Picasa Yes
Accuweather Yes
Convenience
A/V Sync Delay(Audio Delay) Yes
CIFS Yes
Dimmer Yes
DLNA Yes
External HDD Playback Yes
Firmware update Yes
Instant tray open Yes
Music ID CD Yes
Music ID Streaming (Capture) Yes
Mute Yes
Music ID File Info Yes
Quick loading Yes
Quick booting Yes
Simplink Yes
Sleep Yes
Speaker Distance(channel delay) Yes
Speaker Level Trim Yes
Time bar Yes
Test Tone Yes
Thumbnail Yes
TV Sound ez Set-up Yes
iPod dock type Direct Docking
iPod dock made for iPod Yes
iPod dock works with iPhone Yes
iPod Video Support Yes
Dynamic Range Control(On/Off) Yes
USB Recording(CD only) Yes
Volume on TV Yes
Woofer Level Volume Yes
BD Playback
MHP-Like Interactivity Yes
Simultaneous Playback of HD & SD Video Drip Yes
Mixed Presentation of Dual Audio Yes
BD ROM profile 2.0 profile
Still Picture PNG, JPEG, GIF
Disc & AV Format
BD-ROM Yes
BD-R Yes
BD-RE Yes
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes
DVD+R Yes
DVD+RW(Video mode) Yes
Audio CD Yes
DTS-CD Yes
CD-R/CD-RW Yes
MPEG2 Yes
MPEG4 AVC (H.264) Yes
SMPTE VC1 (VC-9) Yes
DivX Yes
DivX HD Yes
MKV Yes
AVCHD Yes
LPCM Yes
Dolby Pro Logic II Yes
Dolby Digital Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio:Essential Yes
MPEG 1/2 L2 Yes
MP3 Yes
ID3 Tag Yes
WMA Yes
AAC Yes
Graphics/Subtitle Format 2bit/8bit Sub-picture/Text-based Subtitle
Video DAC 148MHZ/12bit
NTSC/PAL Hz 60Hz / 50Hz
VBI(WSS/CGMS-A/Closed ) Yes
NTSC⇔PAL Conversion Yes
Deep Colour (HDMI1.3) Yes
xvYCC Yes
Last Scene memory Yes
Cinema zoom Yes
Video Enhancement Yes
Re-Encoder(DTS Only) Yes
LPCM Conversion(DTS HD, Dolby TrueHD) Yes
Digital Audio Output Yes
Audio DAC 192KHZ/24bit
Down Sampling Yes
Dynamic Range Control(OFF/ON) Yes
DVD / CD Playback
1080p Upscaling Yes
Screen Saver Yes
Cinema zoom Yes
Auto Power Off Yes
Parental Lock Yes
Initial logo Yes
Fast Forward BD, DVD(-VR), CD-DA, MP3/WMA Yes
Fast Back BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forword Slow BD, DVD(-VR) Yes
Pause BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forward Step BD, DVD(-VR) Yes
Search Title/Track (BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Search Chapter (BD, DVD(-VR)) Yes
Search Time DVD(-VR) Yes
Repeat Play Title/Track(BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Repeat Play Chapter BD, DVD(-VR) Yes
Repeat Play A-B(BD, DVD(-VR)) Yes
Resume Stop DVD(-VR) Yes
Play Mode Random(CD-DA, MP3/WMA) Yes
Marker Search 9 Points(HDMV, DVD(-VR)) Yes
Functions
Home Theatre Yes
Key Features
3D Blu-ray Home Theatre System Yes
Power
Power Consumption 1W ↓
SMPS Wide
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Band FM/AM
Preset Memory 50 Station
Clear Yes
External FM/MW Antenna Yes/Yes
