SM3TB Series

  • 10SM3TB

Key Features

  • Brightness : 400cd/m²
  • Bezel : 14mm (Even Bezel)
  • Depth : 29.7mm
  • Interface : USB, SD Card, RJ45
  • Special Features : Wi-Fi Built-in, K-Slot
  • 16/7 Operation

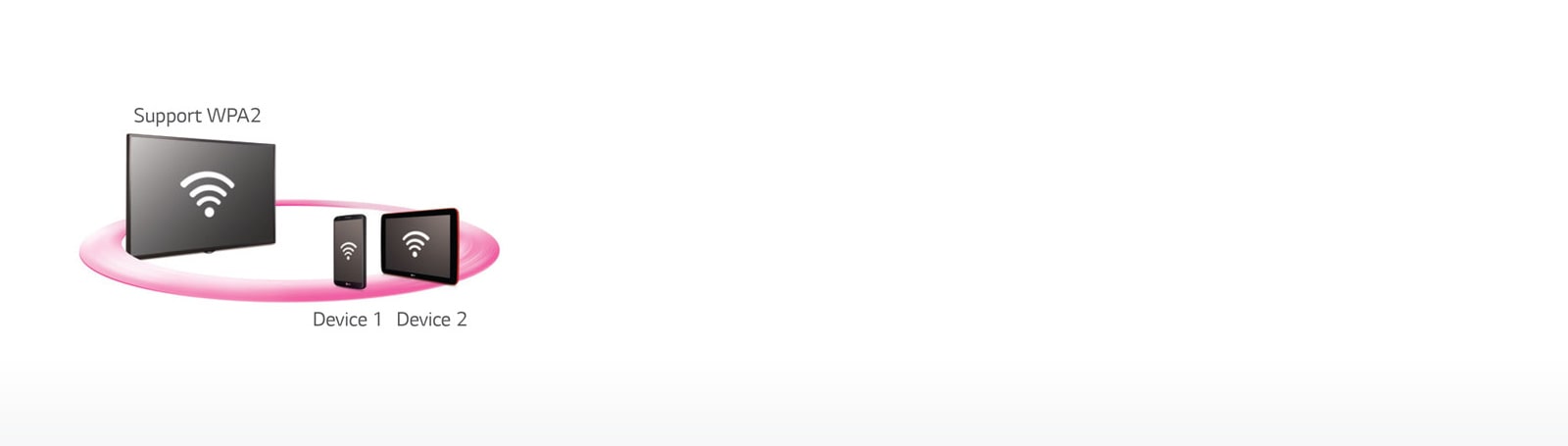

SoftAP

SoftAP software enables a TV to operate as a wireless access point for mobile devices.

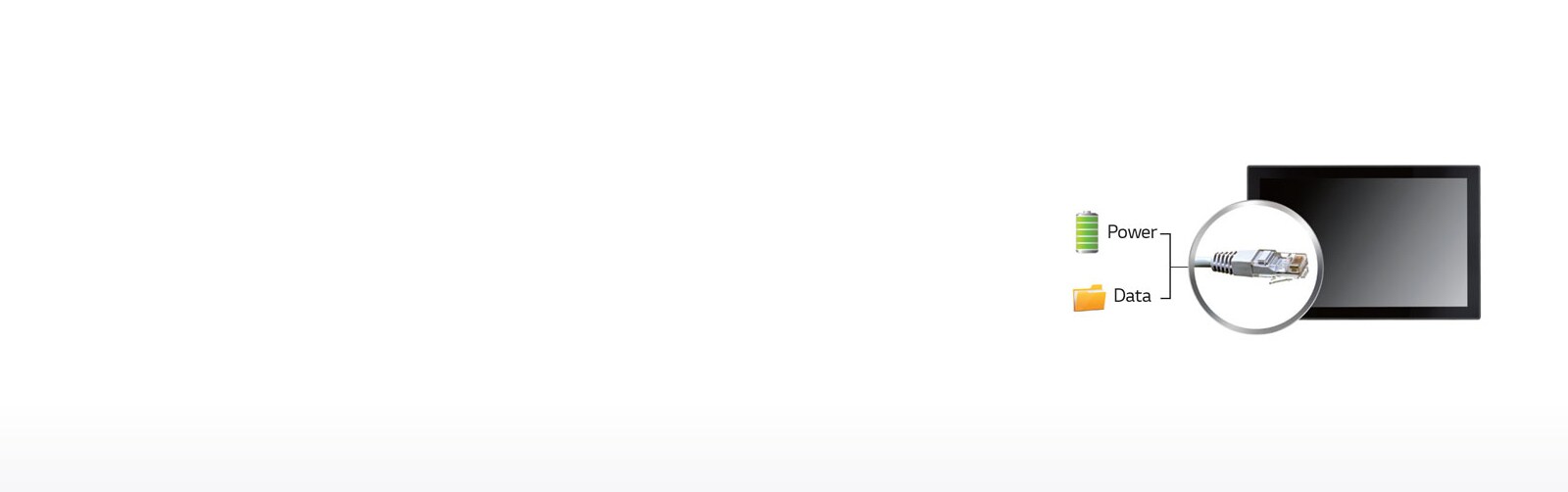

PoE & Low Power Consumption

PoE(Power-over-Ethernet) allows the installer to connect the power and network using just one wire. This greatly simplifies the installation and maintenance processes in locations where adding a power outlet is expensive or prohibited.

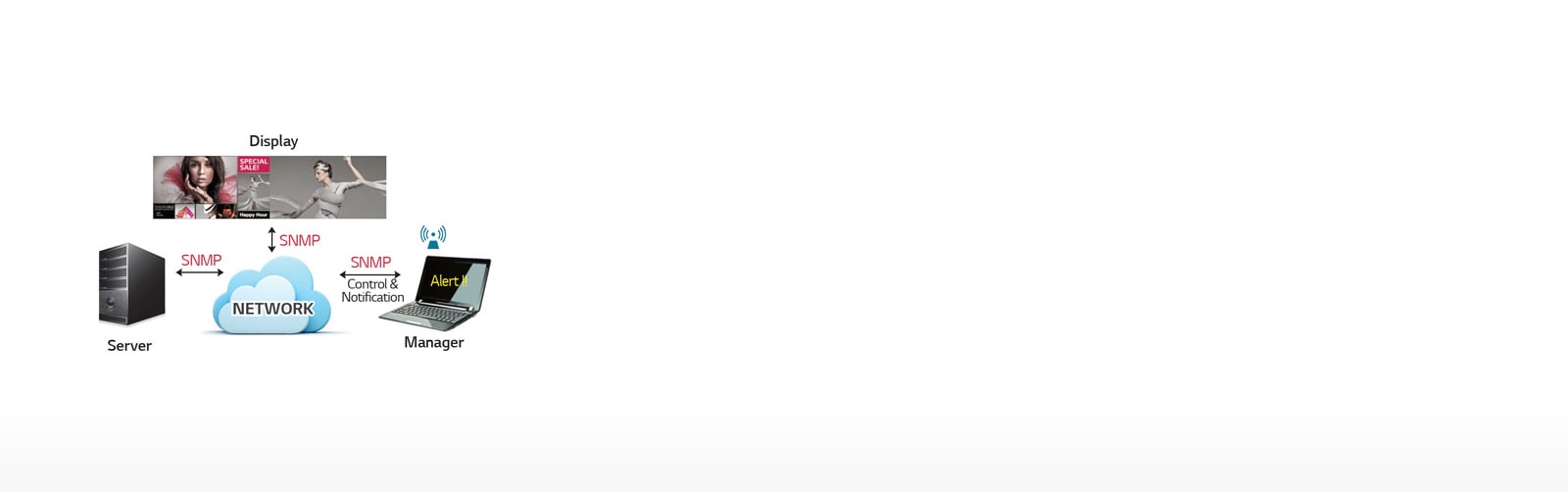

Simple Network Management Protocol

SNMP support ensures convenient network management.

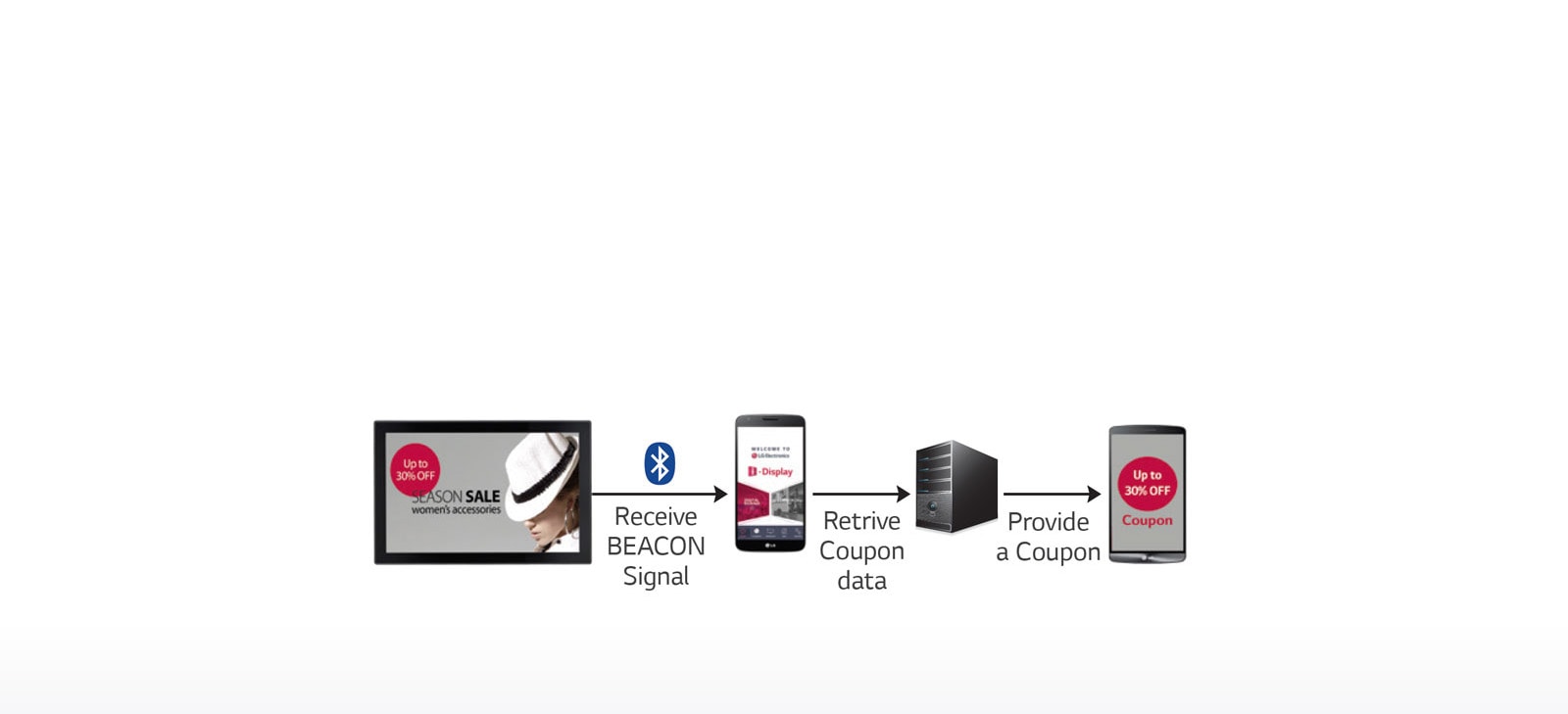

BEACON

With Beacon and Bluetooth Low Energy (BLE) supported by the 10SM3TB, stores can provide coupons and information in real-time which increase interactivity with customers at the moment of truth.

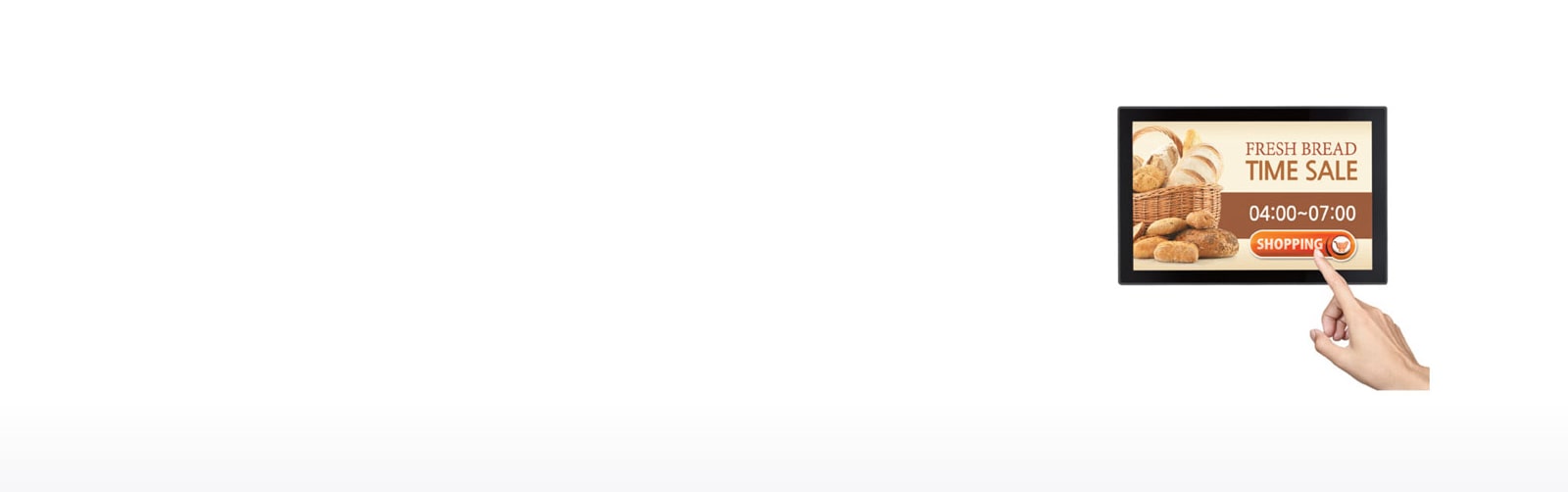

Built-in Touch

Interactive process between users and displays with builtin
touch, creates informative and lively user experience.

Support for Android Environment

The application which can be operated on the screen with customers can be developed and used based on Android OS.

Panel
Screen Size10" (10.1")
Resolution1,280 x 800 (HD)
BrightnessModule : 450cd/m², SET : 400cd/m² [ W/Touch ]
Connectivity - Intput
HDMINo
DVI-DNo
DPNo
Analog (RGB)No
Audio InNo
External Control (RS232C IN)No
External Control (RJ45)Yes (1)
External Control (IR receiver)No
External Control (Pixel Sensor)No
USB (USB2.0)Yes (1)
SD Card (SDHC/Full Size)Yes (micro SD)
Connectivity - Output
Audio OutNo
Externel Speaker OutNo
External Control (RS232C OUT)No
Physical Specification
Bezel Width14mm (T,R/L,B)
Monitor Dimension (W x H x D)245.6mm X 164.2mm X 29.7mm
Weight (Head)0.63kg
VESA™ Standard Mount Interface50mm x 50mm
Media Player Compatibility
OPS type compatibleNo
External Media player AttatchableNo
Software Compatibility
SuperSign-w liteNo
SuperSign-cNo
Accessory
BasicAdaptor, Manual (Web), ESG
OptionalSP-2000, ST-200T, LSW430
General
RegionGlobal
