SH7DB Series

  • 49SH7DB

Key Features

  • Brightness : 700 cd/m²
  • Bezel : Top/Left/Right/Bottom 7.4mm
  • Depth : 31.7mm
  • Special : Wi-Fi Dongle Ready, SuperSign W/C/M
  • Local Time Auto Setting
  • DP/HDMI/DVI/RGB/RS232C/RJ45/IR (DP1.2 daisy-chain)

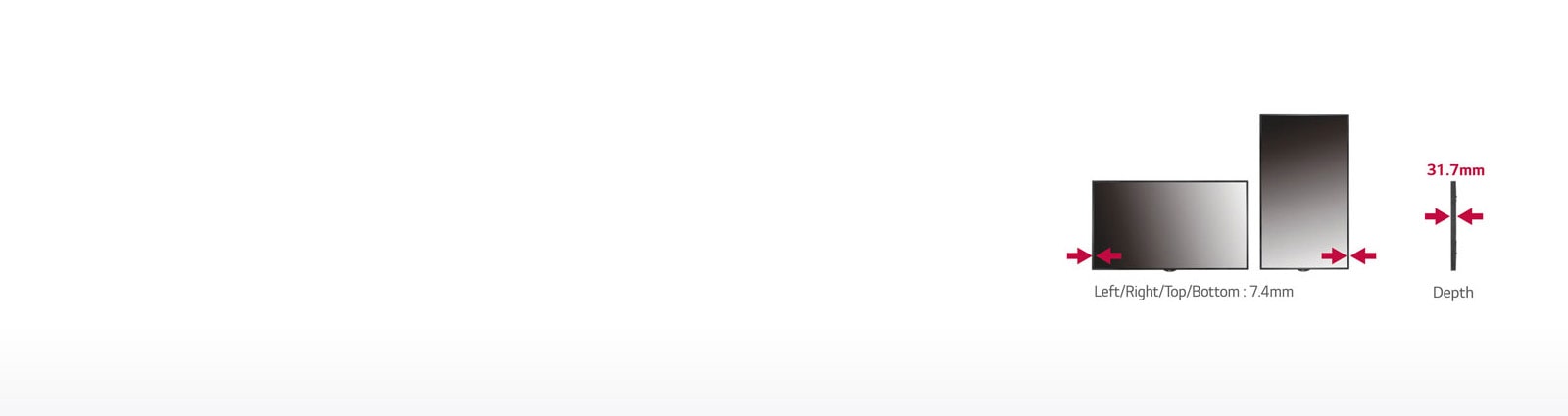

Narrow Even Bezel

Slim, Sleek and stylish design, SH7DB has advantages for portrait and video wall scene

OPS &HDBaseT Compatibility

The SH7DB provides an OPS Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

Panel
Screen Size48.50" (1232.00mm) diagonal
Resolution1,920 x 1,080 (FHD)
Brightness700cd/m²
Connectivity - Intput
HDMIYes (1)
DPYes (1)
DVIYes (1)
AudioYes (1)
Analog (RGB)Yes (1)
External Control (RS232C(Phone Jack Type))Yes (1)
External Control (RJ45)Yes (1)
External Control (IR receiver)Yes (1)
External Control (Pixel Sensor(Optional))Yes
USBYes (1)
Connectivity - Output
DP OutYes
Audio OutYes
Externel Speaker OutYes (1, L/R)
External Control (RS232C OUT)Yes (1)
Physical Specification
Bezel Width7.4mm (T/L/R/U even)
Monitor Dimension (W x H x D)109.5cm X 63.7cm X 3.2cm
Weight (Head)15.6kg
VESA™ Standard Mount Interface400mm x 400mm
Media Player Compatibility
OPS type compatibleYes
External Media player AttatchableYes (MP500/MP700)
Software Compatibility
SuperSign-w liteYes
SuperSign-cYes
Accessory
BasicRemote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
OptionalSP-2100 (External Speaker), ST-200T, LSW440S, AN-WF500 (WiFi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor)
General
RegionGlobal
