WS70BS Series

  • 84WS70BS

Key Features

  • 84” Edge LED Large Screen
  • Super High Resolution : 3,840 x 2,160 (Ultra HD)
  • Clear & Vivid Picture (Dynamic CR : 500,000 : 1)
  • Auto Brightness Sensor
  • Smart Energy Saving
  • Docking-Type Player Ready (MP700/500)

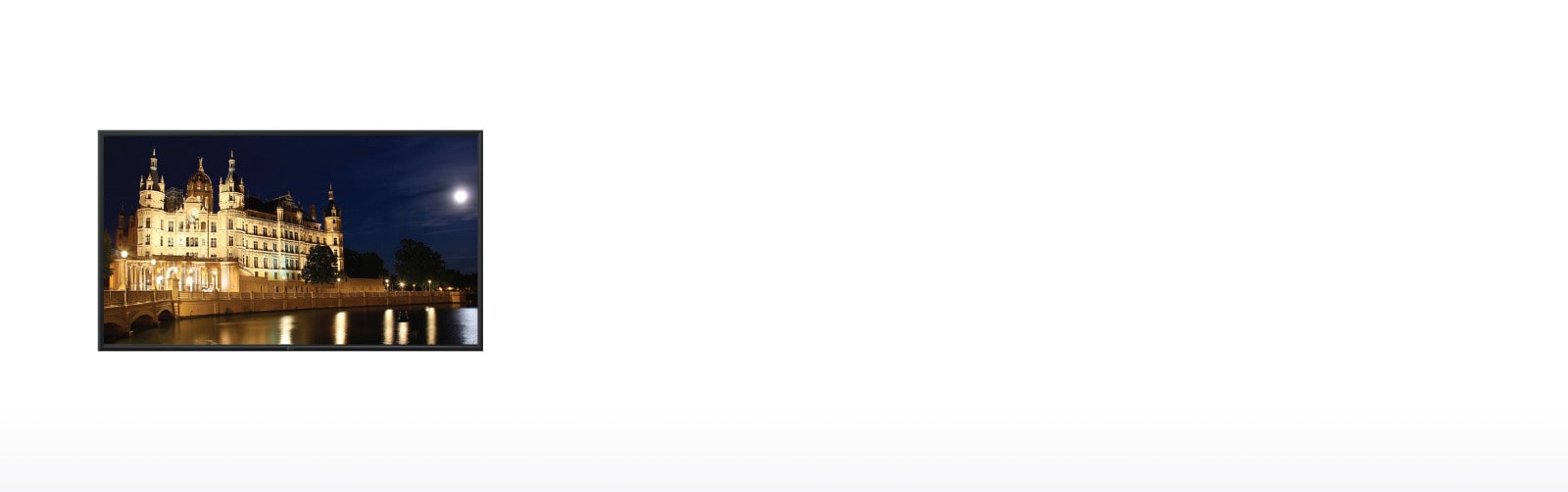

84" Edge LED Large Screen

Providing immersive wide viewing with high quality.

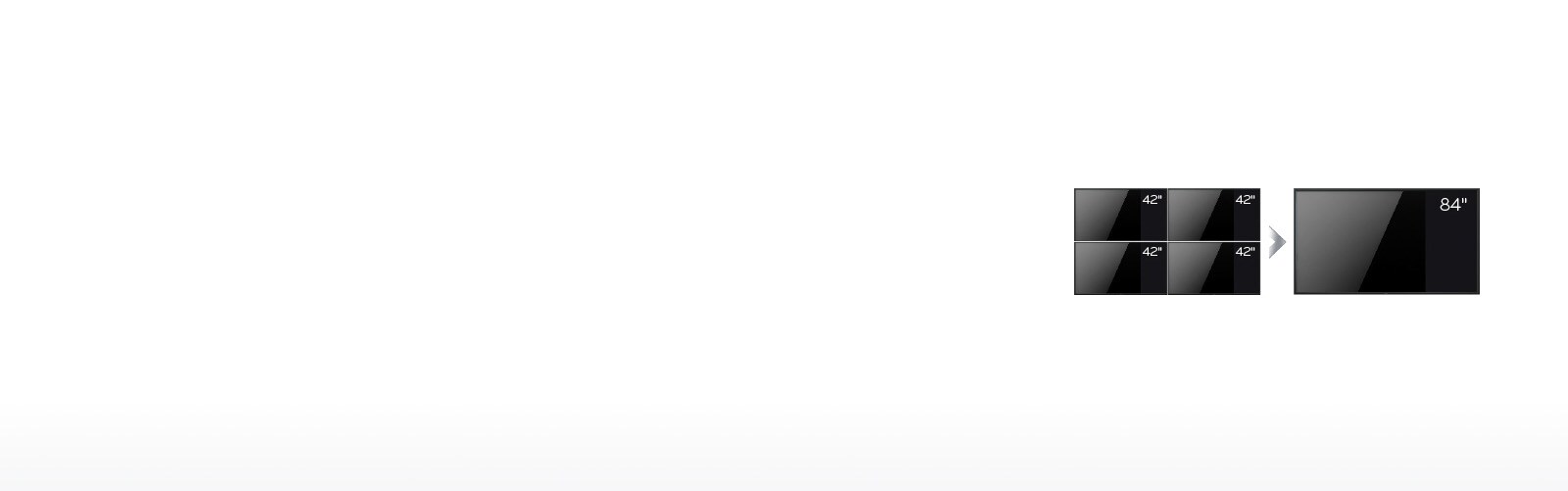

Super High Resolution 3,840 x 2,160 (Ultra HD)

By realizing the LED display with the large screen size, super high resolution becomes possible to offer high realistic sensation and immersiveness.

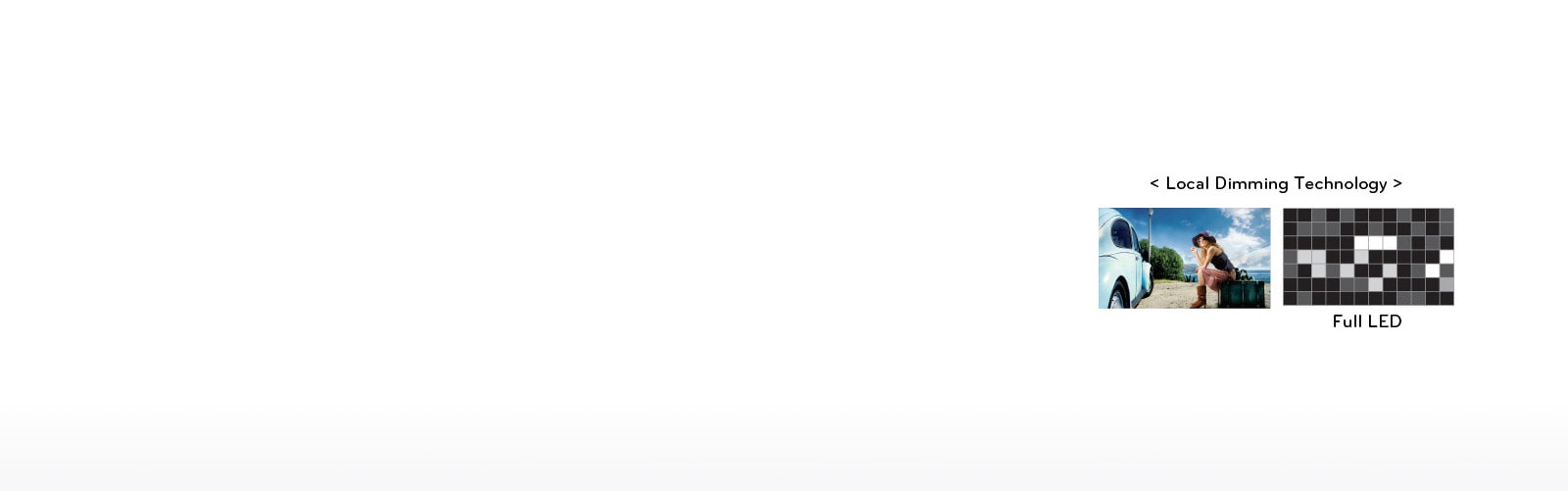

Clear & Vivid Picture
(Dynamic CR : 500,000 : 1)


Local Dimming Technology allows brightness to be controlled in block units. This ensures brightness and clarity providing high picture quality. As a bonus, power consumption is reduced.

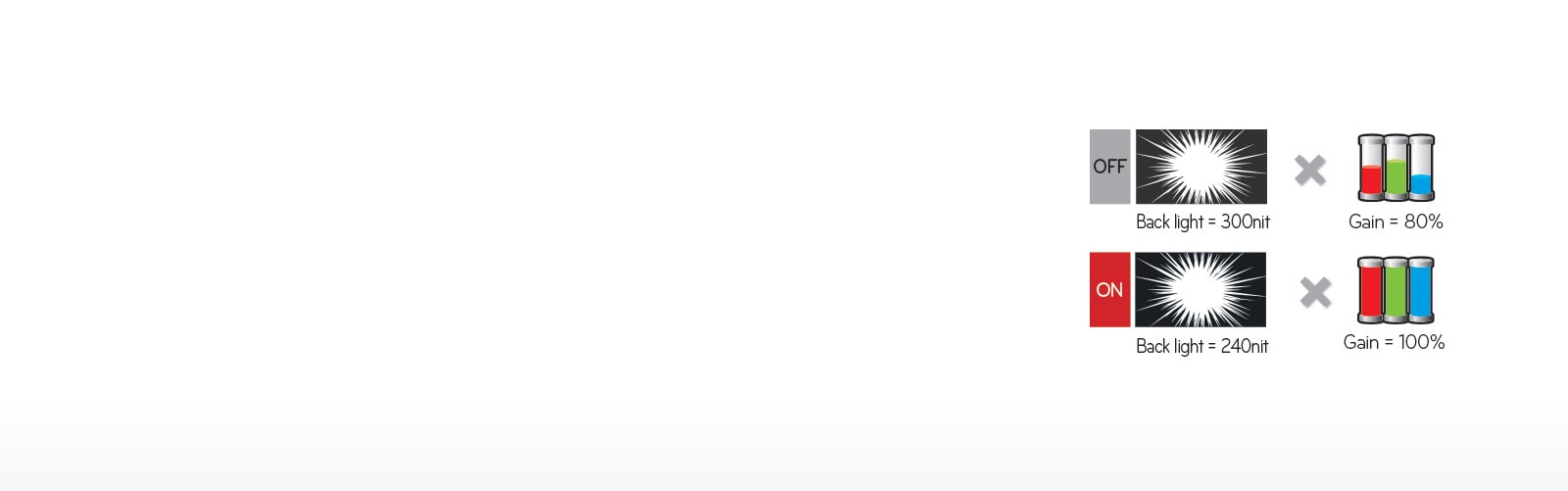

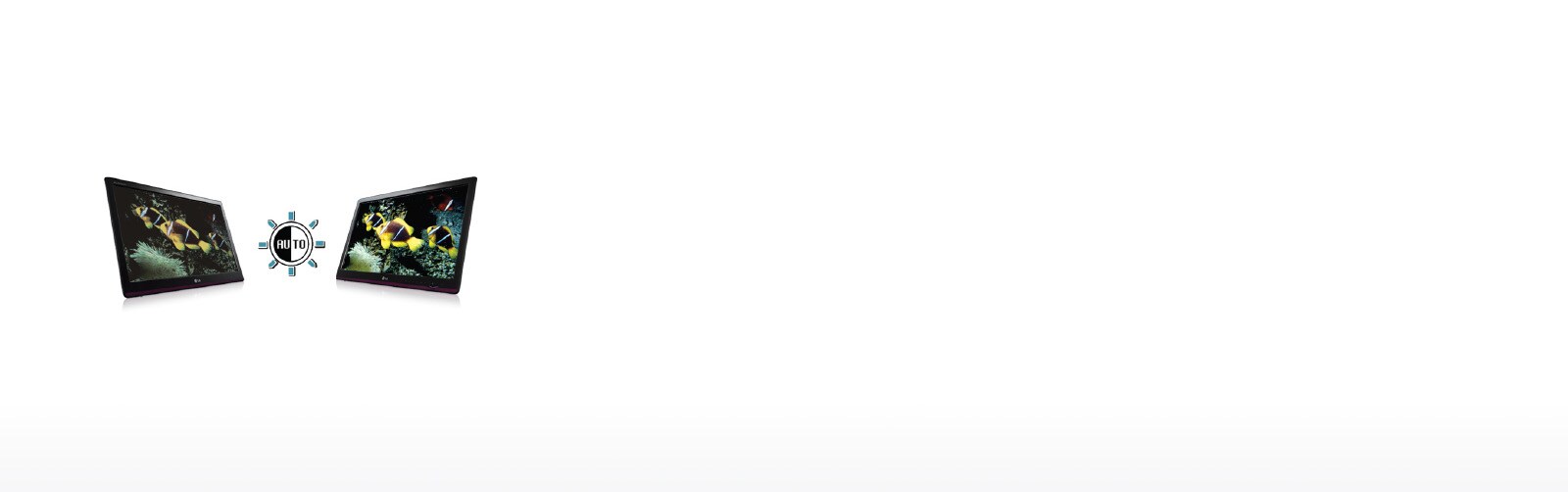

Auto Brightness Sensor

Screen brightness is automatically adjusted by its surrounding illumination level.
• For days, automatically raise the brightness level for better visibility.
• For nights, automatically lower the brightness to save energy.

Smart Energy Saving

Energy consumption reduction by approximately 30%.

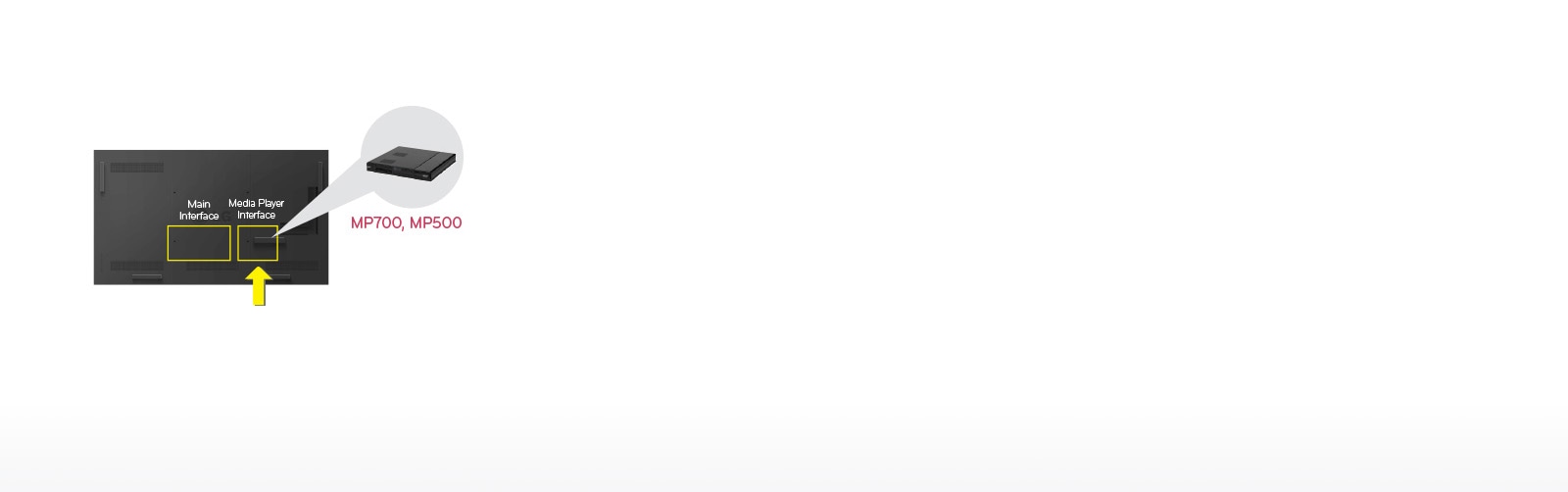

Hybrid Type Media Player Built-In Ready (MP700, MP500)

Making your signage look even slimmer and helping you maintain the system far more conveniently.

Eco-Friendly

• Environmental Regulation : EPA, ERP
• No Harmful Material : RoHS
• CO2 Reduction

Panel
Screen Size84"
Resolution3,840 x 2,160 (UHD)
Brightness350cd/m²
Connectivity - Intput
HDMIYes (2)
DPYes (1)
DVI-DYes (1)
Analog (RGB)Yes (1)
Analog (Composite)Yes (1)
AudioRGB/DVI-D/AV
External Control (RS232C IN)Yes (1)
External Control (RJ45)Yes (1)
External Control (IR)Yes (1, Internal)
USBUSB 2.0 x 2
Connectivity - Output
DVI-DYes (1)
Analog (RGB)Yes (1)
Audio OutYes (1)
Externel Speaker OutYes (1, L/R)
External Control (RS232C OUT)Yes (1)
External Control (IR)Yes (1, Internal)
Physical Specification
Bezel Width27.9mm
Monitor Dimension (W x H x D)192.3cm X 110.9cm X 5.1cm (Including Handle: 10.1cm)
Weight (Head)72.8kg
VESA™ Standard Mount Interface600mm x 400mm
Media Player Compatibility
External Media player AttatchableNo
Software Compatibility
SuperSign-w liteNo
SuperSign-cYes
Accessory
BasicPower Cord, Remote Controller (include battery 2ea), CD (Manual/Elite-C/ESG), Eye Bolt (2EA), DP cable
OptionalMedia Player: MP700/MP500, SP-2100 (External Speaker), LSW630
General
RegionGlobal
