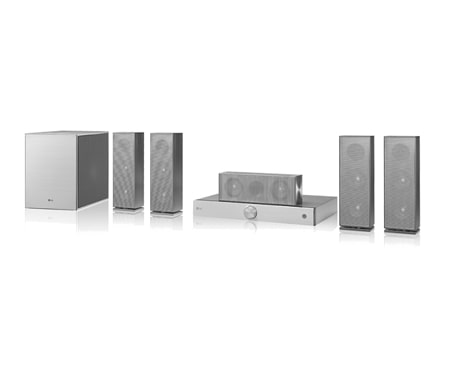

Premium design with powerful technology

  • BH8220B

  • Discontinued Product

Key Features

  • Professional Classic Design
  • Made for iPod, iPhone and iPad
  • LG Remote
  • External HDD Playback
Network
Wi-Fi Built-in Yes
Wi-Fi direct Yes
Wired Yes
DLNA-DMP Yes
DLNA-DMR Yes
LG Smart TV
Premium Contents Yes
LG Apps Yes
Physical
Size (W x H x D) mm - Center Speaker 277 x 95 x 75
Size (W x H x D) mm - Front Speaker 95 x 292 x 75
Size (W x H x D) mm - Rear Speaker 95 x 292 x 75
Size (W x H x D) mm - Subwoofer 220 x 290 x 280
Amplifier
Power Output (4Ω) Total 1100W
Power Output - Front 180Wx2
Power Output Center 180W
Power Output Surround 180Wx2
Power Output - Subwoofer 200W(Passive)
Accessories
DLNA Set-up Disc Yes
HDMI Cable Yes
Instruction Manual Yes
FM Antenna Yes
RCA Code(Video), Yellow, 1P Yes
Remote Control Unit-Type SR1
Remote Control Unit-Unified Yes
Remote Control Unit-Battery(Size) AAA x 2
Remote Control Unit Yes
Speaker Cable Yes(6 EA)
Warranty Card Yes
In & Out
Front-Display FLD
Front-FL Dimmer Yes
Front-USB 1
Front-Audio In Yes
R/Panel-Video Out-Composit Yes
R/Panel-Audio Input-Audio L/R Yes
R/Panel-Audio Input-Optical 1
R/Panel-HDMI-Out 1
R/Panel-HDMI-Input 2
R/Panel-Radio Antenna-FM Yes
R/Panel-Speaker Terminal-Composing of channel 5.1Ch
R/Panel-Speaker Terminal-Terminal Type Push in (Spring)
R/Panel-Ethernet Yes
Convenience
All-in-One Search-CP Yes
A/V Sync Delay(Audio Delay) Yes
Bluetooth (Rx / Tx) Yes / No
Booting-Time Yes
Dimmer Yes
Dynamic Volume Yes
External HDD Playback Yes
Firmware update by network Yes
Made for iPod, iPhone, iPad vis 1 Yes
Mute Yes
Simplink Yes
Sleep Yes
Smart Share 1.0 Yes
Speaker Level Trim Yes
Test Tone Yes
Booting-Instant open (disc out) Yes
Thumbnail Movie/Photo No / Yes
Dynamic Range Control-On/Off Yes
Smart phone remote control support Yes
USB Recording(CD only) Yes
Volume on TV Yes
BD Playback
MHP-Like Interactivity Yes
Simultaneous Playback of HD & SD Video Drip Yes
Mixed Presentation of Dual Audio Yes
BD ROM profile 5.0 profile
Still Picture PNG, JPEG, GIF
Disc & AV Format
BD-ROM Yes
BD-R Yes
BD-RE Yes
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes
DVD+R Yes
DVD+RW(Video mode) Yes
Audio CD Yes
DTS-CD Yes
CD-R/CD-RW Yes
MPEG2 Yes
MPEG4 AVC (H.264) Yes
SMPTE VC1 (VC-9) Yes
DivX Yes
DivX HD Yes
MKV Yes
AVCHD Yes
M4V Yes
RMVB Yes
FLV Yes
WMV Yes
3GP Yes
LPCM Yes
Dolby Digital Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio Yes
MPEG 1/2 L2 Yes
MP3 Yes
WMA Yes
AAC Yes
FLAC Yes
Graphics/Subtitle Format 2bit/8bit Sub-picture/Text-based Subtitle
Video DAC 148MHZ/12bit
NTSC/PAL Hz 60Hz / 50Hz
VBI(WSS/CGMS-A/Closed ) Yes
NTSC⇔PAL Conversion Yes
HDMI 1.4 Yes
ARC Yes
Deep Colour (HDMI1.3) Yes
xvYCC Yes
Last Scene memory Yes
Cinema zoom Yes
Video Enhancement Yes
DVD / CD Playback
1080p Upscaling Yes
Screen Saver Yes
Auto Power Off Yes
Parental Lock Yes
Initial logo Yes
Fast Forward BD, DVD(-VR), CD-DA, MP3/WMA Yes
Fast Back BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forword Slow BD, DVD(-VR) Yes
Pause BD, DVD(-VR), CD-DA, MP3/WMA Yes
Forward Step BD, DVD(-VR) Yes
Search Title/Track (BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Search Chapter (BD, DVD(-VR)) Yes
Search Time DVD(-VR) Yes
Repeat Play Title/Track(BD, DVD(-VR), CD-DA, MP3/WMA) Yes
Repeat Play A-B(BD, DVD(-VR)) Yes
Resume Stop DVD(-VR) Yes
Play Mode Random(CD-DA, MP3/WMA) Yes
Marker Play (CD-DA, MP3/WMA) Yes
Functions
3D Blu-ray Play back Yes
DVD Playback Yes
Home Theatre Yes
Smart TV Apps Yes
USB Playback Yes
Wifi Yes
Home Menu
Home Menu Yes
MainSet
Front & Rear cabinet (tray) Yes
Power
Power Consumption TBD
Power Off Consumption 0.5W ↓
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Band FM
Preset Memory 50 Station
Clear Yes
Speaker
Model Name(front) S82B1-S
Front - SPL 83dB
Front - System Bass Reflex
Front - Tweeter Unit 20mm Silk Dome
Front - Woofer Unit 3" Aramid Fiber
Front - Impedance
Front - Magnetic Shielding Shielded Type
SPL (Rear) 83
System (Rear) Bass Reflex
Tweeter Unit (Rear) 20mm Silk Dome
Woofer Unit (Rear) 3" Aramid Fiber
Impedance (Rear)
Magnetic Shielding (Rear) Shielded Type
SPL (Center) 83
System (Center) Bass Reflex
Tweeter Unit (Center) 20mm Silk Dome
Woofer Unit (Center) 3" Aramid Fiber
Impedance (Center)
Subwoofer - System Bass Reflex
Subwoofer - Woofer Unit 7" Cone
Subwoofer - Impedance
