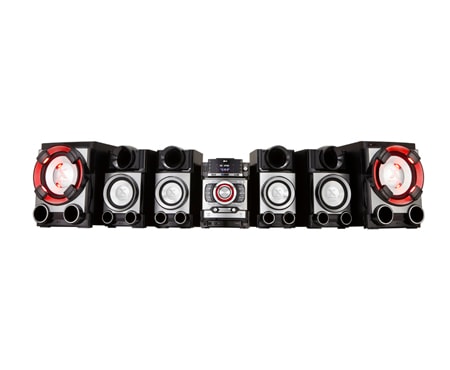

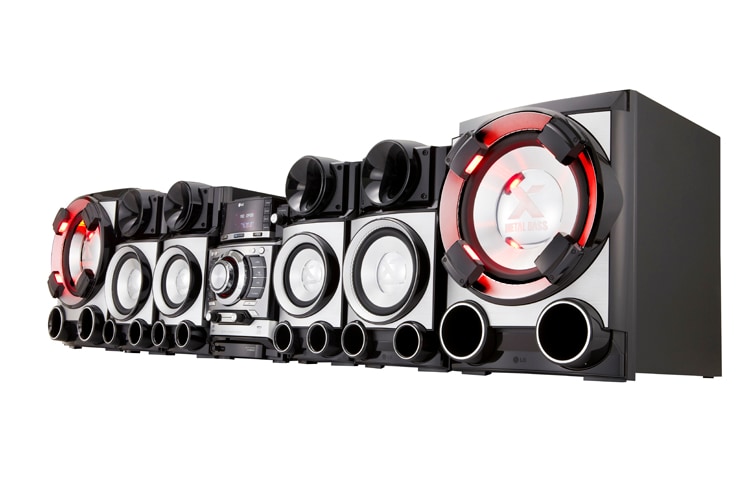

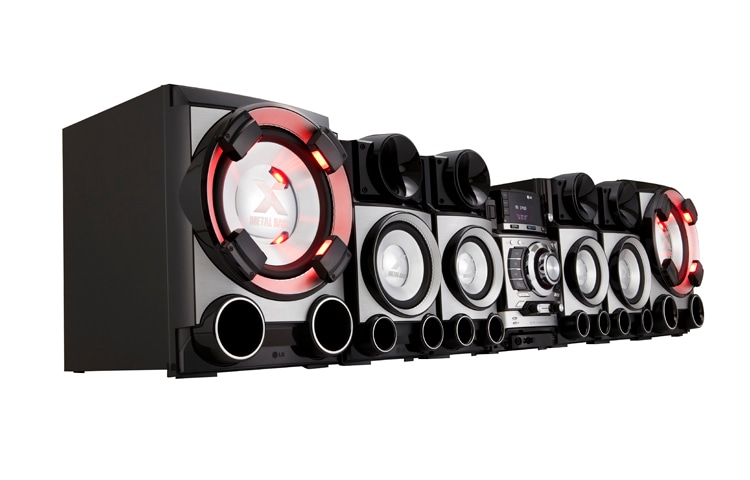

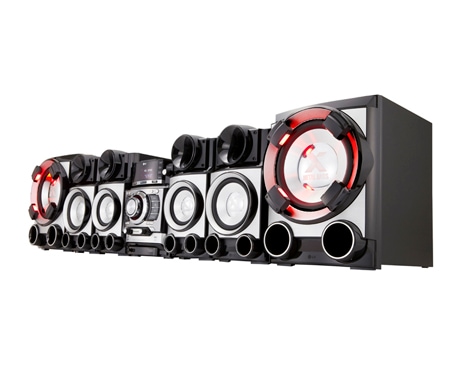

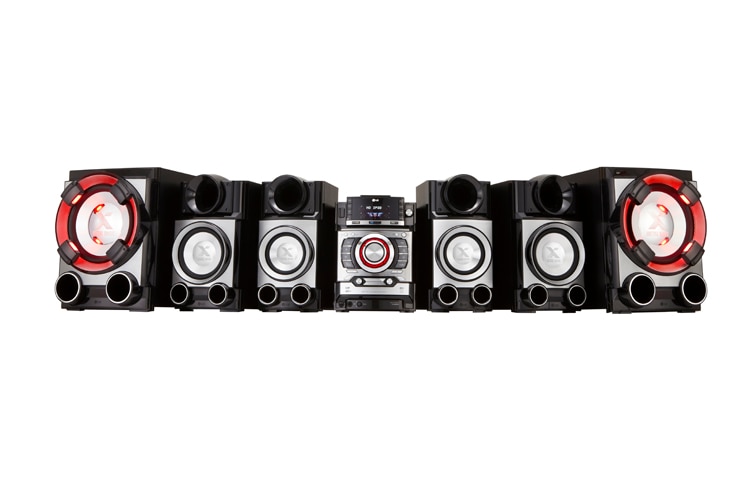

  • CM9520

  • Discontinued Product

Key Features

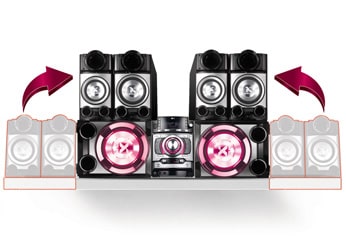

  • Stackable Speaker System
  • X-lighting speaker
  • Latin Beatbox
Afro Hip-hop Yes
Auto EQ Yes
Arabic Yes

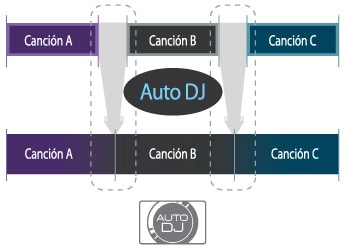

Auto DJ Yes
Bass Blast Yes
Cluster2 EQ Yes
Classic Yes
EQ By-Pass Yes
Jazz Yes
Loudness Yes
MP3 Optimizer Yes
Natural EQ Yes
Pop Yes
Rock Yes
Cumbia Yes
Salsa Yes
User EQ Yes
Samba Yes
Persian Yes
Electronic Yes
Hiphop Yes
Merengue Yes
Regueton Yes
Carton Size (W x H x D) mm Main+Front :958x 544 x 464 WF+Rear : 1246x 575 x 618
Gross Weight (Kg) 29.0(Main+Front box) 47.0(Woofer+Rear box)
Net Weight (Kg) - Main 6.2
Net Weight (Kg) - Front Speaker 8.8
Net Weight Rear Speaker (Kg) 5.7
Net Weight (Kg) - Subwoofer 15.3
Size (W x H x D) mm - Main 285 x 395 x 381
Size (W x H x D) mm - Front Speaker 264 x 478 x 332
Size (W x H x D) mm - Rear Speaker 228 x 473 x 292
Size (W x H x D) mm - Subwoofer 375 x 502 x 478
Aux In/Out Yes/No
Function CD/DVD Yes/No
Ipod/Iphone Yes (Top)
Portable In Yes (Front)
USB Host Yes (Front) x 2
Tuner Yes
Audio Control
Mute Yes
Display Type 3 layers
Display Demo Yes
Dimmer Yes
Display Mode Yes
Display Level Meter Yes
DVD/CD/USB Player/Bluetooth
Loading Type 3-CD Tray
Disc 3
Playable DISC Format/ CD Yes

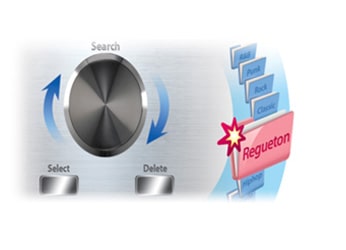

File/Folder search with music playing Yes
File Delet Yes
Repeat 1/Disc/All Yes/Yes/Yes
Program Play (Memory) Yes (20)
Program Clear Yes
Random CD Yes
Random MP3 Yes
USB Recording Yes
Dual USB - USB to USB recording Yes
MP3P battery charging by USB Yes
MP3/WMA ID3 Tag Display Yes
Audio in - Portable in Yes (Front)
Audio in - USB 1 Yes (Front)
Audio in - USB 2 Yes (Front)
iPod/Docking type Yes (Top)
System Connection Yes
Woofer System (select) Yes
Door Locky Key (disc) Yes
Karaoke Function - Mic Jack 1EA (Φ6.3)
Karaoke Function - Mic Volume 1
Timer Yes
Audio In - Aux Yes(Rear)
Works with iPhone Yes
Key Features
Mini HiFi Yes
Power Consumption 190W
Power Consumption at stand by 1W↓
Power Requirement/ Wide 110/220V
Power Requirement/ Narrow (50/60Hz) 110 or 220/230V 50/60Hz
Remote Commander & Accessory
Battery AAAX2
Remote Model name MA2
FM Antenna FM 75Ω ANT
AM Loop Antenna Yes
Instruction Manual Yes
Number of Key 40 Key
Region MEA
Preset Down Yes
Preset Station Ran.50
Preset Memory / Erase Yes
Band FM/AM
Band / AM(MW) Yes
Band / FM Yes
Tuning Range (FM1/50 kHz, 100 kHz) 87.5 ~ 108.0 MHz
MW / 10 kHz 520~1710kHz
/ 9 kHz 522~1620 kHz
Preset Up Yes
Clock/Timer/Sleep/Set Yes
