LG IPS Monitor

  • 23EA73LM

  • Discontinued Product

Key Features

  • LIFELIKE COLOR

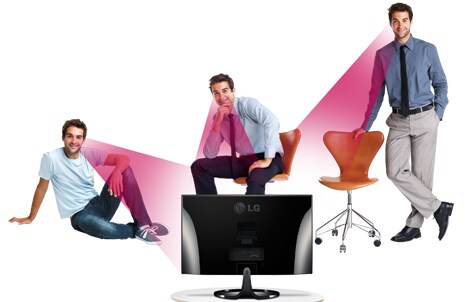

  • WIDE VIEWING ANGLE

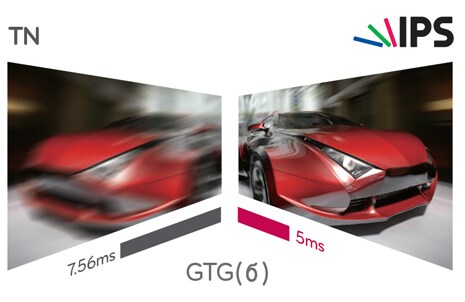

  • SMOOTH COLOR CHANGE
Accessory
D-Sub Yes
Others cable management

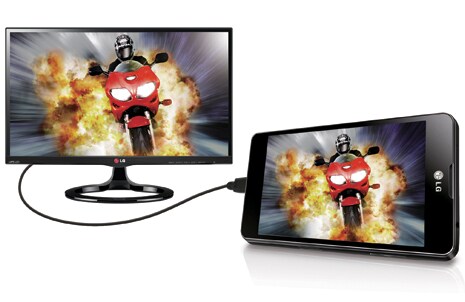

MHL Yes
Power Cord Option
Control Key
Key Number (Power Key Included) 6
Key Type Touch
Key Location Front(bottom)
LED Color(Power save mode) Blinking
LED Color(On mode) Red
Color
Base BLACK Glossy (Recessed and Bottom area : Texture)
B/Cover BLACK Glossy+Texture(Bottom)
Front Side:BLACK Glossy, Front deco : Hair Line Step : Texture
Stand BLACK Glossy (Recessed area : Texture)
Features
Aspect Ratio 16:9
Brightness 250
Color Depth 16.7M colors
Color Gamut (CIE1931) 72%
Contrast Ratio(Original) 1000:1
(DFC) 10M:1
(GTG) 5ms
Lamp Q'ty 3
Inverter(with/Without) Without
Pixel Pitch(mm) 0.2652 X 0.2652
Panel Type IPS
Resolution 1920*1080
Size (Inch) 23"
Surface Treatment(Glare/Non Glare) Anti-Glare,3H
Viewing Angle (CR≥10) 178/178
Freqeuncy
Analog / H-Frequency 30~83kHz
Analog / V-Frequency 56~75Hz
Digital / H-Frequency 30~83kHz
Digital / V-Frequency 56~61Hz
Jack Input / Output Jack
Audio Input / PC Audio In Yes
Audio Output / Headphone Out Yes
Audio Output /Jack Location Back
Signal Input / D-Sub Yes
Signal Input / Jack Location Back
Signal Input / HDMI 2 port (HDMI 1, HDMI2/MHL)
OSD
Number of Language 17
Language / Country English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi
Power
DC Off (Max) 0.3W Under
Input 100~240V
Input / Output / Type Adapter
Normal On (Type) 33W
Power Save/Sleep Mode(Max) 0.3W Under(at RGB/DVI PC)
Resolution
PC / Analog 1920*1080
PC / Digital 1920*1080
Video / HDMI 1920*1080
Size / Weight
Dimension(W*D*H)(mm) / Set (with Stand) 53.3*17.3*39.2
Dimension(W*D*H)(mm) / Set (without Stand) 53.3*5.3*32
Dimension(W*D*H)(mm) / Box 601*395*130
Dimension(W*D*H)(mm) / Wall Mount Yes -VESA Compatible (7.5cmx7.5cm) Only with respect to screw mounting interface dimension and mounting screw specifications
Stuffing / Individual(20ft/40ft/40ft HC) 936/1962/2180
Stuffing / Pallet(20ft/40ft/40ft HC) 720/1600/1800
Weight(Kg) / Set (with Stand) 3.5kg
Weight(Kg) / Set (without Stand) 3.0 kg
Weight(Kg) / Box 5.0 kg
Special Feature
DDC/CI Yes
HDCP Yes
Intelligent Auto (Auto Resolution) Yes
My Key Setting Yes
Others1 Factory Calibration
Others2 Dual Package

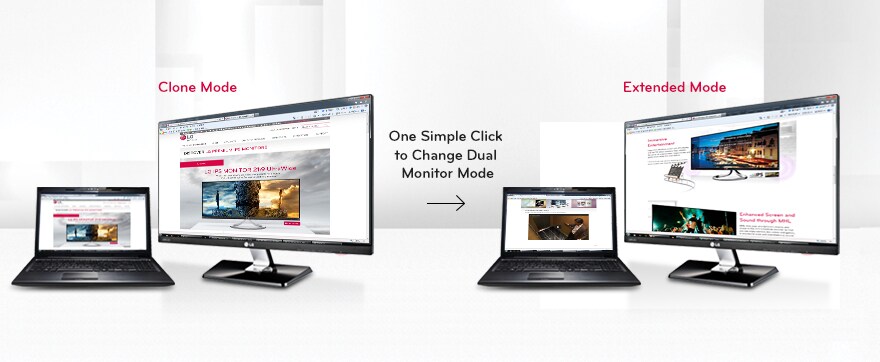

Others3 Dual Smart Solution
PC Yes
Picture Mode Yes
Plug & Play Yes
Sound Yes

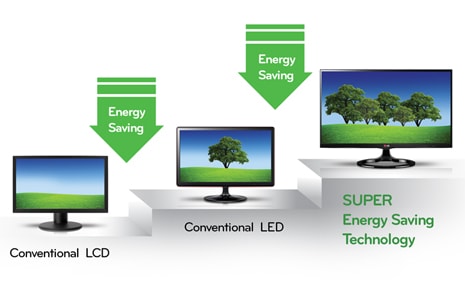

Super Energy Saving Yes
Video Yes
Speaker
Audio output 5Wx2
Type Invisible Speaker
Stand
Base Detchable Detachable
Tilt (Angle) Yes / -5º (+/-3º)(front) ~ 20º (+/-3º)(rear)
Standard
EPA6.0 Yes
FCC-B, CE Yes
Microsoft Logo Windows8
TUV-GS TUV-Type
UL (cUL) Yes
VESA Mount Yes
Wrap
Box Printing Type FLEXO
Handle Yes
Packing Material EPS
Stand Packing Type Face down
Stacking Type EPS
