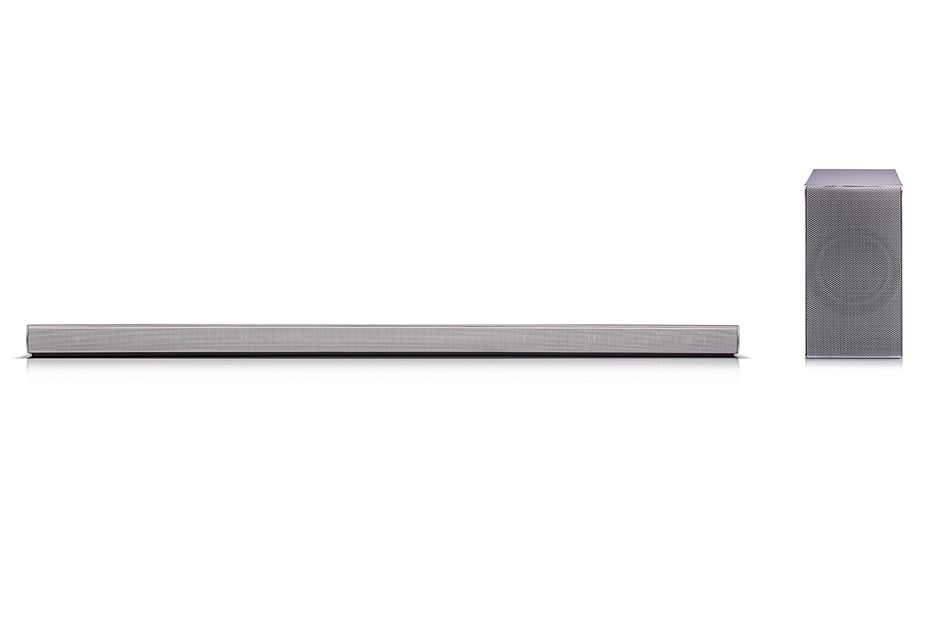

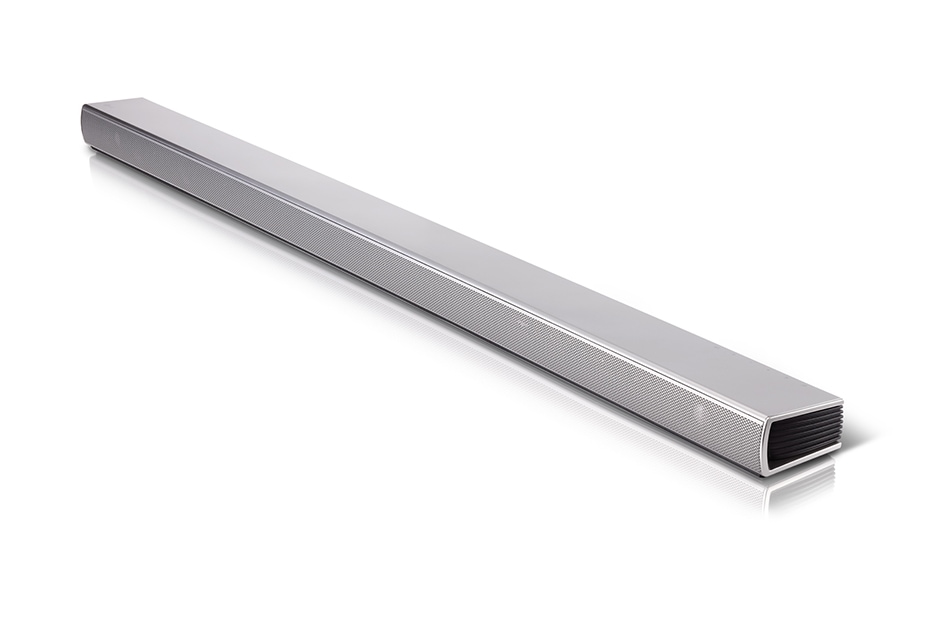

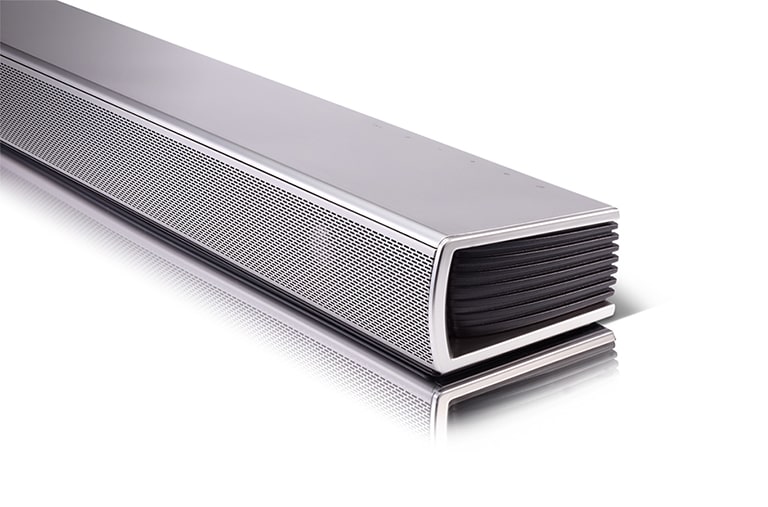

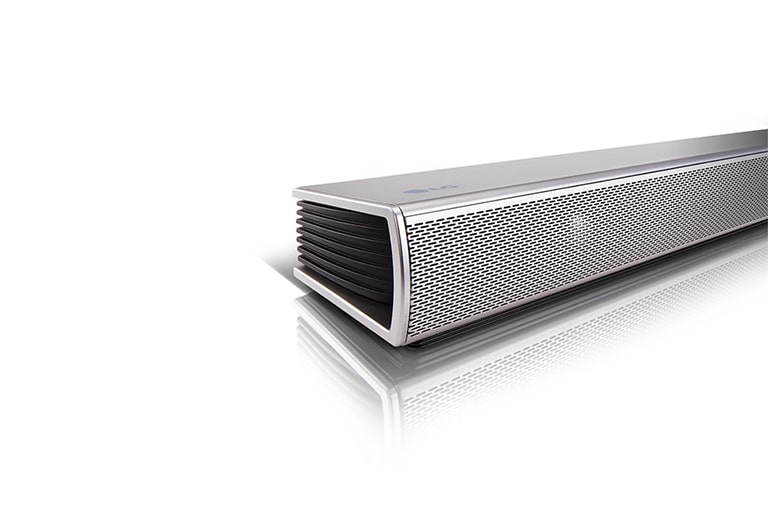

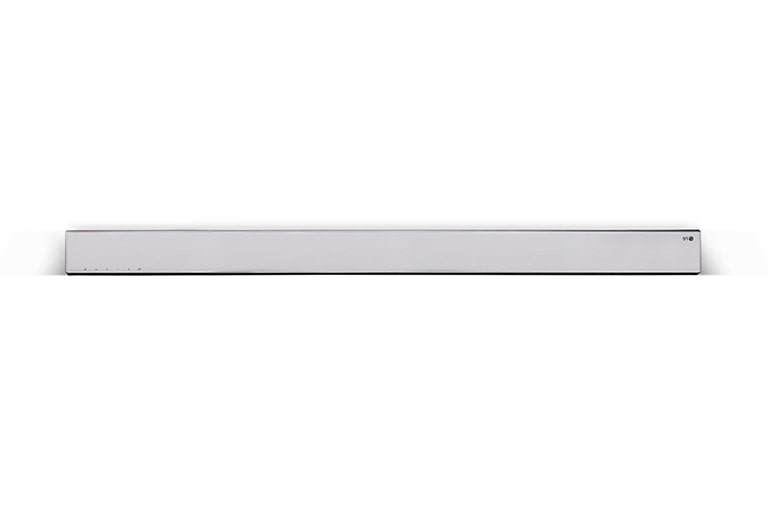

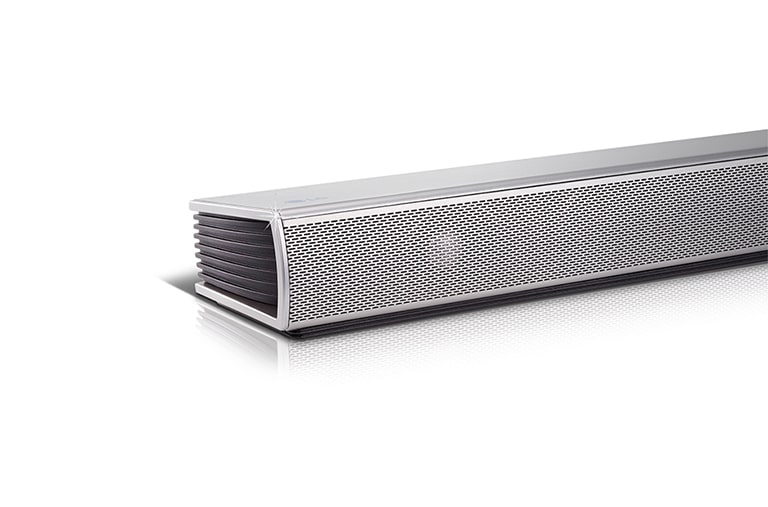

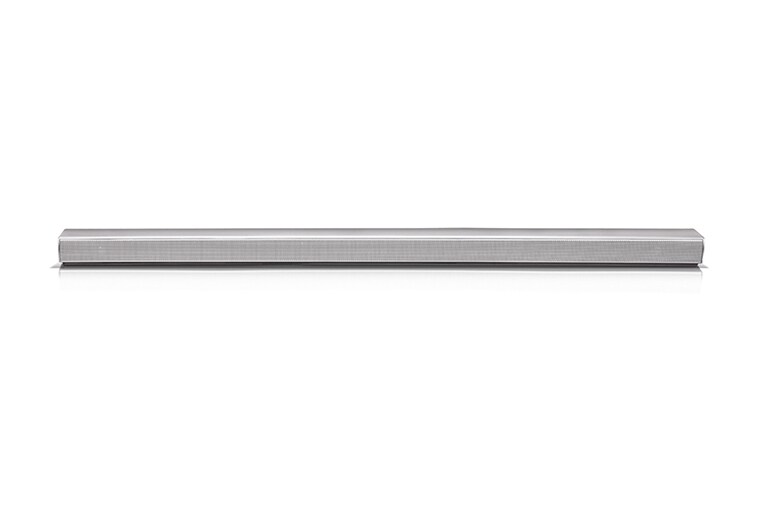

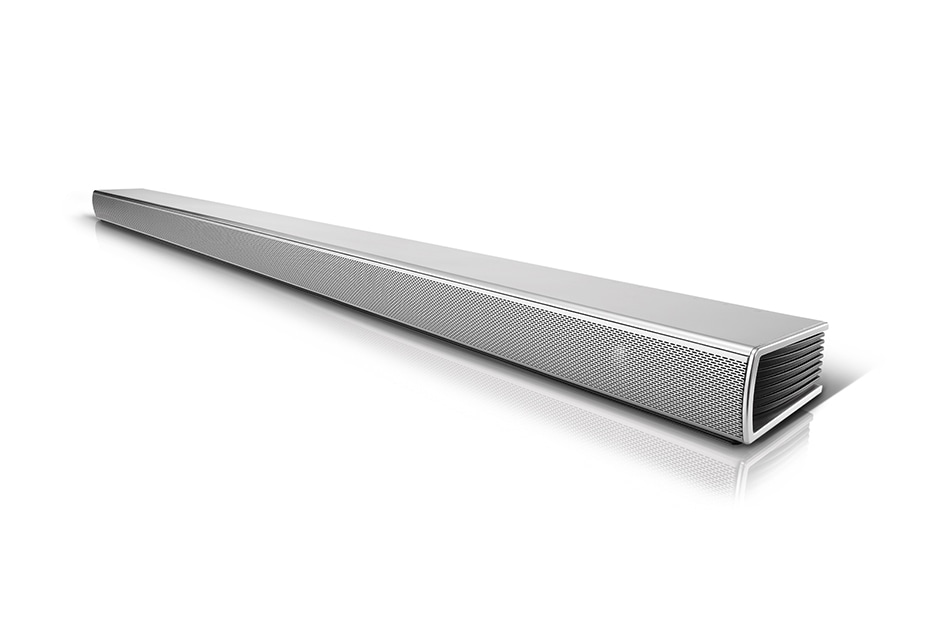

LG Sound Bar SH8

  • SH8

  • Discontinued Product

Key Features

  • Adaptive Sound Control

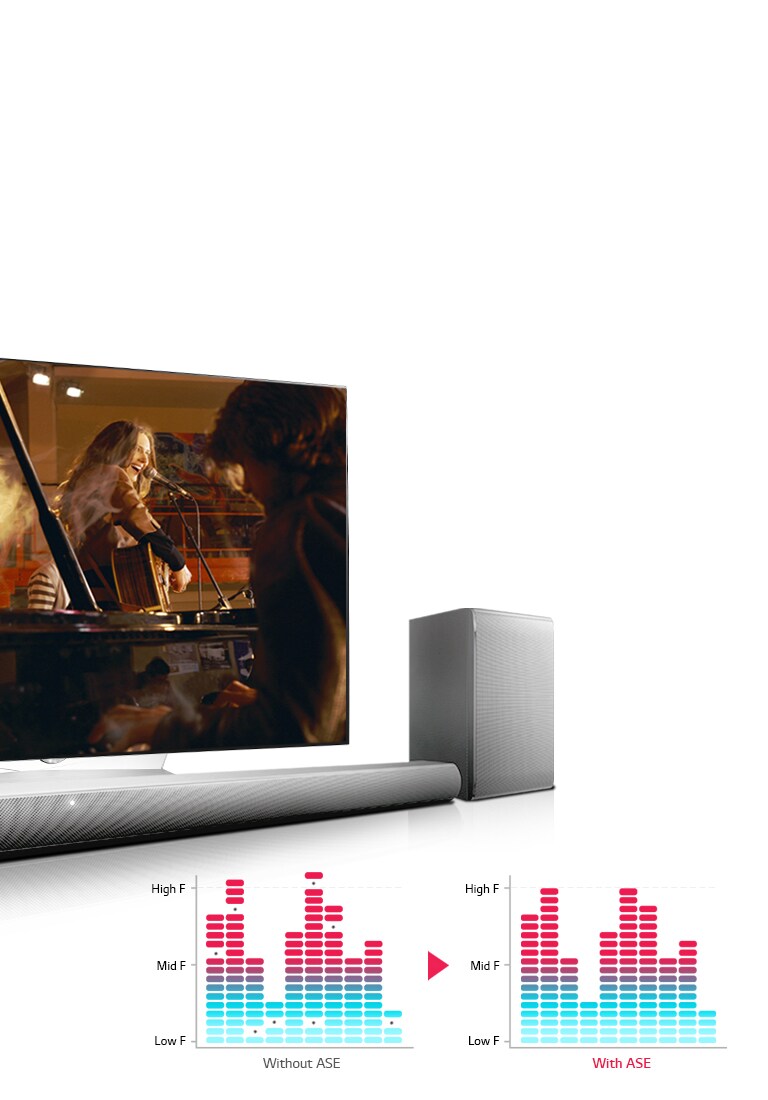

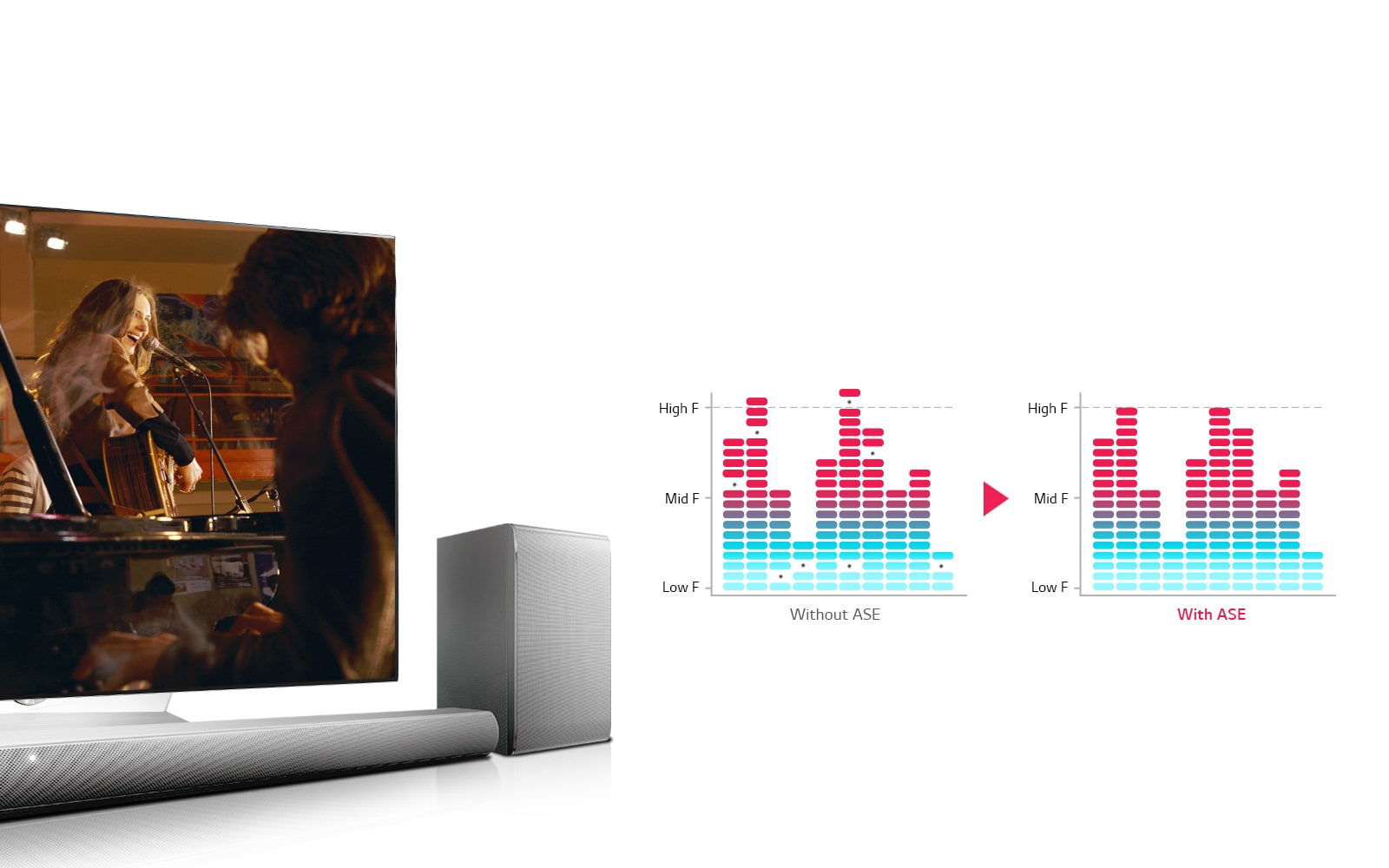

  • Auto Sound Engine
  • TV Matching Design
  • Google Cast™

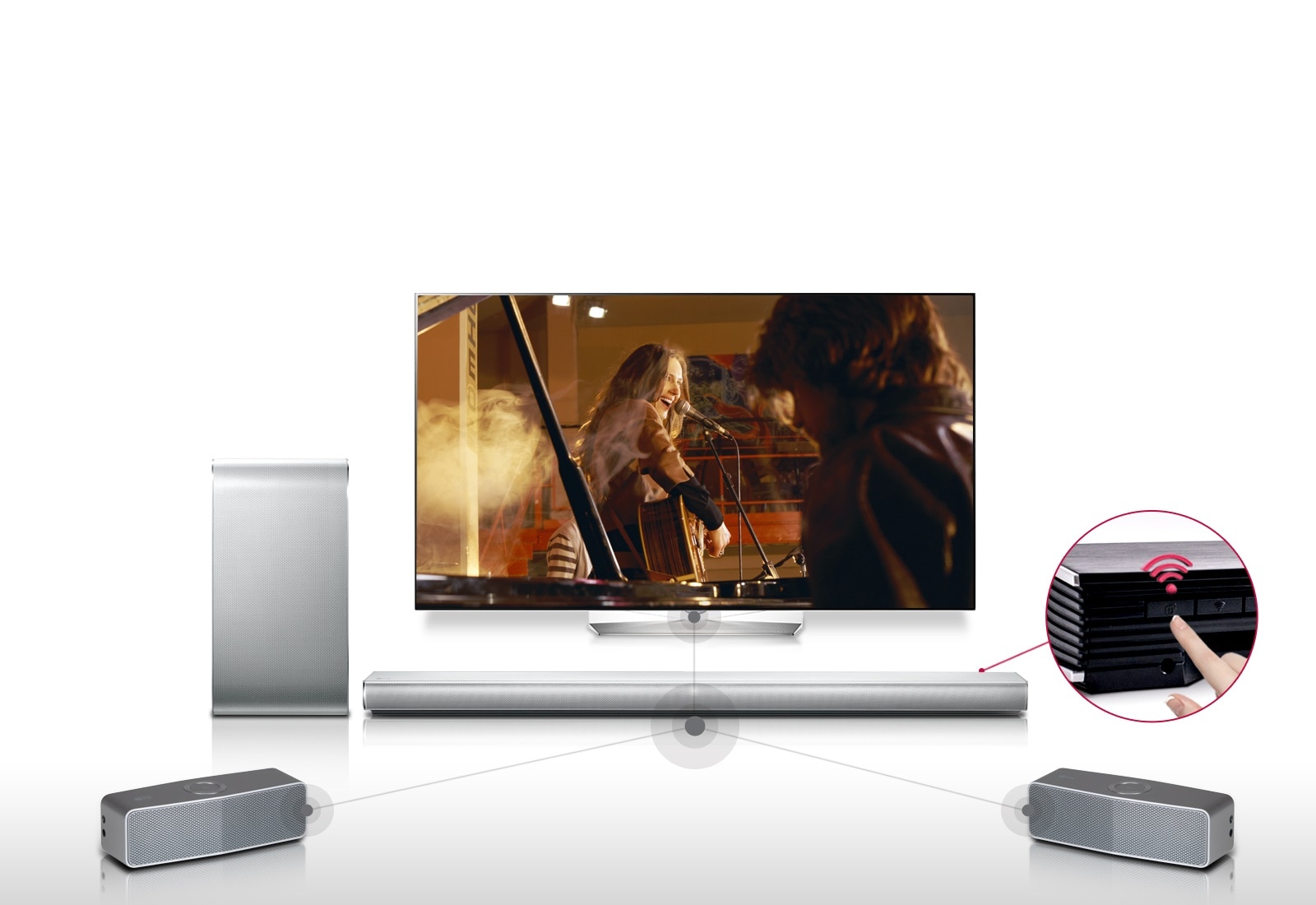

  • Home Cinema Setup with One Button
  • Bluetooth Stand-by
Physical
Size (W x H x D) mm Main (w/o foot ) mm 1,200 x 53 x 85
Size (W x H x D) mm Main (w/o foot ) mm Matching TV size ('16 New Designed LG TV) 55 inch ↑
Size (W x H x D) mm Main (w/o foot ) mm Built-in Foot (H) mm 2mm
Size (W x H x D) mm Subwoofer 171x320x252
Material Mainset Front SECC
Material Mainset Top / Bottom ABS
Material Subwoofer Front SECC
Material Subwoofer Body Wood
Net Weight (Kg) Main 3.52Kg
Net Weight (Kg) Subwoofer 4.3kg
Carton Size (W x H x D) mm 1266 x 373 x 223
Carton Type Offset
Gross Weight (Kg) 11.28Kg
Container Q'ty 20ft 251
Container Q'ty 40ft 551
40ft (HC) 641
Channel / Output Power
Channel 4.1 ch Speaker System
Output Power (THD 10%) Total 420W
Output Power (THD 10%) Front 70W X 2
Output Power (THD 10%) Surround 40Wx2
Output Power (THD 10%) Subwoofer 200W(Wireless)
Speaker
Main SPL 82dB
Main System Closed
Main Tweeter Unit - Front Only 20mm(PPS) Dome
Main Woofer Unit 40 x 100 (Track)
Main Impedance 4ohm
Main Magnetic Shielding Non-shield

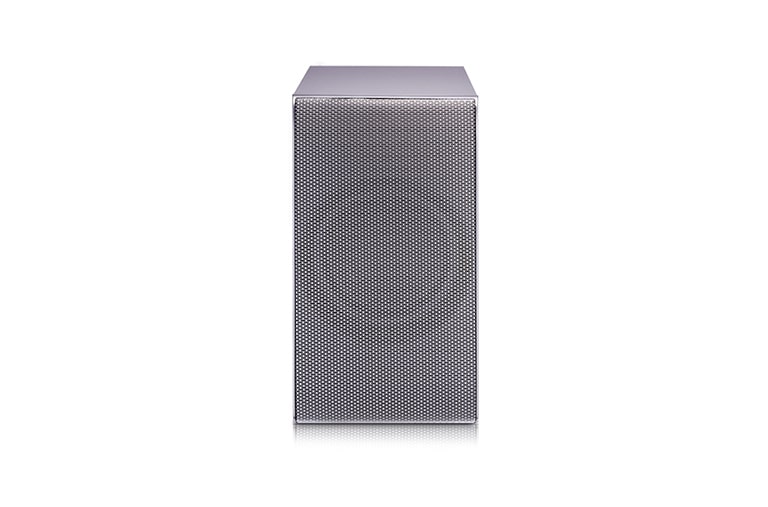

Subwoofer Model Name SPH7-W
Subwoofer SPL 85dB
Subwoofer System Bass Reflex
Subwoofer Woofer Unit 6 inch
Subwoofer Impedance 3 ohm
Subwoofer Magnetic Shielding non-Shield
Network
WiFi Band Width 2,4G / 5G Yes
Mesh network Yes
Media Server Yes

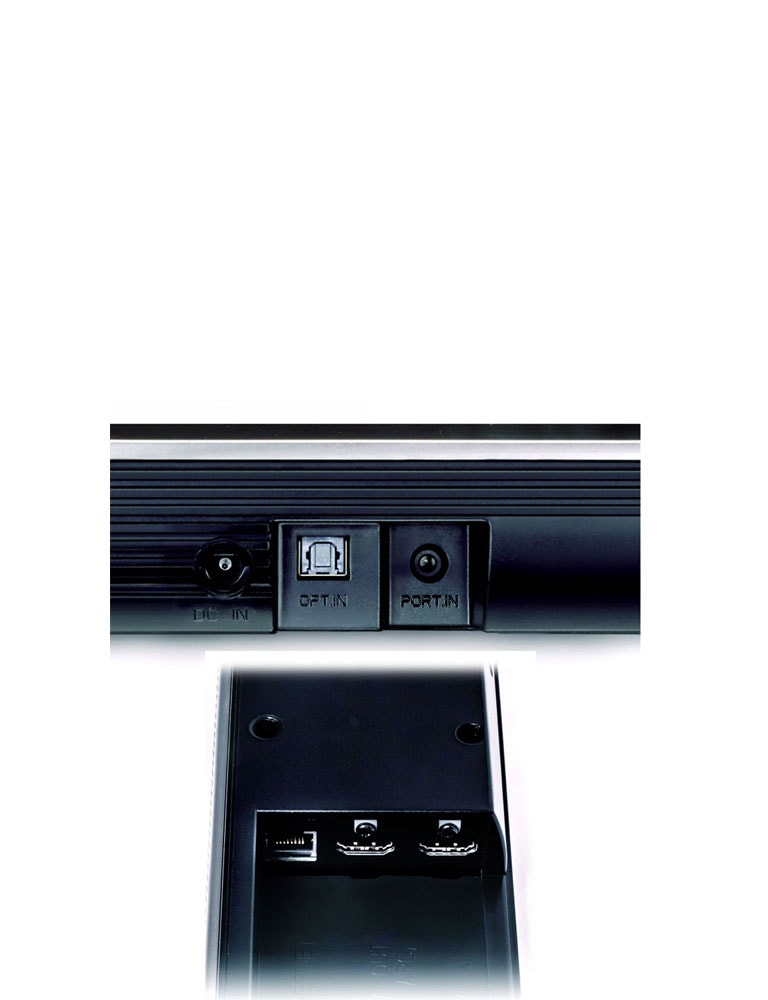

Connectivity
General Audio Input Portable In (3.5Ø) Yes
General Optical Yes(1)
HDMI 2.0 (HDCP 1.4) In / Out Yes(1) / Yes(1)
General USB Yes (Service Only)
Wireless Bluetooth (ver. 4.0) Yes
Wireless Etherner port Yes
Wireless WiFi Yes
Optional by model MIC Input Yes
Information Display
Display Type LCD (8 Char.)
LED indicator Color 7 Color w/ 1ea 3 color LED
Auto Display Off (incl. LED) Yes
Sound Mode
LG Music Flow Home Cinema Mode Yes
LG Music Flow Home Cinema Mode Channel 4.1ch
LG Music Flow Group Play Mode (one source --> multi speaker) Yes
LG Music Flow Multi Room Mode (multi source --> Multi speaker) Yes
LG Music Flow Audio Contents Flow Yes
Sound Effect ASC (Adaptvie Sound Control : Default) Yes
Sound Effect Standard Yes
Sound Effect Cinema Yes
User EQ Yes
Night Mode On/Off Yes
Auto Sound Engine Default Yes
SFX Default Yes
Dynamic Range Control On/Off Yes
Auto Volume Leveler On/Off Yes
Convenience
OS Support(Window / Mac / iOS / Android) (Yes/Yes/Yes/Yes)
Smart Phone Media Server Yes
Smart Phone / Tablet Remote App Yes
Smart Phone / Tablet Remote App Universal Search Yes
Smart Phone / Tablet Remote App Mood Station Yes
Smart Phone / Tablet Remote App Auto Music Play Yes
Smart Phone / Tablet Remote App Auto Music Play Auto Sync Yes
Smart Phone / Tablet Remote App Auto Music Play ROF Yes
EZ setup (BLE) Yes
Phone Roaming Yes
BT-Fi Yes
1 botton home cinema setup Yes
Home Chat Yes
NSU(Network Software Update) Yes

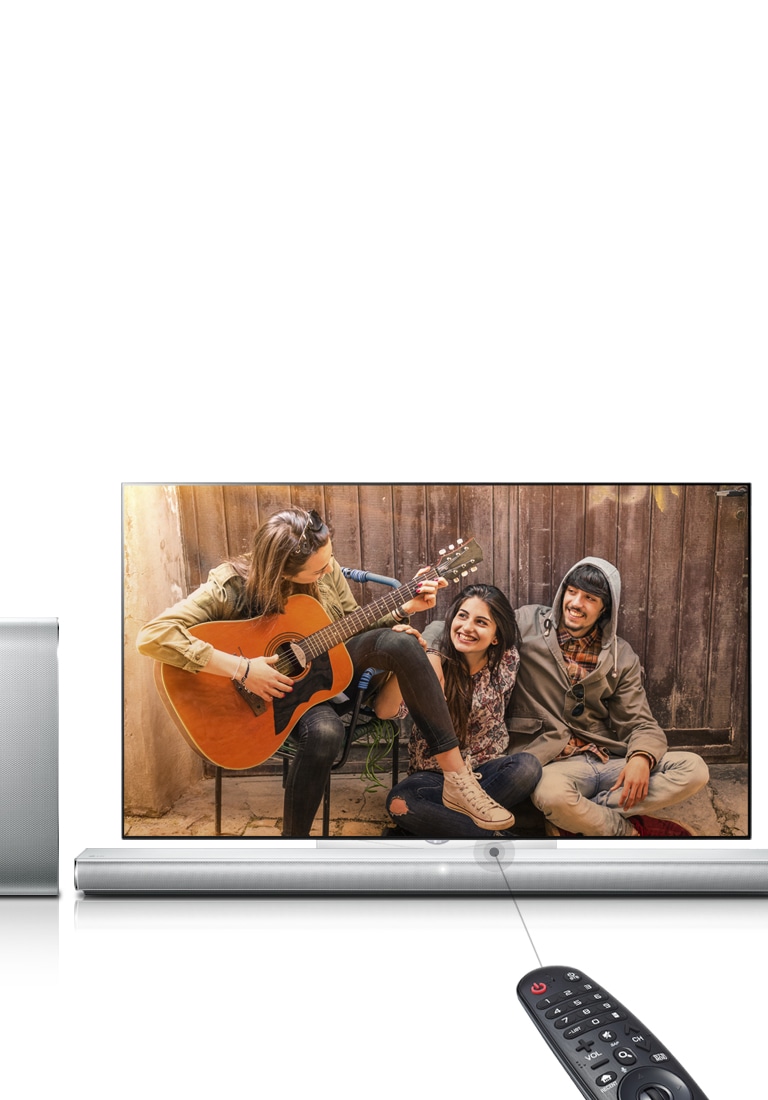

Control with your TV Remote Vol + , - , Mute Yes

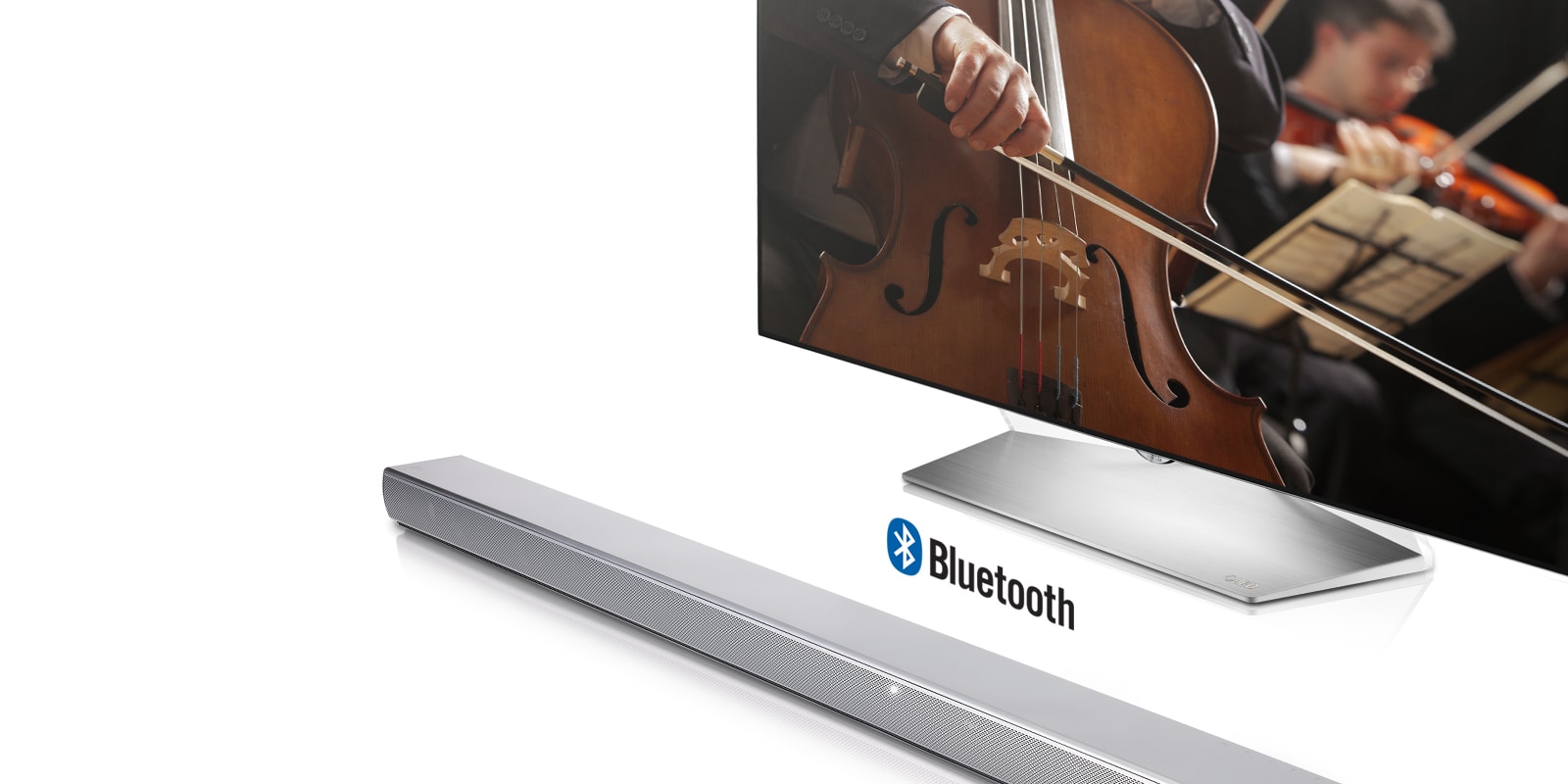

Sound Sync Bluetooth (LG TV) Yes
Sound Sync Optical Yes
Automatic Power on/off Bluetooth (LG TV) Yes
Automatic Power on/off Optical Yes
A/V Sync 0~300ms Yes
SIMPLINK Yes
3D Video Signal Pass Through Yes
Audio Return Channel (ARC) Yes
Woofer Level -15~+6dB Yes
Mute Yes
Dimmer Yes
Sleep Yes
Alram Yes
Audio Format
LPCM Yes
Dolby Digital Yes
DTS Digital Surround Yes
FLAC Up to 192kHz Yes
OGG Up to 48kHz Yes
WAV Yes
ALAC Yes
WMA Yes
MP3 Yes
AAC(MPEG4) Yes
AAC+ Yes
AIFF Yes
Audio Streaming Service
Google Cast Yes
Spotify Connect Yes
Embbeded Service Yes
Power Consumption
Main Type Adaptor (25V, 2A)
Main Power Off Consumption 0.5W ↓
Main Power Consumption 30W
Subwoofer Type SMPS 100~240V, 50/60Hz
Subwoofer Power Off Consumption 0.5W Under
Power Consumption 33W
Wireless Frequency 5GHz
Top Feature List Outside Accessory Kit
Owners Manual Web (w/ Simple Manual) Yes
Wall Mount Guide Yes
Wireless Speaker Reset Guide Yes
Open Source : No / Yes (Full / Simple) Yes (Full)
PC SW Web Yes
Remote Control Unit Model MA5
Remote Control Unit Battery(Size) AAA
Batteries 2ea
Warranty Card Yes
Optical Cable Yes
LAN Cable Yes
Wall Mount Bracket Yes
Cable Management Yes
