84WS70MS Series

  • 84WS70MS

Key Features

  • 84" Edge LED Large Screen
  • Super High Resolution 3,840 x 2,160 (Ultra HD)
  • Clear & Vivid Picture (Dynamic CR : 500,000 : 1)
  • Auto Brightness Sensor
  • Smart Energy Saving
  • Hybrid Type Media Player Built-in Ready

84" Edge LED Large Screen

Providing immersive wide viewing with high quality.

Super High Resolution 3,840 x 2,160 (Ultra HD)

By realizing the LED display with the large screen size, super high resolution becomes possible to offer high realistic sensation and immersiveness.

Clear & Vivid Picture
(Dynamic CR : 500,000 : 1)

Local Dimming Technology allows brightness to be controlled in block units. This ensures brightness and clarity providing high picture quality. As a bonus, power consumption is reduced.

Auto Brightness Sensor

Screen brightness is automatically adjusted by its surrounding illumination level.
• For days, automatically raise the brightness level for better visibility.
• For nights, automatically lower the brightness to save energy.

Smart Energy Saving

Energy consumption reduction by approximately 30%.

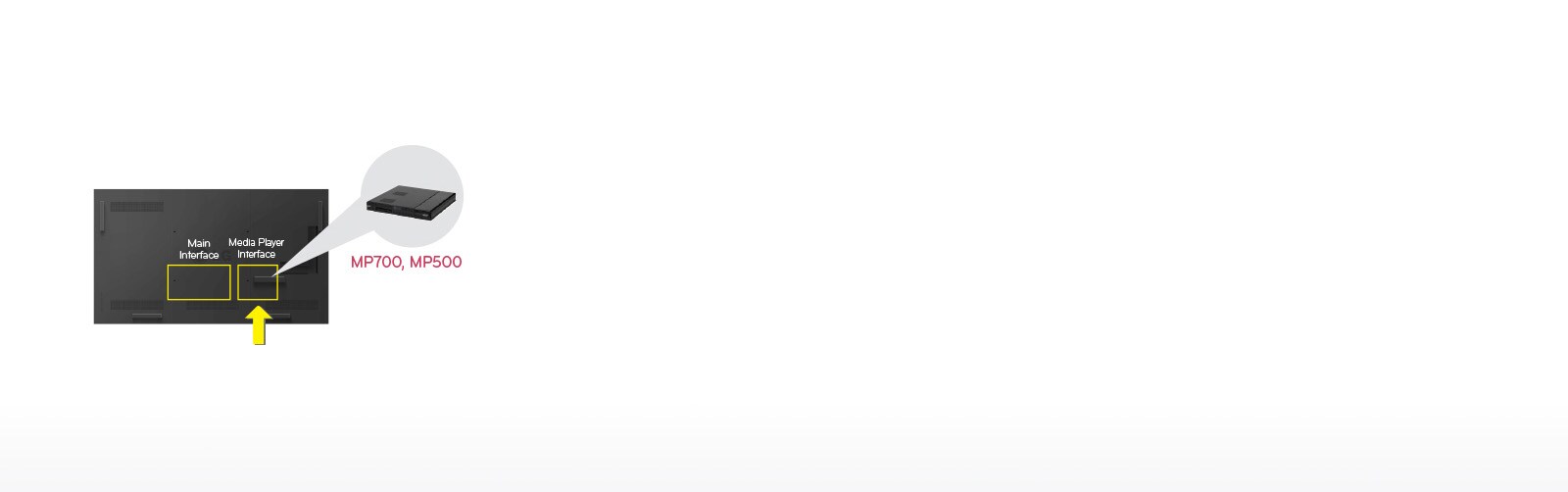

Hybrid Type Media Player Built-In Ready (MP700, MP500)

Making your signage look even slimmer and helping you maintain the system far more conveniently.

Eco-Friendly

• Environmental Regulation : EPA, ERP
• No Harmful Material : RoHS
• CO2 Reduction

Landscape & Portrait

Flexible usage with landscape or portrait display according to the display environment.

LG C-Display
Customer App

Download and check latest product information along with reference, video wall configurator, manual and contact information.

Panel
Screen Size 84"
Resolution 3,840 x 2,160 (UHD)
Brightness 500cd/m²
Connectivity - Intput
HDMI Yes (2)
DP Yes (1)
DVI-D Yes (1)
Analog (RGB) Yes (1)
Analog (Composite) Yes (1)
Audio RGB/DVI-D/AV
External Control (RS232C IN) Yes (1)
External Control (RJ45) Yes (1)
External Control (IR) Yes (1, Internal)
USB USB 2.0 x 2
Connectivity - Output
DVI-D Yes (1)
Analog (RGB) Yes (1)
Audio Out Yes (1)
Externel Speaker Out Yes (1, L/R)
External Control (RS232C OUT) Yes (1)
External Control (IR) Yes (1)
Physical Specification
Bezel Width 27.9mm
Monitor Dimension (W x H x D) 192.3cm X 110.9cm X 5.1cm (Including Handle: 10.1cm)
Weight (Head) 72.9kg
VESA™ Standard Mount Interface 600mm x 400mm
Media Player Compatibility
External Media player Attatchable No
Software Compatibility
SuperSign-w lite No
SuperSign-c Yes
Accessory
Basic Power Cord, Remote Controller (include battery 2ea), CD (Manual/Elite-C/ESG), Eye Bolt (2EA), DP cable
Optional Media Player: MP700/MP500, SP-2100 (External Speaker), LSW630
General
Region Global
