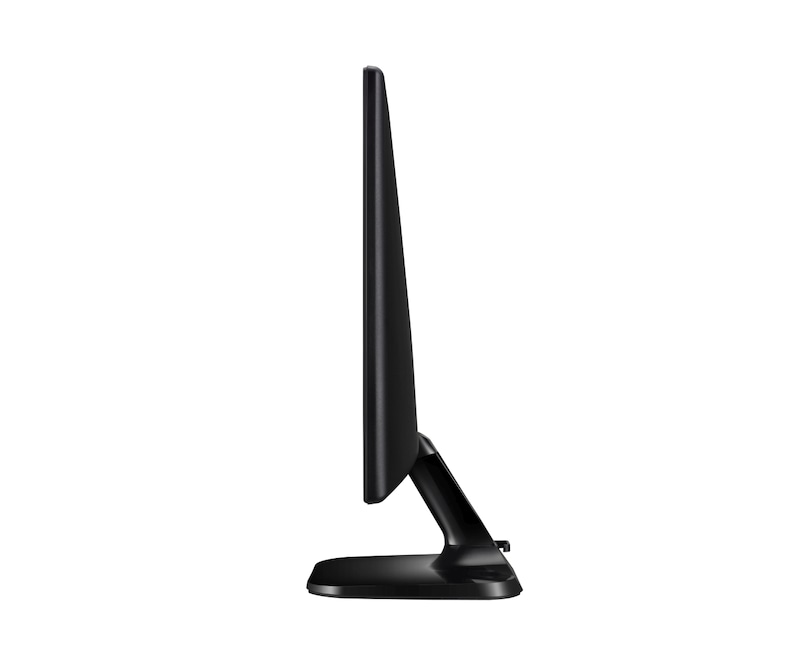

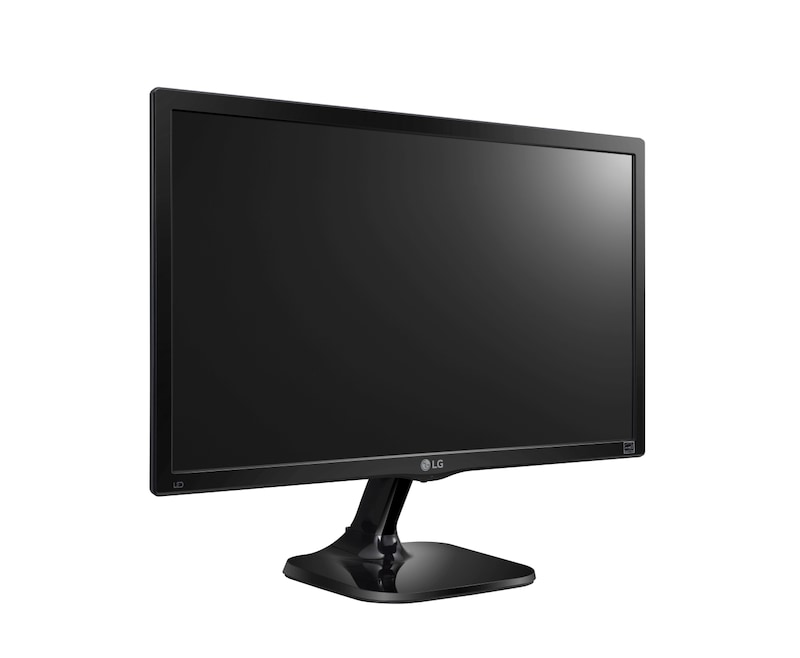

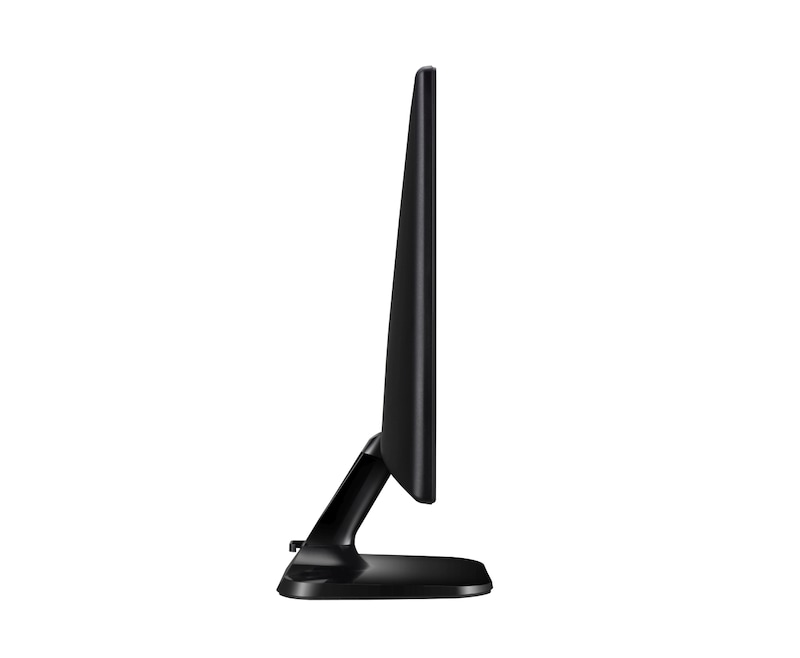

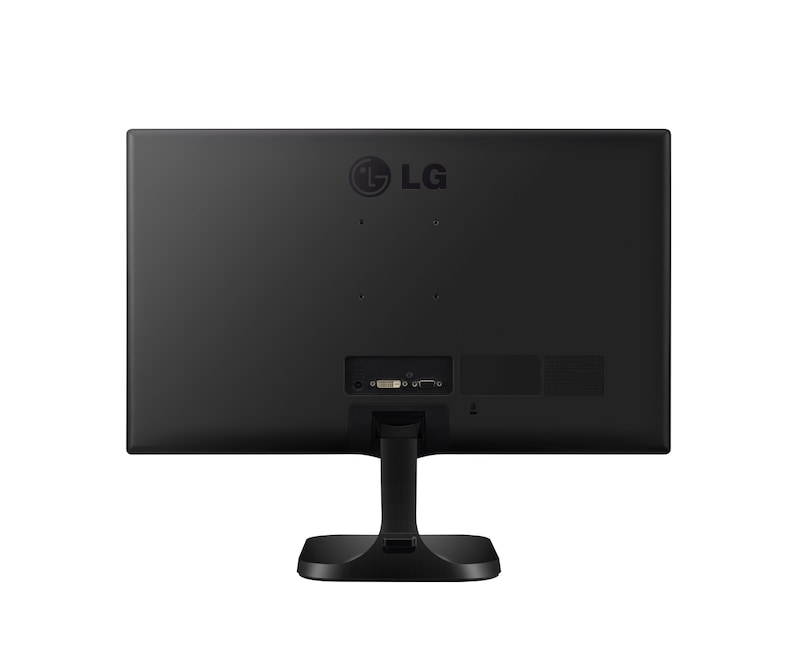

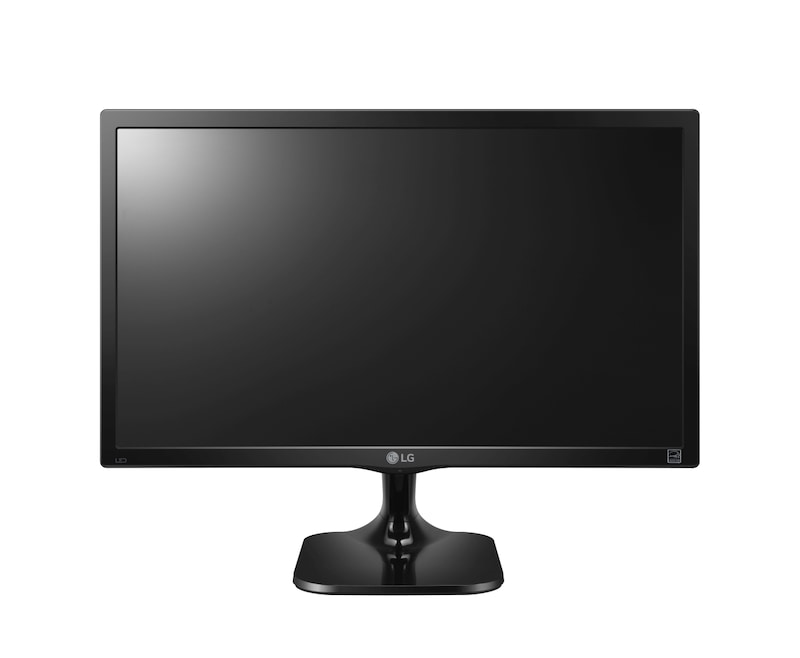

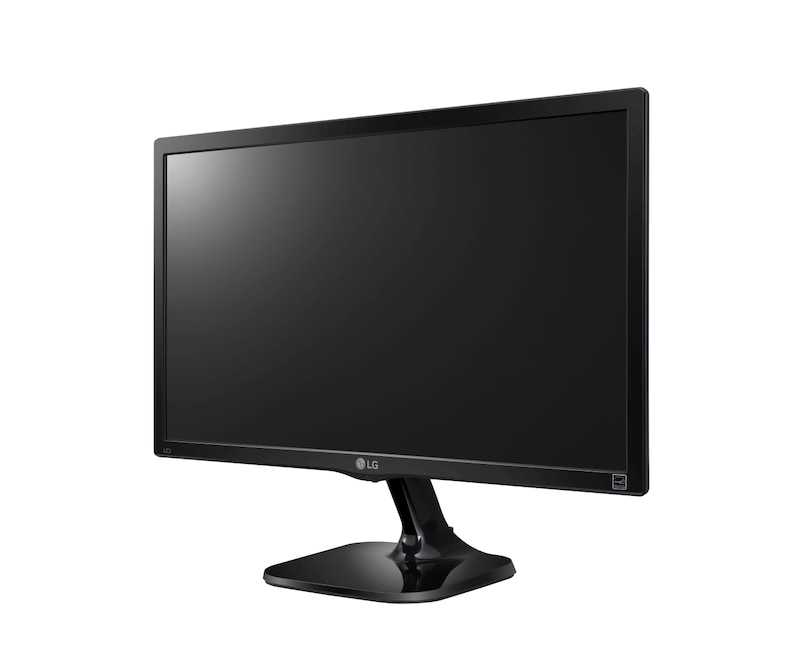

23" TN Panel Monitor

  • 23M47VQ

  • Discontinued Product

Key Features

  • 23" TN Panel
  • Full HD (1920 x 1080)
  • 4 Screen Split
  • Reader Mode
Screen Size 23" (58 cm)
Panel Technology TN
Aspect Ratio 16:9
Native Resolution 1920 x 1080 (Full HD)
Brightness 250 cd/m2
Contrast Ratio 1000:1
Dynamic CR 5M:1
Response Time 5ms (typ), 2ms (G to G)
Viewing Angle 170° x 160°
Supported Colours 16.7M Colours
Surface Treatment Anti-glare, 3H
Digital D-Sub (1), DVI-D (1), HDMI (1)
Audio Headphone Out (1)
Physical Features
Set (with stand) Dimension (W x H x D ) 545mm x 429mm x 197mm
Set (without stand) Dimension (W x H x D) 545mm x 325mm x 68mm
Set (with stand) Weight 2.8kg
Set (without stand) Weight 2.5kg
Carton Dimensions (W x H x D) 613mm x 398mm x 119mm
Packed Weight 4.2kg
VESA™ Standard Mount Interface 75mm x 75mm
Special Features
Additional Picture Mode, Reader Mode, Original Ratio, DDC/CI, HDCP, Key Lock, Intelligent Auto (Auto Adjustment), Plug & Play, Response Time Control, Automatic Standby, Six Axis Control, Super Resolution+, 4 screen split
Stand Tilt (-5° front ~ 20° rear)
Environment Conditions
Operation Temperature 10 °C to 35 °C
Operation Humidity 10 % to 80 % (non-condensing)
Power Supply 100-240V~, 50/60Hz
Power Consumption 27W
Typical / Smart Energy Saving on 0.3W
Switch Off 0.3W
Power Type Adapter
Comparative Energy Consumption 95 (kWh/Year)
Star Rating 4 (Stars)
Active Standby 0.266 (W)
Safety TCO (6.0),TUV-TYPE, UL(cUL), CB-Scheme, DB-Scheme
EMC FCC Class "B"/CE, EPEAT "Gold", C-Tick
Included Power Cable, D-Sub
Warranty 3 Year Parts and Labour
