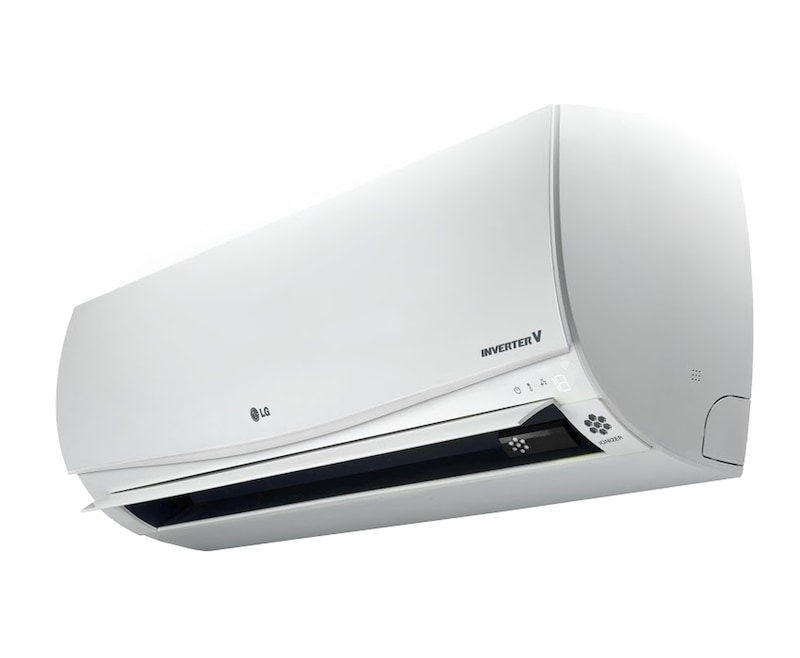

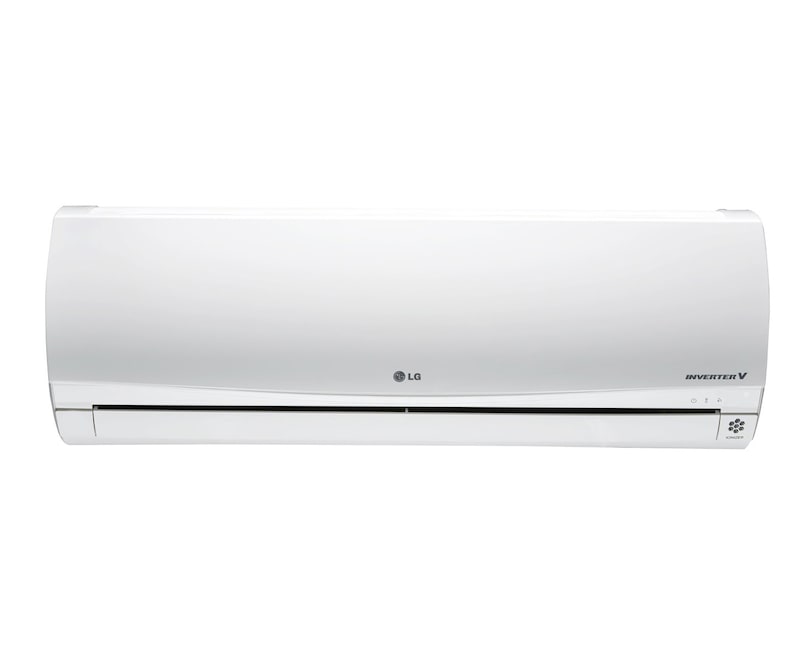

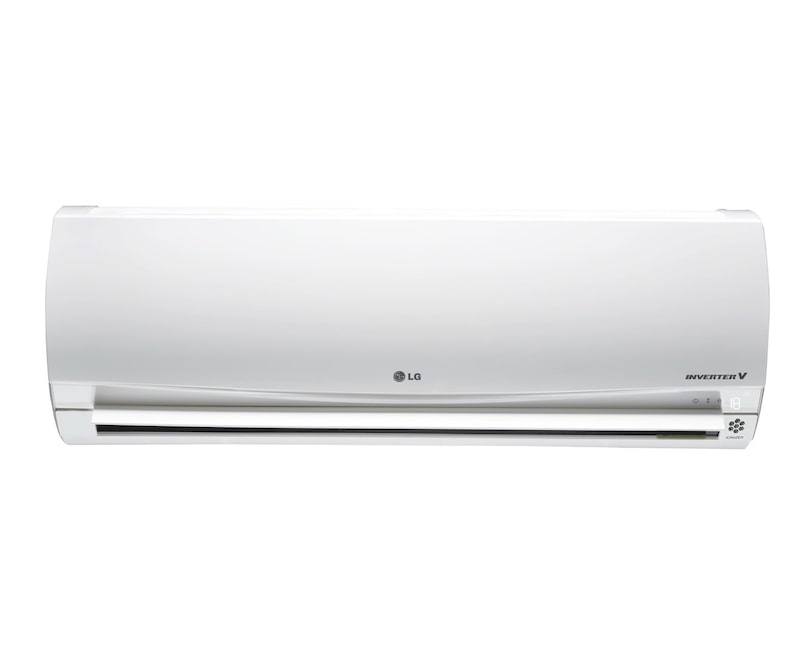

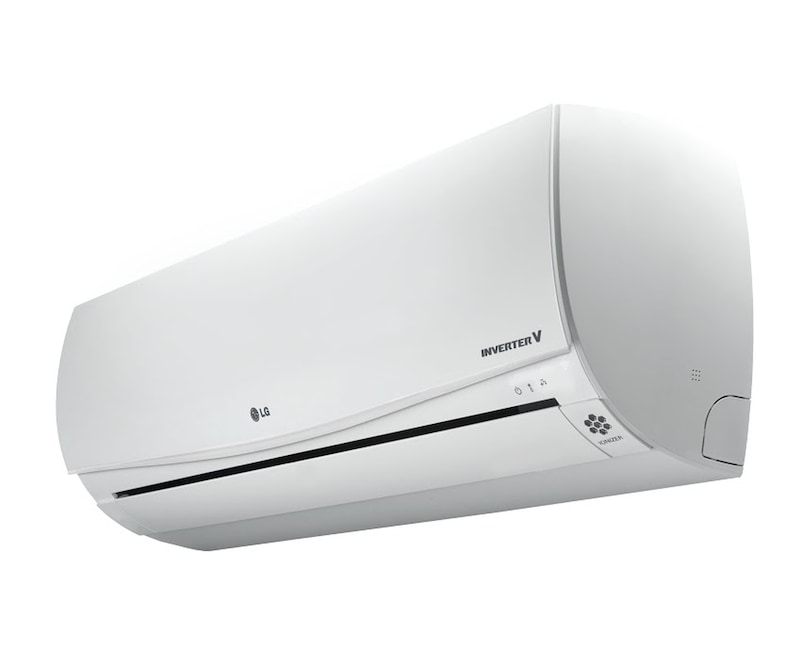

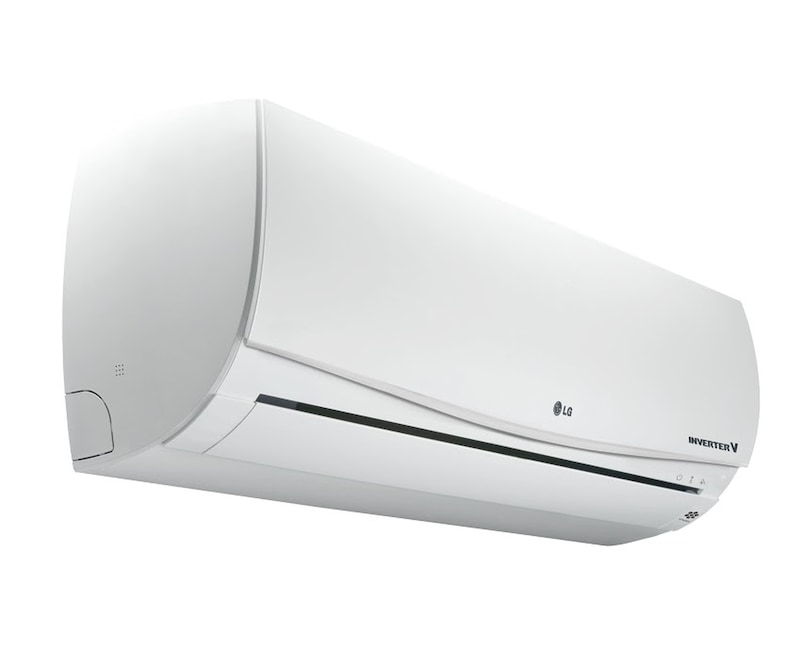

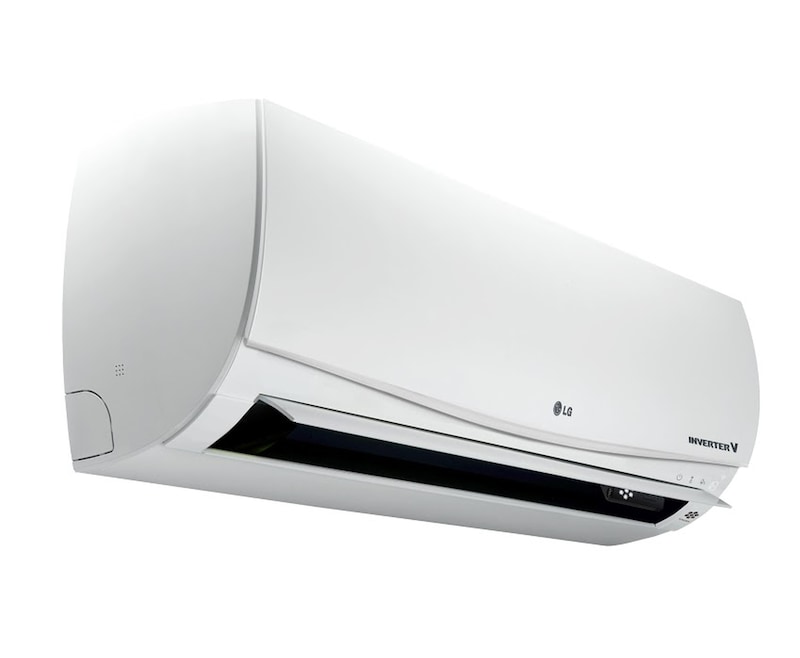

Premium 5.0kW Reverse Cycle Split System
- Active Energy Control
- Optional Wi-Fi Smart Control
- Plasmaster™ Ioniser Plus
- Micro Protection Filter Powered by 3M Tech
- Dust Protection Filter
- Plasmaster™ Auto Clean
Active Energy Control
Wi-Fi Smart Control
MICRO Dust Filter Powered by 3M Tech
Dust Protection Filter
Plasmaster Auto Cleaning
Outdoor Quite Mode
10 Year Compressor Parts Warranty
ACTIVE ENERGY CONTROL
Take control of your energy consumption! Active Energy Control allows you to cap the energy consumption to improve energy efficiency and reduce power consumption at a reduced cooling output.
WI-FI SMART CONTROL
Come home to comfort! The LG Smart AC app lets you access and control your air conditioner with your smartphone even when you’re not at home. Wi-Fi Dongle Module required sold separately. Feature can be accessed using LG Smart AC app on Android (v 4.04) or IOS (v iOS5) smartphone. Internet connection required.
The Standby Mode feature minimises standby electricity consumption when the air conditioner is not in use.
PLASMASTER IONISER PLUS
Breath easier thanks to improved air quality! The Plasmaster Ioniser generates over 3 million plasma ions which filtrate the air in the indoor environment and inside the air conditioning unit itself.
PLASMASTER AUTO CLEANING
The auto cleaning function helps to minimise the formation of mould & bacteria on the heat exchanger.
MICRO DUST FILTER Powered by 3M tech
The Micro Dust Filter uses electrostatic charges to capture microscopic particles including allergens such as pollen & dust.
OUTDOOR QUIET MODE
Sleep easy! The LG skew fan and low vibration compressor technology lower the sound level of the outdoor unit by up to 3dBA, and also reduce the sound level of the indoor unit.
OPTIMISED 4 WAY AIRFLOW
Don’t go with the flow…take control! 4-way swing dispenses cool air quickly and effectively in multiple directions.
|Cooling Capacity (Rating)||5.00 kW|
|Heating Capacity (Rating)||6.00 kW|
|Power Input||Cooling: 1,240W, Heating: 1,400W|
|Rated Running Current||Cooling: 6.6A, Heating: 7.3A|
|Maximum Running Current||Cooling: 10.0A, Heating: 10.7A|
|AEER Cooling||4.03 W/W|
|ACOP Heating||4.29 W/W|
|Air Flow Rate (Indoor, Max)||365 l/sec|
|Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)||45 / 40 / 38 / 29 (Actual installed noise levels vary depending on the installed location)|
|Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)||54 (Actual installed noise levels vary depending on the installed location)|
|Moisture Removal (l/h)||2|
|Wi-Fi Smart Control||Yes (Optional)|
|Plasmaster Ioniser Plus||Yes|
|Micro Dust Filter Powered by 3M Tech||Yes|
|Dust Protection Filter||Yes|
|Auto Cleaning||Yes (Plasmaster)|
|Jet Cool / Jet Heat||Yes|
|Auto Swing||Yes (4-way)|
|Wireless Remote Control||Yes (Luminous)|
|24-hour On / Off Timer||Yes|
|Wired Remote Controller||Yes|
|Wifi Dongle for Smart Control||Yes (PCRCUDT3)|
|Refrigerant Charge (R410A) at 7.5m||1350 g|
|Pipe Run (Min / Max) (max elevation 10m)||3 m / 30 m|
|Circuit Breaker Size||240 Volt 25 Amps|
|Additional Refrigerant (g/meter)||20 (Additional refrigerant required after 7.5m of piping)|
|Demand Response Enabling Device (DRED)||Compatible (DRED compatible. A Demand Response Enabled Device is required at the time of installation to activate the demand response modes. Available from you installing electrician.)|
|Operating Range (Outdoor)||Cooling -10 ~ 48°C, Heating -15 ~ 24°C|
|Pipe Size Connection (Ø)||Liquid mm (inch) - 6.35 (1/4), Gas mm (inch) - 12.7 (1/2)|
|Outdoor Sound Power Level² (SWL)||65 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)|
|Energy Rating (Heating)||4 Stars|
|Energy Rating (Cooling)||3.5 Stars|
|Indoor (WxHxD)||1090 x 330 x 248mm|
|Outdoor (WxHxD)||870 x 655 x 320mm|
|Warranty Details||Please see http://www.lg.com/au/support/warranty/ac-air-conditioners|
