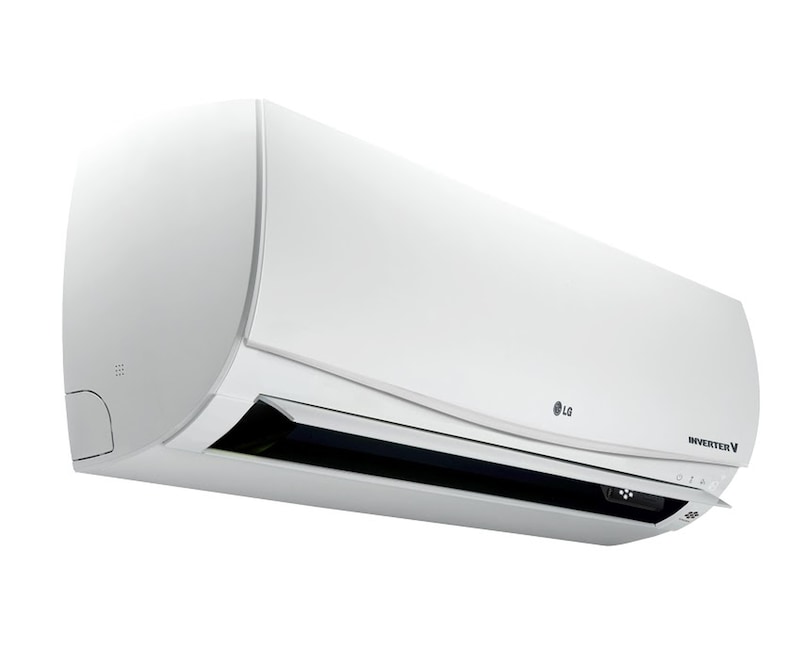

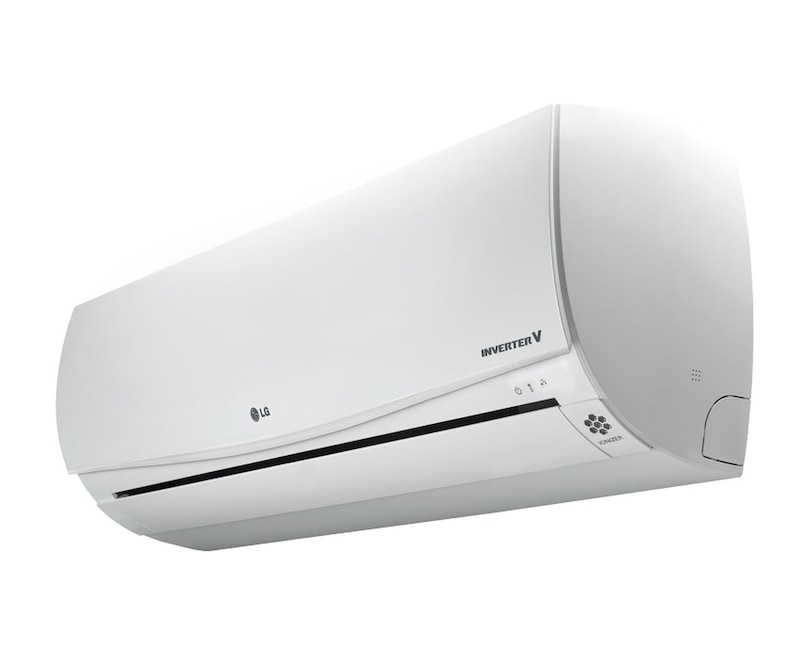

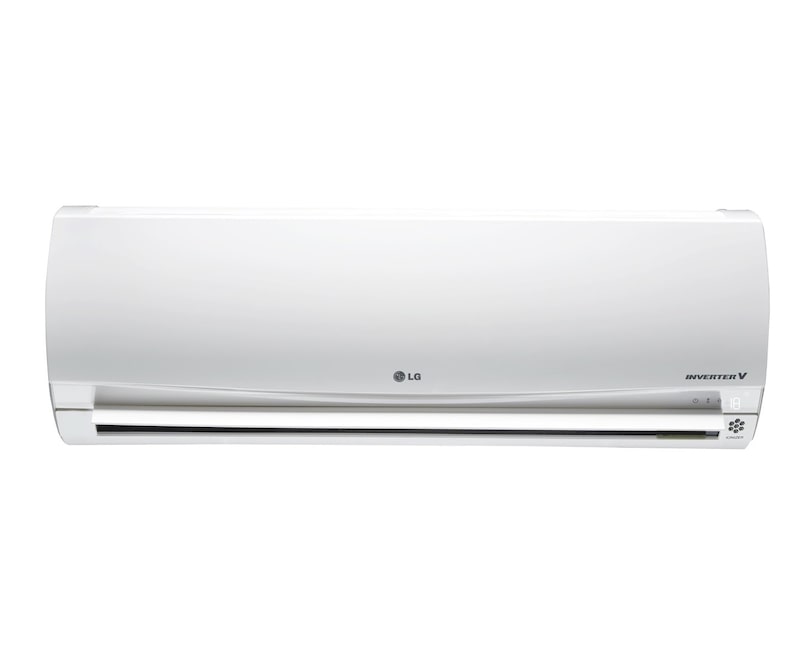

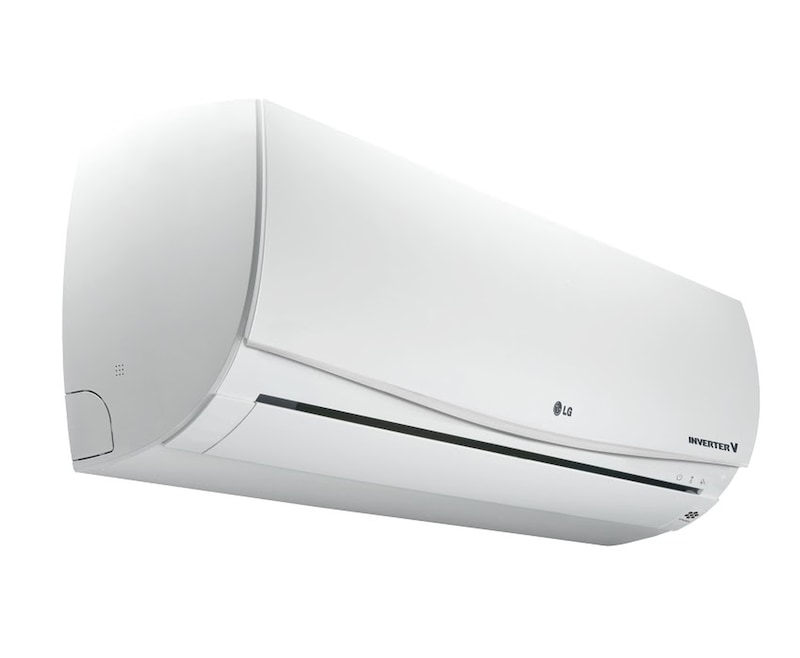

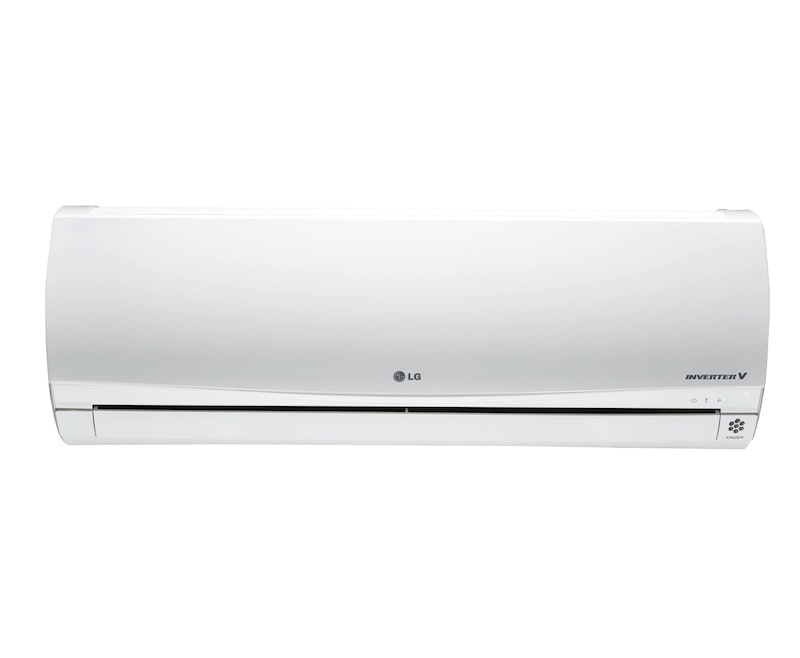

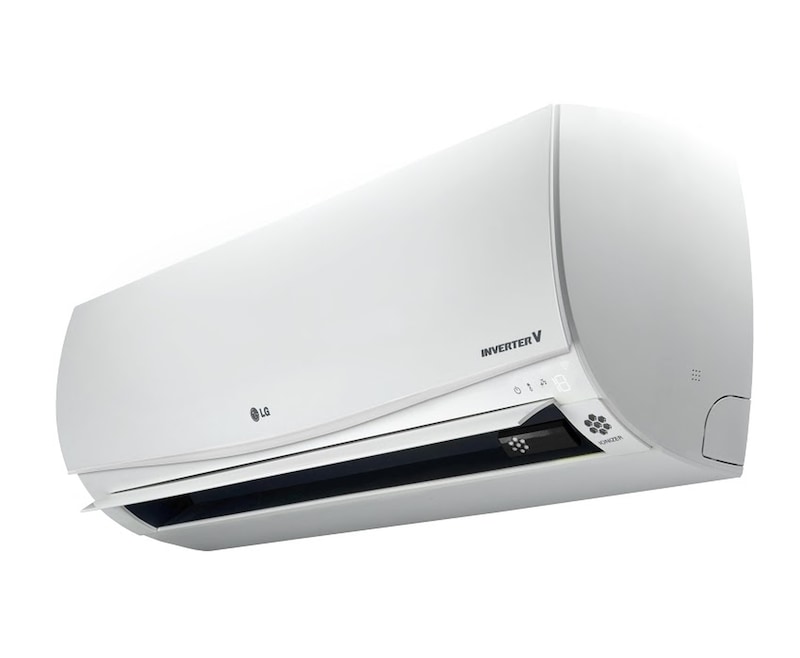

Premium 7.0kW Reverse Cycle Split System

  • W24AWN-14

  • Discontinued Product

Key Features

  • Active Energy Control
  • Wi-Fi Smart Control
  • Plasmaster™ Ioniser Plus
  • Micro Protection Filter Powered by 3M Tech
  • Dust Protection Filter
  • Plasmaster™ Auto Clean
PERFORMANCE
Cooling Capacity (Rating) 7.00 kW
Heating Capacity (Rating) 8.00 kW
Power Input Cooling: 1950W, Heating: 2060W
Rated Running Current Cooling: 9.4A, Heating: 9.6A
Maximum Running Current Cooling: 11.6A, Heating: 12.7A
AEER Cooling 3.59 W/W
ACOP Heating 3.88 W/W
Air Flow Rate (Indoor, Max) 380 l/sec
Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S) 47 / 42 / 38 / 29 (Actual installed noise levels vary depending on the installed location)
Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S) 55 (Actual installed noise levels vary depending on the installed location)
Moisture Removal (l/h) 2.7
Model
Set W24AWN-14
Indoor W24AWN-N214
Outdoor P24AWN-U214
FEATURES
Wi-Fi Smart Control Yes (Included)
Plasmaster Ioniser Plus Yes
Micro Dust Filter Powered by 3M Tech Yes
Dust Protection Filter Yes
Powerful Air Throw Yes
Auto Cleaning Yes (Plasmaster)
Auto Changeover Yes
Jet Cool / Jet Heat Yes
Auto Swing Yes (4-way)
Wireless Remote Control Yes (Luminous)
Sleep Mode Yes
Dehumidification Mode Yes
24-hour On / Off Timer Yes
OPTIONAL ACCESSORIES
Wired Remote Controller Yes
Dry Contact Yes
TECHNICAL
Refrigerant Charge (R410A) at 7.5m 1900 g
Pipe Run (Min / Max) (max elevation 10m) 3 m / 30 m
Circuit Breaker Size 240 Volt 25 Amps
Additional Refrigerant (g/meter) 35 (Additional refrigerant required after 7.5m of piping)
Demand Response Enabling Device (DRED) Compatible (DRED compatible. A Demand Response Enabled Device is required at the time of installation to activate the demand response modes. Available from you installing electrician.)
Operating Range (Outdoor) Cooling -10 ~ 48°C, Heating -15 ~ 24°C
Pipe Size Connection (Ø) Liquid mm (inch) - 9.52 (3/8), Gas mm (inch) - 15.88 (5/8)
Outdoor Sound Power Level² (SWL) 66 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)
ENERGY CONSUMPTION
Energy Rating (Heating) 3 Stars
Energy Rating (Cooling) 2.5 Stars
Dimensions
Indoor (WxHxD) 1090 x 330 x 248mm
Outdoor (WxHxD) 870 x 800 x 320mm
Indoor (Weight) 15kg
Outdoor (Weight) 55kg
