30 Inch, 22 cu.ft. Bottom Freezer Drawer Refrigerator with Smart Cooling

  • LDC22370ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • 22 cu.ft. Capacity in 30"
  • Smart Cooling System
  • Linear Compressor with 10-Year Warranty

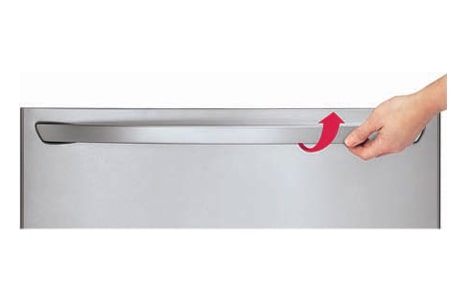

  • Smart Pull™ Handle
AVAILABLE COLORS:
SPECIFICATION English
CAPACITY
Refrigerator 14.7 cu.ft.
Freezer 7.1 cu.ft.
Total 21.8 cu.ft.
FEATURES
Freezer Door Type Drawer
Energy Star Yes
Energy Consumption (kWh/year) 463
Smart Cooling Plus System Yes
Multi-Air Flow Cooling Yes
Temperature Controls Internal LED
Temperature Sensors 4
Linear Compressor™ Yes
LoDecibel™ Operation Yes
Door Alarm Yes
REFRIGERATOR
No. of Shelves 1 Full, 2 Split (3 Fixed)
Cantilevered Shelves Hybrid
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Humidity Crispers
Glide N’ Serve™ Pantry Drawer Yes
Refrigerator Light Ceiling LED
REFRIGERATOR DOOR
No. of Bins 5 (2 Gallon, 1 Dairy, 1 Folding, 1 Half)
Door Bin Construction 1 Piece (Clear)
Folding Door Bin Yes
FREEZER
Drawers 2
Divider Yes (Lower)
IcePlus™ Ice Maker Yes
Ice Bin Yes
Handle Smart Pull™ Handle
Freezer Light Ceiling LED
MATERIALS/FINISHES/STYLE
Foam Door Insulation Cyclo Pentane (No CFC, No HCFC)
Contour Door Yes
Hidden Hinges Yes
Back Flush & Metal cover over mechanical parts
Colour Stainless Steel (ST)
Handles Matching Commercial Handle
Reversible Doors Yes
DIMENSIONS/CLEARANCES
Depth w/ Handles 34 7/8"
Depth w/o Handles 33"
Depth w/o Door 29"
Depth (Total with Door Open) 59 1/2"
Height to Top of Case 67 1/4"
Height to Top of Door Hinge 68 1/2"
Width 29 3/4"
Width (door open 90 deg. w/ handle) 33 1/2"
Width (door open 90 deg. w/o handle) 31 1/2"
Door Edge Clearance w/ Handle 4 1/4"
Door Edge Clearance w/o Handle 2"
Installation Clearance Side 1/8", Top 1", Back 1"
Weight (lbs): Unit / Carton 231/252 (Unit/Carton)
Carton Dimensions (WxHxD) 31 1/2" x 69 3/8" x 37 3/4"
UPC CODES
LDC22370ST 772454 062735
LDC22370SW 772454 062742
WARRANTY
Warranty 1 Year Parts and Labour, 7 Years Parts on the Sealed System, 10 Years Parts on Linear Compressor
