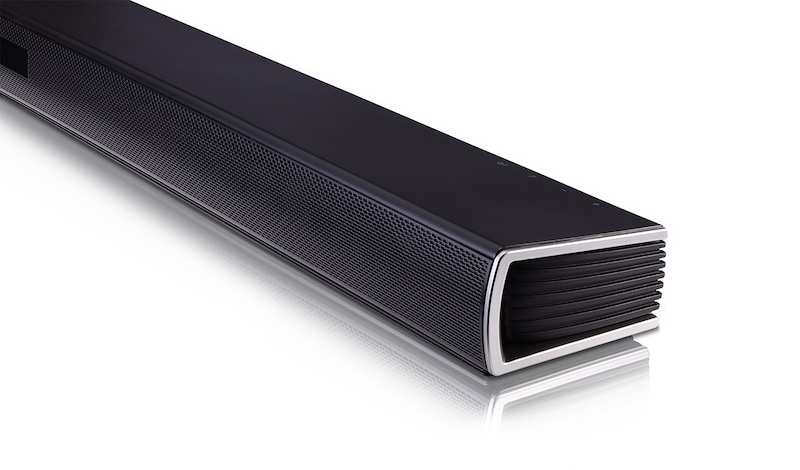

2.1Ch. Sound Bar SH4

2.1Ch. Sound Bar SH4

SH4

2.1Ch. Sound Bar SH4

SH4

All Spec

GENERAL

Channels

2.1

Front Power Output

60W x 2

Centre Power Output

No

Surround Power Output

No

Rear Power Output

No

Subwoofer Power Output

180W (Wireless)

Total Power

300W

CONNECTIVITY

Portable Audio In (3.5mm)

Yes

Optical

1

HDMI® In

1

HDMI® Out

1

USB

Yes

Bluetooth (ver. 4.0)

Yes

Ethernet port

No

Wi-Fi

No

DISPLAY

Display Type

Dot LED

LED Indicator Colour

Red (Standby) & White

Auto Display Off

No

SOUND MODE

24bit/192KHz Sampling

No

Sound Effect

ASC, Standard, Cinema

User EQ

No

Night Mode

Yes

Auto Sound Engine

Yes

SFX

No

Dynamic Range Control

No

Auto Volume Leveler

No

CONVENIENCE

OS Support (Window / Mac / iOS / Android)

No

Smart Phone Media Server

No

Smart Phone / Tablet App

Yes

Home Chat

No

Network Software Update

No

Control with you TV Remote

Yes

Multi-point (Bluetooth Multi pairing)

No

Sound Sync

Yes

Automatic Power On/Off

Yes

A/V Sync (0~300ms)

No

SIMPLINK

Yes

3D Video Signal Pass Through

Yes

4K Pass Through

No

Standby Pass Through Audio, Video

No

Audio Return Channel (ARC)

Yes

Woofer Level (-15~+6dB)

Yes

Mute

Yes

Dimmer

No

Sleep

No

Alarm

No

AUDIO FORMAT

Audio Format

LPCM , Dolby Digital, DTS Digital Surround, FLAC (Up to 192kHz), OGG (Up to 48kHz), WAV, MP3, WMA

Audio Streaming Service

No

POWER

Sound Bar

Yes

- Power Type

Adaptor (100~240V, 50/60Hz)

- Power Consumption

22W

- Power Off Consumption

0.5W Under

Subwoofer

Yes

- Power Type

100~240V, 50/60Hz

- Power Consumption

33W

SPEAKER

Sound Bar

Yes

- SPL

82dB

- System

2 Way / Bi-Amping

- Tweeter Unit

20mm PPS Dome

- Woofer Unit

40x100mm/4ohm

- Impedance

4ohm

- Magnetic Shielding

No

Subwoofer

Yes

- Model Name

SPH5B-W

- SPL

85dB

- System

Bass Reflex

- Woofer Unit

6 inch

- Impedance

3ohm

- Magnetic Shielding

No

INCLUDED ACCESSORIES

Remote Control

MA5

Wireless Speaker Reset Guide

Yes

Batteries

AAA x 2

Warranty Card

Yes

HDMI Cable

No

Optical Cable

Yes

LAN Cable

No

Wall Mount Backet

Yes

Table Stand (Detachable Foot)

No

IR Transmitter

No

DIMENSIONS/WEIGHTS

Sound Bar (W x H x D)

890 x 53 x 85mm | 35” x 2” x 3.3”

Subwoofer (W x H x D)

171 x 320 x 252mm | 6.7” x 12.6” x 9.9”

Shipping Size (W x H x D)

984 x 416 x 217mm | 38.7” x 16.3” x 8.5”

Sound Bar Weight

2.34 kg / 5.1 lbs

Subwoofer Weight

4.2 kg / 9.2 lbs

Shipping Weight

8.9 kg, 19.6 lbs

WARRANTY/UPC

Limited Warranty

1 Year Parts and Labour

UPC

772454067020
