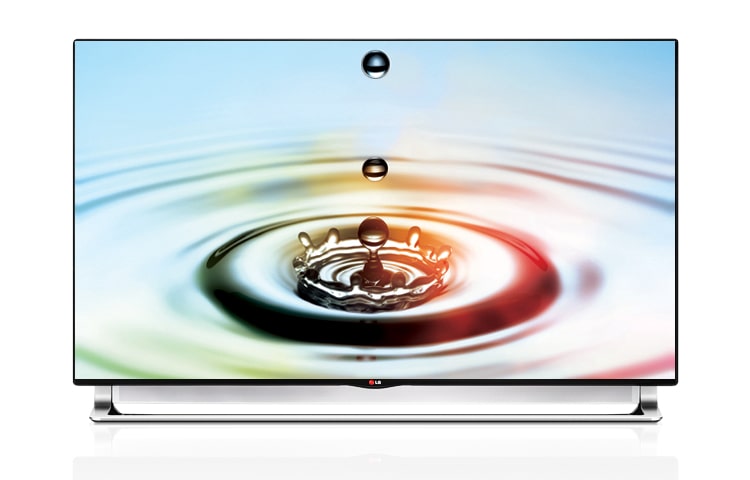

ULTRA CLARITY ULTRA REALITY

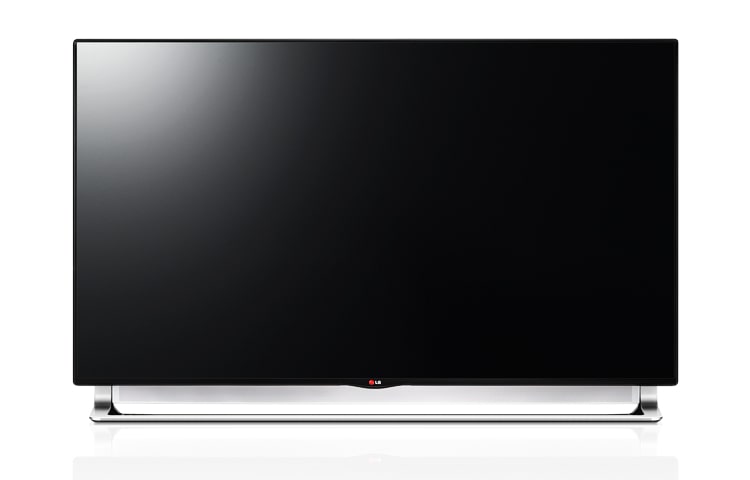

  • 55LA9700

  • Discontinued Product

Key Features

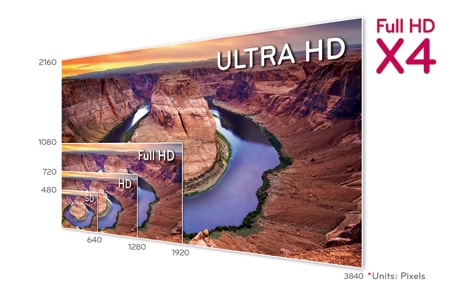

  • ULTRA HD 8.3 Megapixels
  • Tru-ULTRA HD Engine
  • CINEMA 3D
  • Intuitive Smart TV
PANEL SPECIFICATION
Screen Size Class (diagonal) 55" Class (54.5" diagonal)
Resolution 3840x2160
Local Dimming Yes
Ultra HD Yes
BLU Type (Backlight ) NANO Full LED
Refresh Rate TruMotion 240hz
MCI 1200
3D Specifications
3D FPR (Passive)
3D to 2D Yes
2D to 3D Yes
3D Depth Control 20 Levels
3D Viewpoint Control Yes
Dual Yes (Glasses)
3D Image Correction Yes
VIDEO
Dual Core Processor Yes
Tru-ULTRA HD Engine Yes
Resolution Upscaler Yes
Picture Mode 6 Modes (Vivid, Standard, Movie, Game, ISF1, ISF2)
Picture Yes
Aspect Ratio 6 modes (16:9/Just scan/original/4:3/Cinema Zoom/Zoom)
Just Scan (1:1 Pixel Matching) HDMI: 1080i, Component: 1080p, RF: 720p)
AV Mode II 3 modes (Off/Cinema/Game)
AUDIO
Speaker System 4.1ch Sliding Speaker - 3 way, 7 Speakers (Woofer Included)
Mono/Steoreo/Dual (MTS/SAP) Yes
DTS Decoder Yes
Audio Output (Watts - THD 10%) 50W
Sound Mode 6 Modes (Standard, Music, Cinema, Sport, Game, User)
Clear Voice II Yes
Sound Optimizer 3 Modes (Normal/Wall Mount/Stand)
CONNECTIVITY
USB Playback DivX® HD, JPEG, JPG, MPO, AC3 (Dolby® Digital), EAC3, HAAC, AAC, MPEG, MP3, PCM, DTS®
SIMPLINK (HDMI CEC) Yes
Built-in Camera Yes (retracable)
Windows 8 Certified Yes
DLNA Certified Yes
MHL (Mobile High-Definition Link) Yes
NFC (Near Field Communications) Yes
Wi-Fi Direct Yes
VESA® Wall Mount Pattern (600mm x 400mm)

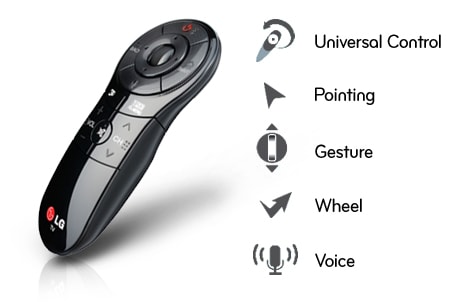

Magic Remote Control 1
Wi-Fi® Built-In Yes
Intel® Wireless Display (WiDi) Yes
3D Glasses AG-310 (4 Pair)
Batteries AA x 2
AV INPUTS/OUTPUTS
HDMI/HDCP (ARC 1, MHL 1) 3 (Side)
USB 3.0/2.0 In 3 (Side)
AV In 1 (Rear)
RF In (Antenna/Cable) 1 (Rear)
Component Video In (Y,Pb,Pr + Audio) 1 (Rear)
Digital Audio Out (Optical) 1 (Rear)
Headphone Out 1 (Side)
RS-232C (Control / SVC) 1 (Rear)
POWER
Power Supply (Voltage, Hz) Power Supply (Voltage, Hz)
Standby Mode Standby Mode
DIMENSION
TV Without Stand (WxHxD) 48.23" x 28.11" x 1.58"
TV With Stand (WxHxD) 48.43" x 30.75" x 10.79"
TV Without Stand Weight 61.51 Ibs
TV With Stand Weight 68.34 Ibs
Packaging 118.83
Packaging (WxHxD) 53.31" x 32.68" x 12.24"
