OLED77W7Y

  • OLED77W7Y

Key Features

  • Best of the Best at CES 2017
  • Simplicity. Perfection.
  • One with your wall
  • One design embraces all
  • The supreme image quality the world longs for
  • Premium cinema experience, created for you

Best of the Best at CES 2017

Winning over 40 awards – the biggest number in TV category, LG SIGNATURE OLED TV W came into the spotlight with its astonishing design and incredible performance.

Simplicity. Perfection.

To focus on the very essence of TV, LG SIGNATURE OLED TV W removed all the elements that distract from viewing and listening.

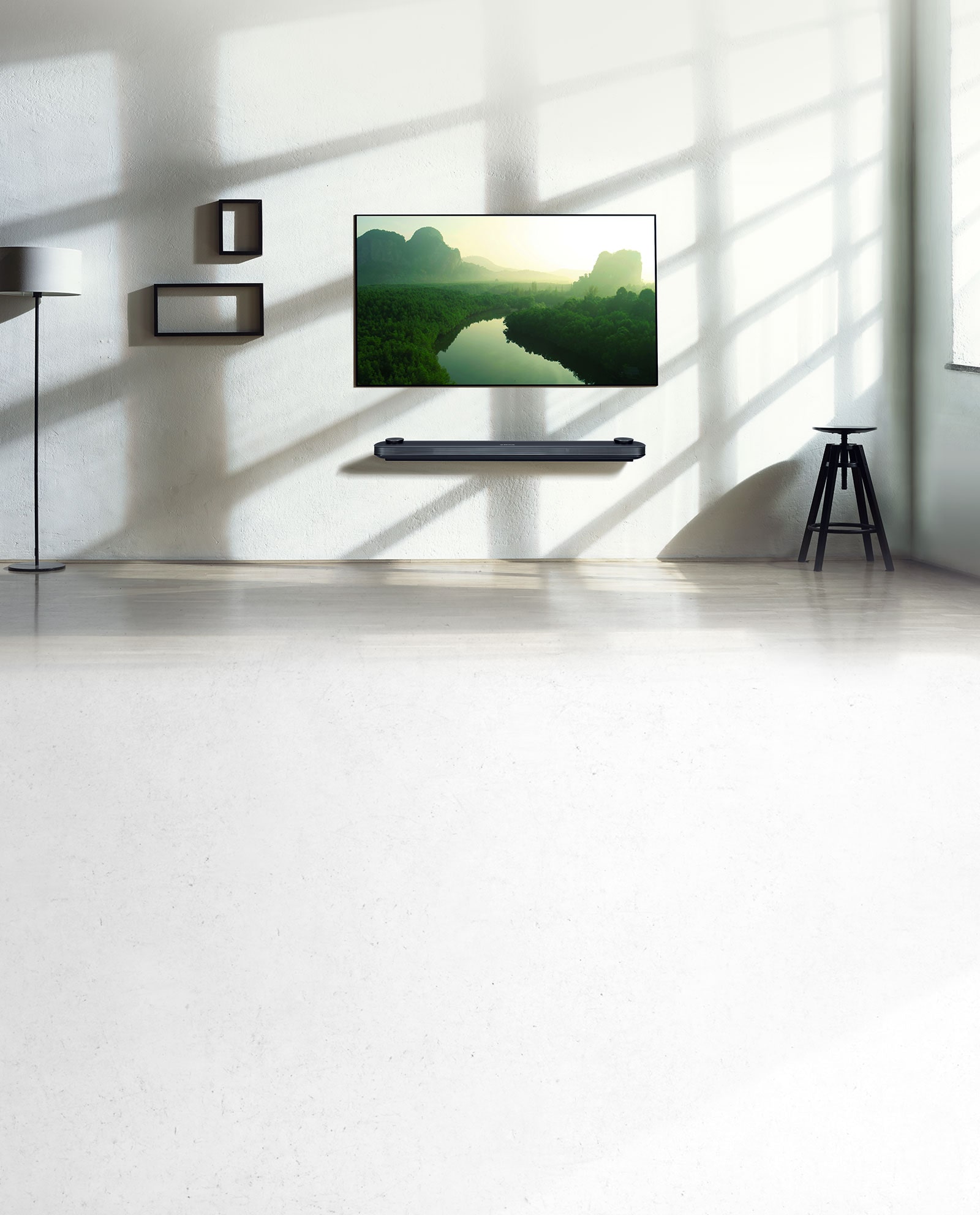

One with your wall

Merged perfectly with the wall, shadow-free LG SIGNATURE OLED TV W is like a window to another world. Immerse yourself in a picturesque reality.

Learn more about the unique installation

open

LG SIGNATURE OLED TV W looks more like artwork than a TV as it perfectly blends in with the wall.
Just follow the step-by-step guide to learn how to install.

*The product requires a cable connection between centerpiece and display. The cable may be visible depending on installation.

One design embraces all

Designed for those who recognize the value of truly premium audio. With up-firing speakers to enhance sound diffusion for smoother high-pitch and low-pitch audio.

The supreme image quality the world longs for

Perfect Color is revealed only on Perfect Black.
Experience the unmatched picture quality created by OLED TV’s self-lighting pixels.


Learn more about Perfect Color on Perfect Black

open

The revolutionary pixel dimming technology renders Perfect Black without any light leakage to offer a limitless contrast ratio. With Perfect Black, LG OLED TV brings out the marvelous wonders of Perfect Color. LG OLED TV offers over a billion of vivid colors generated by 10-bit panel

Premium cinema experience, created for you

With support for both Dolby Vision™ and Dolby Atmos®, LG OLED TV is the first TV of its kind. Experience premium cinema in the comfort of your home with the superior picture and sound quality.

Active HDR, unlike other conventional HDRs

LG OLED TV supports premium HDR content mastered by Dolby Vision™, and is also compatible with generic HDR10 and HLG. LG’s Active HDR technology optimizes HDR picture scene by scene for a life-like viewing experience.

Learn more about Active HDR with Dolby Vision

open

LG OLED TV supports Dolby Vision™, the premium HDR format, as well as HDR10 and HLG. By applying exclusive scene-by-scene processing, LG OLED TV takes picture quality and viewing enjoyment to the next level.

*The compatibility for HDR playback may vary by the format and country.

Dolby Atmos®, bringing cinema sound to your room

Dolby Atmos delivers each object’s unique sound in three-dimensional space for full immersion.

Learn more about Dolby Atmos

open

Dolby Atmos® transports you into the story with moving audio that flows all around you with breathtaking realism.

Dolby Atmos® is a surround sound system where the sounds move according to the objects of the video. With the new LG OLED TV, the sounds seem to fly in all directions, up and down, left and right. It basically provides a 360 sound experience.

How will it match your lifestyle?

No more bulky designs of the past.
Presenting you with a new TV design that fits right in with your lifestyle.

















webOS 3.5 simple and fun to use

With the Magic Remote and uniquely refined webOS 3.5 launcher bar, dive into a limitless world of premium content from all of the most popular entertainment providers.

* webOS GUI may differ by country.
* Services are subject to availability, may require subscription and could vary across products and platforms. Internet connection required.
* Magic remote included in box with selected webOS TV models.

LG webOS 3.5,
security you can trust

The security manager in webOS3.5, earns prestigious CC international security certification and UL CAP2900-1 certification for its ability to provide superior privacy protection. It prevents the installation of unauthorized applications, hacking and leaks of privacy.

Easy and fast way to
Netflix 4K HDR content

With easier control and faster access, you can explore and enjoy more of Netflix’s premium 4K HDR content on LG 4K TV.

* webOS GUI may differ by country.
* 4K HDR availability may vary for Netflix content.
* Magic Remote design and button arrangement may vary by country.
* Netflix streaming membership required. 4K availability subject to your Netflix subscription plan, Internet service, device capabilities, and content availability.

Display
Display Device (OLED / LCD) OLED
Screen Size (Inch) 77
Resolution 3840*2160
Viewing Angle Perfect Viewing Angle
Video (Picture Quality)
UHDA Premium Yes
HDR Active HDR with Dolby vision
HDR - Dolby Vision No / Yes / Yes
HDR - HDR10 Different by region *Refer to HDR Format support sheet
HDR - HLG Different by region *Refer to HDR Format support sheet
Wide Color Gamut Perfect Color
Biliion Rich Color Yes
Dimming (Set Spec.) Pixel Diming
Black Perfect Black
Ultra Luminance Ultra Luminance Supreme
Picture Engine Perfect Mastering Engine => OLED Master Engine
Color Master Engine Yes
Color Master Engine - Upscaler 4K Upscaler
Color Master Engine - True Color Accuracy Yes
Color Master Engine - Active Depth Enhancer Yes
Color Master Engine - HDR Effect Yes
HEVC Decoder 4K@60P, 10bit
VP9 Decoder 4K@60P, 10bit
AUDIO
Audio Output 60 W (WF : 20W)
Speaker System (ch) 4.2 ch
DOLBY ATMOS Yes(w/o BDP)
BDP MR (TBD)
Surround Mode Dolby Surround (OLED Surround)
- Clear Voice Clear Voice III
- Magic Sound Tuning Yes
- Smart Sound Mode Yes
Hi-Fi Audio Yes
LG Sound Sync / Bluetooth Yes
DTS Decoder Yes
Audio Codec AC3(Dolby Digital), EAC3, HE-AAC, AAC, MP2, MP3, PCM, DTS, DTS-HD, DTS Express, WMA, apt-X
Smart TV
OS (Operating System) webOS 3.5
- Processor Quad
Magic Remote B-in
Magic Zoom Live Zoom + Focus Zoom
360 VR Yes
Voice Recognition Yes
Universal Control (Different by country) UAE, Qatar, Oman, Kuwait, Bahrain, Iran, Nigeria, Algeria,Egypt
Magic Link Yes (Iran, Syria, Sudan Yotube)
Quick Access Yes
OLED Gallery Yes
LG Content Store Yes
Multi-view Yes
Web Browser Yes
Music Player Yes
My Content Yes
My Channels Yes
Channel Advisor Yes
Smart Convergence
Mobile App(LG TV Plus) Yes
Mobile Connection Yes
Mobile TV On (Turn on TV by Mobile) Yes
Mobile TV On (Turn on TV by Mobile) - WiFi TV On Yes
Mobile TV On (Turn on TV by Mobile) - BLE TV On Yes
WiDi (PC to TV) Yes
Miracast (Moblie to TV Mirroring) Yes
Network File Browser Yes
DVR(Time Machine)
Analog DVR Yes
Digital Recording Yes
Live Play Back (External Recording) Yes
STT (Speech To Text) Yes
Simplink (HDMI CEC) Yes
Simultaneous Audio Output Yes
Block access to harmful site Yes
OSD Language 14ea English, Spanish(español), French(français), Portuguese, Russian, Indonesian, Malayan, Vietnamese, Thai, Arabic, Kurdish, Afrikaans, Amharic, Hausa
12ea(Iran) English, Spanish(español) French(français), Portuguese Russian, Indonesian Malayan, Vietnamese Thai, Arabic, Farsi, Kurdish
10ea (YK) English, Spanish(español) French(français), Portuguese Russian, Indonesian Malayan, Vietnamese(Tiếng Việt) Thai, Hebrew
Broadcasting System
Digital TV Reception(Terrestrial,Cable,Satellite) T- : DVB-T/T2
V(Y)- : DVB-T2/C/S2
[DVB] Data Broadcasting (Country Spec) Different by country (MHEG: Republic of South Africa)
[DVB] CI + (Common Interface) T/T2 : -, T2/C/S2 :Yes
Teletext Page Yes
Teletext (Top/Flof/List) Yes
Subtitle Yes
EPG(8days) Yes
CONNECTIVITY
HDMI 4
HDMI - ARC (Audio Return Channel) Yes(HDMI2)
USB 3
LAN Yes
Component / Comosite in 1 (Gender)
Composite In (AV) 1 (Gender)
CI Slot T/T2 : -, T2/C/S2 :Yes
RF In T/T2 : 1, T2/C/S2 : 2
Wifi (802.11.ac or 802.11.n) 802.11ac
Bluetooth Yes
Digital Audio Out (Optical) Yes
Headphone out 1 (Phone Jack Type)
Line out 1(Headphone out common)
RS-232C (Control / SVC) 1 (Phone Jack Type)
TV - Rear(Jack Type)
RF In T/T2 : 1, T2/C/S2 : 2
Component In (Y,Pb,Pr + Audio) : 5 1 (Gender)
Composite in (CVBS+ Audio) : 3 1 (Gender)
HDMI (6G/3G) 6G : 4ea
HDMI (6G/3G) - ARC (Audio Return Channel) Yes (HDMI2)
USB (3.0/2.0) 3.0: 1ea, 2.0 : 2ea
Digital Audio Out (Optical) Yes
LAN Yes
Headphone out 1 (Phone Jack Type)
RS-232C (Control / SVC) 1 (Phone Jack Type)
CI Slot T/T2 : -, T2/C/S2 :Yes
Line out / Headphone out Yes
Design
Design Picture on Wall
Eco
Illuminance sensor White Sensor
High Effeicency Display mode (M+) TBD
Energy saving mode Default OFF
POWER
Power Supply (Voltage, Hz) 100~240Vac 50-60Hz
Standby Power Consumption 0.5W↓
Power Consumption(Max) Different by Country and inch
Accessory
Remote Controller MR16A / SP16
Component / AV Gender AV gender 1 / Comp gender 1
Power Cable (Attached Type)
Owner's Manual Yes
Batteries (for Remote Control) Yes
