Central Controller

LG Central Controller provides convenient management for the multiple HVAC products in a building. It can set the temperature of each room, monitor energy consumption, and send alerts in real-time.
Features
Features INQUIRE TO BUY

Easily Check the Air Quality of the Entire Building

AC Smart 5 can manage air quality of up to 128 indoor units. In addition to turning on the air purifying mode, you can monitor the air quality in real-time and view the recorded air condition.
Easily Check the Air Quality of the Entire Building1 Easily Check the Air Quality of the Entire Building2
  • 06_D_1542366747891 06_M_1542366752654

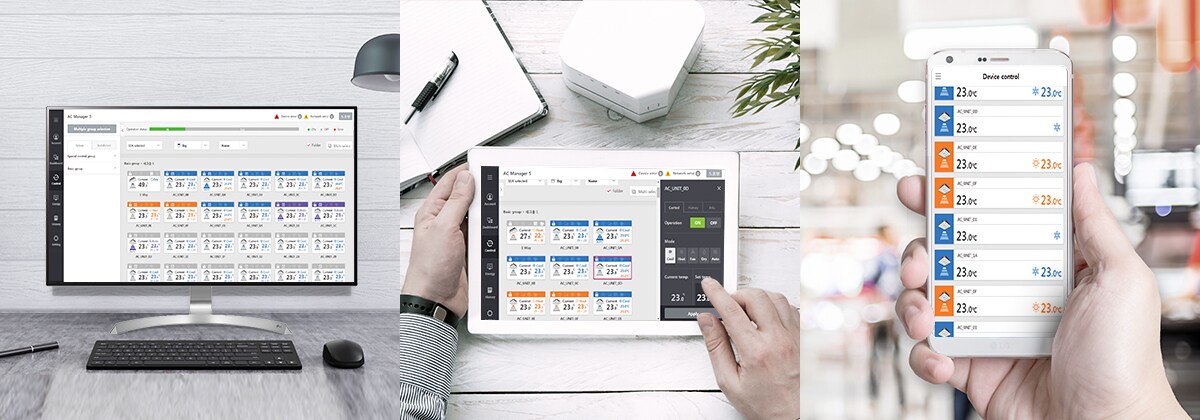

    Maximized Accessibility for Each User

    As an advanced central controller, AC Manager 5 offers flexible interface for each user by assessing the device screen and automatically customizing the layout to provide the most optimized interface.

Central Controller Line Up

  • 08-1_D_1542366860460

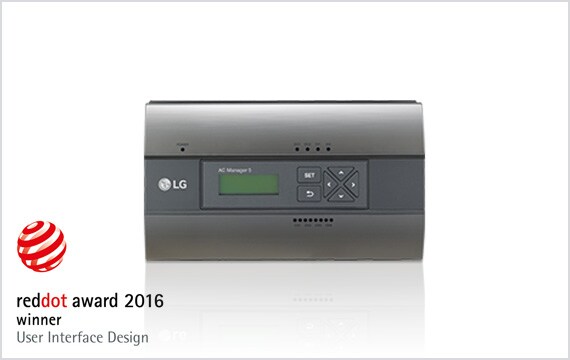

    AC Manager 5

    ● Model : PACM5A000
    ● 270 x 155 x 65 (mm)
    ● Up to 8,192 units via max. 32 ACP and AC Smart
    can be integrated as one management system
    ● Web access control based on HTML5
    (PC, Tablet, Smartphone access)
    ● Icon / Floor map view
    ● Yearly Schedule
    ● Energy Management
    ● Device Interlock
    ● Email Notification

  • 08-2_D_1542366872817

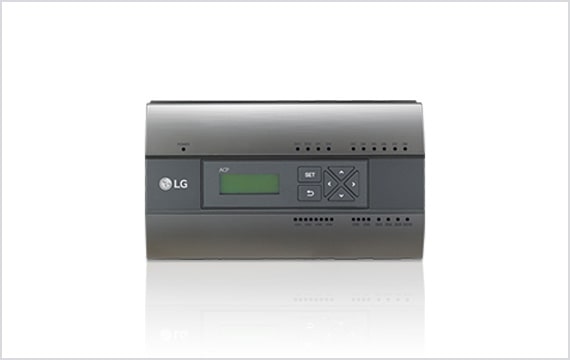

    ACP 5

    ●Model: PACP5B000
    ●270 x 155 x 65 (mm)
    ●Up to 256 units (IDU, ERV, Hydro Kit, AHU kit, Commercial Air Purifier)
    ●Web access control based on HTML5(PC, Tablet, Smartphone access)
    ●Air Purify Control, Air Quality Level Display
    ●BMS Integration(BACnet IP/Modbus TCP)
    ●Energy Management
    ●Device Interlock
    ●3rd Party device Control(with ACS IO Module)
    ●Email Notification
    ●Multi level group

  • 09-1_D_1542366975263

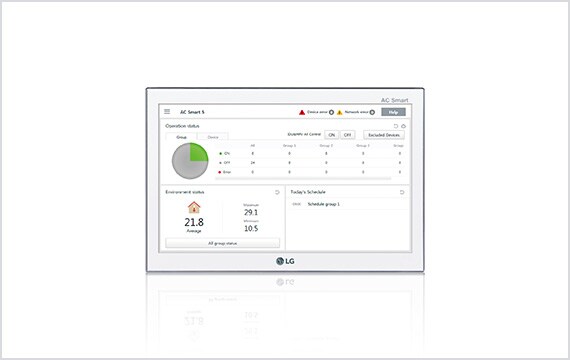

    AC Smart 5

    ● Model: PACS5A000
    ● 253.2 x 167.7 x 27 (mm)
    ● 10.2 inch WSVGA TFT LCD Touch Screen (1024*600)
    ● Up to 128 Units (IDU, ERV, Hydro Kit, AHU Kit, Commercial Air Purifier)
    ● BMS Integration (BACnet IP and Modbus TCP)
    ● Multi level group composition
    ● Icon / Floor map view
    ● Yearly Schedule
    ● Energy Management
    ● Device Interlock
    ● Email Notification
    ● Web access supported
    ● Support IPv6
    ●Air Purify Control, Air Quality Level Display

  • 09-2_D_1542366985292

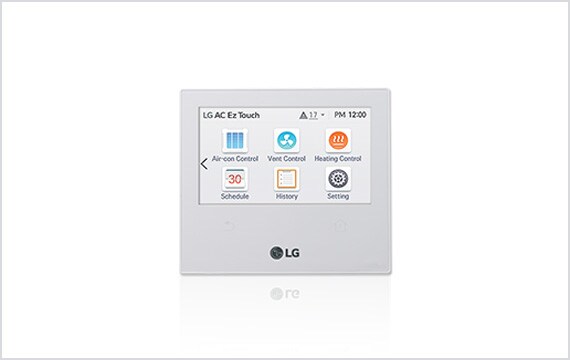

    AC Ez Touch

    ● Model : PACEZA000
    ● 137 x 121 x 25 (mm)
    ● 5 inch Touch Screen Controller
    ● Up to 64 units (IDU, ERV, Hydro kit)
    ● 1 DI Port for Emergency stop
    ● Yearly Schedule
    ● Alarm Indicator
    ● Energy Management
    ● PC Access
