75UT640S (EU) component-copyModelName

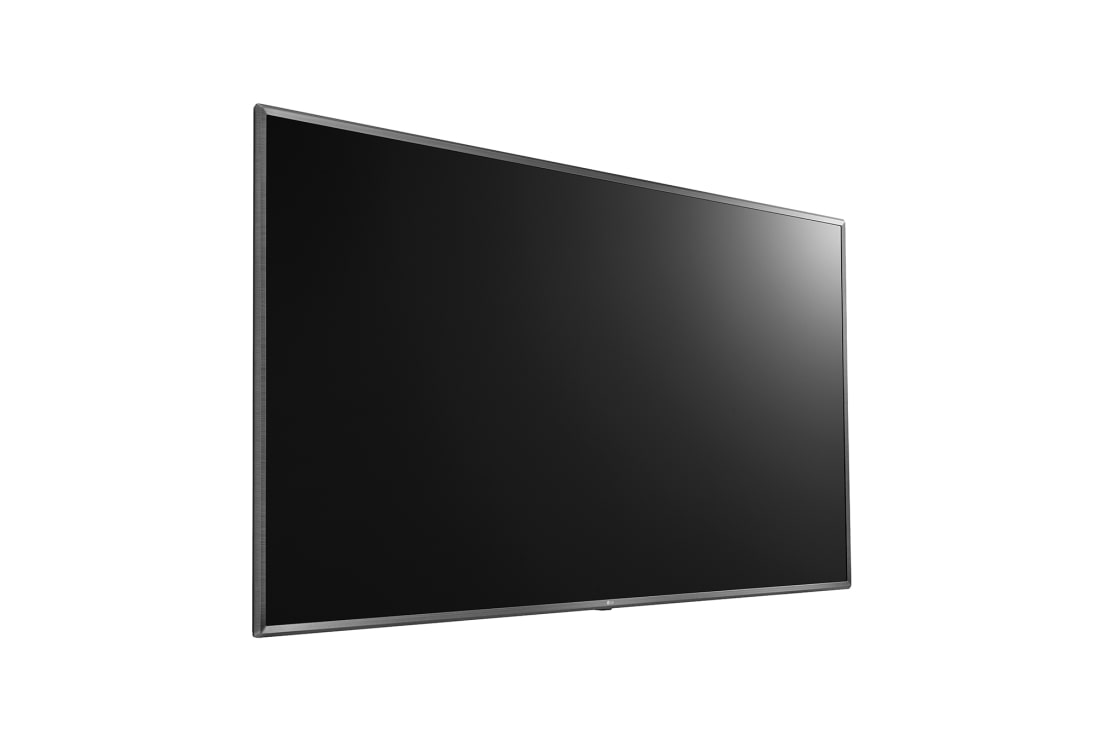

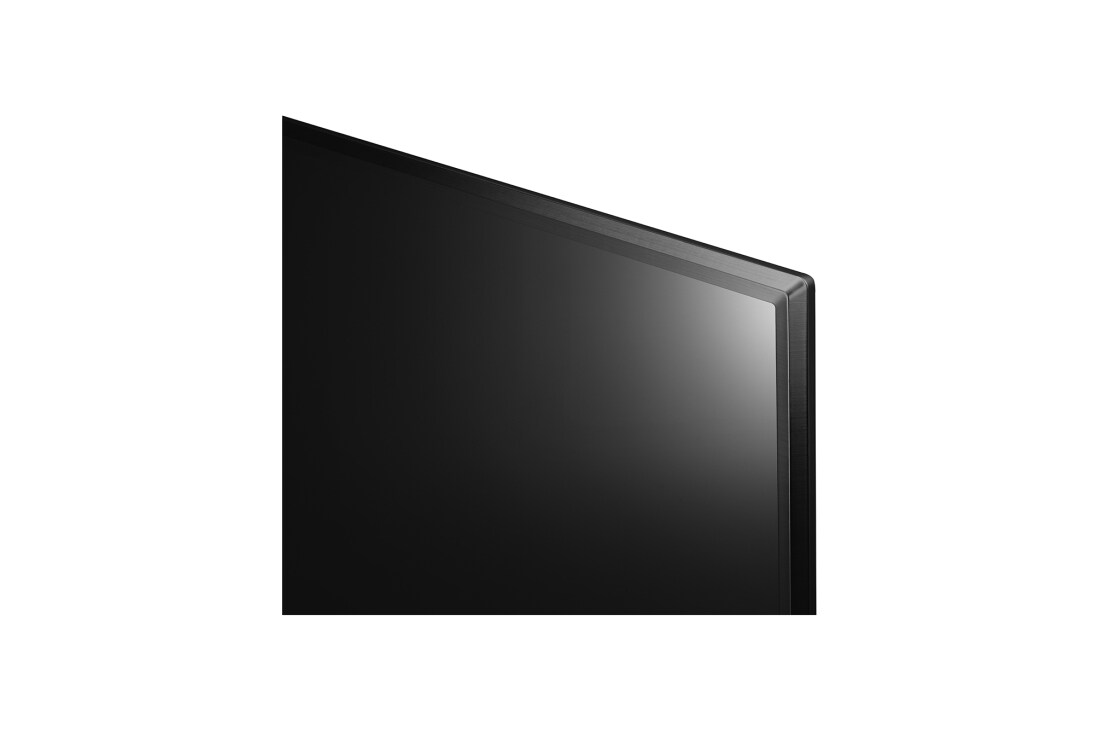

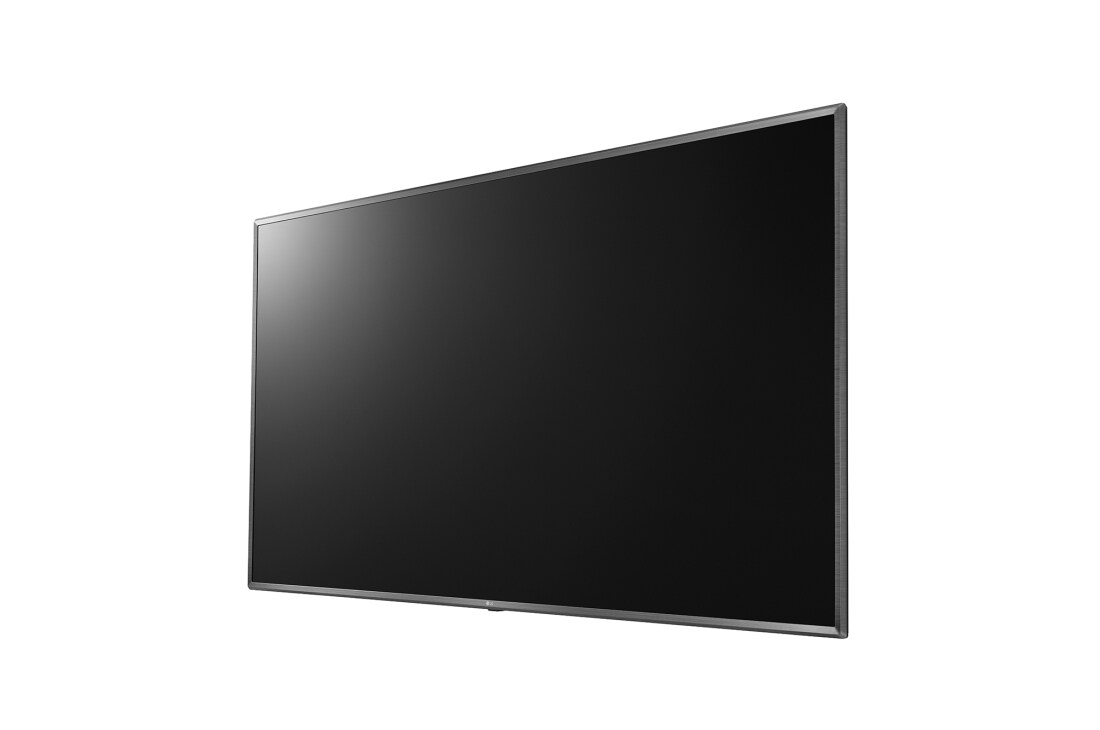

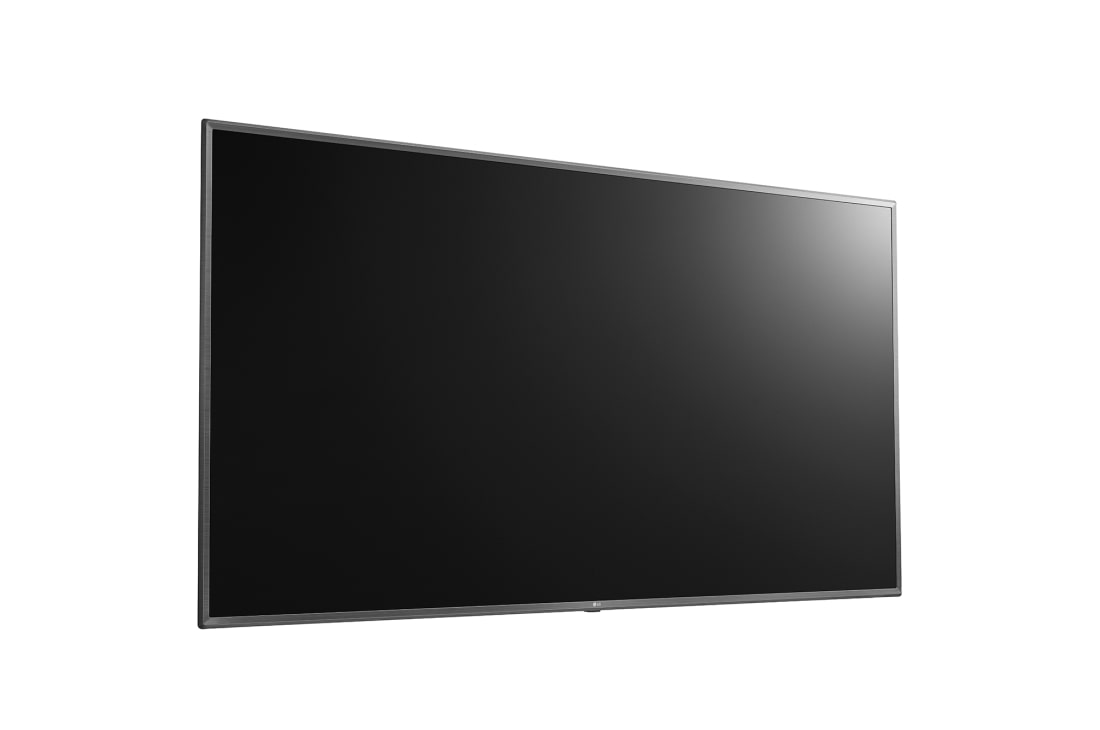

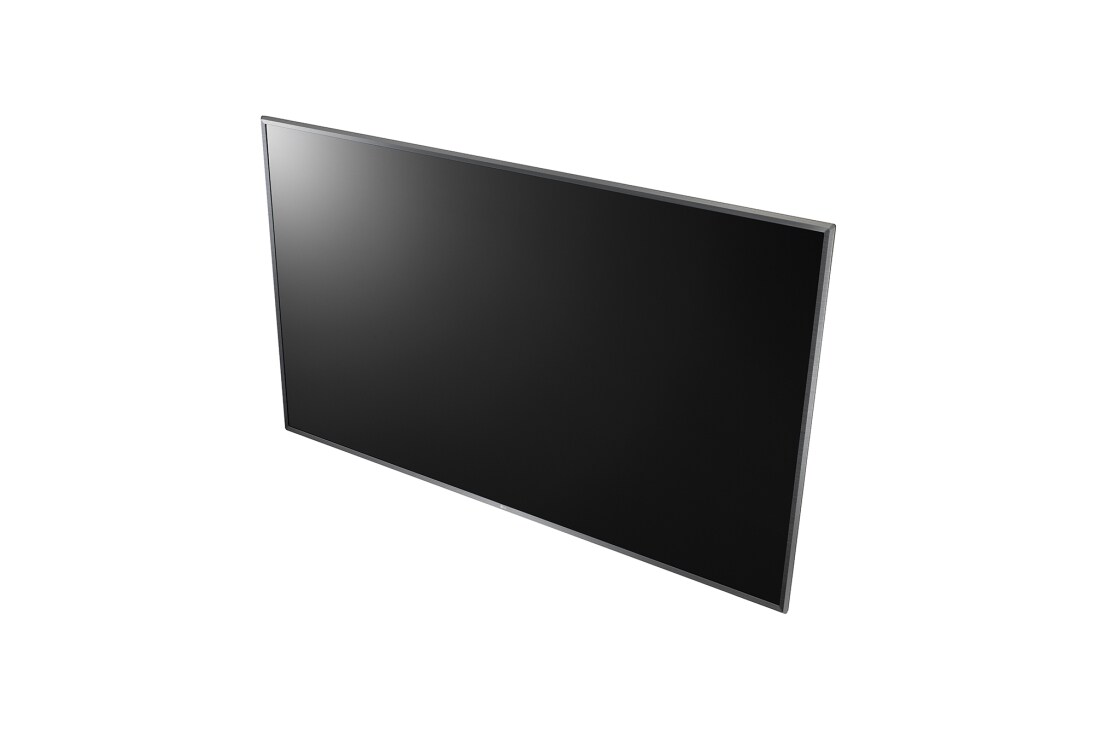

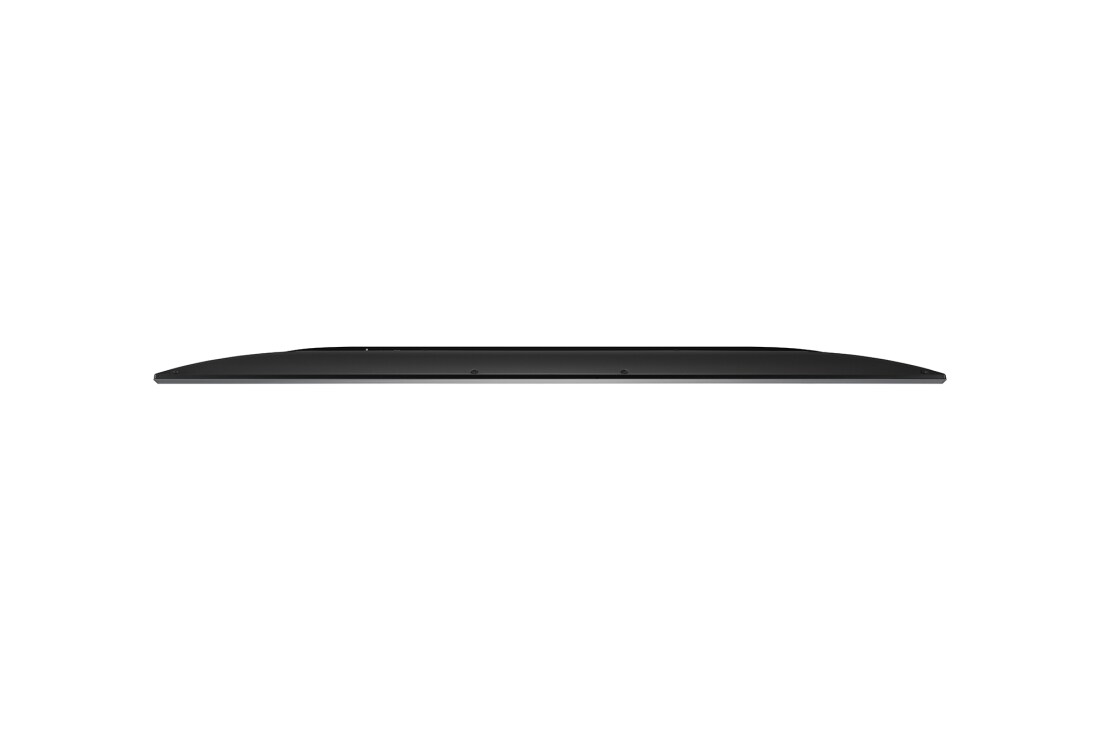

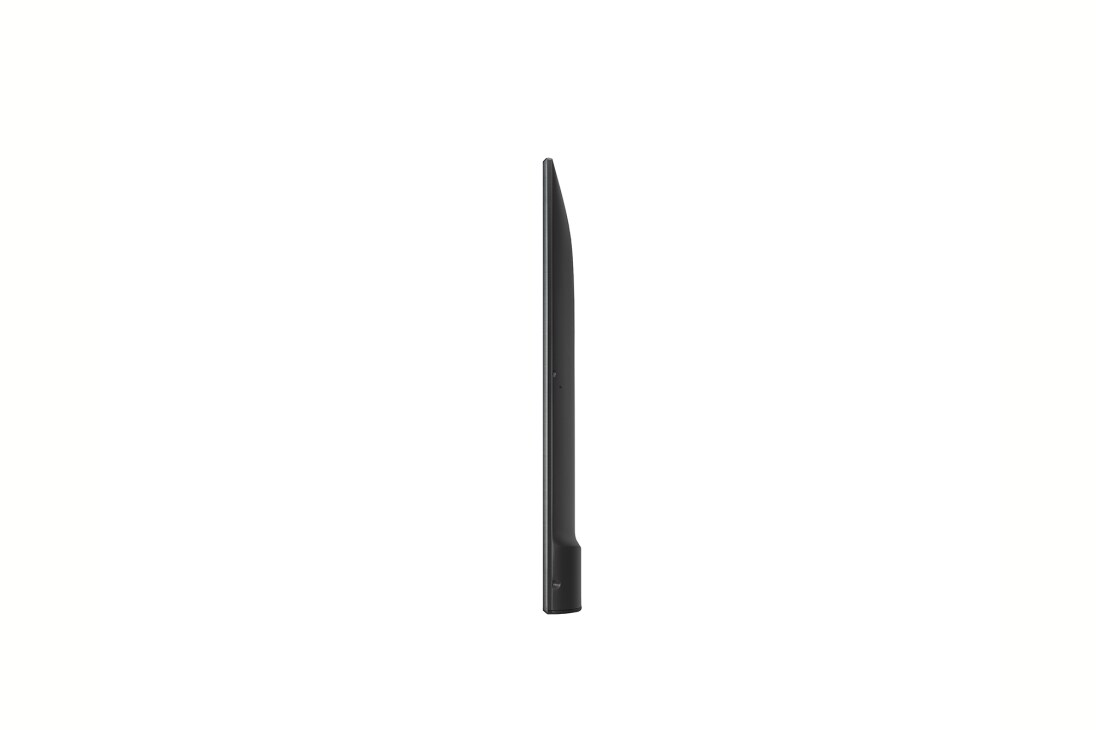

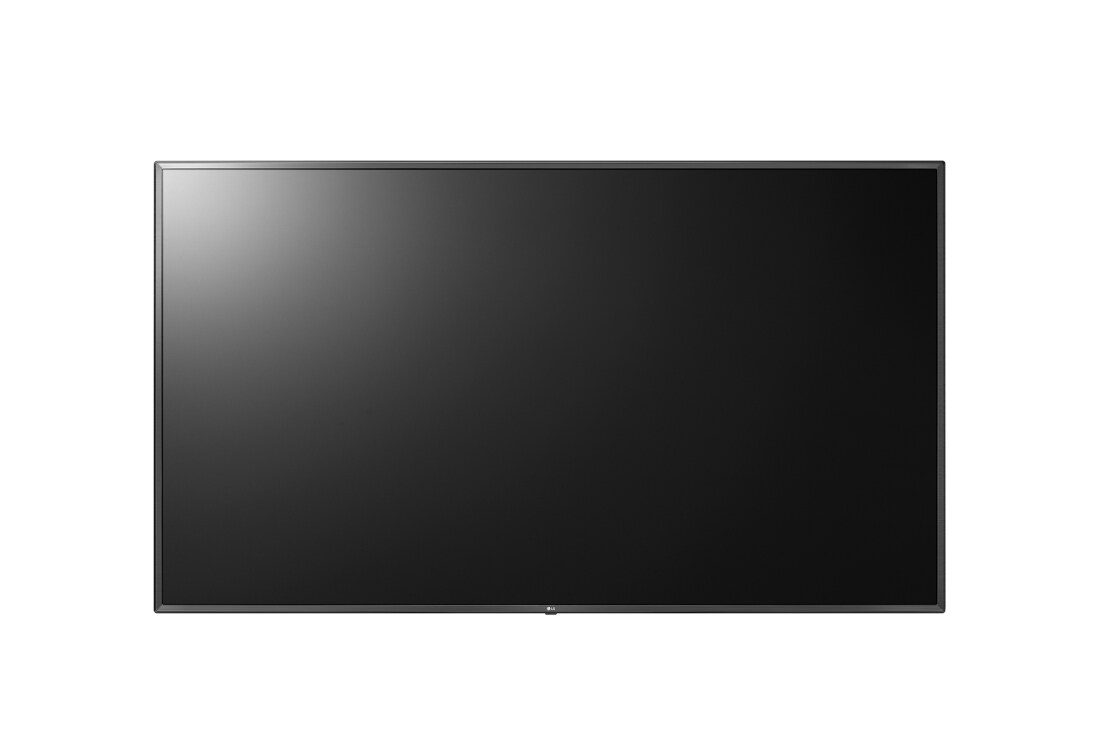

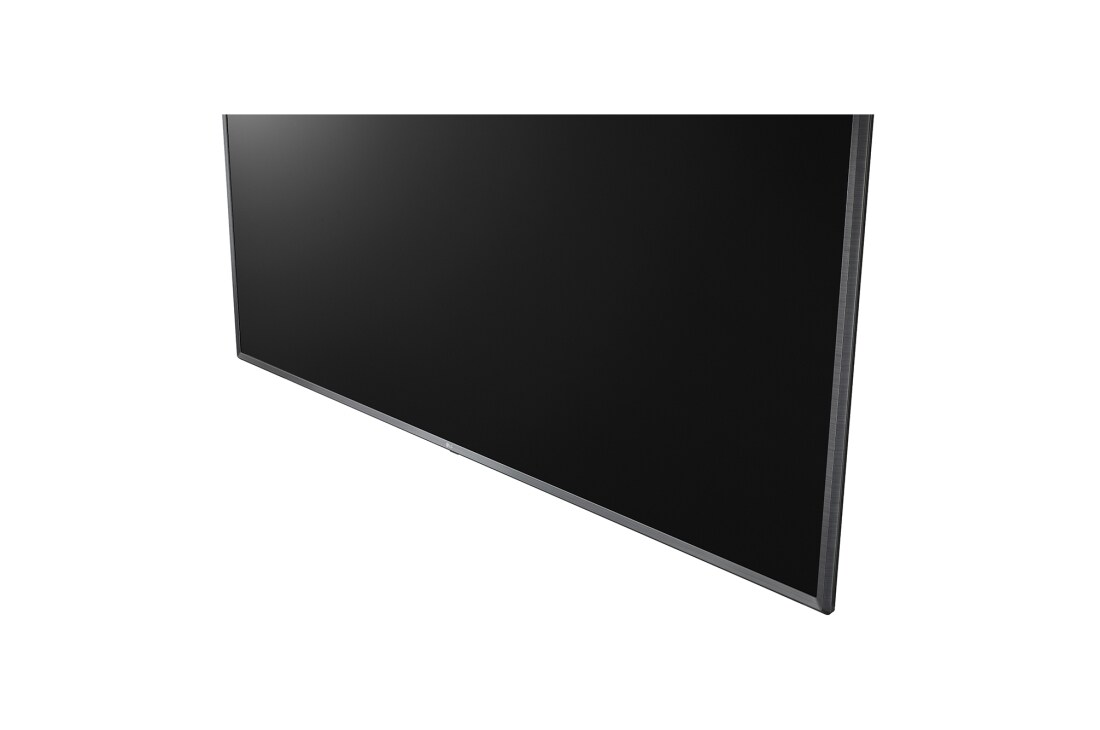

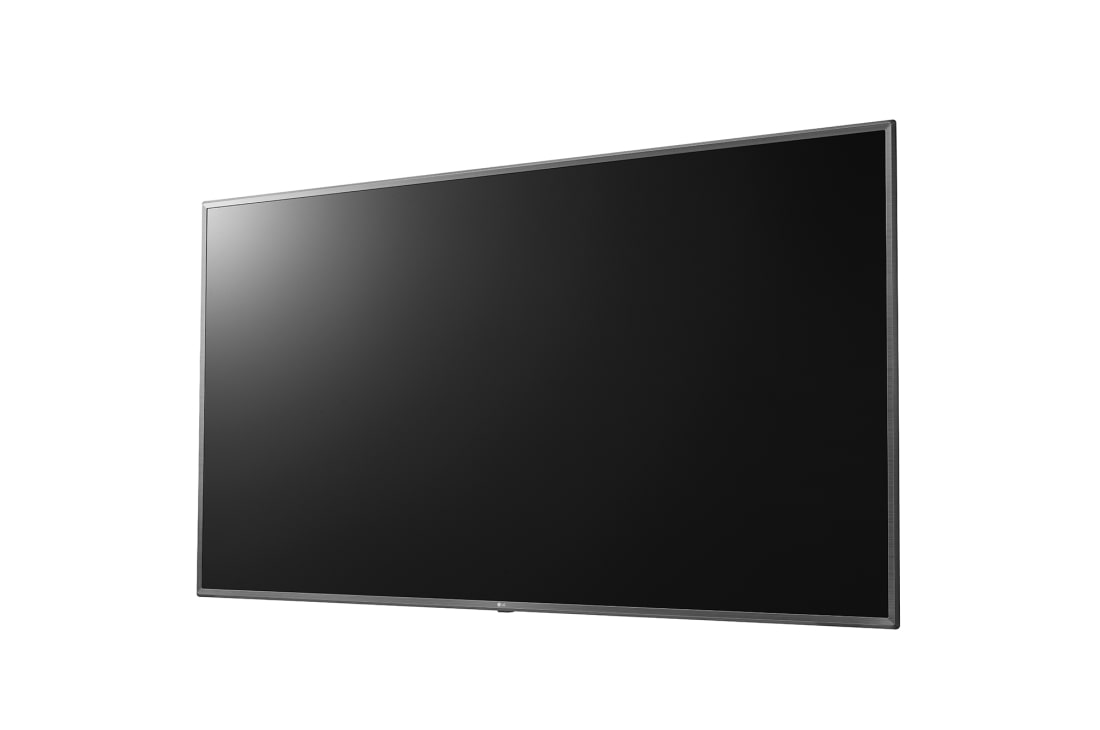

75'' 350 nits UHD TV Signage

Key Features

component-OBScountrySelectDesc

75" 350 nits UHD TV Signage
Display
  • Inch
    75
    Resolution
    3,840 X 2,160 (UHD)
  • Brightness (cd/m²)
    350
Broadcasting System
  • Digital
    DVB-T2/C/S2
Video
  • HDR (10 Pro / HLG)
    • / •
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    -
    One Touch Sound Tuning
    -
  • LG Sound Sync
    Bluetooth required
Compability
  • Supersign SW
    Content Management Software (SuperSign CMS), Control and Monitoring Software (Control/Control+), Simple Editor
Features
  • Signage
    Crestron Connected® (Network Based Control), DPM (Digital Power Management), Time Scheduler, RTC (Real Time Clock), NTP sync timer, BEACON, Embedded CM (Contents Manager), Embedded GM (Group Manager)
    Smart
    webOS 4.5, Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube only), Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay
  • Hospitality
    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen (Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), RJP (remote jack pack) Compatibility (LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC))
    Maintenance
    USB Cloning, WOL, SNMP, Diagnostics (Self Diagnostics (USB)), SI Compatible (TVLink Tuner), Simplink (HDMI-CEC (1.4)), IR Out (RS-232C, HDMI), Multi IR Code
Jack Interface
  • Set Side
    HDMI In 2 (2.0), USB (2.0), CI Slot
    Set Rear
    HDMI In (HDCP (2.0)), CI Slot, RF In 2, Digital Audio Out (Optical), RS-232C(D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose (Ethernet)), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1), Debug (Phone Jack Type (Ext. SPK Volume Control Share))
Dimension(Unit: mm/kg)
  • Vesa
    600 x 400
    W x H x D / Weight (with stand)
    1,693 x 1,048 x 345 / 35.4
  • W x H x D / Weight (without stand)
    1,693 x 978 x 88.8 / 34.6
    W x H x D / Weight (Shipping)
    1,823 x 1,116 x 231 / 45.7
Power(Unit : Watts)
  • Voltage, Hz
    100 ~ 240 V, 50/60 Hz
    Power Consumption(Typ.)
    221W
  • Stand-by
    0.3W
General
  • Region
    Europe
  • Dimension
    • 75uk65_2pole.dwg
    • 75uk65_2pole.pdf
  • Datasheet
    • UT640S(EU_CIS)_Datasheet(web)_LG Commercial TV_2008.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
