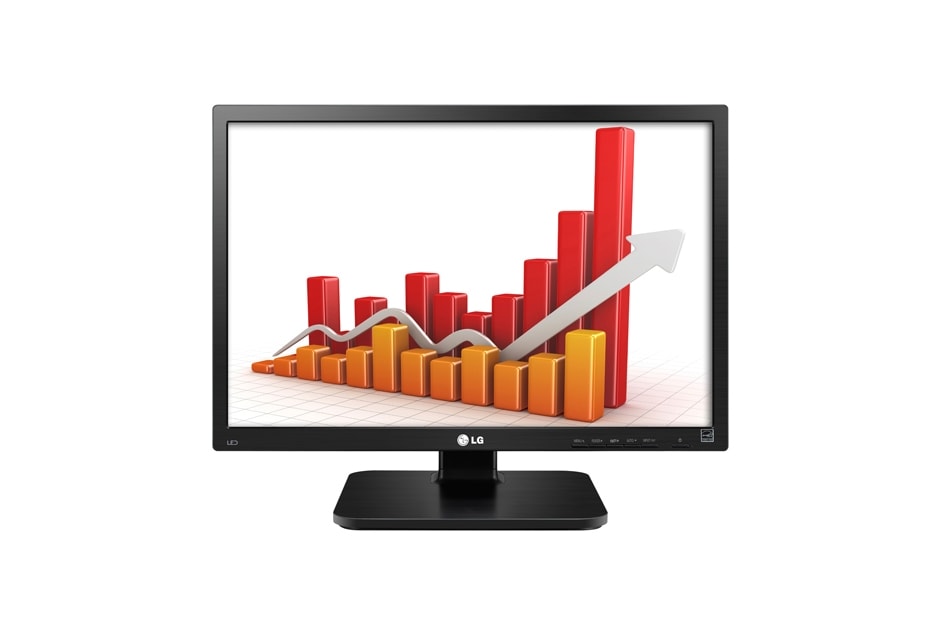

22" LED Monitor (22" Diagonal)

  • 22MB65P-B

Key Features

  • NEW! Reader Mode
  • NEW! Flicker-Safe
  • Smart Energy Saving

Certain product details including design, features, and specifications may not be available in all areas. Contact your local office for availability.

Contact Information

For any inquiries about purchasing or technical supports, please find your local office in your country.
If there is no listing for your country, please contact the nearest country to yours.

Panel
Panel Size (measured diagonally)22"class (22.0"measured diagonally)
Panel TypeTN
Color Gamut (CIE1976)72%
Color Depth(Number of Colors)16.7M color
Pixel Pitch(mm)0.282(H) x 0.282(V)
Aspect Ratio16:10
Resolution1,680 x 1,050
Brightness250 cd/m²
Contrast Ratio (Typ.)1,000:1
Dynamic CR5,000,000:1
Response Time5ms (G to G)
Viewing Angle170°/160°
Surface TreatmentHard Coating (3H), Anti-glare
Input (Side)
D-SubYes
DVI-DYes
Power
TypeBuilt-In Power (Power only)
Power Supply100 -240Vac, 50/60Hz
Consumption Power Save/Sleep Mode(Max)0.3W
Normal On (EPA6.0)19W
Normal On (typ.)30W
DC Off (Max)0.3W
Frequency
H-Frequency (Analog)30 ~ 83kHz
V-Frequency (Analog)56 ~ 75Hz
H-Frequency (Digital)30 ~ 83kHz
V-Frequency (Digital)56 ~ 75Hz
Cabinet
ColorBlack with Hairline Finish Base
Monitor with Stand19.9” x 9.4” x 15.0”
Monitor Weight10.4 Ibs
Monitor without Stand19.9” x 2.3” x 13.3”
Monitor Weight (without stand)7.7 Ibs
Carton23.1” x 16.0” x 7.7”
Carton Weight14.3 Ibs
Base DetachableYes
Tilt (Angle)-5° (front) ~ 20° (rear)
Swivel (Angle)Yes
VESA Standard Mount Interface100mm x 100mm
Height(mm)Yes (Down Height 50mm / 120mm range)
PivotYes (90°)
Warranty
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
UPC7 19192 19329 1
Accessories
Power CordYes
D-SubYes
DVI-DYes
Special Feature
Original RatioYes
Reader ModeYes
Mechanical SwitchYes
DDC/CIYes
Key LockYes
HDCPYes
Plug & PlayYes
Intelligent Auto (Auto Resolution)Yes
Flicker SafeYes
Smart Energy SavingYes
