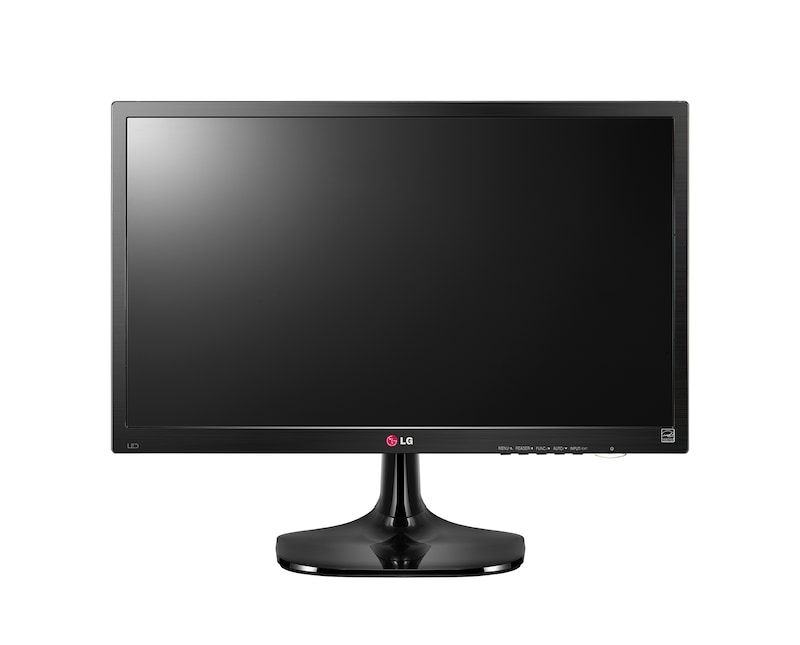

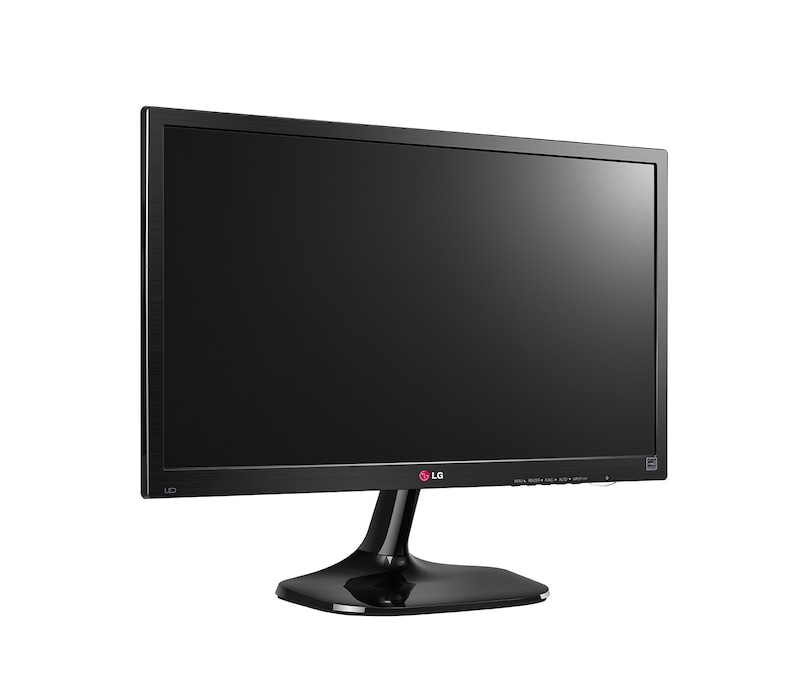

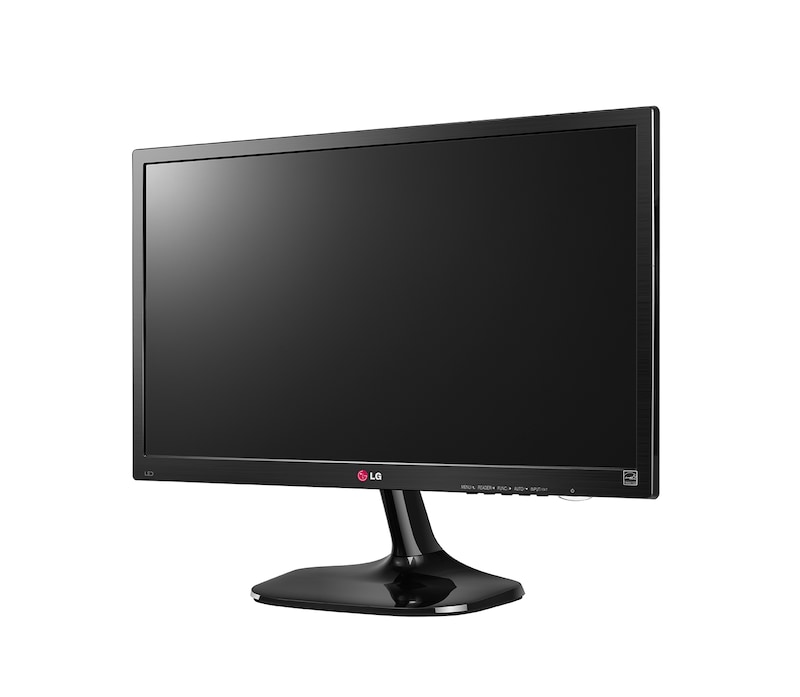

19M45D LCD Monitor

  • 19M45D

Basic
Screen Size 18.5
Panel Type TN
Color Gamut 72%
Color Depth (Number of colors) 16.7M
Pixel pitch (mm) 0.30*0.30
Aspect Ratio 16:9
Resolution 1366*768
Brightness (cd/m²) 250 cd/m²
Contrast Ratio 1000:1
Contrast Ratio (DFC) 5M:1
Response Time(ms) 5ms
Viewing Angle (CR≥10) 170/160
Lamp Q'ty 4
Inverter Without
Surface Treatment Anti-Glare, 3H
Inputs/Outputs
[Jack Location] - Signal Input Back
D-Sub Yes
DVI-D Yes
Power
Power Type (Adapter or LIPS) Adaptor
Input AC100~240V 50~60Hz
Power: Normal On (Typ.) 13W
Power Save/Sleep Mode(Max) 0.3W
DC Off(Max) 0.3W
Frequency
H-Frequency (Analog) 30~61kHz
V-Frequency (Analog) 56∼75kHz
H-Frequency (Digital) 30~61kHz
V-Frequency (Digital) 56~75kHz
Resolution
Analog (PC) 1366*768
Digital (PC) 1366*768
Control Key
[Key Location] Front
Key Number (Power Key Included) 6 keys
Key Type Tact
LED Color (On mode) White
LED Color (Power save mode) White
OSD
Country (Language) English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi
Number of Language 17
Special Feature
Picture Mode Yes
Original Ratio Yes
DDC/CI Yes
HDCP Yes
Intelligent Auto (Auto Resolution) Yes
Key Lock Yes
Plug & Play Yes
Reader Mode Yes
Flicker safe Yes
Dual Smart Solution (Dual web, Dual Display, Smart Resolution ) Yes
SUPER Energy Saving Yes
Mechanic
Front Color Black Hair Line
Back Cover Color Black Texture
Stand Color Black high glossy+texture
Base Color Black high glossy+texture
Others Black Texture
Base Detchable Detachable
Tilt -3º (front) ~ 20º(rear)
Dimension( W*D*H)(mm)
Set (with Stand) 441*178*379
Set (without Stand) 441*60*278
Wall Mount VESA Compatible (75mmx75mm)
Weight(Kg)
Set (with Stand) 2.1
Set (without Stand) 1.8
Standard
TCO 6.0 Yes
UL(cUL) Yes
TUV-TYPE Yes
FCC-B, CE Yes
EPA 6.0 Yes
EPEAT Gold
Windows 8 Win8
Accessories
Power Cord Yes
D-Sub Yes
DVI-D Yes
