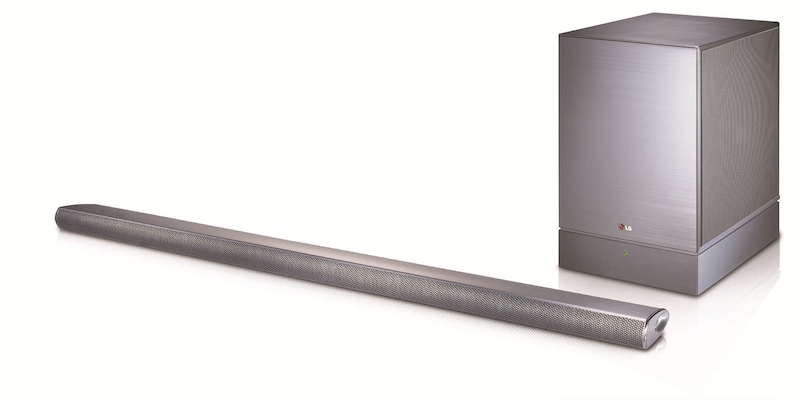

  • NB4540

Key Features

  • 4.1 CH 320W SURROUND SOUND
  • 35MM ULTRA SLIM METALLIC DESIGN
  • ACTIVE WIRELESS SUBWOOFER
Amplifier
Channel 4.1 CH
Power Output - Total 320W
Power Output - Front 40Wx2
Poewr Output - Surround 40Wx2
Power Output - Subwoofer 160W (Wireless)
In & Out
Audio In - Portable In (3.5Ø) Yes
Audio In - Optical Yes
Bluetooth (ver. 4.0) Yes
USB 2.0 Yes
HDMI Out Yes
HDMI Input Yes
Convenience
Sound Sync - Bluetooth (LG TV) Yes
Sound Sync - Optical Yes
Automatic Power on/off (Bluetooth/Optical) Yes / Yes
SIMPLINK Yes
3D Video Signal Pass Through 3D Yes
Standby Pass Through Audio, Video Yes
Audio Return Channel (ARC) Yes
Woofer Level Volume Yes
Mute Yes
Sleep Yes
USB Host Yes
Audio Sound Mode
Sound Effect (Toggle) Standard (By pass) / CINEMA (Movie) / MUSIC (Natural) / NEWS (Clear Voice) / SPORTS / BASS
D.Loud (Loudness) Yes
Dynamic Range Control (On/Off) Yes
Auto Volume Leveler (On/Off) Yes
Audio Format
LPCM LPCM
Dolby Digital Yes
DTS 2.0 Yes
FLAC (Up to 192kHz) Yes
OGG (Up to 48kHz) Yes
WAV Yes
MP3 Yes
ID3 Tag Yes
WMA Yes
Accessory
Instruction Manual Yes
Remote Control Unit - Type MA2 Modify
Remote Control Unit - Unified Yes
Remote Control Unit - Battery (Size) AAA x 2
Battery Yes
Warranty Card Yes
Optical Cable Yes
USB Gender Yes
DLNA Set-up Disc Yes
Wall Mount Bracket Yes
Power
Type ADAPTER (25V, 2A)
Power Off Consumption 0.5W↓
Physical
Size (W x H x D) mm - Main 840 x 35 x 82
Size (W x H x D) mm - Subwoofer 221x 351.5 x 281
Weight (Kg) - Main 11.7
