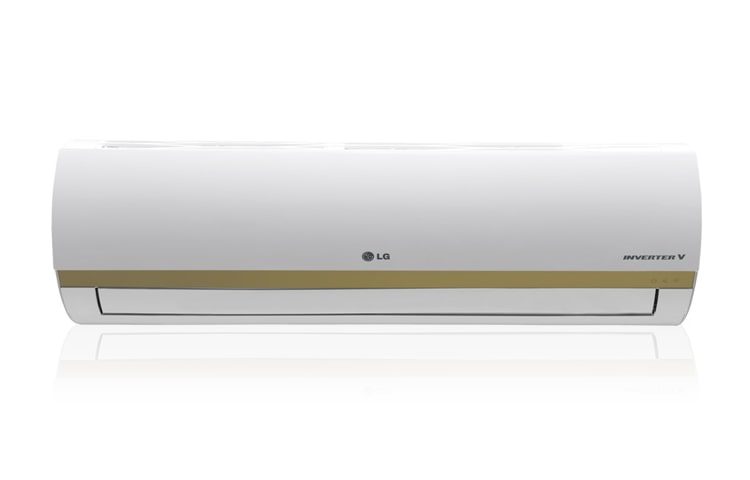

LG’s highly efficient advanced inverter V technology

  • US-Q126B4A4

  • Discontinued Product

Key Features

  • INVERTER V technology
  • Active Energy Control

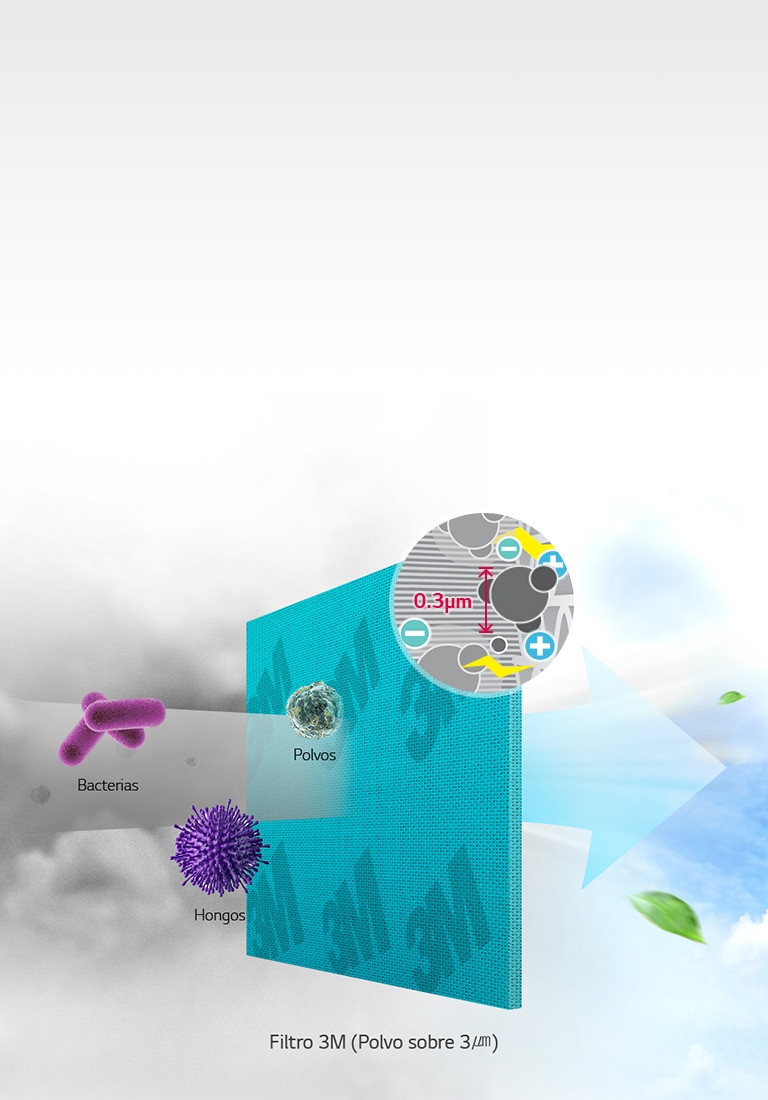

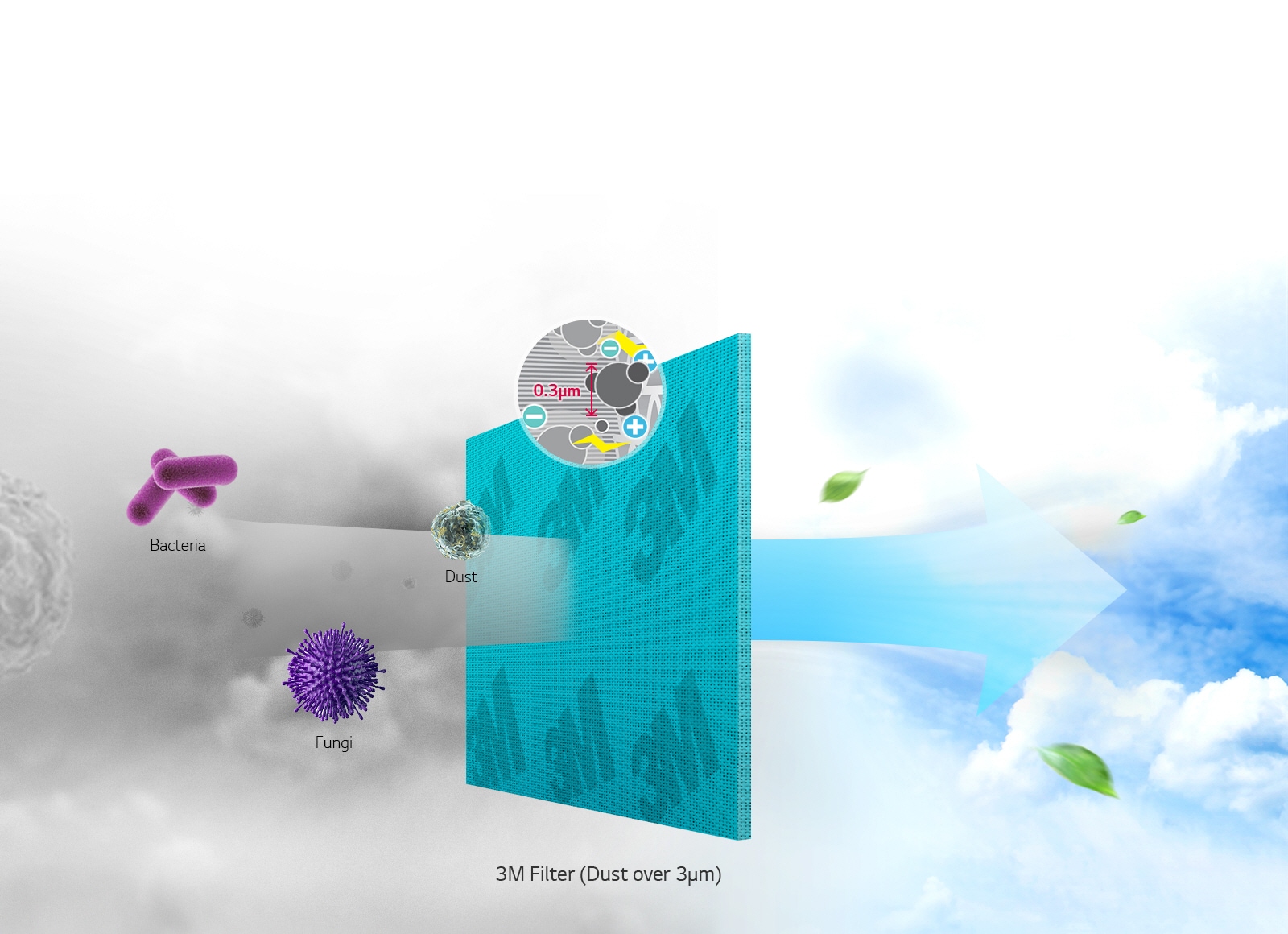

  • Anti Bacterial Air Filter
  • Jet Cool
Capacity
Cooling 2900~12000~13000
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Supply Cable 3 x 1.0 No.*㎟
Power and Transmission Cable 4 x 0.75 No.*㎟+No.*㎟ (Including Earth)
Power Input (Cooling) 1096 W
Running Current (Cooling) 5.1 A
Starting Current (Cooling) 5.1 A
EER 3.21 W/W
Circuit Breaker 15 A
RPM (Cooling) 1700/1450/1200/930/650S-Low
Air Flow Rate
Indoor,Max 10(353) ㎥/min(CFM)
Outdoor,Max 27(953) ㎥/min(CFM)
Special Function

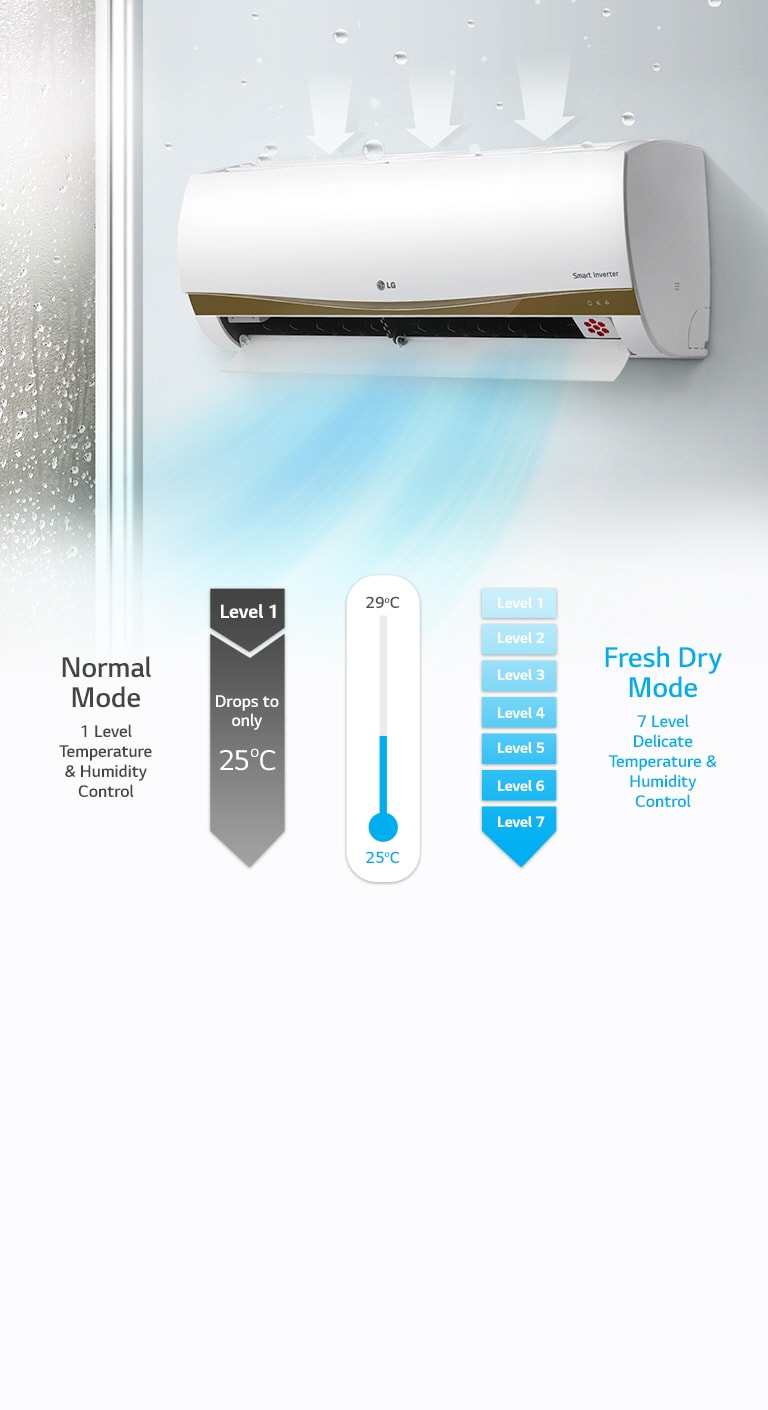

Moisture Removal 1.01 Kg/h
Refrigerant & Charge(at 5m) R410A, 850 g
Additional Refrigerant Charge 20 g/m
Sound Level
Indoor,H/M/L/SL 41/35/27/19 dB(A)+1
Outdoor,Max 49 dB(A)+1

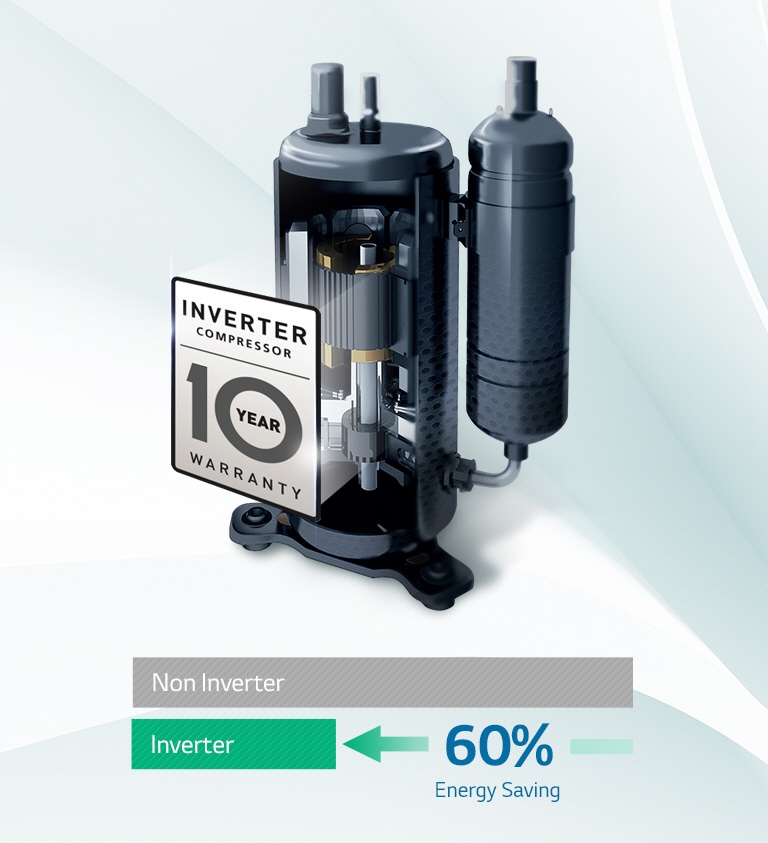

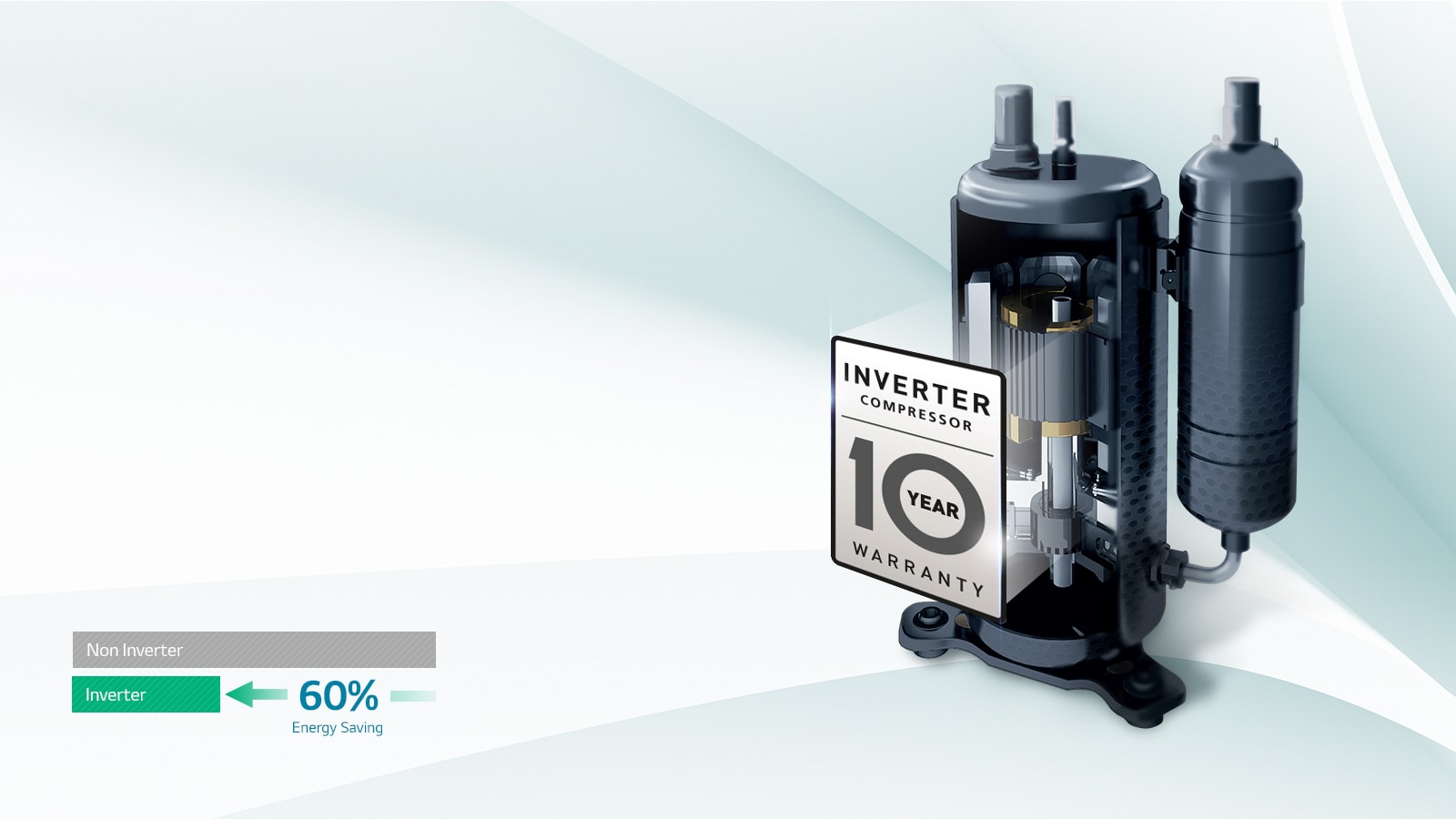

Compressor
Type 1P Rotary
Model GA092MAB
Motor Type Brushless DC Motor
Oil Type FVC68D
Oil Charge 310±5 cc
Condenser
Tube Type Cu Cond
FPI 18 FPI
Raw × Column 2 × 22
Fan(Indoor)
Type Cross Flow Fan
Motor Type BLDC
Motor Output 20 W
Fan(Outdoor)
Type Propeller, Fan
Motor Type AC
Motor Output 25.2 W
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 9.52(3/8) mm(in)
Max. Piping Length 15(49.2) m(ft)
Max. Elevation Difference 7(22.9) m(ft)
Drain Hose
O.D , I.D 21.5,16.0(0.85,0.63) mm(in)
Dimensions
Indoor (W*H*D) 885*285*210 mm
35.2*11.2*8.3 inch
Pack Indoor (W*H*D) 958*369*264 mm
37.7*14.5*10.4 inch
Outdoor (W*H*D) 717*483*230 mm
28.2*19.0*9.1 inch
Pack Outdoor (W*H*D) 822*516*307 mm
32.4*20.3*12.1 inch
Net Weight
Indoor 9(19.8) kg(lbs)
Outdoor 24.1(53.1) kg(lbs)
Set Weight
Indoor 11(24.3) kg(lbs)
Outdoor 26.1(57.5) kg(lbs)
Operation Range
Cooling (Indoor) 18 ~ 32 (64.4 ~ 89.6) ℃(℉)
Cooling (Outdoor) 18 ~ 48 (64.4 ~ 118.4) ℃(℉)
Tool Code(Chassis)
Indoor + Outdoor SB + UA3 Plus
