LX331H Series

  • 32LX331H

  • Discontinued Product

Key Features

  • Remote Management via RF
  • PMS Interfaced Service Ready
  • Advanced wake-up Time, Weather, Map

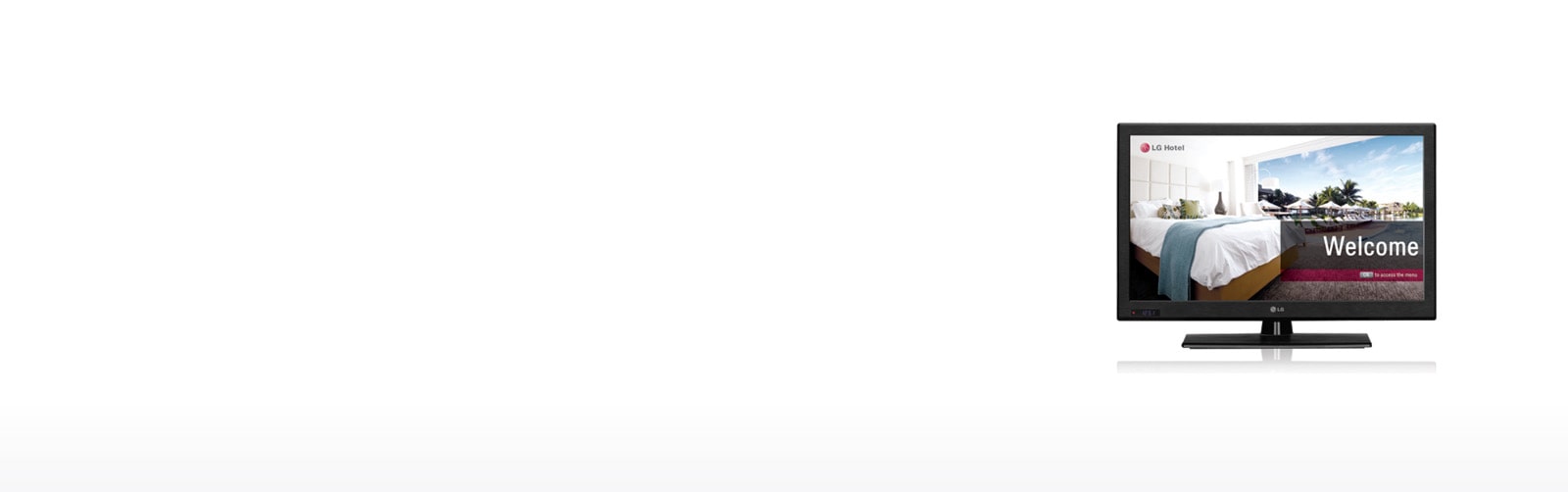

  • Embedded Customizable Templates
  • Multiple Hotel Channel Spooling

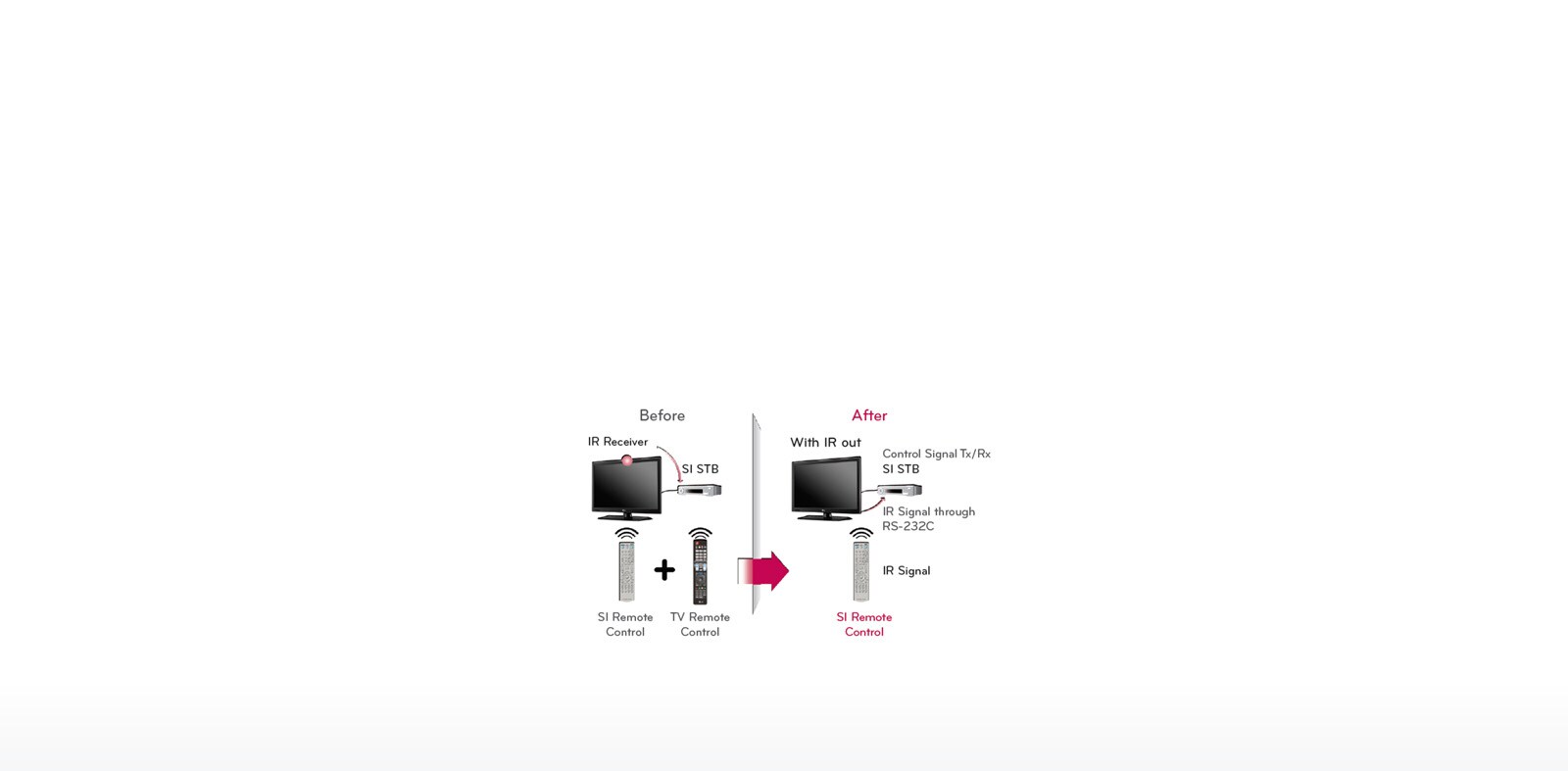

  • IR Out
LCD Panel Specification
Backlight TypeSilm Direct LED
Cinema 3D-
Resolution1,366 x 768 (HD)
Brightness (cd/m²)300
Broadcasting System
AnalogPAL/SECAM
TerrestrialDVB-T2
CableDVB-C
SatelliteDVB-S2
Video
Real Cinema 24p (3:3 pull down)Yes
Aspect Ratio8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
Audio
Audio Output10W + 10W
Wireless Sound Sync-
Feature
Pro:CentricYes
Pro:Idiom-
Interface - Set Side
Headphone Out1
RF In-
AV in-
S-Video In-
RGB In (D-sub 15pin)-
Component In (Y,Pb,Pr)-
PC Audio Input-
HDMI In1
USB (2.0)1 (2.0)
CI Slot1
IR Out-
Interface - Set Rear
RF In2
AV In-
AV Out-
S-Video In-
Full Scart1
Component in (Y,Pb,Pr-Video)1 (Phone jack)
Component in (Audio)1 (Phone jack):Component/DVI/PC Audio
Digital Audio Out (Coaxial / Optical)1 (Optical)
HDMI/HDCP Input1
USB 2.0-
RGB In (D-sub 15pin) - PC1
PC Audio Input-
RS-232C (D-sub 9pin)1
Headphone Out-
Clock Interface-
LAN Port1
RJ45 (RJP interface)-
External Speaker Out (3.5mm phone jack)1 (Spk-out 1)
TV link Configuration (phone jack type)-
Power
Voltage, Hz100 ~ 240V, 50/60Hz
Typical (Watts)56.8W
Tool Description
Swivel (angle)Yes
VESA Compatibility200 X 200
Required Listing (Certification)
SafetyCB , CU TR
EMCCE
ETC.ROHS, ErP, Eco flower
Dimension
Set Size (W/O Stand, WxHxD, mm)732 X 437 X 55.5
Set Size (With Stand, WxHxD, mm)732 X 482 X 282
General
RegionEurope
