UH5B Series

  • 65UH5B

Key Features

  • Brightness : 500cd/m²
  • Depth : 38.6mm
  • 24/7 Operation

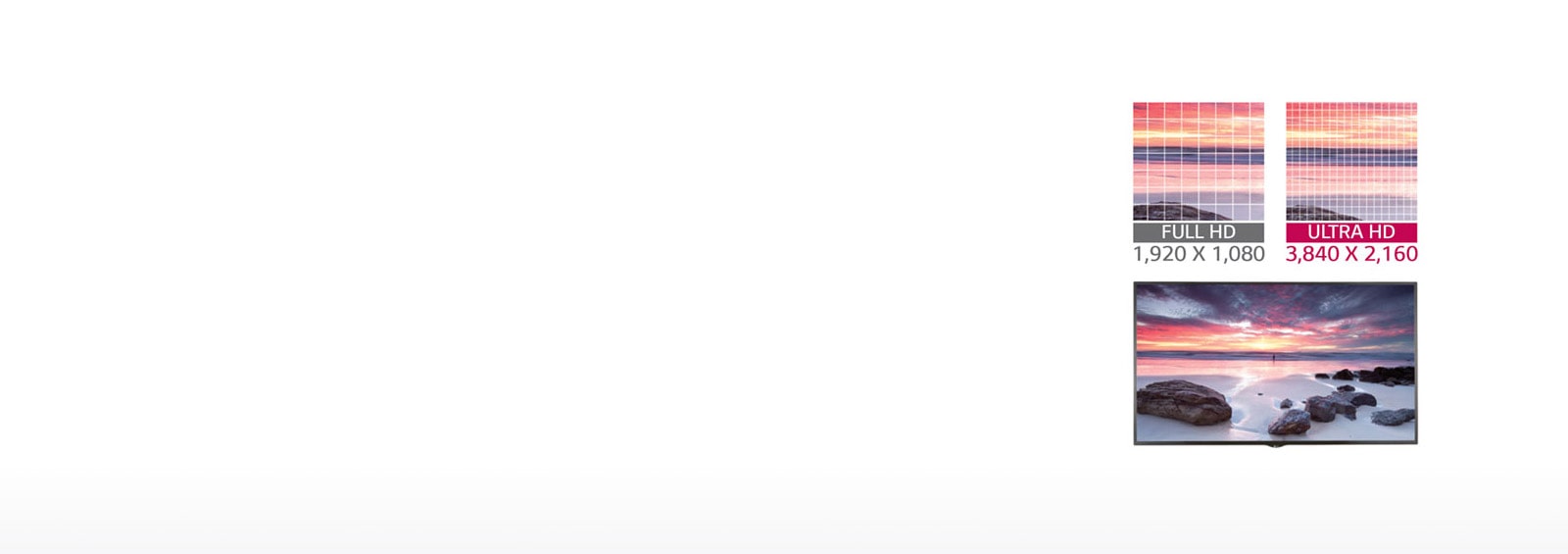

Ultra HD Resolution

Ultra HD Large screen delivers immersive viewing experience.

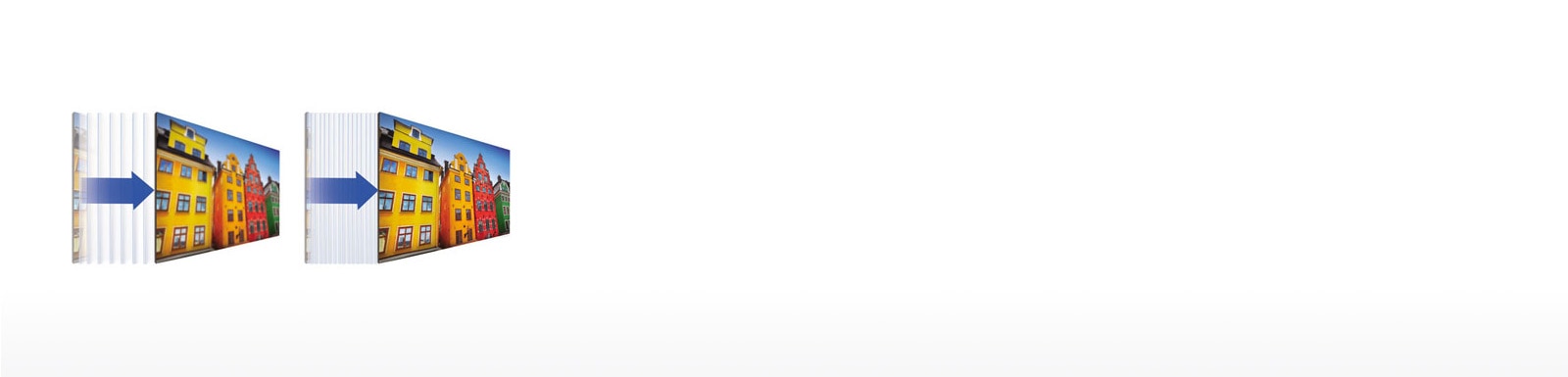

High efficiency Video Coding

Supports HEVC-based content which has the double data compression ratio than the H.264 so network traffic can be reduced by half.

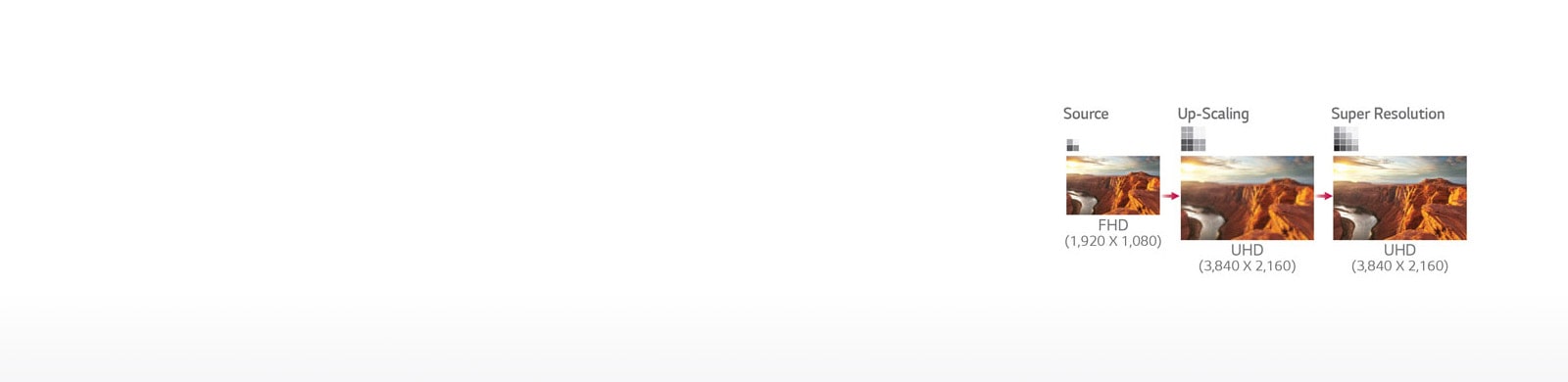

Up-Scaling and Super Resolution

Up-Scaling and Super Resolution technology enhance the quality of FHD content to near-UHD quality.

Quad Core SoC

The High Performance SoC can execute several tasks at the same time and provides smooth content playback.

Panel
Screen Size65"
Resolution3,840 x 2,160 (UHD)
Brightness500cd/m²
Connectivity - Intput
HDMIYes (1), HDMI /HDCP2.2
DPYes (1), DP /HDCP1.3
DVI-DYes (1), HDCP2.2
Analog (RGB)Yes (1)
Audio InYes (1), RGB/DVI
External Control (RS232C IN)Yes (1)
External Control (RJ45)Yes (1)
External Control (IR receiver)Yes (1)
External Control (Pixel Sensor)Yes (1)
USB (USB3.0)Yes (1)
SD Card (SDHC/Full Size)Yes (1)
Connectivity - Output
DP OutYes (1), SST/DP1.2a
Audio OutYes (1)
Externel Speaker OutYes (L/R), 6 ohm
External Control (RS232C OUT)Yes (1)
Physical Specification
Bezel Width12.1mm (T), 12.6mm (R/L), 15.7mm (B)
Monitor Dimension (W x H x D)1,458.6mm X 848.9mm X 40.1mm
Weight (Head)26.0kg
VESA™ Standard Mount Interface300mm x 300mm
Software Compatibility
SuperSign-w liteYes
SuperSign-cYes
Accessory
BasicRemote Controller (include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover
OptionalSpeaker (SP-5200), Stand (ST-651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)
General
RegionGlobal
