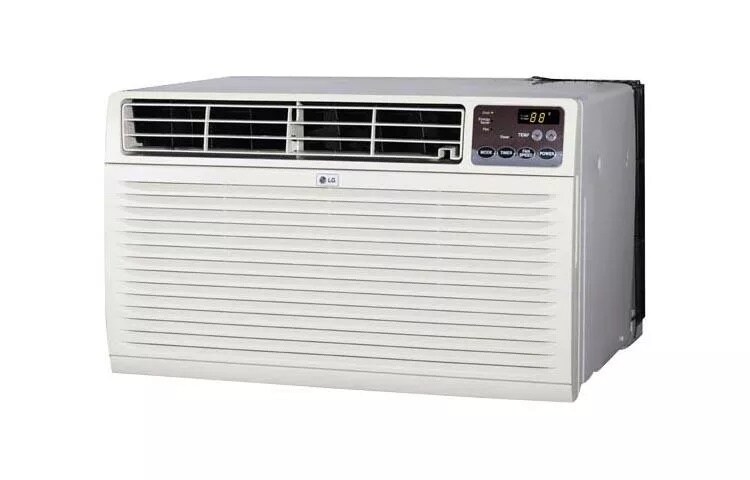

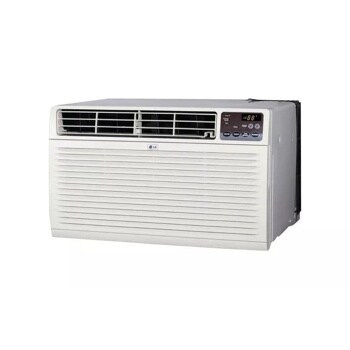

9,800 BTU Thru-the-Wall Air Conditioner with remote

  • LT1013CNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 3 Cooling and Fan Speeds with Auto Cool
  • 4-Way Air Direction
EER 8.8
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 51 / 60
BTU Performance Cooling 9,800
Net Weight (lbs.) 78
Shipping Weight (lbs.) 84
Carton Height (inch) 17 13/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24
Dimension Depth (inch) 20 3/32
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
Fan Only 3
Real Grille Yes
Voltage / 60 Hz 115
Watts (Cooling) 1,110
Rated Amps (Cooling) 10.2
Limited Warranty 1 Year Parts and Labor(Limited In-Home Service)

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 199ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1013CNR Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Does this use 20A or 15A

My circuit is a 20A/250V. Unfortunately, the unit I purchased is a 15A. There seems to be no way to tell before you open it and read the directions. If this unit does not meet this specification, which LG wall units do?
Asked by: smilingcass
This LG 9,800 BTU Thru-the-Wall Air Conditioner with remote, Model # LT1013CNR is rated at 115V, 10.2A so it would need to be plugged into a standard 2-Pole, 3-wire grounding receptacle rated 15A, 125VAC. The power requirements should be on the carton that the unit is shipped in but you can always look them up under the product's specifications on the LG Site and on most of the retailer's sites where the product is featured...^IFV
Answered by: LGJoel
Date published: 2015-07-29

does the LG AC LT1013CNR include the sleeve

Asked by: jimHR
Answered by: adam12
Date published: 2013-12-07

LG in wall ac

My LG AC suddenly started shutting off for a period of time and then started back up. it cools but barely. what to do? What is the problem? Hotter than toothpicks in South Central Florida!
Asked by: OkeeMike
We regret the trouble you have experienced with this air conditioner. If the unit is not cooling, then it may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2013-07-15

why is blue "cool" light flashing on the front of the unit?

and compressor seems not to be running.
Asked by: michael1947
It is difficult to determine the cause of this blinking indicator light. Please contact our Customer Interactive Center at 800-243-0000 that we might troubleshoot this matter with you.
Answered by: NeilE
Date published: 2013-06-05

does model # lt 1013cnr come with a trim plate and will a 16" deep sleeve work with this air con

Asked by: lemon

which wall sleeve do i need for the 9800 BTU or the 8000 BTU air conditioner

Asked by: ms546fifth
