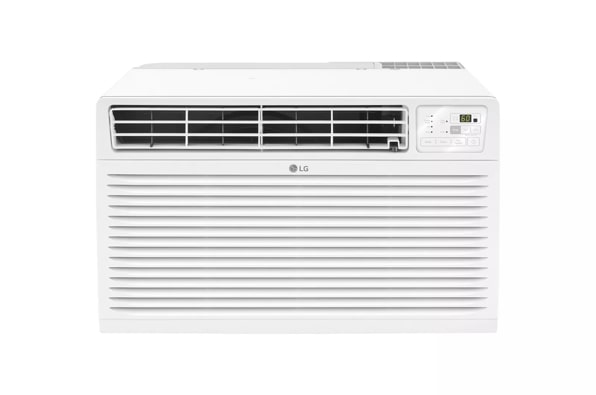

10,000/9,800 BTU Heat/Cool Thru-the-Wall Air Conditioner with Remote

  • LT1033HNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 2 Cooling and Fan Speeds
  • 4-Way Air Direction
EER 9.4 / 9.4
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 51 / 60
BTU Performance Cooling 10,000 / 9,800
BTU Performance Heating 11,200 / 9,200
Net Weight (lbs.) 78
Shipping Weight (lbs.) 84
Carton Height (inch) 18 4/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24 21/32
Dimension Depth (inch) 19 21/32
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 2
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XA
Auto Restart Yes
Fan Only 2
Real Grille Yes
Voltage / 60 Hz 208/230
Watts (Cooling) 1,060/1,040
Watts (Heating) 3,500/2,900
Rated Amps (Cooling) 4.7/5.2
Rated Amps (Heating) 15.3/14.0
Limited Warranty 1 Year Parts and Labor(Limited In-Home Service)

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 280ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support


Ask your questions. Share your answers.

What btu is the lg model LT1030HR

How would I get a manual for this model? What does it mean to say for internal use only? This is a through the wall unit, or so says the box.
Asked by: rktt
We appreciate your interest in this air conditioner system. The LT1033HNR air conditioner is a 10,000 BTU Thru-the-Wall system. The “Internal Use” designation simply means that it is designed to blow into an enclosed area.
Answered by: NeilE
Date published: 2015-09-04

does this unit have auto thermostat and does the fan still run after desired heat is reached

Asked by: rbman
This model has the Energy Saver Function.
Answered by: Nadine
Date published: 2014-03-13

is model Lt1033hnr a heat pump or has a heat strip

Asked by: RUDYDAD
All models with a heating feature are electric heat.
Answered by: Nadine
Date published: 2015-02-01

Can you operate this unit with a remote control? If not,what similar unit can you operate remotely?

We have a 350 sq ft room, and are looking for an inconspicuous unit that is quiet, but can also be operated remotely because this unit will be on the wall above our heads between 6-7ft high on an 8 ft wall. Do you recommed this unit of a different one.
Asked by: Fredrica
Yes, this model comes with a remote controller :)
Answered by: Nadine
Date published: 2013-05-22

What room size will this unit handle?

What room size, in square feet, will this unit hear and cool?
Asked by: projectguy
This unit cools rooms up to 350 sq. ft. (est.)
Answered by: Nadine
Date published: 2013-04-08

Does the LT1033HNR come with a electrical plug connection or is it hard wired? Does the electrical connect in the front or rear of the unit?

Asked by: JohnR

Window or split unit AC unit remote control

Does the AC remote control for a window or split unit work with all models or (if lost) each model has its unique remote control? Thanks
Asked by: Laith

entergy saver

how come the entergy saver only works on the air part, but not the heat? is there a way to control the heat to auto come on and shut down at a desired temp?
Asked by: pollypoo
