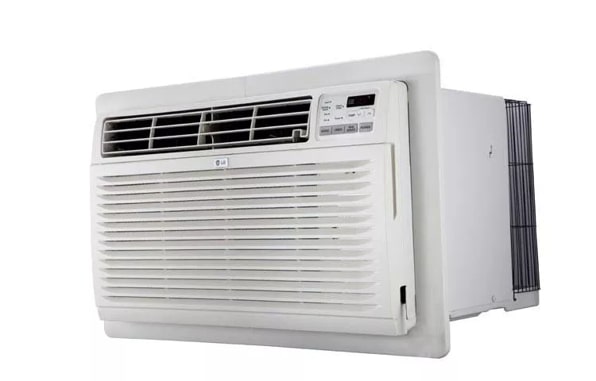

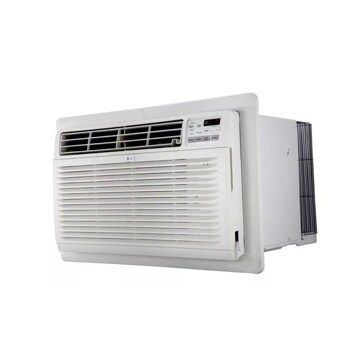

9,800/10,000 BTU Cooling Thru-The-Wall Air Conditioner Cooling & Heating

  • LT1035HNR

Key Features

  • 9,800/10,000 BTU Cooling
  • 11,200/9,200 BTU Heating
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
EER 9.8 / 9.8
CEER 9.7/9.7
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 54/61
Est. Cooling Area (Sq. Ft.) 450
BTU Performance Cooling 9,800/10,000
BTU Performance Heating 11,200/9,200
Product (WxHxD) 24 21/32" x 14 13/32" x 19 21/32"
Shipping (WxHxD) 27 23/32" x 18 4/32" x 22 13/32"
Net Weight (lbs.) 82
Shipping Weight (lbs.) 92
Thermostat Control Thermistor
Air Deflection 4-Way
Auto Restart Yes
Energy Saver Function Yes
Filter Alarm Function Yes
Fan Speed: Cooling 2 / 2
Fan Only Speed 2
Compressor Rotary
Indoor Fan Type Turbo
Outdoor Vent / Exhaust Yes
Rear Plastic Mesh Grille Included Yes
Trim Kit Included Yes
Available Colors White
Voltage / 60 Hz 230/208
Watts (Cooling) 1,000/1,020
Watts (Heating) 3,500/2,900
Rated Amps (Cooling) 5.1/4.7
Rated Amps (Heating) 15.3/14.0
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
Limited Warranty 1 Year Parts and Labor
UPC 048231 376662

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 420ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1035HNR Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

My wall unit keeps freezing up i cleaned the coils and sprayed the back of ac clean now what

Asked by: Samnwolf123
We regret the trouble you have experienced with this air conditioner. If the vents are clear, and the filters are clean, then it would be recommended to contact our Customer Interactive Center at 800-243-0000 for assistance in this matter.
Answered by: NeilE
Date published: 2016-06-09

Owner's manual on pages 18/19 regarding heat function "Heat - Fan runs continually for normal heating operation" My LT1035HNR shuts down in heat mode once set temp is reached similar to "energy saver" mode when cooling. Why? Defective?

Asked by: BladeStratford
We appreciate your interest in this air conditioner. The fan should run constantly during the HEAT operation. If this is not the case, then the unit may require service. Please contact our Customer Interactive Center at 800-243-0000 to troubleshoot the matter further.
Answered by: NeilE
Date published: 2015-11-18

I need a Limited Warranty copy on this product. LT1035HNR A/C

Asked by: Darwyn
We appreciate your interest in this air conditioner. Please review the attached document concerning the warranty of this product
Answered by: NeilE
Date published: 2015-09-03

I have a LG window unit that heats and cools and I try to start it by remote and it ran for a moment and just shut down

I use the remote to start the unit it ran for a second and shut down and it will not start by the remote or manually. There is power but it will not start. I check the twenty amp breaker by it did not trip.
Asked by: Waverly
Hello Waverly, we regret to read that your 9,800/10,000 BTU Cooling & Heating Thru-the-Wall Air Conditioner, Model # LT1035HNR is not turning on. Is there any code that is being shown on the display window of the unit? You may also want to check the circuit interrupter device attached to the power cord of the unit and hit the reset button. If the reset button does not stay engaged, stop using the unit and contact a qualified service technician...^IFV
Answered by: LGJoel
Date published: 2015-07-18

is there a remote thermostat available for this unit?

Asked by: Chad 21

How many tons

Asked by: Adrianayrolando073

Does water drip

Asked by: Paulieb66
