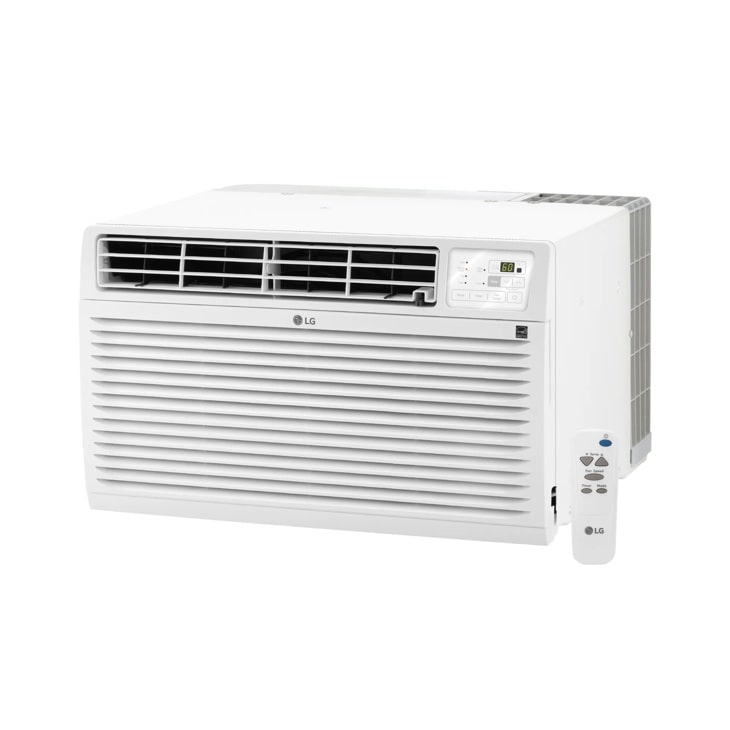

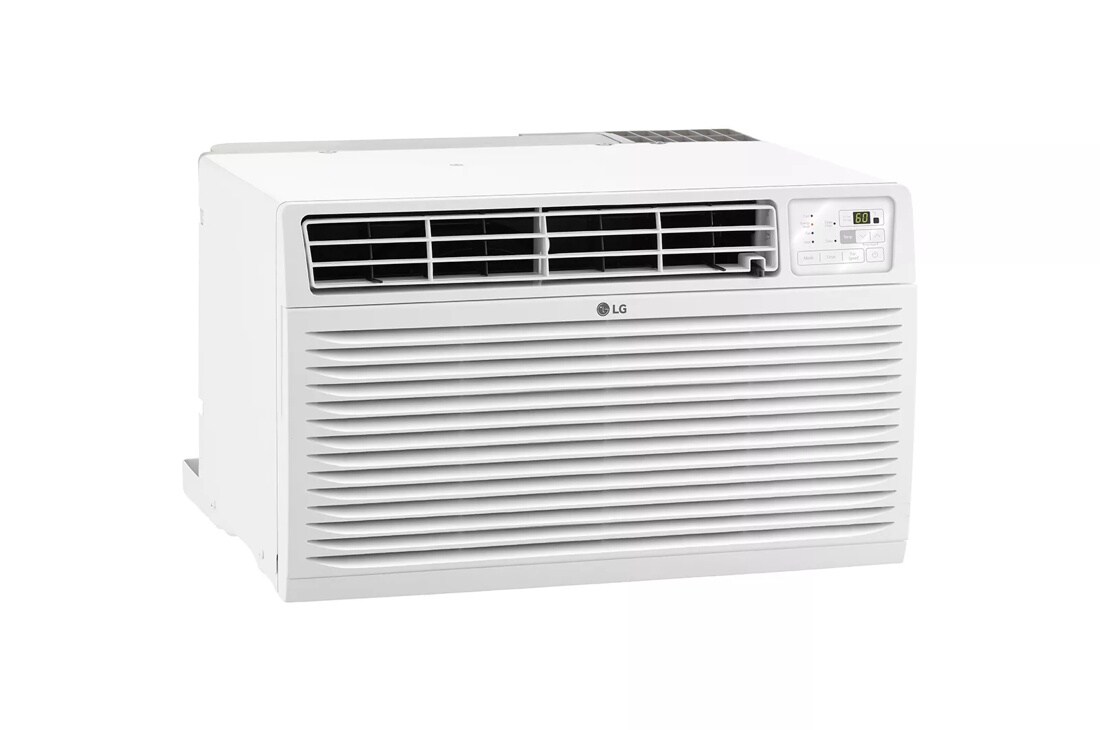

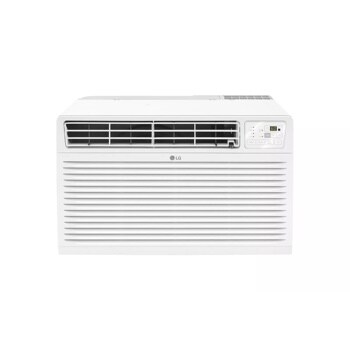

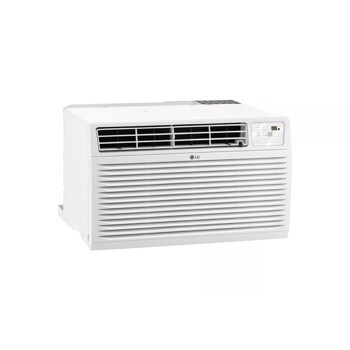

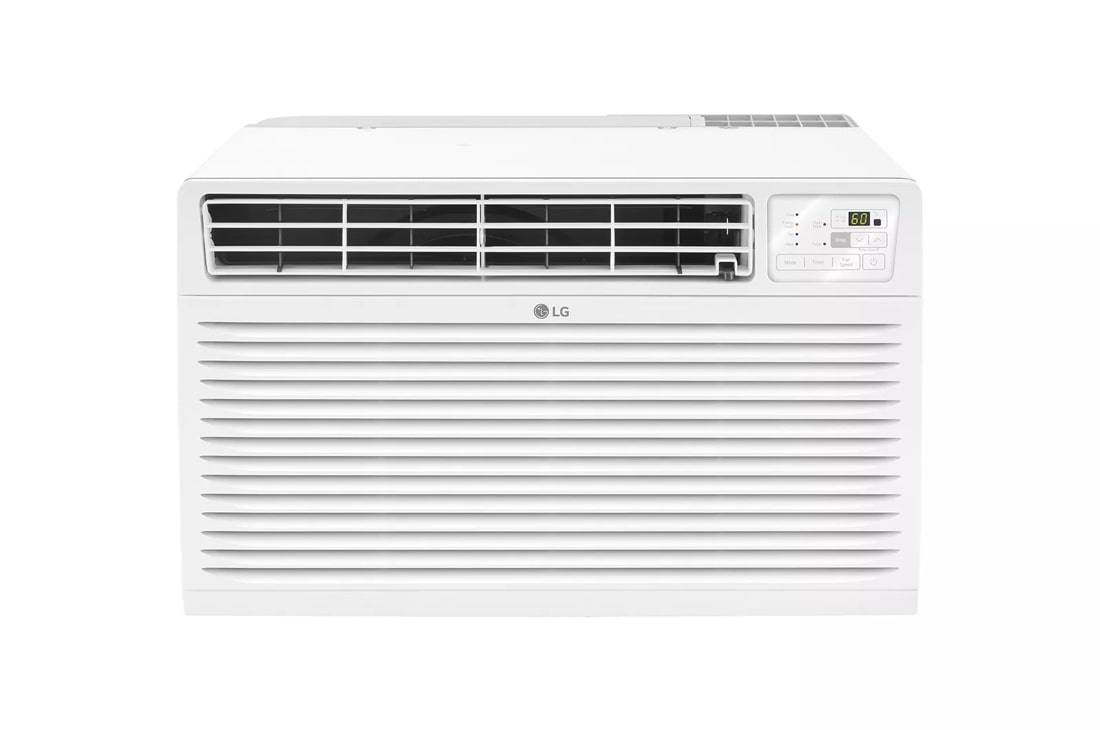

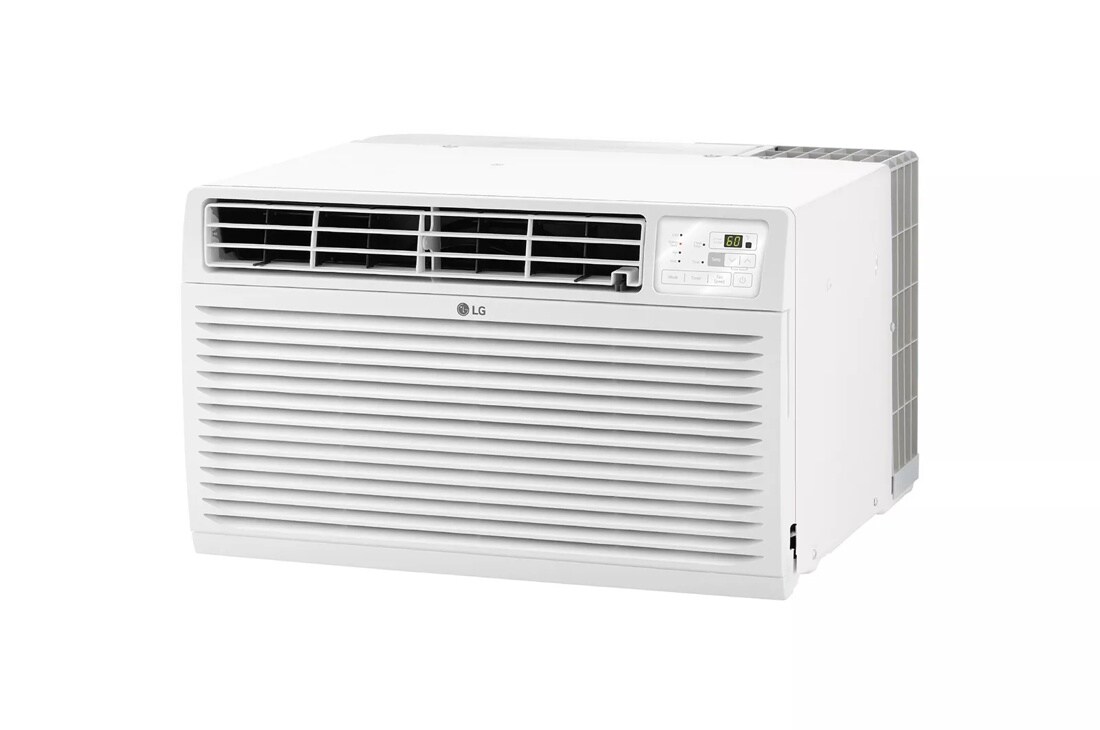

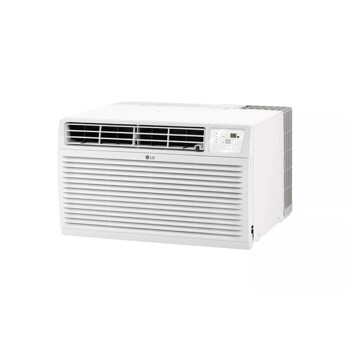

11,500/11,200 BTU Heat/Cool Thru-the-Wall Air Conditioner with Remote

  • LT1233HNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 2 Cooling and Fan Speeds
  • 4-Way Air Direction
EER 8.8 / 8.8
Dehumid. (Pts/Hr) 3.8
Dry Air Flow (CFM) 290
dBA Level (Indoor / Outdoor) 52 / 61
BTU Performance Cooling 11,500 / 11,200
BTU Performance Heating 11,200 / 9,200
Net Weight (lbs.) 80
Carton Height (inch) 18 4/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24 21/32
Dimension Depth (inch) 19 21/32
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 2
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XA
Auto Restart Yes
Fan Only 2
Real Grille Yes
Voltage / 60 Hz 208/230
Watts (Cooling) 1,310/1,270
Watts (Heating) 3,500/2,900
Rated Amps (Cooling) 6.0/6.4
Rated Amps (Heating) 15.3/14.0
Limited Warranty 1 Year Parts and Labor(Limited In-Home Service)
UPC 048231368834

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 230ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1233HNR Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I lost the remote for this model and was hoping if I could get another?

Asked by: Seerat Asif
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at The part number for this Remote Control is 6711A20066L.
Answered by: NeilE
Date published: 2015-12-31

Which side of a "LT1233HNR" does the power cord come out of?

Asked by: reverest
Bottom right side.
Answered by: Jbird01
Date published: 2015-10-12

when I am using the heat, why does it all of a sudden start blowing cold air? It has not reached the set temperature.

Even when I turn the unit off for a while and then turn it back on, it still blows cold air instead of heat.
Asked by: mabclb
We regret the trouble you have experienced with this air conditioner. How large of an area is this unit attempting to heat? Such symptoms can occur in an area too small for this machine. Please contact our Customer Interactive Center at 800-243-0000 to troubleshoot this matter.
Answered by: NeilE
Date published: 2015-02-27

how do you use the vent pull?

there is a piece labeled "vent pull" near the top of the unit. How do you use it?
Asked by: davie
We appreciate your interest in this air conditioner. The VENT stick opens a small section to allow fresh air into the room. This feature is best used in conjunction with the FAN ONLY mode. The lever itself is only pulled out by a fraction of an inch. To close the vent, simply push it straight back into the original position. Very little pressure is required for either of these options.
Answered by: NeilE
Date published: 2014-05-08

Why does the unit NOT heat the room when it it set at 80 and is in the econony mode?

I set the temp at 80 ldegrees and the unit on economy. When I came into the room today it was 57 degrees. So does the economy not work when heat is wanted? When I set it at 70, the room is even colder in the morning. Is this a faulty unit, or am I doing something wrong? The unit was purchased from Home depot in June of 2013. When I set it on heat and set the temp at 75 or so, it never stops running! When set on economy, it cycles on and off, but never gets the room up to the set temperature. Can you help?
Asked by: Haggis
We regret the trouble you have experienced with this air conditioner / heater unit. The ECONOMY mode, for this system, is based around the sealed system. As the unit uses an electric heater element, this feature will not effect the operation. If you have additional questions on this matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2014-10-07

What is the air discharge temperature of the LT1233HNR unit when set to 68 degrees?

I currently have a unit that puts out 57 degree air and that does not do the job necessary to cool the room. Is this unit faulty or is this the expected temperature?
Asked by: Dubuque
We regret the trouble you have experienced with this air conditioner. If the unit is blowing 57 degree air, and this does not cool the room, then it may be that the unit is not of a sufficient size to properly cool the room. When an air conditioner is set to 68 degrees, then it should be blowing at 68 degrees, and circulating the cold air through the room. If you have additional questions about this matter, then please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-01-27

Thru the wall vs window

I rent an apt 550 sq ft and in the living room is a thru the wall opening. Would it be necessary to buy a thru the wall unit or because of price difference can I install a window unit thru the opening. I need a heat cool unit approx. 12000btu. Also I read on one of the reviews for model number LW1213HR that it heats the room quickly, however the fan continues to blow air when the heating strip turns off thus blowing cool air. Can you give me any info on that issue. Thanks.
Asked by: TBoy

My unit does not heat all the time. It goes slightly hot then goes cold.

Asked by: Meli
