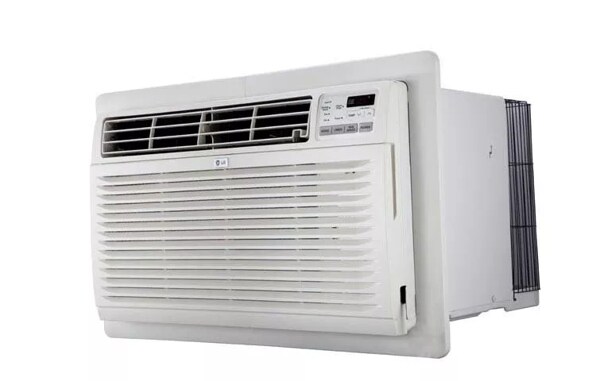

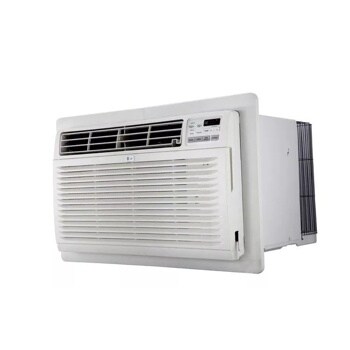

11,200/11,500 BTU Thru-The-Wall Air Conditioner

  • LT1235CER

Key Features

  • 11,200/11,500 BTU
  • EER 9.8/9.8 | CEER 9.7/9.7
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
PERFORMANCE
BTU Performance 11,500/11,200
EER 9.8 / 9.8
CEER 9.7/9.7
Dehumid. (Pts/Hr) 3.8
Dry Air Flow (CFM) 290
dBA Level (Indoor / Outdoor) 55/62
Est. Cooling Area (Sq. Ft.) 530
DIMENSIONS
Product (WxHxD) 24" x 14 13/32" x 20 3/32"
Shipping (WxHxD) 27 23/32" x 17 13/32" x 22 13/32"
Net Weight (lbs.) 80
Shipping Weight (lbs.) 90
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Auto Restart Yes
Energy Saver Function Yes
Filter Alarm Function Yes
Fan Speed: Cooling 3
Fan Only Speed 3
Compressor Rotary
Indoor Fan Type Turbo
Outdoor Vent / Exhaust Yes
Rear Plastic Mesh Grille Included Yes
Trim Kit Included Yes
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 230/208
Watts 1,140/1,170
Rated Amps 5.7/5.3
OPTIONAL ACCESSORIES
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 376655

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1235CER Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Can I wire the unit with 30amp/120volt?

Asked by: Ronbo
CAN I WIRE THE UNIT WITH 30AMP/120VOLT/
Answered by: RONBO
Date published: 2015-11-23

Does this unit have louvered sides?

11,500 BTU 115v through-the-wall air conditioner
Asked by: JennyM
Hello JennyM. The LG 11,200/11,500 BTU Thru-The-Wall Air Conditioner, Model # LT1235CER is a Through-the-Wall unit and as such, like all other through-the-wall units, does not have side louvers like Window Air Conditioners do. This is why you can put the LT1235CER in a wall sleeve...^IFV
Answered by: LGJoel
Date published: 2015-06-15

Window A/C not cooling, do not here compressor engaging. What type of freon is used.

Asked by: GatorFan

How long is the electrical cord? Does it have a plug or must it be wired?

Asked by: Ray88
