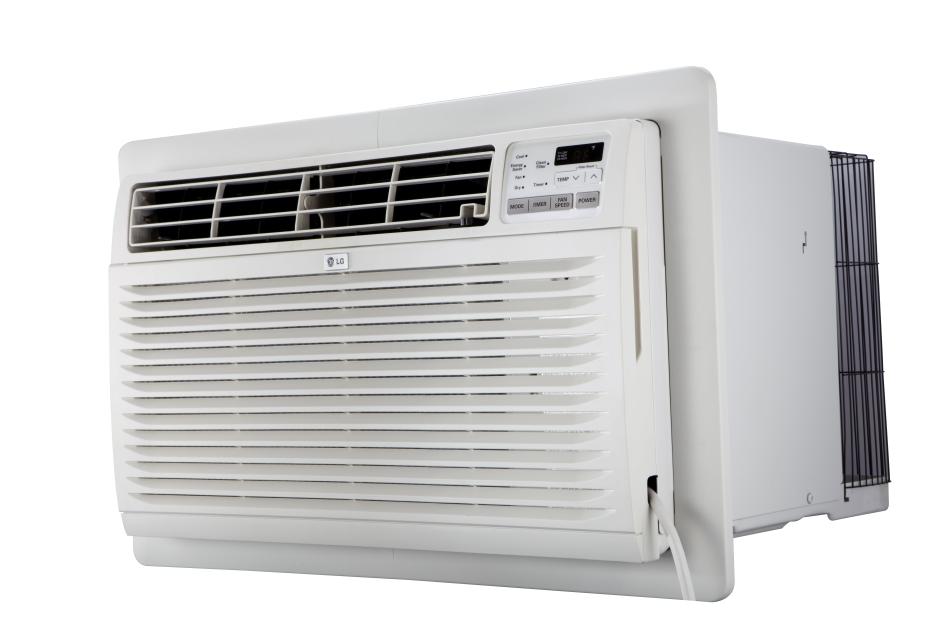

12,000 BTU 230v Through-the-Wall Air Conditioner with Heat

  • LT1236HNR

Key Features

  • Remote Control
  • 2 Cooling/Heating & Fan Speeds
  • Timer
PERFORMANCE
BTU Performance Cooling 11,000/11,200
BTU Performance Heating 11,200/9,200
CEER 9.7/9.7
EER 9.8 / 9.8
ENERGY STAR® Yes
Dehumid. (Pts/Hr) 3.8
Dry Air Flow (CFM) 290
dBA Level (Indoor / Outdoor) 55/62
Est. Cooling Area (Sq. Ft.) 550
Refrigerant R410A
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Auto Restart Yes
Energy Saver Function Yes
Timer 24 Hr. On/Off
Filter Alarm Function Yes
Fan Speed Cooling 2 (2)
Fan Only Speed 2
Compressor Rotary
In Door Fan Type Turbo
Outdoor Vent / Exhaust Yes
Rear Plastic Mesh Grille Included Yes
Trim Kit Included Yes
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 230/208
Watts (Cooling) 1,120/1,140
Watts (Heating) 3,500/2,900
Rated Amps (Cooling) 5.6/5.2
Rated Amps (Heating) 15.3/14.0
DIMENSIONS
Product (WxHxD) 24 21/32" x 14 13/32" x 19 21/32"
Shipping (WxHxD) 27 23/32" x 18 4/32" x 22 13/32"
Net Weight 87 lbs.
Shipping Weight 97 lbs.
OPTIONAL ACCESSORIES
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231379663
