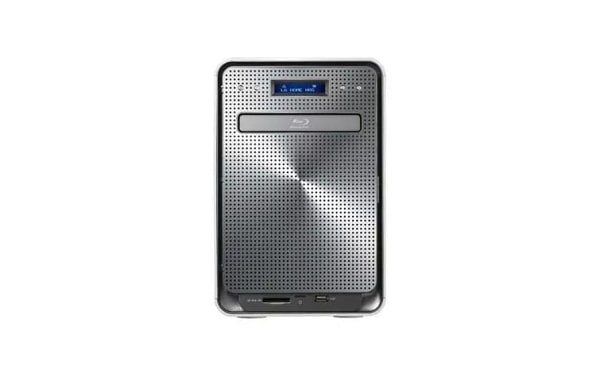

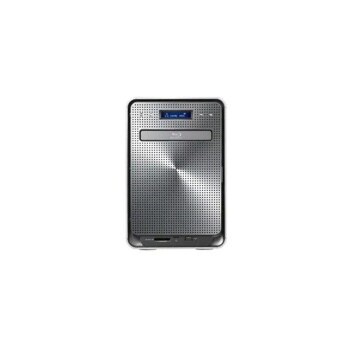

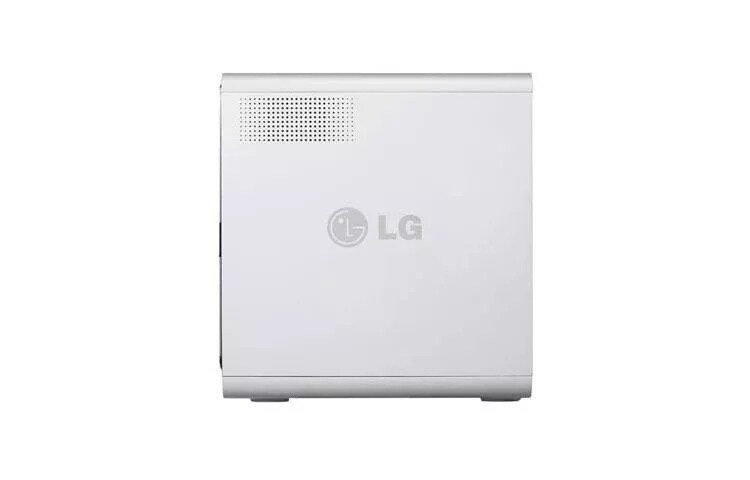

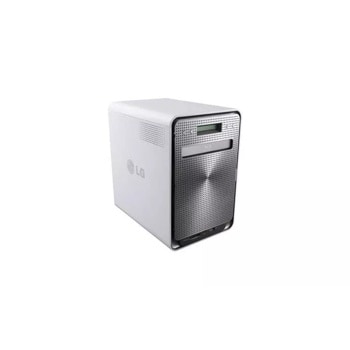

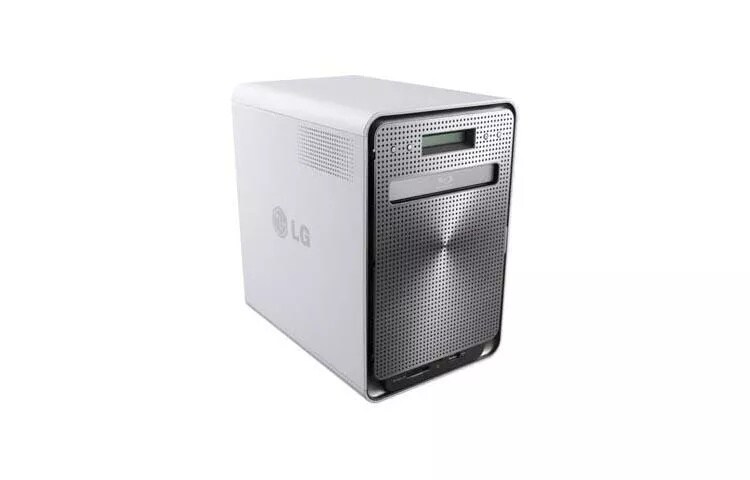

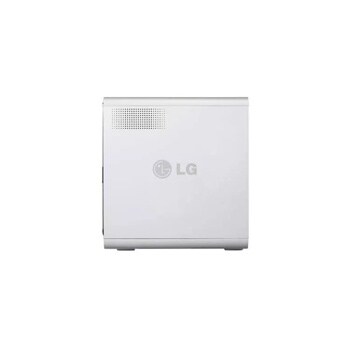

4 Bay Super Multi NAS with Blu-ray Disc Rewriter

  • N4B2N

  • Discontinued Product

Key Features

  • Powerful Intel® Atom™ Processor
  • Access all your data anywhere via the internet
  • Built-in Blu-ray Disc Rewriter for additional data backup option & protection
  • Hot Swappable and Lockable Trays
SUMMARY
Processor Intel® Atom™ D510 (Dual core, 1.6GHz)
Memory 1024MB
Number of HDD Bays 4 x hot-swappable and lockable tray
Interface E-SATA (SATA II)
Data Transfer Rates 3Gb/s
Recommended HDD Capacity 250GB, 500GB, 750GB, 1.0TB, 1.5TB, 2 TB
Supported RAID Levels 0, 1, 5, 1+0, JBOD
Operating System Embedded Linux (Kernel 2.6)
Client OS Support Win 2000, XP, Vista, Windows Server 2003, Mac OS 10.3 and later; Linux (Redhat 9, Ubuntu, Suse)
Warranty 1 Year Limited
LAN INTERFACE
Standard Compliance IEEE802.3ab / IEEE802.3u/IEEE802.3 Standard 10/100/1000 Ethernet
Data Transfer Rates 10/100/1000Mbps
Connector Type RJ-45
Number of Ports 1
BLU-RAY RE-WRITER
SupportedMedia BD/DVD/CD
Writing Speed BD (6xMax.)/ DVD (16xMax.) CD (40xMax.)
Reading Speed BD (6xMax.)/ DVD (12xMax.) CD (40xMax.)
Interface SATA
USB INTERFACE
Standard Compliance USB 2.0
Connector Type USB Type A
Number of Ports 3 (Top 1 ea., Rear 2 ea.)
Data Transfer Rates Max: 480Mbps (High Speed Mode), Max: 12Mbps (Full Speed Mode)
OTHER INTERFACE
Memory Card Reader 4 in 1 (SD,MMC,MS, xD)
NETWORK FILE SERVICES
Transport Protocol TCP/IP
File Sharing Protocol SMB/CIFS, AFP, FTP, DDNS
Management HTTP/S
Time Syncronization NTP
Network Options DHCP IP or Static IP
OTHER
Dimensions (WxHxD) 190mm x 295mm x 271mm (7.48" x 11.61" x 10.65")
Weight (without HDD) N4B2N (Enclosure) 7.0 Kg / 15.43 lbs.
Operating Environment 0-40°C, 15-85% (non condensing)
Operating System Embedded Linux (Kernel 2.6)
Client OS Support Win 2000, XP, Vista, Windows Server 2003, Mac OS® 10.3 and later Linux (Redhat 9, Ubuntu, Suse)
Power Consumption (Typical) IdleMode 38W/ HibernationMode Under 20W
Power Supply Internal AC 100-240V, 50/6
Regulations & Standards FCC, UL, CE, CE Marking, RoHS
Security Design K-Lock security slot for theft prevention
SOFTWARE BUNDLE
Comnso backup v2.5, Comnso Sync v2.5, Comnso Restore v2.5, LG NAS Detector v2.1, PowerDVD v.8, PhotoDVD Album v1.0 Yes

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

33 Questions & 36 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

2 answers

Installed the new firmware on an N4B2N, now I'm in trouble ... Help!

I work for a video production company and convinced them to buy an N4B2N to support our Macs, e.g. TimeMachine, and data; it's populated with 4 2TB, 7200 RPM hard drives configured as Raid 5.

Before upgrading, I backed up 1.5 TB, via e-SATA, to a 2 TB hard drive.

After upgrading, the Macs now work with TimeMachine, but I can't figure out how to move the data back. There doesn't appear to be any support for e-SATA or USB attached hard drives in the new firmware.

There was nothing in the release notes regarding changes to e-SATA and USB hard drive support.

I'm in a bind: If I re-install the old firmware, then no TimeMachine support, but I can move the data back. If I remain on the new firmware, then there is TimeMachine support, but I can't move the data back.

Anyone have any ideas?
2 years, 3 months ago
User Name:
Anonymous
VENTURA CALIF
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
When I plugged my external hard drive in the NAS recognized it right away. I was then able to use my computer to simply copy from the external to the NAS.
2 years, 3 months ago
User Name:
Thesales
Virginia, USA

Please wait while more information about Thesales is loaded.
Additional information about Thesales could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We regret the trouble you have experienced with this NAS device. When this unit was updated, did you note a new User Interface for the unit? We have received word from our product designers that the new firmware and new interface are fully compatible with eSATA and USB Hard Drive support. A link to this software can be obtained from our website at http://www.lg.com/us/support-produc.... If additional questions arise, please contact our Customer Interactive Center at 800-243-0000.
2 years, 3 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

Where do I put my music, photos and video files?

I just upgraded to the new firmware and therefore the new user interface. There is a folder labeled Multimedia and that is where I put all of my music, photos and videos but they do not show up on the iPhone app.

Where should I put those files?
2 years, 3 months ago
User Name:
Thesales
Virginia, USA

Please wait while more information about Thesales is loaded.
Additional information about Thesales could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The MyData app from LG, of course!
2 years, 3 months ago
User Name:
Thesales
Virginia, USA

Please wait while more information about Thesales is loaded.
Additional information about Thesales could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I apologize, but to what iPhone App are you referring? It seems that, in order to resolve such a situation, it would be necessary to consult the instructions provided for that iPhone App. If you have additional questions, please contact our Customer Interactive Center at 800-243-0000.
2 years, 3 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

Supported drives for the N4B2N

I am interested in 2 of these devices for storage. Are the following drives supported currently or are they soon to be ? (Hitachi HDS723030ALA640 OR HDS723020BLA642) ??

if not is there any 3 TB 64 MB 7200 RPM that are currently supported or soon to be supported ? I would run 4 in each device @ raid 0 or 5 Thanks !!
Category: I do not own this product
Interested in: Specifications
3 years ago
User Name:
Cobaltqube
San Francisco, CA
-1point
0out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I find very agravating when you ask a specific question and get an inadequate answer...
Following the answer you recieved, I bought 4 x 3TB hard drives (WD30EURS-63R) to put in one of these and although the NAS recognize them as having a capacity of 2.73TB, it will create a volume of only 1.96TB per drive.
In Raid 5 configuration, the size of the volume is only 5.87TB and I am not happy about this.
The firmware of my NAS is the latest available: 2682.625

So I will ask the question in another way and hope to get the proper answer:

Is this NAS able to use the full capacity of hard drives exceeding 2TB?
If not, will it soon be a firmware upgrade allowing this NAS to use the full capacity of drives exceeding 2TB?
2 years, 9 months ago
User Name:
TheGlobule
in Florida

Please wait while more information about TheGlobule is loaded.
Additional information about TheGlobule could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Almost any SATA (Serial ATA) drive will work. To see what sizes are currently being used, open the Web Interface. Click System and then Volume. Click the check box next to your drive volume and then click Edit. The model and capacity of each drive will be listed.

The performance/size will follow the slowest/smallest drive. We recommend you use the same size drives (250, 500, or 1TB) , but they do not have to be the exact same models.
3 years ago
User Name:
Stan

Please wait while more information about Stan is loaded.
Additional information about Stan could not be loaded.
-6points
0out of 6found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

What are the hard drives supported for use?

Category: I do not own this product
3 years, 1 month ago
User Name:
VyLe
Eaton
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Thank you for your question. There are many hard drives recommended for use and ones not for use. Please consult http://lgknowledgebase.com/kb/index.php?View=entry&EntryID=6486 for assistance. The second link you can choose will show the supported drives.
3 years ago
User Name:
Stan

Please wait while more information about Stan is loaded.
Additional information about Stan could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
3 years ago
User Name:
naveen
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Thank you for your question. Yes, you can make a backup of the Blu-ray disc if the disc is not copy-protected. The writing speed of the blu-ray burner is 4x-6x.
3 years ago
User Name:
Stan

Please wait while more information about Stan is loaded.
Additional information about Stan could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
