43” (42.5 Diagonal) Smart TV Signage

  • 43LV640S

Key Features

  • Embedded Content Management
  • Crestron Connected® Certified Display
  • WOL (Wake on LAN)
  • SNMP (Simple Network Management Protocol)
  • Enricher Smart Content
  • SmartShare

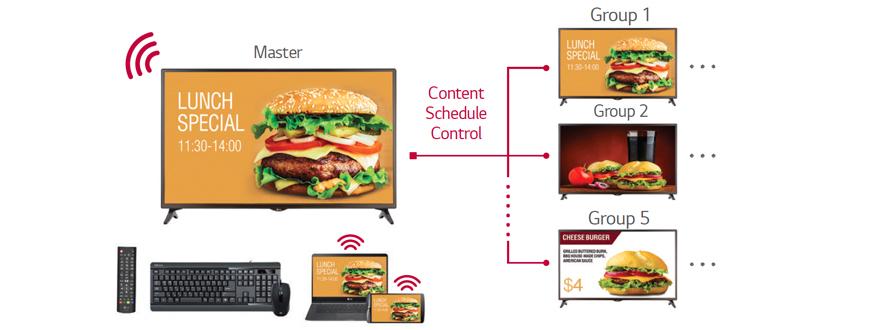

Embedded Content Management

Without an extra PC, content can be easily and promptly edited using
embedded templates via remote control, keyboard and Chrome browser. Also,
because the Smart TV Signage itself works as a server, a master TV can
distribute content and set data on a selected group within the same network.

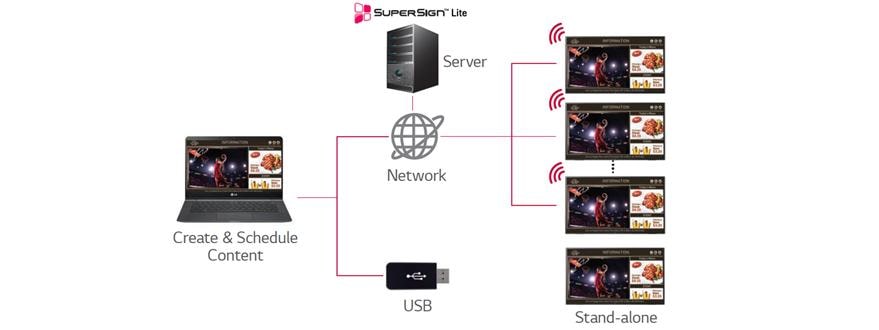

SuperSign™ Simple Editor

The LV640S series is compatible with SuperSign™ Simple Editor, one of LG’s editor software, to provide media editing, scheduling, and distributing capabilities.
• Creation with embedded templates (143 templates, 100 stickers)
• Content Scheduling and direct distribution via USB
• Content distribution over the network available via SuperSign™ Lite. (Up to 50 TVs)

Crestron Connected® Certified Display

The LV640S is Crestron connected certified, for seamless integration and automated control in Crestron Connected environments.

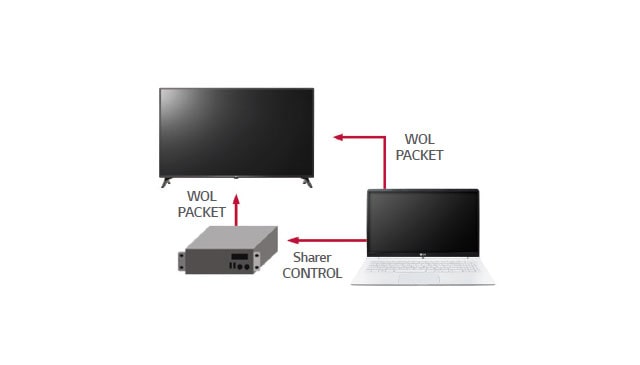

WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet programs to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.

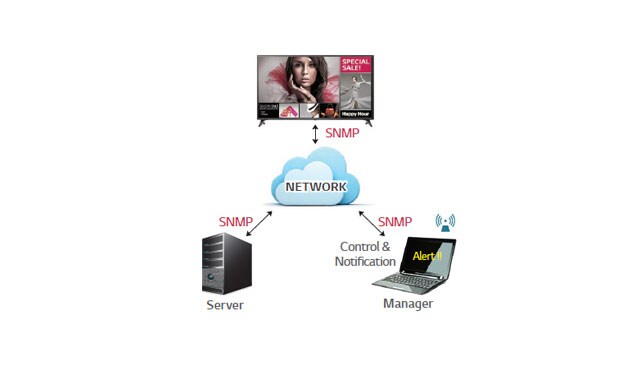

SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.

Enricher Smart Content

Customers can easily access to various content via pre-loaded YouTube app, web browser and live channels.

Diagonal Size42.5"
TypeDirect LED
Resolution1,920 x 1,080 (FHD)
Dynamic Contrast Ratio1,000,000:1
Static (Panel) Contrast Ratio1,100:1
Viewing Angle Degree178° / 178°
Response Time9
DigitalATSC / VSB / Clear QAM
Picture EngineXD Engine
Real Cinema 24p (3:3 pull down)Yes
Aspect RatioYes 6 modes (16:9, Just scan, Set by program, 4:3, Zoom, Cinema zoom1)
Audio Output / Speaker System10W + 10W / 2.0 ch
Sound ModeYes 6 modes (Standard, News, Music, Cinema, Sport, Game)
Clear VoiceYes
Smart UXwebOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded YouTube Apps, Magic Remote (Optional)
ConnectivitySoftAP, WiFi, SmartShare, ScreenShare (Miracast), DIAL, Bluetooth Sound Sync
YesHotel Mode, Lock Mode, Welcome Screen / Video, Insert Image, External Speaker Out, Time Scheduler / First Use, Content Manager, Group Manager, Crestron Connected® Certification, RTC (Real Time Clock), NTP sync timer
InstallationUSB Cloning
ManagementWOL (Wake on LAN), SNMP (Simple Network Management Protocol), Self Diagnosis via USB, Multi IR Code, HDMI-CEC
Setting OptionAuto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
USBMoving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac)
YesSuperSignTM Simple Editor, SuperSignTM Lite*
SideHDMI In, USB 2.0
RearRF, AV In, Component In (RCA5), Optical Digital Audio Out, HDMI Input (2), RGB In, PC Audio Input (Sharing with Component Audio), RS-232C, RJ45 (Ethernet), External Speaker, Debug (Service)
Vesa200 x 200 (mm)
WxHxD / weight (with stand)38.3" x 24.6" x 8.7" / 20.5lb
WxHxD / weight (without stand)38.3" x 22.5" x 2.8" / 20.3lb
WxHxD / weight (Packing)41.7" x 26.0" x 6.0" / 24.9lb
POWER (Unit : Watts)
Voltage, Hz100-240V, 50/60Hz
Stand-by< 0.5
Etc.RoHS, UL, NOM, ENERGY STAR® Qualified


Simply choose a support option from the icons below:


To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

LG Enhanced Service Plan (ESP)
LG's Enhanced Service Plan protects your investment by offering extended service coverage provided by LG for commercial displays in the hospitality, healthcare, and digital signage markets. By offering this program, you will enjoy the added peace of mind that comes with knowing your products are protected.
Quick Swap (Advanced Exchange)
Minimizes down time of device and quickly gets the device up and running. LG will provide a return box and prepaid return shipping label for customer to return the unit. Service call for Advanced Exchange must be made by 2pm CST.
a. Next Business Day Exchange
b. 2nd Business Day Delivery
White-Glove Quick Swap (Advanced Exchange)
An LG authorized technician will meet you onsite. Technicians will remove, re-install and return product. Service calls for Advanced Exchange delivery must be made by 2pm CST.
a. Next Business Day Exchange
b. 2nd Business Day Delivery

For more information, click here:
