XF3C Series

  • 55XF3C-B

Key Features

  • Brightness : 3,000 cd/m2 (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 9.9 mm (L/R), 12 mm (T/B)
  • Depth : 160 mm
  • Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / IR / USB / External speaker out (L/R)

Product Reliability

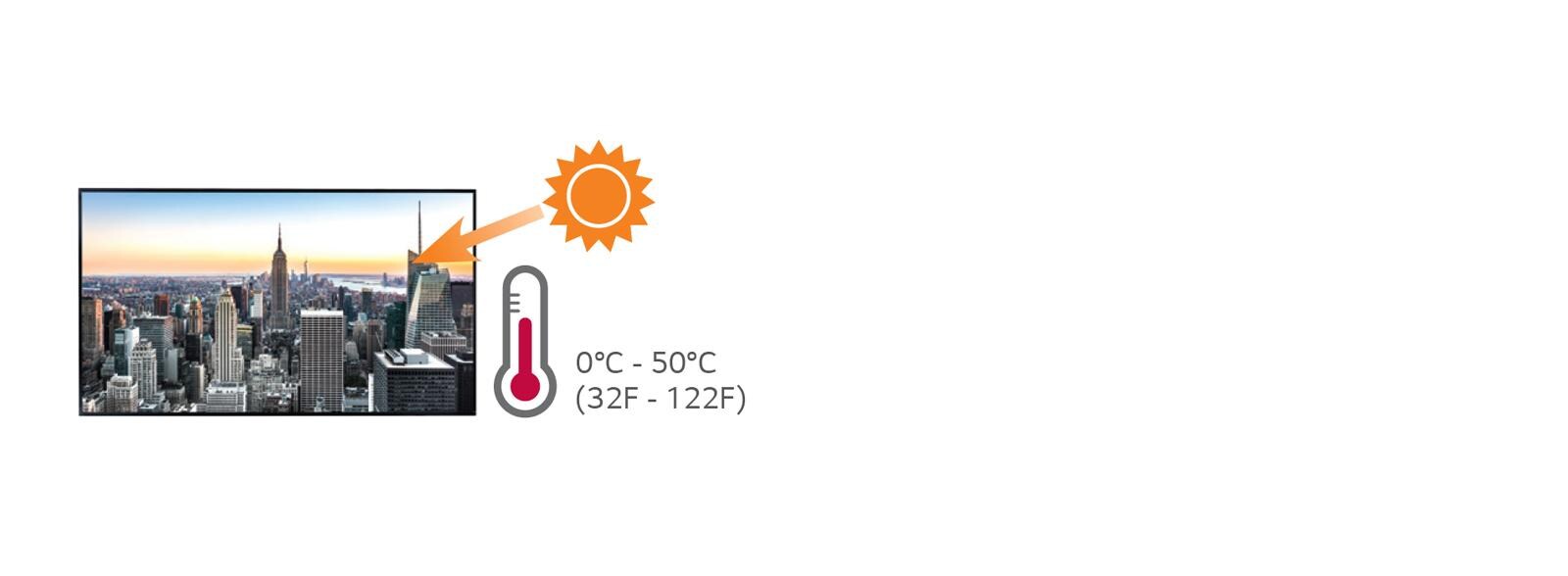

High Operationing Temperature

Its high reliability under high operating temperatures reduces the material costs of the enclosure.

Product Reliability

Dust & Humidity Protection

The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.

Outstanding Visibility

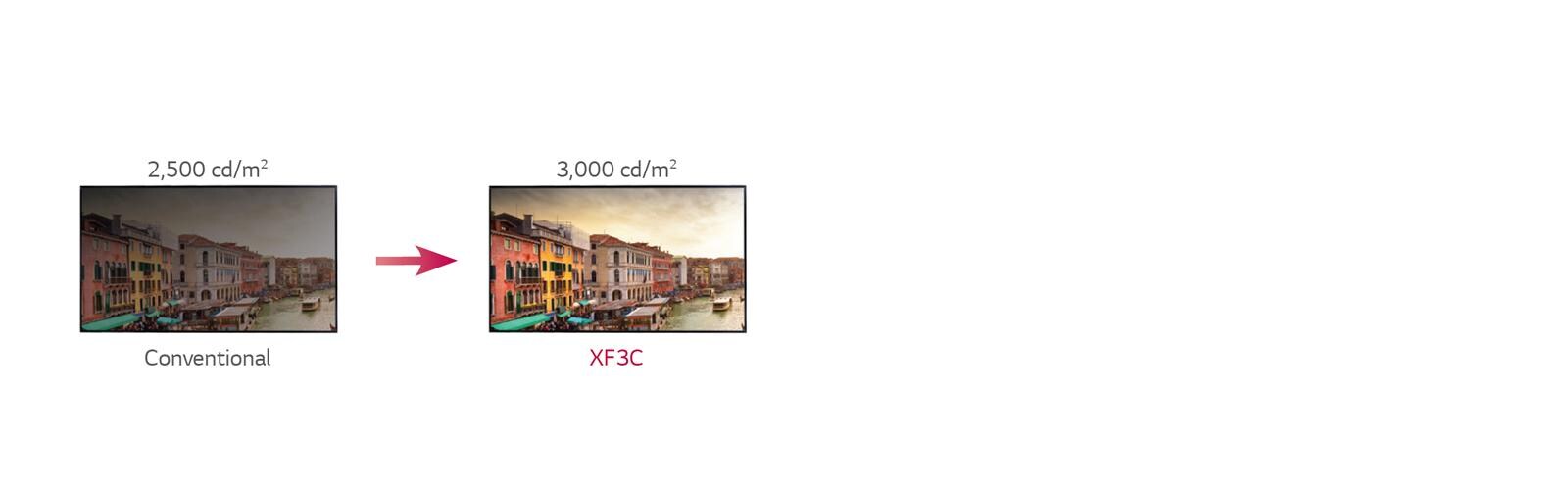

Increased Brightness

The brightness has been increased to 3,000 cd/m2 compared to previous models

Outstanding Visibility

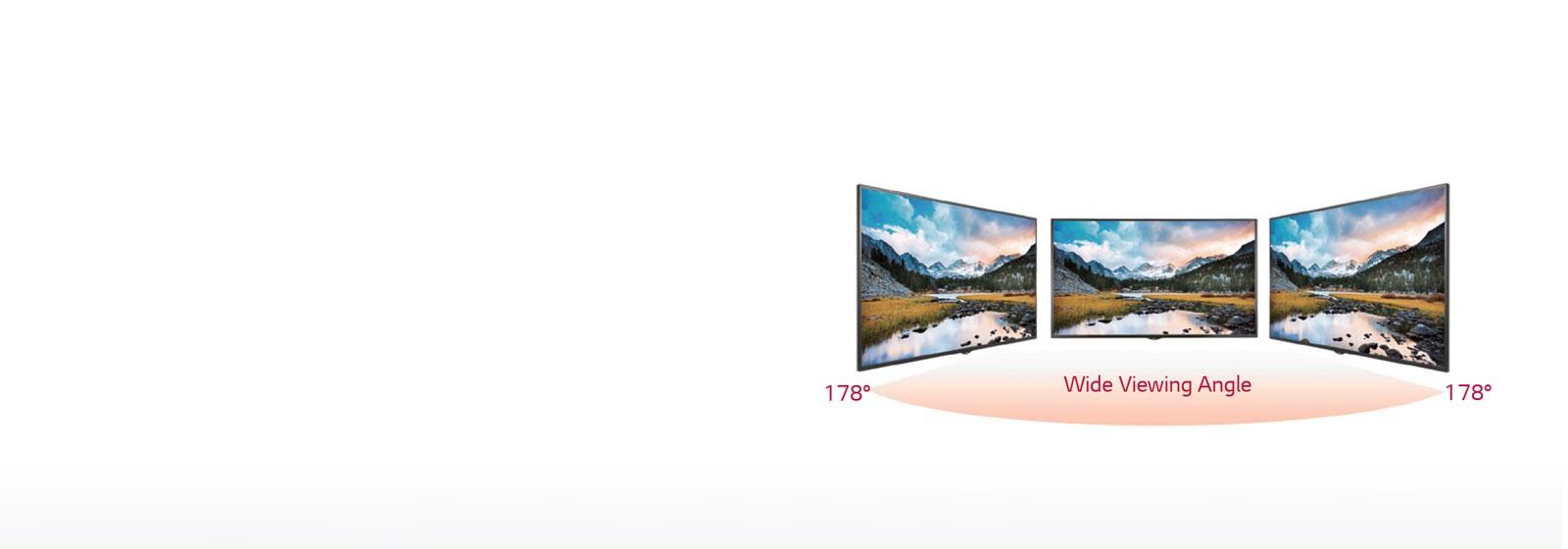

Wide Viewing Angle

IPS technology provides better control of the liquid crystals which allows the screen to be viewed from virtually any angle.

Outstanding Visibility

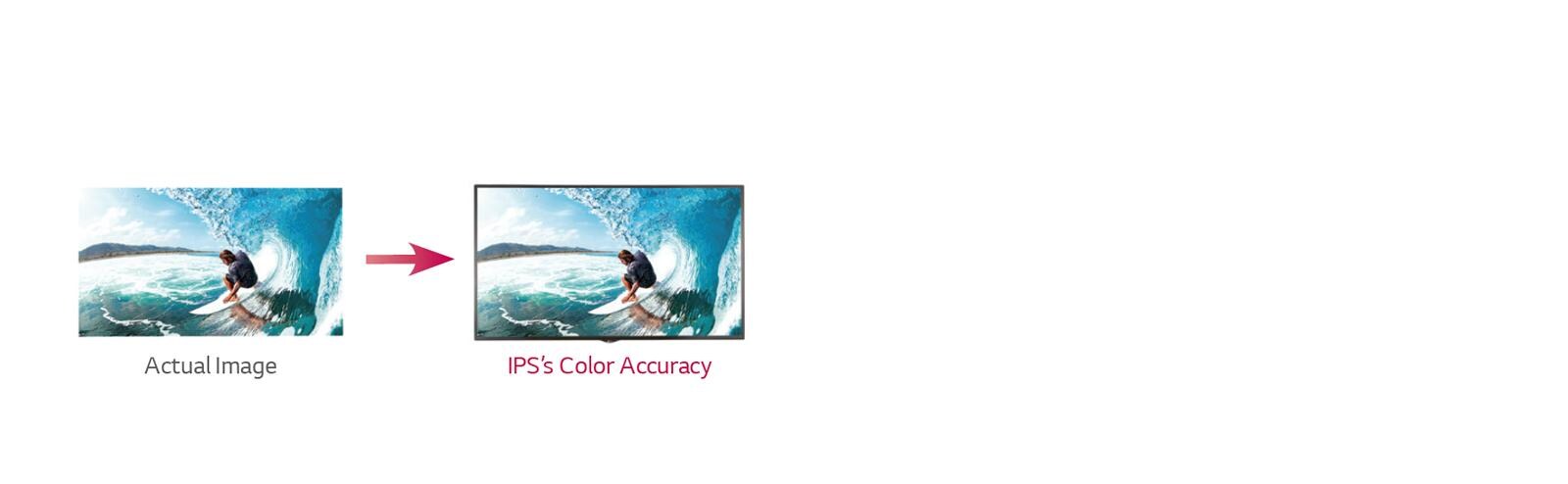

Color Accuracy

IPS technology displays accurate color for each pixel closest to the original image and reproduces the original color without distortion.

Outstanding Visibility

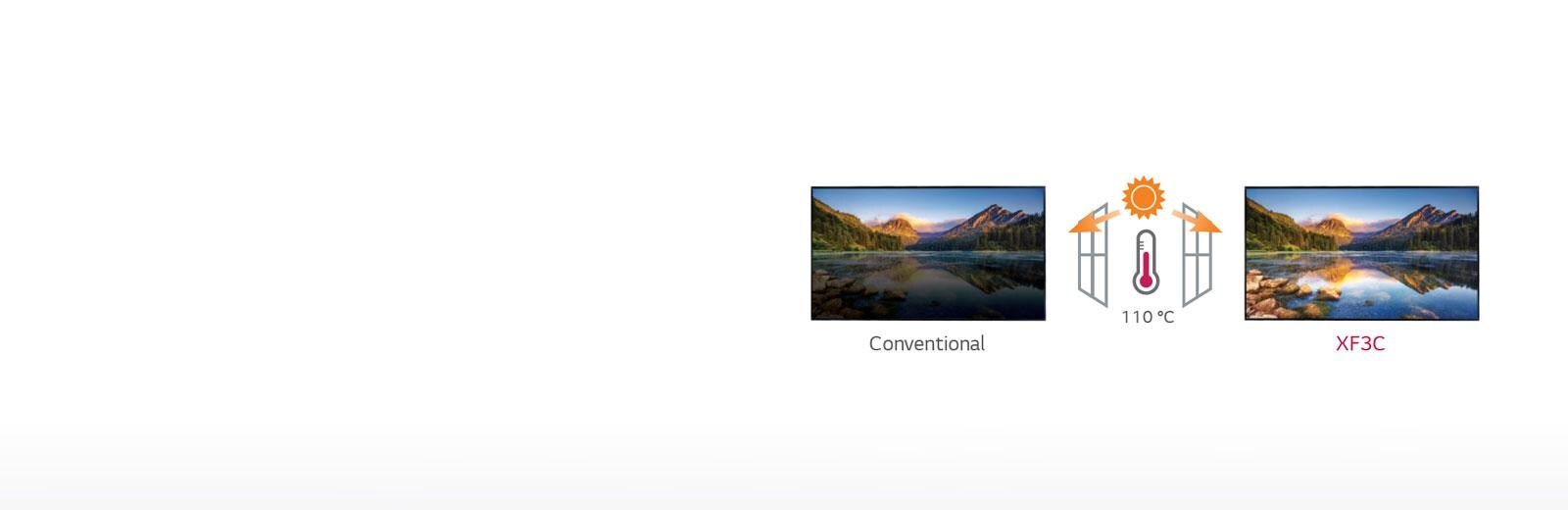

No Blackening Effect

Even under direct sunlight exposure, LG commercial monitors remain free of blackening defects under 110°C and provide superior quality for outdoor usage.

Cost Effective

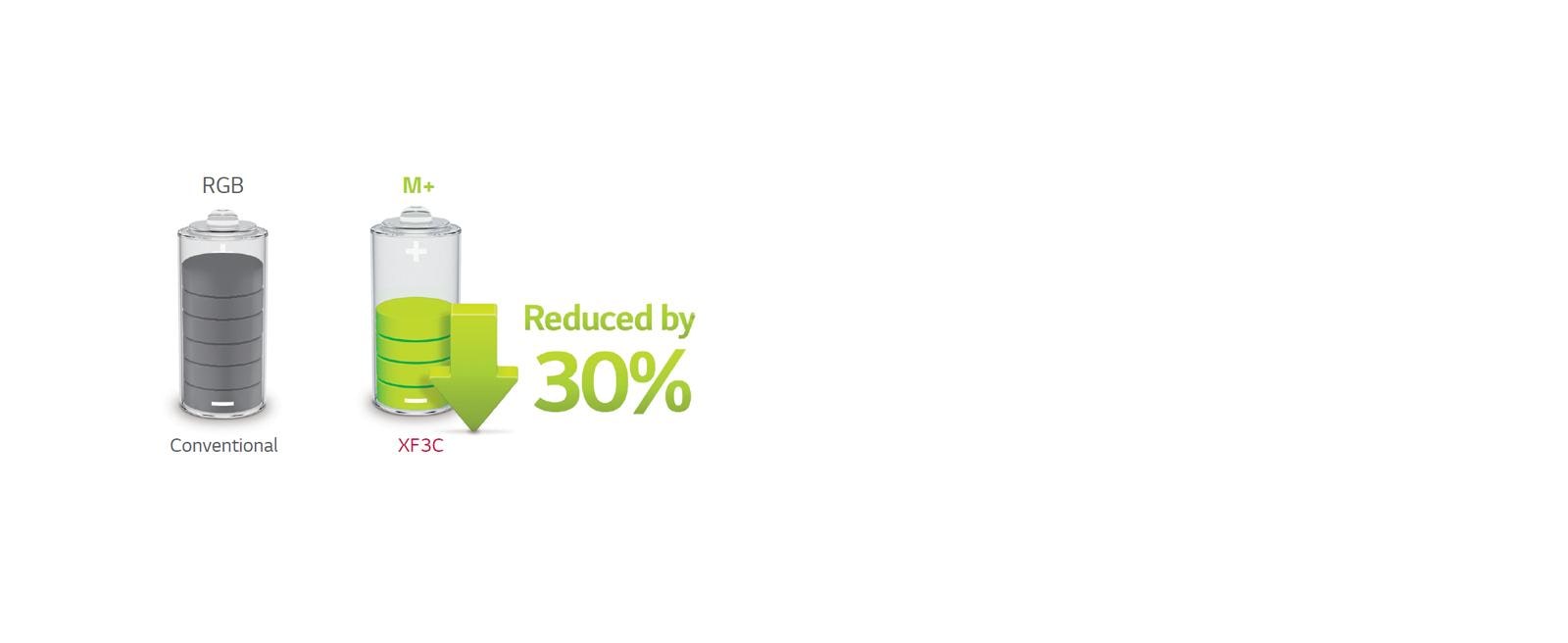

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by 30 compared to conventional RGB panels.

Cost Effective

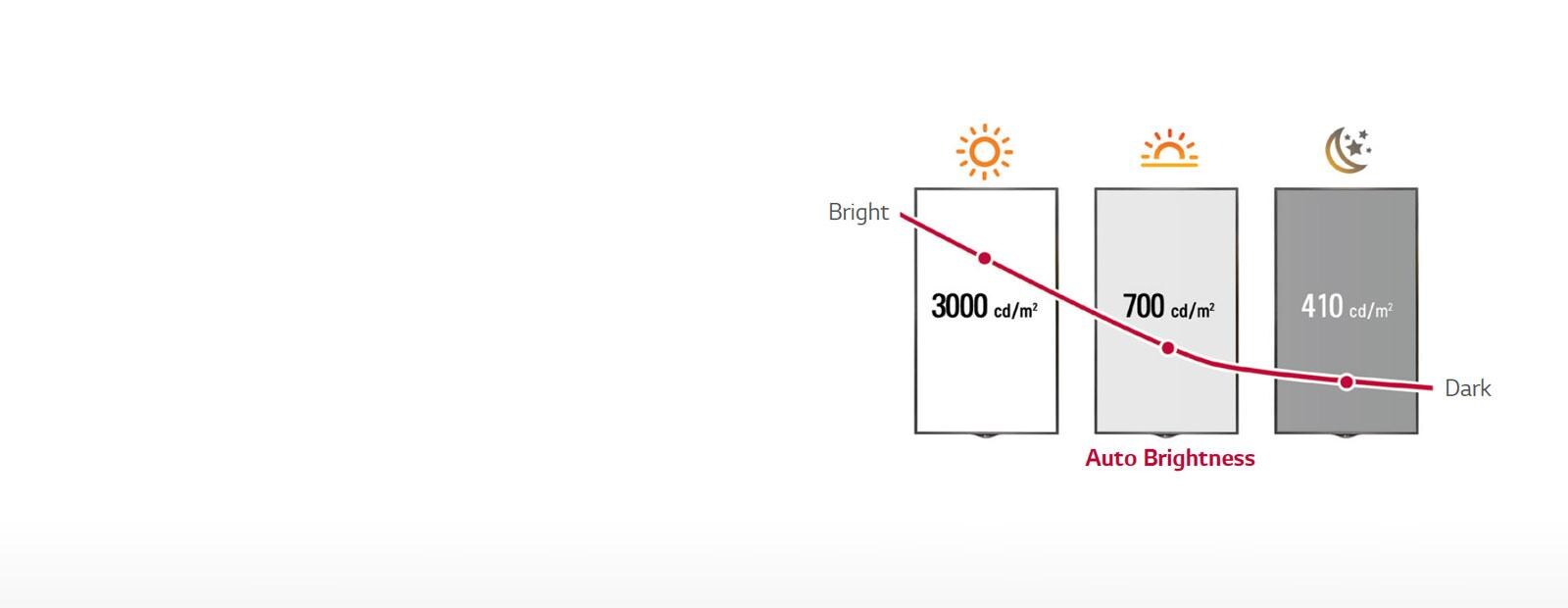

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.

Space Management Efficiency

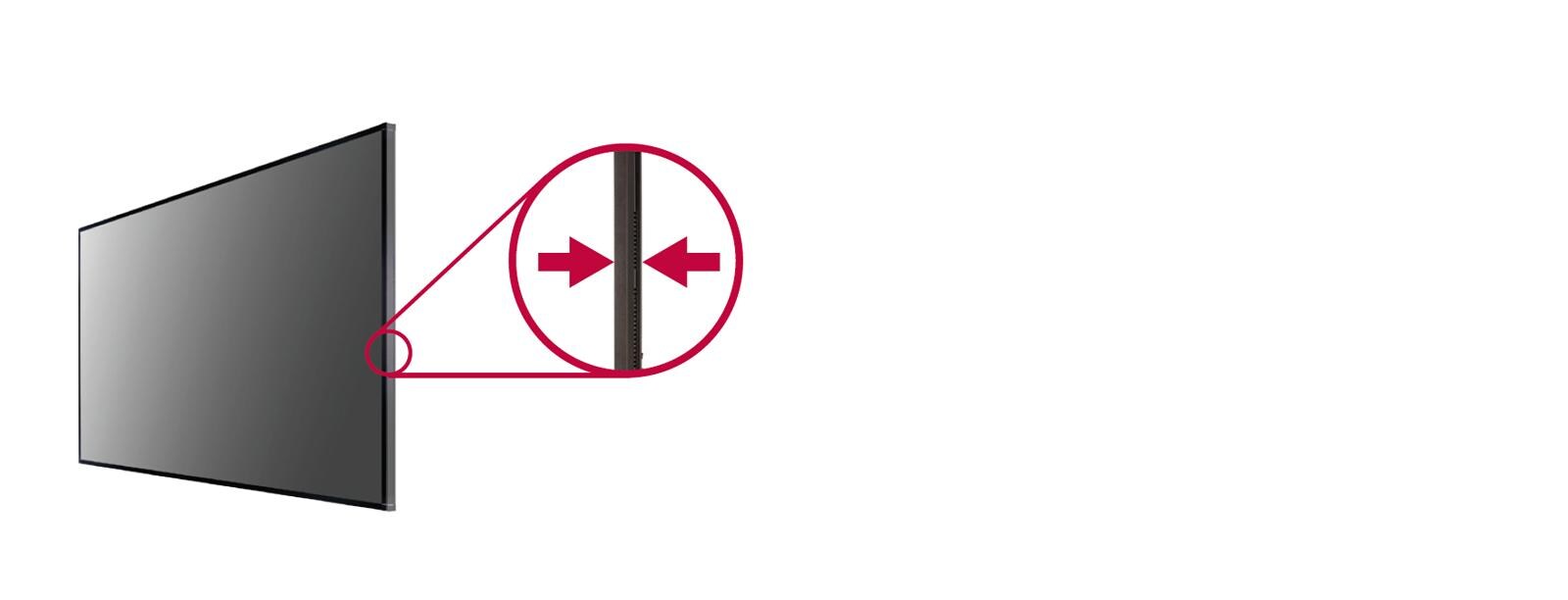

Slimmer Depth
The slimmer depth saves space for installation and makes the enclosure design slimmer.

Easy Maintenance

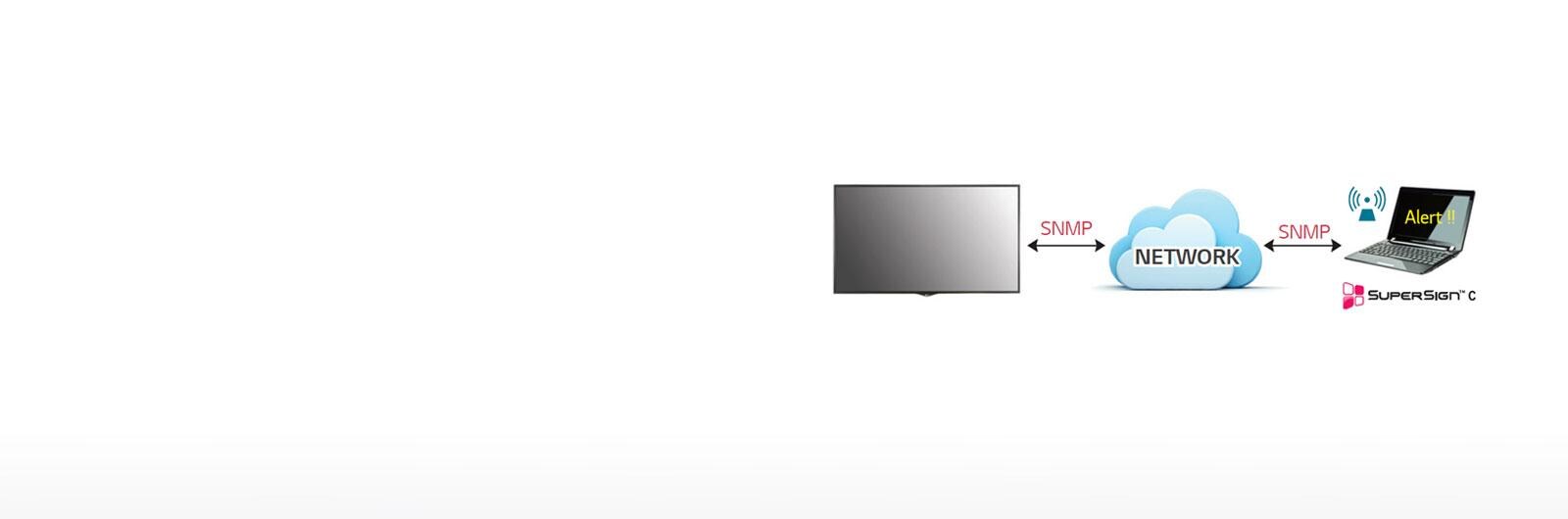

Real-Time Remote Monitoring

When an alarm occurs, an email notification is sent through the SNMP using the SuperSign C or SI software. In case a malfunction or error occurs, real-time remote care is available.

Easy Maintenance

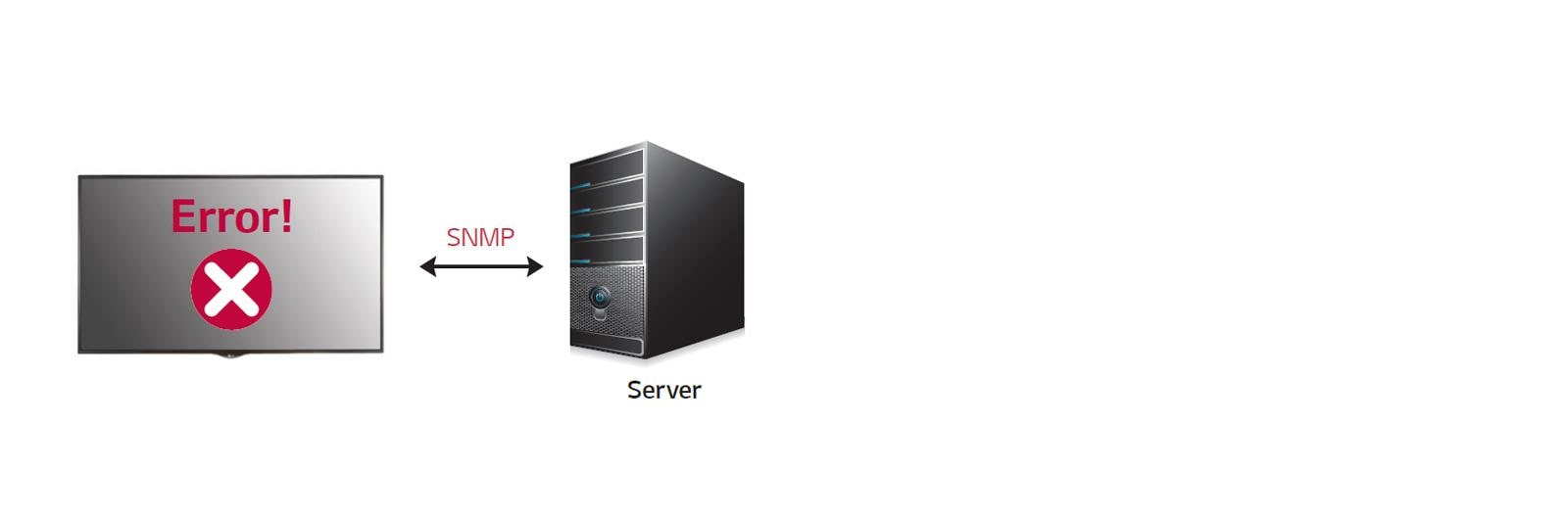

Saving System Log Files

The XF3C supports log file back-up for fault clarification when the display fails. This allows you to conveniently check when an error has occurred.

Visit our SuperSign Software Center for all the latest software needs

Click here to download SuperSign Software

PANEL
Screen Size55" Class (54.64" measured diagonally)
Resolution1,920 x 1,080 (FHD)
Brightness2,400 cd/m2 (Min), 3,000 cd/m2 (Typ)
CONNECTIVITY
InputHDMI(2), DP, DVI-D, Audio, USB, IR Receiver, Pixel Sensor
OutputDP, External Speaker Out (L/R)
External ControlRS232C (In/Out), RJ45
PHYSICAL SPECIFICATION
Bezel Width9.9mm (L/R),12mm (T/B)
Monitor Dimension (W x H x D)1,235.4 x 709.4 x 106 mm
Weight (Head)27.0kg
ENVIRONMENT CONDITIONS
Operation Temperature0°C to 50°C (w/o Direct Sunlight) / 0°C to 40°C (Direct Sunlight)
Operation Humidity10 % to 80 %
POWER
Power Supply100-240V~, 50/60Hz
Power TypeBuilt-in Power
POWER CONSUMPTION
Typ./Max230 W / 310 W
Smart Energy Saving100 W
STANDARD (CERTIFICATION)
SafetyRU / CB scheme
EMCFCC Class "A" / CE / KCC
SOFTWARE COMPATIBILITY
webOSwebOS 1.0
SuperSign-w liteYes
SuperSign-cYes
ACCESSORY
BasicRemote Controller (2 batteries included), Power Cord, IR extension cable/PCB, HDMI Cable, Manual, IR BRKT (Only in 75")
OptionalKT-SP0, AN-WF500 *Stand is not available
