84" class (84.04" diagonal) LED Widescreen Ultra HD Display

  • 84WS70BS-B

Key Features

  • Energy Star® 5.1 compliant: approximately 40% less energy than noncompliant models
  • Aesthetically superior display with bezel width of 27.9mm
  • 84WS70BS-B supports landscape only
  • 350 nit Display - 16/7 Operation

84WS70BS-B 84” class (84.0” measured diagonally) UHD Commercial Display

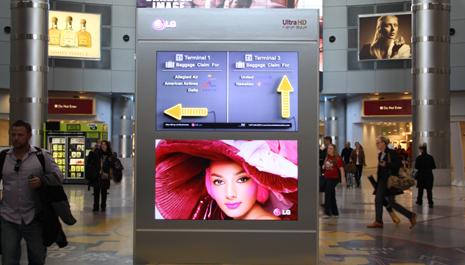

LG 84WS70BS-B 84” Ultra HD(3840 x 2160) LED commercial display is raising the standard of digital signage in an ULTRA big way. Designed to deliver the crucial content clearly and precisely, its resolution 4 times higher than full HD, makes discerning a single pixel almost impossible. The sheer size of the screen, equal to four 42-inch class displays, with the high pixel count enables images to go LARGE when it is imperative for accurate reproduction to be seen from large arenas such as control rooms, movie studios, emergency and transportation agencies. The picture is so big and immersive, it's as if you're in the scene and part of the action.

84WS70BS-B  84” class (84.0” measured diagonally) <span>UHD Commercial Display</span>
NO <span>BLACKENING DEFECT</span>

NO BLACKENING DEFECT

Display has a built-in temperature control that adjusts to light and heat eliminating dark or blackened areas.

TRUE WIDE VIEWING

Color changes and distortion are eliminated from any viewing angle. Color change average @ 60°, Gamma change average @ 60°

TRUE <span>WIDE VIEWING</span>

PANEL STABILITY

Minimized image distortion when external pressure is applied.

PANEL <span>STABILITY</span>

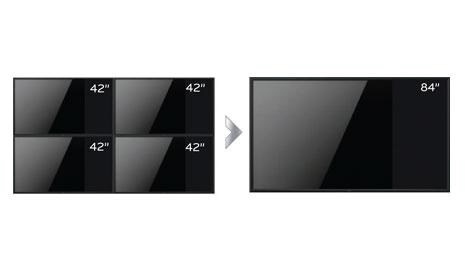

84" Edge LED Large Screen

The sheer size of the screen, equal to four 42-inch class displays, gives you a breathtaking viewing experience. The picture is so big and immersive, it's as if you're in the scene and part of the action.

<span>84 Large Screen" />

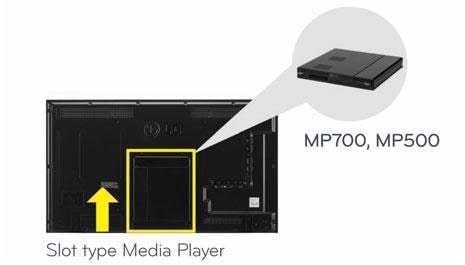

Attachable <span>External Media Players</span> (sold separately)

Attachable External Media Players (sold separately)

Slim design LG media players can be installed conveniently in the back without taking up additional space.

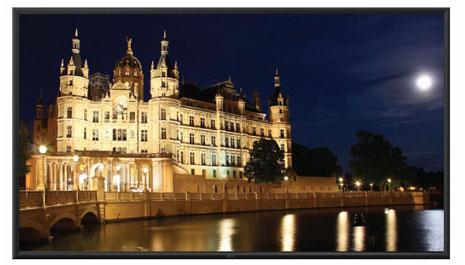

Super High Resolution 3,840 x 2,160 (Ultra HD)

Boasting a pixel resolution 4X higher than Full HD (1080p), its detail is so vivid and crisp, even when viewed from a close distance.

<span>Super High Resolution </span>3,840 x 2,160 (Ultra HD)
PANEL
Panel TechnologyIPS
Aspect Ratio16 : 9
Native Resolution3,840 x 2,160 (UHD)
Brightness350 cd/m^2
Contrast Ratio1,400:1
Dynamic CR500,000:1
Surface TreatmentAnti-glare(Haze <10%)
OrientationLandscape only
Panel Size84" (84.04" measured diagonally)
Pixels (H x V x 3)24,883,200
Response Time12ms (G to G)
Color Depth1.06 Billion
Color Gamut72%
Tni110°C (=230°F)
PHYSICAL SPECIFICATIONS
ColorBlack
Packed Weight192.2 lbs.
Bezel Width27.9mm
Monitor Dimensions75.7” x 4.0” x 43.7” (W x H x D) (head only)
Monitor Weight160.7 lbs. (head only)
HandleYes
VESA Standard Mount Interface600mm x 400mm
Carton Dimensions80.0” x 12.4” x 47.8 (W x H x D)
OUTPUT (REAR)
DigitalDVI-D (1)
AnalogRGB(1)
AudioYes(1)
External ControlRS232C (1), IR (1)
OPTIONAL ACCESSORIES
D-Sub Cable, Power Cord, Remote Controller(include battery 2ea ), CD(Manual/Elite-C), Eye Bolt(2EA)Yes
Media Player MP700/MP500Yes
SPECIAL FEATURES
Power Indicator On/OffYes
Language (OSD)English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
Language (USB Playback)English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
Language (Manual)English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian, Polish, Arabic, Indonesian, Korean, Japanese, Turkish, Czech, Taiwanese, Slovak
Language (ESG)English, French, Italian, German, Spanish, Portugues, Greek, Polish, Czech, Slovak
Temperature SensorYes
Auto Brightness SensorYes
Source SelectionAV, Component, RGB, Display Port, DVI-D, HDMI
Brightness / Contrast / BacklightYes
Position / SizeYes
Auto Config / PhaseYes
AdvancedDynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
TimeClock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
InformationModel/Type, Software Version, Serial Number, IP Address, MAC Address, Homepage
Input LabelYes (PC / DTV)
Auto Power / Source MemoryYes
ISM MethodNormal, White Wash, Orbiter, Inversion
File Play with USBYes
Energy SavingYes (Minimum, Medium, Maxium)
Key LockYes
Smart Energy SavingYes
DPM SelectYes
ENVIRONMENT CONDITIONS
Operation Temperature0 °C to 40 °C
Operation Humidity10 % to 80 %
POWER
Power Supply100-240V~, 50/60Hz
Power Consumption-Normal350W
Power Consumption-Smart Energy Saving on200W
Power Consumption-DPMS Off1.5W(RGB)
Power Consumption-Power Off0.5W
AUDIO
BalanceYes
Audio Power20W(10W x 2)
Speaker On/OffNo
Sound ModeStandard/ Music/ Cinema/ Sport/ Game/ Vivid/ User Setting
Clear Voice IIYes
STANDARD CERTIFICATIONS
SafetyUL, cUL, CB scheme, TUV
EMCFCC Class "A" / VCCI / C-tick / CE / KCC
WARRANTY
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
UPC Code7 19192 19192 1
MEDIA PLAYER COMPATIBILITY
External Media Player AttatchableYes (MP500/MP700)
VIDEO (PC)
Max Input Resolution3840 x 2160@30Hz (HDMI, Display Port) 1920 x 1080@60Hz (RGB, DVI-D)
Rec. Resolution3840 x 2160@30Hz(HDMI, Display Port)
Sync CompatabilitySeparate, Composite, Digital
Video InputRGB, HDMI, DVI-D, Display Port, Composite
H-Scanning Freq30 ~ 83kHz (RGB, HDMI/DVI-D/DP)
V-Scanning Freq56Hz ~ 75Hz (RGB), 56Hz~60Hz (HDMI/DVI-D/DP)
Pixel Frequency300MHz(HDMI, Display Port) 148.5MHz(RGB, DVI-D
Picture modeIntelligent Sensor/Vivid / Standard / Cinema / Game/ Expert1/Expert2
Color temperatureWarm, Medium, Cool
CONNECTIVITY INPUT (REAR)
USBUSB(2)
AudioRGB/DVI-D/AV
HDTV FormatsComponent: 720p, 1080i , 1080p HDMI: 720p, 1080i, 1080p, 2160p
DigitalHDMI(2), DVI-D(1), Display Port(1) with HDCP for all input
AnalogRGB(1), Composite(1)
External ControlRS232C(1), RJ45(1), IR(1)
