KEY FEATURES

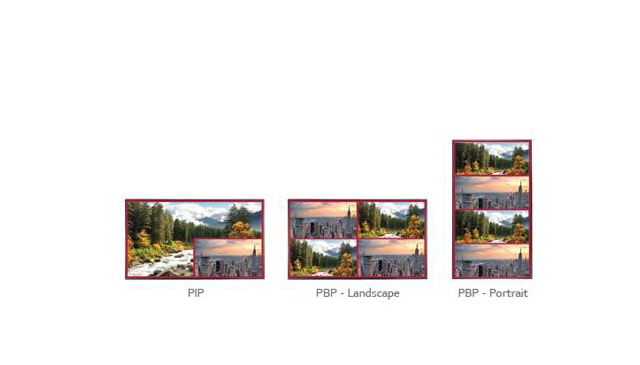

  • MULTIPLE SCREEN WITH PBP OR PIP
  • ULTRA HD

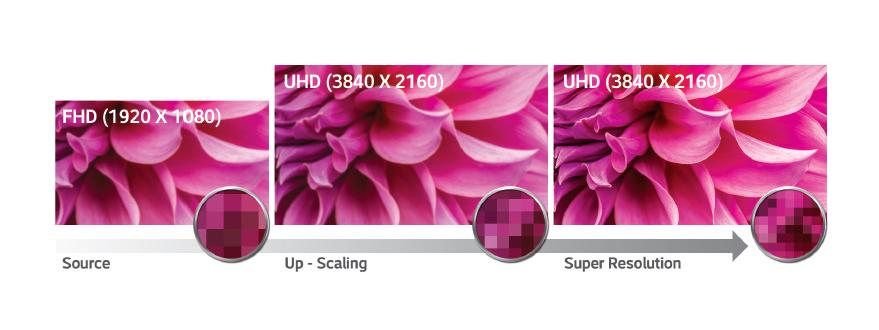

  • Full HD to Ultra HD Up-Scaling
  • Portrait & Landscape Mode

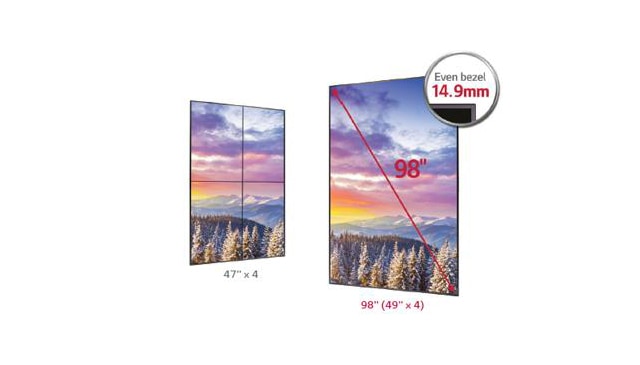

  • Immersive Large Screen & Even Bezel
98” class (97.52”/2476.95 diagonal) Ultra HD Premium Large Display

PANEL

    • Screen Size
    • 98" class (97.52” / 2476.95mm diag)
    • Contrast Ratio
    • 1,300:1
    • Panel Technology
    • IPS
    • Response Time
    • 8ms (G to G BW) typ.
    • Brightness
    • 500cd/m2 (Typ)
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 3840 x 2160 (UHD)
    • Viewing Angle (H x V)
    • 178°/178°
    • Surface Treatment
    • Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.))
    • Orientation
    • Landscape & Portrait
    • Operation Hours
    • 24 hours

CONNECTIVITY

    • Input
    • HDMI (3), DP, DVI-D, Audio in
    • Output
    • DP, Audio out, External speaker out
    • External Control
    • RS232C in/out, RJ45, IR receiver, Pixel sensor, USB 3.0, USB 2.0, SD card

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • 14.9 mm (Even bezel)
    • Monitor Dimension (W x H x D)
    • 2,191.8 x 1,246.8 x 69.4 mm / 86.29 x 49.09 x 2.73 in
    • Weight
    • 88 kg / 194 lbs
    • VESA TM Standard Mount Interface
    • 800 x 400 mm
    • Carton Dimensions (W x H x D)
    • 2,342 x 1,386 x 402 mm / / 92.20 x 54.57 x 15.83 in
    • Packed Weight
    • 123 kg / 271.2 lbs
    • Handle
    • No

SPECIAL FEATURES

    • Yes
    • Temperature sensor, Auto brightness sensor, Tile mode (up to 15x15), Natural mode @Tile mode, DPM select, DPM wake up, Energy saving, Smart Energy saving, File play with USB, PIP/PBP (2, 3, 4), Internal memory (8 GB), USB cloning, Fail over, Mirroring, SoftAP, Beacon, DP daisy chain

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C / 32°F to 104°F
    • Operating Humidity Range
    • 10 % to 80 %

POWER

    • Power Supply
    • 100–240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • Power Consumption-Typ
    • 315 W
    • Power Consumption (Typ./Max)
    • 450 W

STANDARD CERTIFICATIONS

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star / CEL
    • No / No / Yes

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attatchable
    • Yes (MP500/MP700)
    • OPS Type Compatible
    • No

SOFTWARE COMPATIBILITY

    • SuperSign-C
    • Yes
    • SuperSign W-Lite
    • Yes

ACCESSORIES

    • Basic
    • Remote controller (include battery 2ea), Power cord, IR/Light sensor receiver, CD (Owner's manual, SuperSign program / Manual), HDMI 2.0 cable, DP cable, RS232C, Wi-Fi dongle, Eye bolt
    • Optional
    • SP-2200 (External speaker)

CAD

Case Study

Installation Manual

Specification Sheet
