22” class (21.6" diagonal)

  • 22LX570M

<span>Pro:Idiom</span> Global Leading Digital Rights Management System

Pro:Idiom Global Leading Digital Rights Management System

The most widely used DRM system prevents the illegal copying of content. Pro:Idiom unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital content. Pro:Idiom has been designed specifically for users of premium HDTV content from cable, satellite, or video on demand (VOD) services, and is thus designed to lower costs and reduce maintenance needs. This leading DRM system is embraced for its security solution, which prevents illegal copying of copyrighted content.

Reduced Total Cost of Ownership & Effectively Manage Patient Room TVs

The EZ-Manager's auto configuration function makes installation quick and easy. The EZ-Manager guides the installer to set up the TV with simple steps, saving time and cost. Remote Manager Using LG's optional Pro:Centric server, you can remotely manage configuration and channel mapping for TVs in patient rooms without having to visit each room. Effectively Manage Patient Room TVs The USB Cloning feature allows you to simply copy settings from a designated Master TV using a USB memory device, a process that is fully automated to save time.

Reduced Total Cost of Ownership & Effectively Manage Patient Room TVs
<span>Pro:Centric</span> Application Platform

Pro:Centric Application Platform

Interactive Patient Room Experience An industry leading television that supports the Pro:Centric platform, LG’s new LX570M allows healthcare facilities to customize the patient room experience. The Pro:Centric application allows you to create your own content and manage multiple channels, which can be specialized for your hospital. Pro:Centric also provides an easy way for the LX570M to interface with interactive program guides, games and internet data feeds, as well as applications designed to connect patients to services, such as dietary menus and patient room information.* Using LG's optional Pro:Centric server, you can remotely manage configuration and channel mapping for TVs in patient rooms without having to visit each room. The EZ-Manager's auto configuration function makes installation quick and easy. The EZ-Manager guides the installer to set up the TV with simple steps, saving time and cost. Reduced Total Cost of Ownership *May require additional software and hardware to support third-party partner interactive systems or LG's Free-To-Guest Mode/Pro:Centric application.

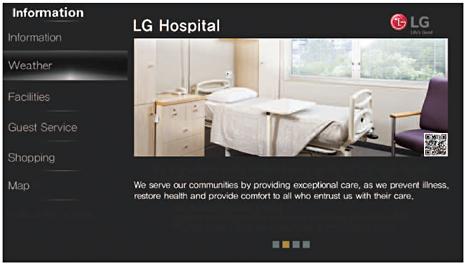

Customizable Pages

Up to 40 customizable billboard and/or map pages. Multi Channel Spooling Operation of up to eight customizable video channels.

Customizable Pages
PANEL
Inch21” class (21.6" diagonal)
Response Time (G to G)9ms
Viewing Angle Degree178/178
Static Contrast Ratio1000:1
Backlight TypeLED (Direct)
Resolution1366 x 768 (HD)
Frame Rate60Hz
Dynamic Contrast Ratio1,000,000:1
GENERAL FEATURES
Pro:Centric ApplicationYes
Moving Picture Playback (SD/HD/Plus HD)Divx HD
Pro:Centric Remote ManagementYes
RF (1/2Tuner)Yes (1 Tuner)
Auto ConfigurationYes (EZ-Manager)
Remote DiagnosisYes
Multicast/Unicast readyYes
HTNG-CEC 1.3Yes
Pro:IdiomYes
SI CompatibleYes (MPI protocol)
b-LANYes
Installer MenuYes
IR OutYes (MPI port)
External Speaker OutYes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single-ended Type [GND, L+, R+], 1W with 8Ω)
USBYes (USB 2.0)
PictureJPEG
Audio CodecAC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM
USB CloningYes
One Channel Map / FTG Channel MapYes
Multi IR CodeYes
Welcome ScreenYes
Auto Off / Auto SleepYes
Video MuteYes
Smart Energy SavingYes (Auto Power Off)
Motion Eye CareYes
Kensington LockYes
UL Hospital Safety CompliantYes
Pillow SpeakerYes
BROADCASTING SYSTEM
AnalogYes (NTSC)
DigitalYes
TerrestrialATSC
VIDEO
Picture ModeYes (6 Modes: Vivid, Standard, Eco, Cinema, Sport, Game)
Triple XD EngineYes
Aspect RatioYes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)
AUDIO
Audio Output32" : 5W + 5W
Sound ModeYes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
Speaker System2.0 ch
Optical Sound SyncYes
Sound OptimizerYes 2 modes (Normal, Wall-Mount Type)
INTERFACE (Side)
HDMI In1
AV InNo
USB (2.0)1
INTERFACE (Rear)
RF In1
GAME CONTROL/MPI Port1 (RJ-12)
TV Link Configuration1 (3.5mm Jack)
PTC Configuration1 (3.5mm jack)
Pillow Speaker Interface (6pin)1 6pin
AV In1
Digital Audio Out1 (Optical)
HDMI/HDCP Input1 (W/O MHL)
External Speaker Out1 (3.5mm Jack)
CABINET
WxHxD20.0” x 12.4” x 2.1”
Weight6.4lbs
Carton22.8” x 15.1” x 5.5”
Carton Weight8.6lbs
POWER
Typical (Watts) (Energy Star 7.0)20W
Voltage120V
Stand-by<0.5W
WARRANTY
WARRANTY2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
TOOL DESCRIPTION
Bezel Width (Left/Right, Upper, Bottom) OFF13, 14.6, 19.2
Bezel Width (Left/Right, Upper, Bottom) ON14.7, 16.2, 20.8
Flame RetardentYes
VESA Compatible75mm x 75mm
ACCESSORIES
Power CableHospital Power Cable
Owner's Manual / Easy Setup GuideYes
CERTIFICATION
Safety / EMC / ETC.UL / FCC / RoHS, cUL, NOM, Energy Star 7.0
OTHER
UPC7 19192 91788 0
