LW760M Hospital Grade Pro:Centric SMART with Integrated Pro:Idiom
GLOBAL LEADING DIGITAL RIGHTS MANAGEMENT SYSTEM
Pro:Idiom unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital content. Pro:Idiom has been designed specifically for users of premium HDTV content from cable, satellite, or video on demand (VOD) services, and is thus designed to lower costs and reduce maintenance needs. This leading DRM system is embraced for its security solution, which prevents illegal copying of copyrighted content.
REDUCED TOTAL COST OF OWNERSHIP
The EZ-Manager's auto configuration function makes installation quick and easy. The EZ-Manager guides the installer to set up the TV with simple steps, saving time and cost.
The Express Script provides streamlined configuration of the TV for Free-To-Guest (FTG) Mode operation (including pillow speaker setup) and also provides the option to configure the TV for Pro:Centric operation.
Using LG's optional Pro:Centric server, you can remotely manage configuration and channel mapping for TVs in patient rooms without having to visit each room.
THE LW760M PRO:CENTRIC APPLICATION PLATFORM
Interactive Patient Room Experience
An industry leading television that supports the Pro:Centric platform, LG’s new LW760M allows healthcare facilities to customize the patient room experience. The Pro:Centric application allows you to create your own content and manage multiple channels, which can be specialized for your hospital. Pro:Centric also provides an easy way for the LW760M to interface with interactive program guides, games and internet data feeds, as well as applications designed to connect patients to services, such as dietary menus and patient room information.*
*May require additional software and hardware to support third-party partner interactive systems or LG's Free-To-Guest Mode/Pro:Centric application.

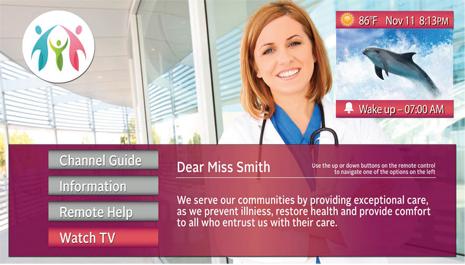

LG'S FREE-TO-GUEST SOLUTION
When these TVs are configured for LG's FTG Mode of operation, remote management option is available, as described below. With remote management, individual room visits are no longer required for TV configuration updates, including FTG Channel Map and FTG Installer Menu settings updates, thereby saving labor costs.
Remote management of the FTG
Channel Map and FTG Installer Menu settings may be provided by a Pro:Centric server. The Pro:Centric server Admin Client web editor/content wizard also enables users to remotely update the Pro:Centric application features.
CLONING USING A USB MEMORY DEVICE
The LW760M Healthcare TV has a convenient time and expense saver feature. Installer Menu settings, along with a select number of setup menu features are cloning capable, and an FTG Channel Map may also be cloned.
Cloning typically refers to the process of using a Master TV Setup to configure a Target TV. The installer sets up the Master TV with preferred menu settings, and then saves (exports) the settings to a file on the USB memory device. This file may then be transferred (imported) to the Target TV(s) via the same USB device. This time saving technique will allow the installers to configure each LW760M TV in the hospital facility in a matter of just a few minutes per TV.
LG’s webOS enabled displays feature an all-in-one hardware and software platform that allows software developers to install and run their software in a more simplified solution. This approach offers architecture that enables easy-to-build web-based apps across multiple platforms, This approach offers software architecture, including iOS®, Android® and Windows®. Using LG's SDK, integrators can construct their own ideal customized signage solution for their clients.
|Backlight Type||Edge LED|
|Resolution||1,366 x 768 (HD)|
|Dynamic Contrast Ratio (Dynamic MCI (Hz))||1,000,000:1|
|Static (Panel) Contrast Ratio||1,000:1|
|Viewing Angle Degree||178x178|
|Response Time (G to G)||9ms|
|Triple XD Engine||Yes|
|Dynamic Color Enhancer||Yes|
|Real Cinema 24p (3:3 pull down)||Yes|
|Aspect Ratio||Yes (16:9, Just Scan, Set By Program, 4:3, Zoom, Cinema Zoom1)|
|Audio Output||5W + 5W|
|Speaker System||2.0 ch|
|Sound Mode||Yes (Standard, News, Music, Cinema, Sport, Game)|
|Smart Sound Mode||Yes|
|Optical Sound Sync||Yes|
|Wireless Sound Sync||Yes|
|Sound Optimizer||Yes (Off, Wall-Mount Type, Stand Type)|
|Pro:Centric Remote Management||Yes|
|Hybrid Streaming (IP & RF) MultiCast/HTTP Data Carousel||Yes|
|RF||Yes (1 Tuner)|
|HCAP (GEM/FLASH/HTML) Service Carousel (TLX)||GEM / Flash / HTML|
|HCAP Input Device Driver Support||Yes (USB Mouse, USB Keyboard, Magic Remote, USB Camera, Remote App)|
|Auto Configuration||Yes (EZ-Manager/Express Script)|
|IP Streaming||Yes (RTSC, HLS, SNMP, UDP/MultiCast, USB Port/Video Streaming support [Smart Share] [IGMPv3 SSM Support])|
|Commercial Smart Home||Yes|
|Pre-loaded Apps||Yes (Commercial CP/Apps, Web Browser, Remote App Compatibility)|
|Remote App Compatibility||Yes|
|WiDi (PC to TV)||Yes|
|Miracast (Mobile to TV)||Yes|
|SI Compatible||Yes (MPI protocol)|
|Wi-Fi||Yes (Built-in type)|
|IR Out||Yes (MPI Port)|
|External Speaker Out||Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single Ended Type [GND,L+,R+], 1W with 8Ω)|
|USB||Yes (USB 2.0)|
|Moving Picture Playback (SD/HD/Plus HD)||Divx HD|
|Audio Codec||AC3 (Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM|
|One Channel Map / FTG Channel Map||Yes|
|Multi IR Code||Yes|
|Auto Off / Auto Sleep||Yes|
|Smart Energy Saving||Yes|
|Motion Eye Care||Yes|
|Bluetooth Sound Sync||Yes|
|Audio Out||1 (Optical)|
|Service Only Port||1 (Common use PTC & CPU Service, 3.5mm phone jack)|
|Speaker Out/ Line Out||1 (3.5mm jack)|
|Pillow Speaker Interface||1 (6-pin)|
|MPI Port||1 (RJ-12)|
|Voltage, Hz||100 ~ 120V, 50/60Hz|
|Typical (Watts) - Based on Energy Star Qualified||23.0|
|Bezel Width (Left/Right, Upper, Bottom) : on bezel (mm)||16/16, 15.4, 24.1|
|Bezel Width (Left/Right, Upper, Bottom) : off bezel (mm)||14.3/14.3, 13.7, 22.5|
|VESA™ Compatible||100mm x 100mm|
|Weight (Box)||13 lbs|
|WxHxD (w/o stand)||25.3” x 15.6” x 2.5”|
|WxHxD (Box)||28.5” x 18.5” x 6”|
|ETC.||RoHS, Hospital UL|
|Power Cable||Yes (5.9”, Hospital Grade)|
|Owner's Manual / Easy Setup Guide||Yes|
|UPC||7 19192 91843 6|
|Warranty||2 Year Limited Warranty (Parts and Labor) Extended Warranties Available|
