KEY FEATURES

  • No need for printed materials for the guests
  • Reduced waste, save cost and time
47" class (49.96" diagonal) with Integrated Pro:Idiom®

PANEL

    • Panel Technology
    • Direct LED
    • Panel Size (Measured Diagonally)
    • 47” Class (46.96”)
    • Native Resolution
    • 1920 x 1080 (FHD)
    • Frame Rate
    • 60Hz
    • Response Time
    • 8ms
    • Contrast Ratio (Typ)
    • 1,200:1
    • Viewing Angle(HxV)
    • 178° x 178°

BROADCASTING SYSTEM

    • Analog
    • Yes (NTSC)
    • Digital
    • Yes (ATSC /QAM/VSB)

AUDIO

    • Audio Output
    • 10W + 10W
    • Sound System
    • 2.0 ch
    • Virtual Surround
    • Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)

INTERFACE (Side)

    • HDMI In
    • 2 Side
    • USB (2.0)
    • 1 Side

INTERFACE (Rear)

    • RF In
    • 1 Rear
    • AV In
    • 1 Rear (Component)
    • Digital Audio Out
    • 1 Rear (Optical)
    • RGB In (D-sub 15pin)
    • 1 Rear
    • PC Audio Input
    • 1 (Sharing with AV In)
    • HDMI In
    • 1 Rear
    • LAN (RJ45)
    • 1 Rear
    • MPI Port (RJ12)
    • 1 Rear
    • External Speaker Out (3.5mm phone jack)
    • 1 Rear
    • PTC Configuration (phone jack type)
    • 1 Rear

CABINET

    • Bezel Width (on/off) (mm)
    • 11.0mm/8.5mm
    • Depth (mm)
    • 55.8mm
    • With Stand
    • 42.2” x 26.8” x 12.8”
    • Weight
    • 34.6 lbs
    • Without Stand
    • 42.2” x 24.5” x 2.2”
    • Weight (Without Stand)
    • 27.1 lbs
    • Carton
    • 45.3” x 28.7” x 6.4”
    • Weight (Carton)
    • 42.8 lbs
    • VESA Standard Mount Interface
    • 400mm x 400mm
    • Swivel
    • Yes (± 20°)
    • Color
    • Metallic Titan
    • Flame Retardant
    • Yes (Back Cover only)

SPECIAL FEATURES

    • HDMI-CEC
    • Yes
    • HTNG-CEC
    • Yes
    • DRM
    • Yes (Pro:Idiom)
    • Welcome Screen
    • Yes

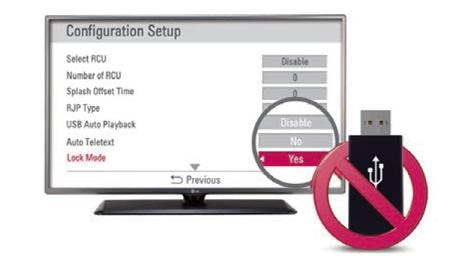

    • Lock Mode
    • Yes
    • Logical Channel Map
    • Yes
    • MHL
    • Yes
    • Self Diagnos
    • Yes
    • Installer Menu
    • Yes
    • HCAP (GEM/FLASH/HTML)
    • Yes (GEM/Flash)
    • EzManager
    • Yes
    • Pro:Centric
    • Yes (Single Tuner)
    • Multi IR Code
    • Yes
    • IR Out
    • Yes (MPI only)
    • RJP Compatibility
    • Yes
    • Kensington Lock
    • Yes
    • External Speaker Out
    • Yes
    • Commercial 1 Pole Stand
    • Yes

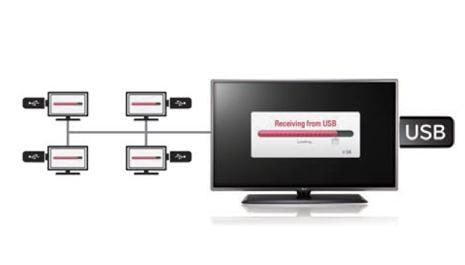

    • USB Cloning
    • Yes
    • Credenza/Security Screw Hole
    • Yes
    • Lock Down Plate
    • Yes

VIDEO

    • Picture Mode
    • Yes, 6 Modes (Vivid, Standard, Eco, Cinema, Sport, Game)
    • Triple XD Engine
    • Yes
    • Aspect Ratio
    • 5 Modes (16:9/Just Scan/Set By Program/4:3/Zoom)

WARRANTY

    • WARRANTY
    • 2-Year Limited Warranty (Parts/Labor)

REMOTE JACK PANEL COMPATIBILITY (RJP)

    • REMOTE JACK PANEL COMPATIBILITY (RJP)
    • G-Link, teleadapt, LG

POWER

    • Stand-by
    • under 0.5W
    • Power Source
    • 110 ~ 240V, 50/60Hz
    • Watts (Typical)
    • 35W
    • Power Cord Length
    • 5.9’

REQUIRED LISTINGS

    • Safety
    • cUL, UL, FCC, NOM
    • RoHS
    • Yes
    • Energy Star 6.1
    • Yes

UPC

    • 47LY560H
    • 7 19192 91599 2

Specification Sheet
