KEY FEATURES

  • Simple Installation
  • Minimal Head-End Rack-Space
  • High Reliability
  • Remote Support

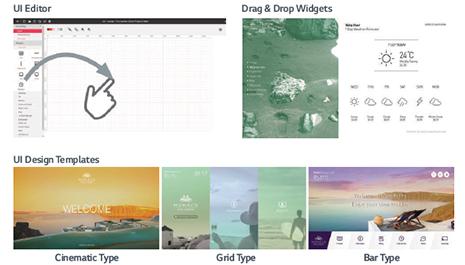

  • (New) Supports Pro:Centric Direct (PCD)
Pro:Centric® Server

SYSTEM SOFTWARE

    • System Software
    • Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications

ELECTRICAL

    • Active Output Level at RF Out jack
    • -1 dBm (+47.75 dBmV) Typical
    • DC Input
    • +19V DC @ 2.2 Amps Adaptor
    • RF Output Span
    • Up to 8 Contiguous Channels (Typically 48-64 MHz)
    • Ethernet Connector (Control Port)
    • 10/100/1000 BaseT, RJ-45
    • Ethernet Connector (Feature Port)
    • 100/1000BaseT, Full Duplex RJ-45
    • RF Output Frequency Range
    • 54 MHz to 865 MHz
    • RS-232 DB-9
    • Command Line Interface port (5V TTL)
    • Level at ASI Out Jack
    • 800 mv
    • Frequency Accuracy
    • +/- 5 ppm
    • ASI Out Jack
    • 75 ohms, BNC
    • Data Output
    • ASI,RF, 100/1000T Ethernet
    • Rear Port
    • ASI/RF/RF Tap/TTL serial, Ethernet 2 Port
    • Active Output Level
    • -1 dBm (+47.75 dBmV) Typical
    • Test Output Level
    • -47.75 dBm (+1 dBmV) Typical
    • CPU/Memory / Storage
    • 64 bit Intel Atom (4 Cores @ 1.91GHz ) processor / 8GB memory / 275GB SSD

MODULATION SPECIFICATIONS

    • Standard
    • ITU-T J.83 Annex B (QAM-B)
    • Constellations
    • 64-QAM, 256 QAM
    • Symbol Rate
    • 64-QAM / 256-QAM / 5.056 MBaud, 6.111 Mbaud, 6.9 MBaud
    • Interleaving
    • Fixed I=128, J=1
    • Parameters
    • 64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
    • Sample Rate
    • 8.126984 Ms/s

ENVIRONMENTAL STORAGE CONDITIONS

    • Humidity
    • 95% Non-condensing
    • Temperature
    • 32° to 104° Fahrenheit

ENVIRONMENTAL OPERATING CONDITIONS

    • Humidity
    • 95% Non-condensing
    • Temperature
    • -4° to 158° Fahrenheit (-20° to 70° Celsius)

DIMENSIONS

    • Unit Dimensions (W × H × D)
    • 19.0” x 1.7” x 8.5”
    • Unit Weight (Rack-only)
    • 5.65 Ibs.

REGULATORY COMPLIANCE

    • Regulatory Compliance
    • FCC, UL, RoHS

WARRANTY/UPC

    • Warranty
    • 1 Year
    • UPC
    • 7 19192 91975 4

Installation Manual

Specification Sheet
