55” Class (54.64” measured diagonally) Outdoor Display

  • 55XE3C-B

Key Features

  • Dust & Humidity Protection Designed with IP56
  • High Operating Temperature
  • Enhanced Thermal Management
  • 7.5 mm Protective Glass

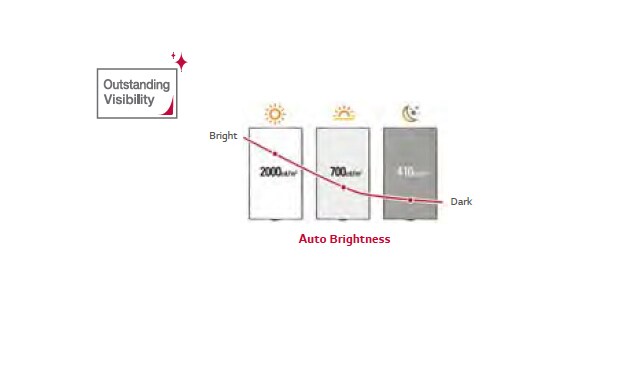

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.

Advanced Local Dimming

The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.

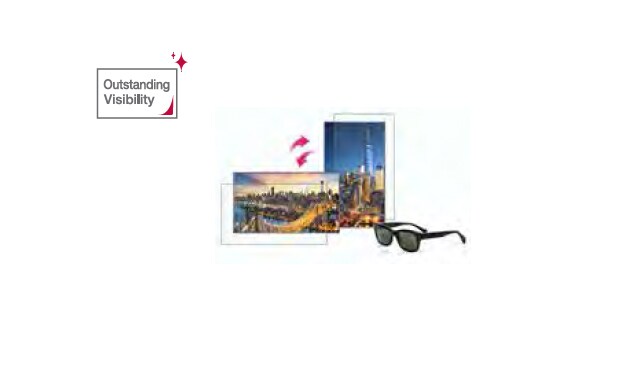

QWP (Quarter Wave Plate)

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.

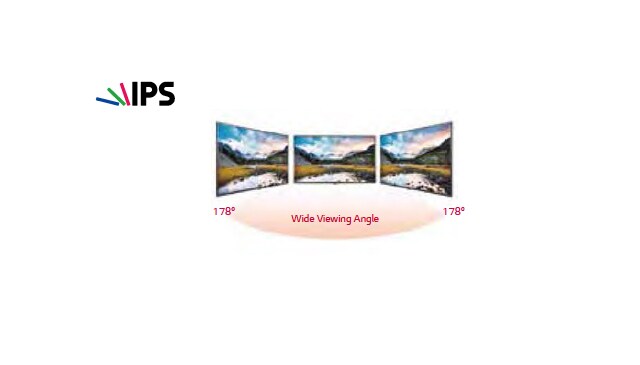

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

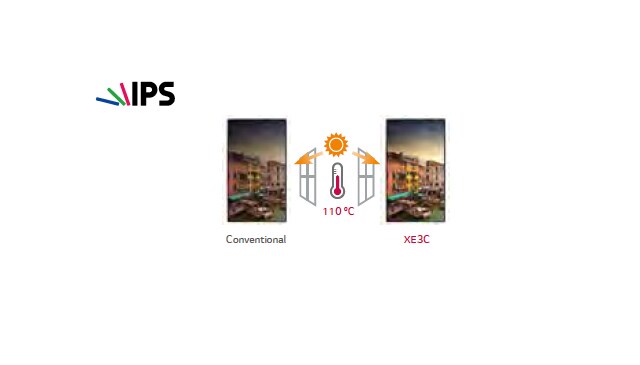

No Blackening Effect

Even under direct sunlight exposure, LG commercial monitors remain free from blackening defects under 110°C and provide superior quality for outdoor usage.

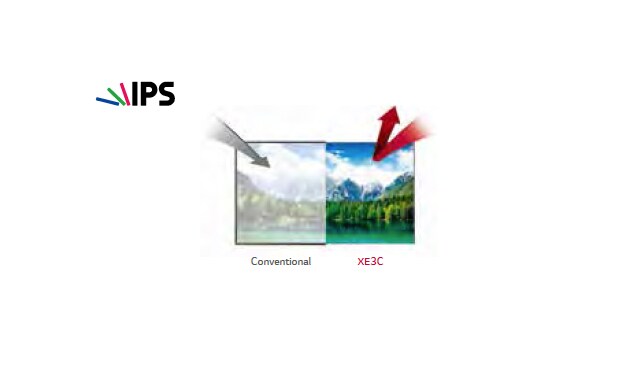

Anti-reflection

Less interference between reflection of external light & back light thanks to anti-reflection coating.

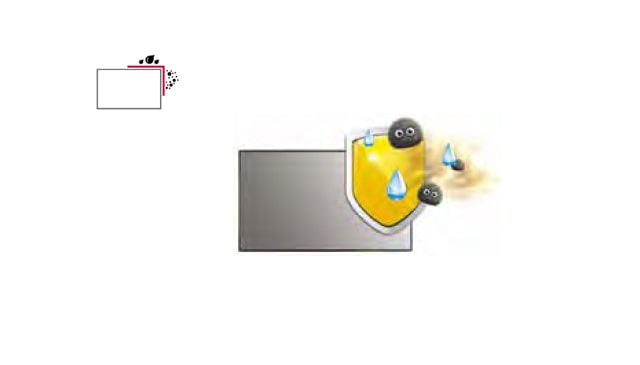

Dust & Humidity Protection Designed with IP56 Rating

The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.

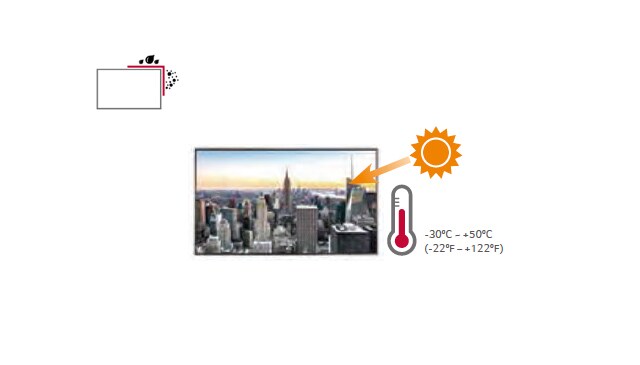

High Operating Temperature

The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.

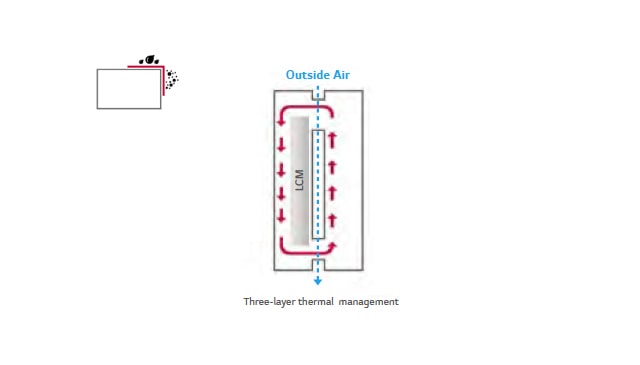

Enhanced Thermal Management

Environmentally sealed structure for waterproofing and protecting againsts brake dust and fumes. Three-layer thermal management prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.

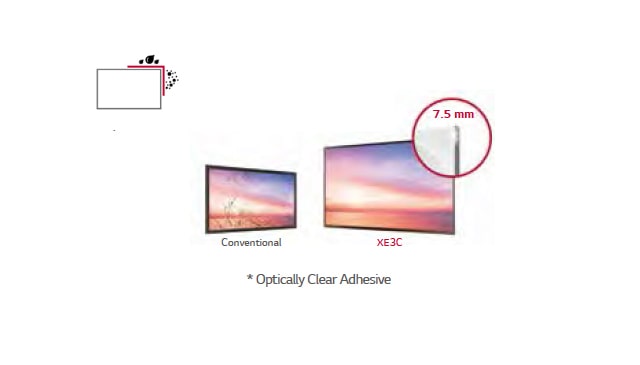

7.5 mm Protective Glass

Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.

*With same luminance

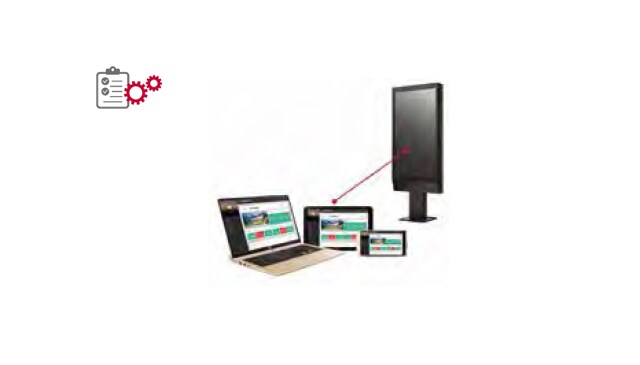

Web Monitoring

The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.

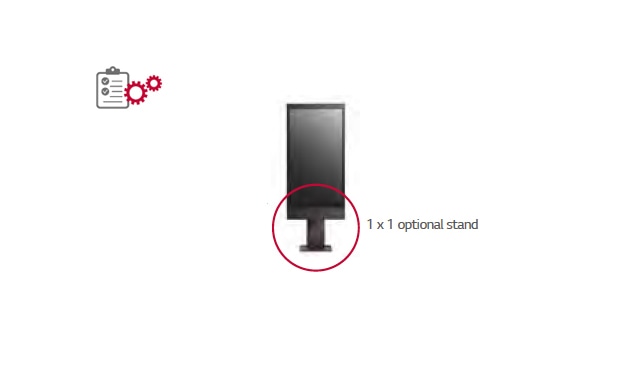

Optional Stand

It is designed with various applications in mind and compatible with wall mounted landscape/portrait orientation. Optional stand to allow panel to stand freely and facilitate easy cable management.

PANEL
Screen Size55" Class (54.64" measured diagonal)
Panel TechnologyIPS
Aspect Ratio16 : 9
Native Resolution1,920 x 1,080 (FHD), M+
Brightness3,000 cd/m2 through front protective glass (Typ)
Contrast Ratio1,000:1
Viewing Angle (HxV)178 x 178
Response Time6 ms (G to G), 9 ms (G to G BW)
Surface TreatmentAnti-reflection treatment of the front polarizer (Reflectance< 2.5%)
QWP Polarizer (FPR Film)Yes
Local dimming55" 160 Block
Life Time50,000 Hours
OrientationPortrait & Landscape
CONNECTIVITY
InputHDMI, DP, DVI-D, Audio
OutputDP, External Speaker out
External ControlRS232C, RJ45, USB 3.0, SD Card
PHYSICAL SPECIFICATION
Front glass7.5 mm (AR, Front Safety Vandal Glass)
Bezel ColorMedium Texture Black (Common color)
Bezel Width66.4 mm (T/B), 31.0 mm (L/R)
Monitor Dimension (W x H x D)745.3 x 1,345.4 x 160.0 mm
Weight (Head)70 kg
Monitor with Optional Stand Dimensions (W x H x D)745 x 542 x 420 mm
Weight (Head + Stand)100.5 kg
Packing Dimensions (W x H x D)1,027 x 1,491 x 309 mm
SPECIAL FEATURES
YesTemperature Sensor, Auto Brigtness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail over, Mirroring, SoftAP, BEACON, Embedded Template
ENVIRONMENT CONDITIONS
Operation Tempature-30 °C to 50 °C
Operation Humidity5% ~ 100%
Direct SunlightYes
Dust / Water ProofingIP 56
POWER
Power Supply100 -240V, 50/60Hz
Power TypeBuilt-In Power
Power Consumption Typ. / Max.Typ. 350 W / Max. 500 W
STANDARD (CERTIFICATION)
SafetyUL / cUL / CB
EMCFCC Class "A" / CE / KCC
ErP / Energy StarNo / No
MEDIA PLAYER COMPATIBILITY
OPS Type CompatibleNo
External Media player AttachableNo
SOFTWARE COMPATIILITY
SuperSign W/LiteYes
SuperSign CYes
ACCESSORIES
AccessoriesRemote Controller, Manual, QSG, Regulation book, Phone to RS232C Gender, USB cable, HDMI cable
Optional AccessoriesMedia player (driven by customer), Enclosure Stand
UPC
55XE3C7 19192 60679 1
