55" class (54.64” diagonal) Super-Narrow 3.5mm Bezel Premium Display

  • 55LV77A-7B

  • Discontinued Product

Key Features

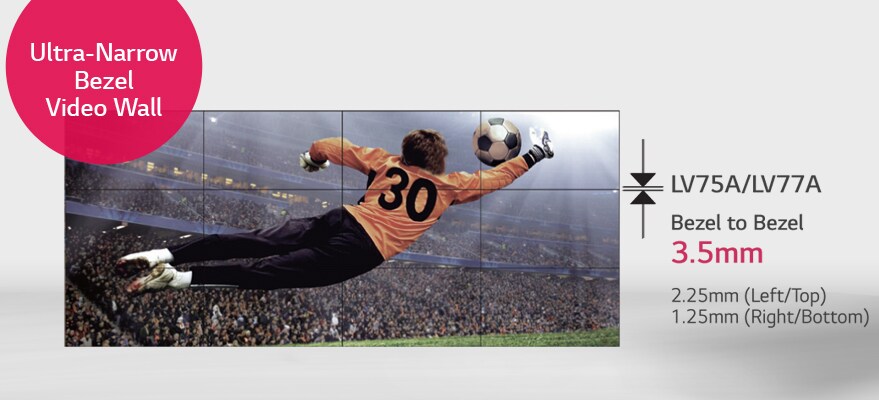

  • Super Narrow Bezel

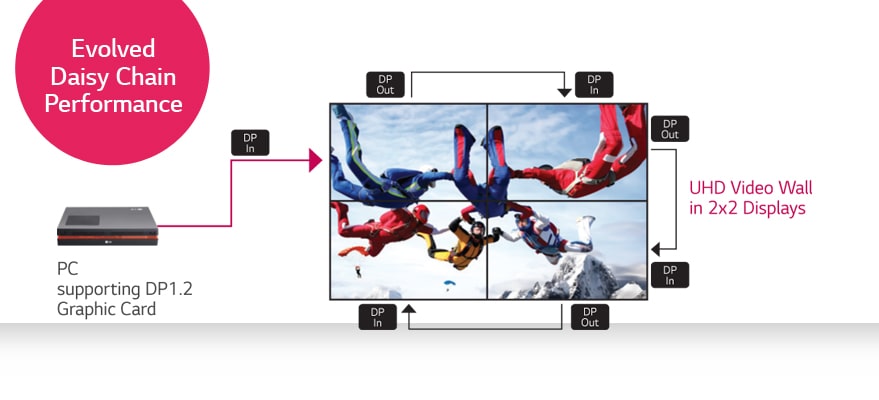

  • Evolved Daisy-Chain Performance
  • FREE SuperSign C Software for Advanced Color Adjustment and Remote Monitor & Control
  • 700 nit Display - 24/7 Operation
PANEL
Aspect Ratio16:9
Native Resolution1920 x 1080 (FHD)
Pixels(H x V x 3)6,220,800
Brightness700 cd/m2
Color Gamut72%
Viewing Angle178°/178°
Color Depth1.06 Billion
Response Time12ms (G to G)
OrientationPortrait & Landscape
Panel Size55" class (54.64" measured diagonally)
Contrast Ratio (Typ.)1,400:1
Panel TypeIPS
Dynamic CR (DCR)500,000:1
Surface TreatmentHard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%)
SPECIAL FEATURES
Temperature SensorYes
Tile ModeYes, Up to 15 x 15 (Natural mode)
Source SelectionRGB / DVI-D / HDMI / Component / AV / Display Port / USB
Brightness/Contrast /BacklightYes
Energy SavingYes, Off / Minimum / Medium / Maximum / Screen Off
Position/SizeYes
ISM MethodNormal, Orbiter, Inversion, White wash
AdvancedDynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
Auto Config/PhaseYes
Smart Energy SavingYes
Auto Power/Source MemoryYes
PIP/PBPYes
File Play with USBYes
DPM SelectYes
InformationModel/Type, S/W Version, Serial Number, IP Address, Mac address, Homepage
Input LabelYes
TimeClock, On/off Time, Sleep Timer, Power on Delay, Auto off, Automatic standby
VIDEO (PC)
Max Input Resolution1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
Recommended Resolution1920 X 1080@ 60Hz(RGB, HDMI, DVI-D, Display Port)
H-Scanning Frequency30 ~ 83 kHz (RGB, HDMI, DVI-D, Display Port)
V-Scanning Frequency56Hz ~ 75Hz (RGB), 56Hz ~ 60Hz (HDMI, DVI-D, Display Port)
Picture ModeVivid, Standard, Cinema, Sports, Game
Pixel Frequency148.5MHz (RGB, HDMI, DVI-D, Display Port)
Sync CompatabilitySeparate / Composite / Digital
Video InputRGB, HDMI, DVI-D, Display Port, AV, Component
Color TemperatureWarm, Medium, Cool
SIGNAL (INPUT)
External ControlRS232C (1), RJ45 (1), IR Receiver (1)
USBUSB (1)
AnalogRGB (1), Shared Component (1), AV (1)
AudioPC Audio In (1)
DigitalDVI-D (1), HDMI (1), Display Port (1) with HDCP for all input
SIGNAL (OUTPUT)
DigitalDisplay Port (1)
AudioAudio Out(1)
External ControlRS232C (1)
CABINET
ColorBlack
Monitor Dimensions47.8” x 27.0” x 3.5”
Monitor Weight51.1 Ibs
Carton Dimensions 53.3” x 33.5” x 10.0”
Packed Weight67.2 Ibs
Bezel Width2.25mm (left/top) / 1.25mm(right/bottom)
HandleYes
VESA™ Standard Mount Interface600mm x 400mm
ACCESSORIES
AccessoriesRemote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable,Tiling Guide, Screw
POWER
Power Supply100–240V~, 50/60Hz
Power TypeBuilt-in Power
Power Consumption-Normal (Typ.)230W
Power Consumption-DPM0.7W
Power Consumption-Power Save/Sleep Mode (Max)120W
Power Consumption-Power Off0.5W
STANDARD CERTIFICATIONS
SafetyUL / cUL / CB / TUV / KC
EMCFCC Class "B" / CE / KCC
SOFTWARE COMPATIBILITY
SuperSign-CYes (SuperSign C software is available at http://www.lg.com/us/commercial/video-walls)
MEDIA PLAYER COMPATIBILITY
External Media Player AttachableYes
ENVIRONMENT CONDITIONS
Operation Temperature0 °C to 40 °C
Operation Humidity10%~80%
UPC
UPC7 19192 19517 2
WARRANTY
WARRANTY3-Year Limited Warranty (Parts/Labor/Backlight)
