KEY FEATURES

  • Roof Aesthetics
  • Enhanced Performance Warranty
  • High Power Output

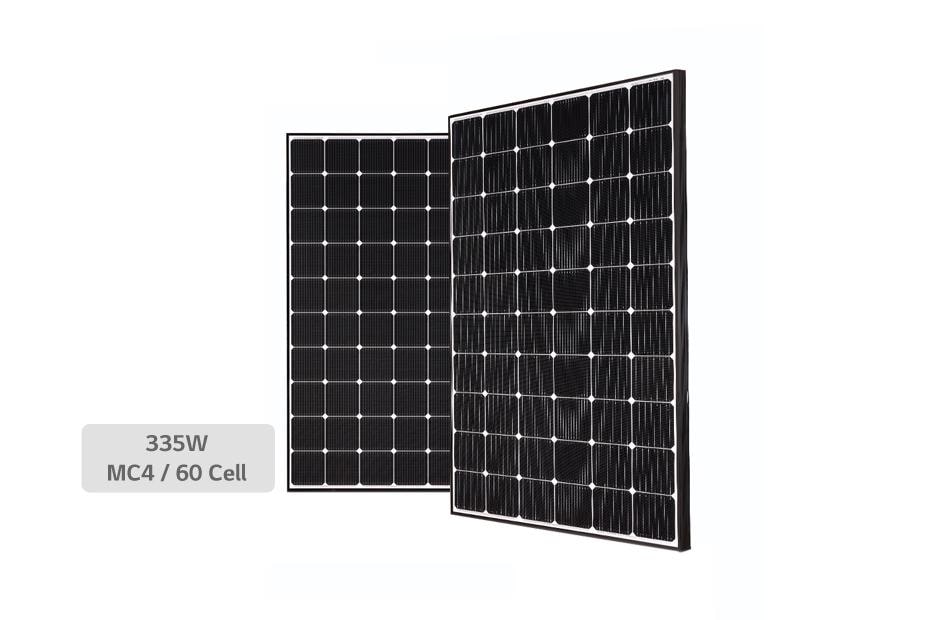

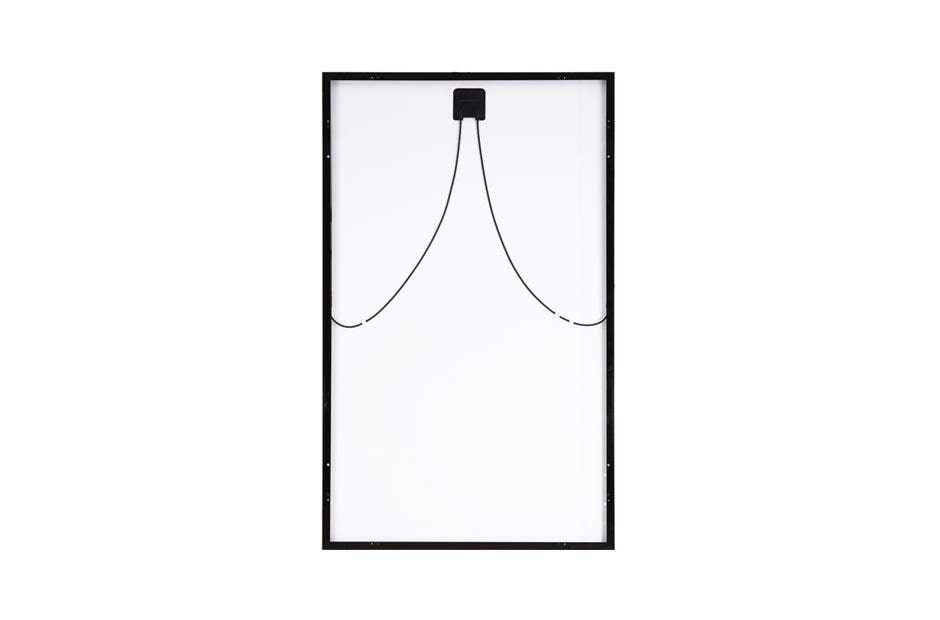

High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.6% Connector Type: MC4
$
  • Enhanced Performance Warranty

    LG NeON® 2 has an enhanced performance warranty. The annual degradation has fallen from -0.6%/yr to -0.5%/yr. Even after 25 years, the cell guarantees 2.4% more output than the previous LG NeON® 2 modules.

  • High Power Output

    Compared with previous models, the LG NeON® 2 72 cell has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

  • Outstanding Durability

    With its newly reinforced frame design, LG has extended the warranty of the NeON® 2 from 15 years to 25 years, including labor. In addition, LG NeON® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

  • Improved Performance on Sunny Days

    LG NeON 2 now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID

    The n-type cells used in LG NeON® 2 have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
    • Module Fire Performance
    • Type 2
    • Product Warranty
    • 25 years
    • Output Warranty of Pmax
    • Linear warranty**
    • **
    • 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%
    • Fire Rating (for CANADA)
    • Class C (ULC/ORD C1703)

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 247
    • MPP Voltage (Vmpp)
    • 31.5
    • MPP Current (Impp)
    • 7.83
    • Open Circuit Voltage (Voc)
    • 38.2
    • Short Circuit Current (Isc)
    • 8.44
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 34.1
    • MPP Current (Impp)
    • 9.83
    • Open Circuit Voltage (Voc)
    • 41
    • Short Circuit Current (Isc)
    • 10.49
    • Module Efficiency (%)
    • 19.6
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%.
    • Maximum Power (Pmax)
    • 335

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm / 6 inches
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch
    • Front Load
    • 6000Pa
    • Rear Load
    • 5400Pa
    • Weight
    • 18 kg
    • Connector Type
    • MC4
    • Junction Box
    • IP68 with 3 Bypass Diodes
    • Frame
    • Anodized aluminium
    • Glass
    • Tempered Glass with AR Coating
    • Cables
    • 1000 mm x 2 ea

Temperature Characteristics

    • NOCT
    • 45 ± 3 °C
    • Pmpp
    • -0.37%/°C
    • Voc
    • -0.27%/°C
    • Isc
    • 0.03 %/°C
