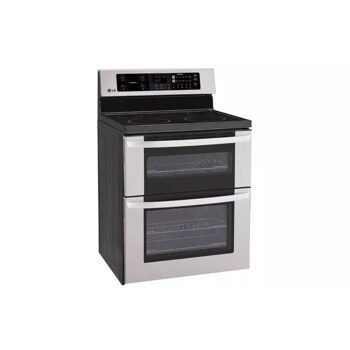

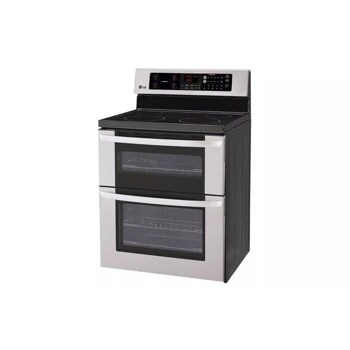

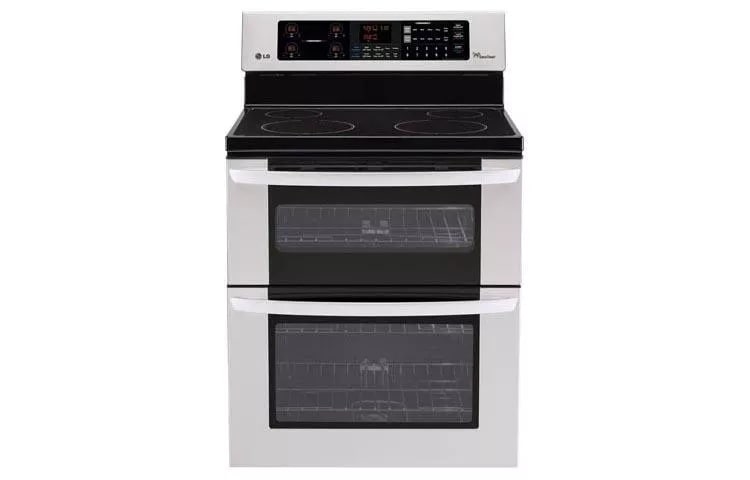

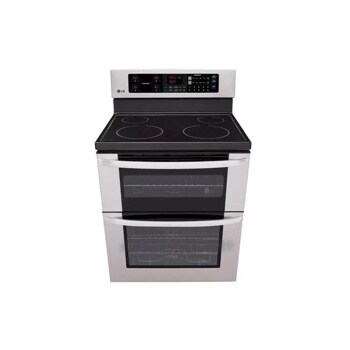

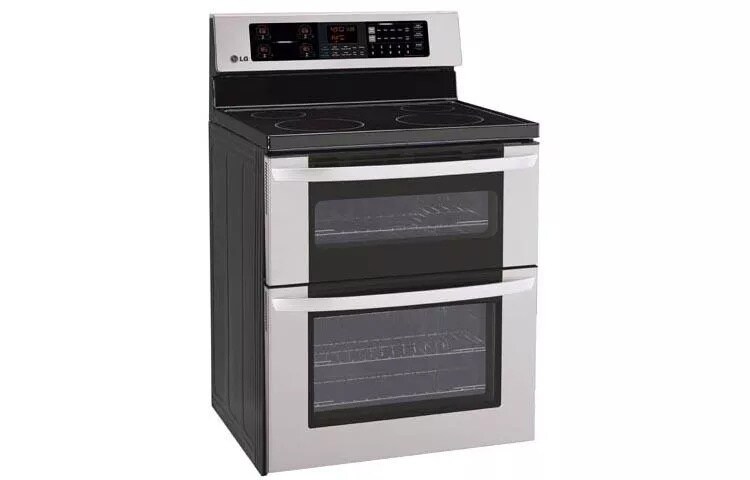

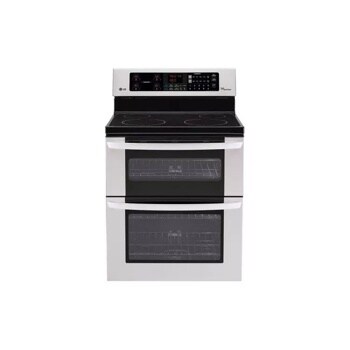

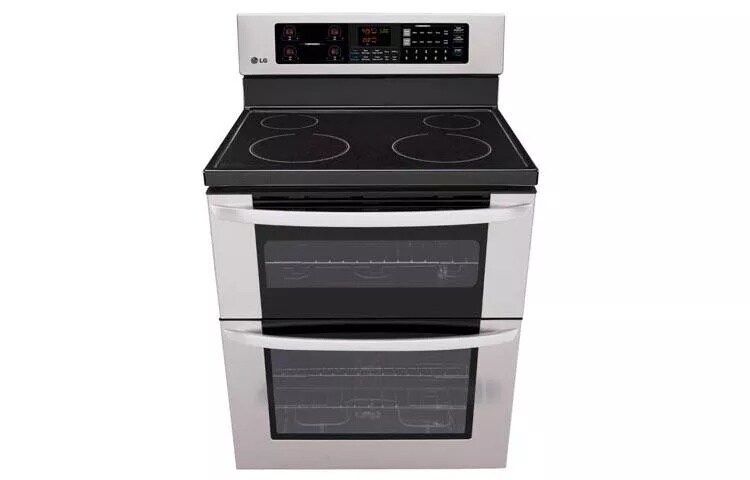

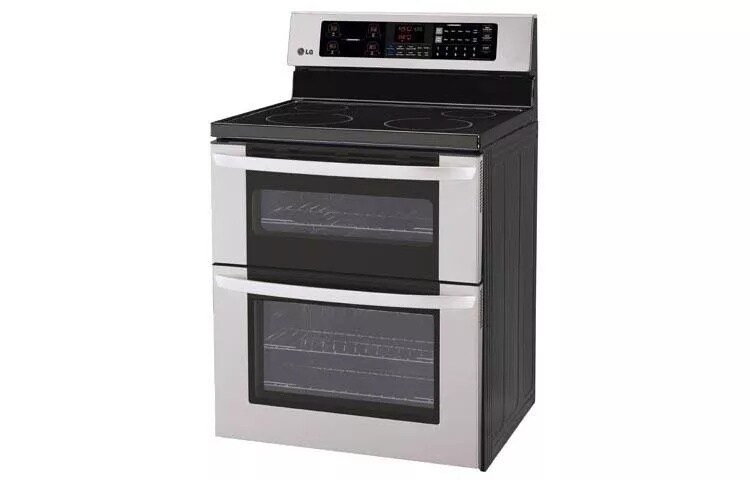

6.7 cu. ft. Capacity Electric Double Oven Range with a 6”-High Upper Oven and EasyClean®

  • LDE3031ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • EasyClean® Cleaning Feature
  • Large Capacity (6.7 cu ft.)
  • Upper Oven Height (6")
  • IntuiTouch™ Controls
AVAILABLE COLORS:
CAPACITY
Upper Oven 2.32 cu. ft.
Lower Oven 4.38 cu. ft.
Total Capacity 6.7 cu. ft.
OVEN FEATURES
EasyClean® Technology Yes
Configuration Freestanding Electric Double Oven
Bake Element (Upper) 2100W / 4 Pass (Exposed Bake)
Broil Element (Upper) Sheathed Heater, 3200W
Bake Element (Lower) 2500W / 4 Pass (Exposed Bake)
Broil Element (Lower) 3800W / 6 Pass
Oven Cooking Modes Bake, Broil, Proof (Lower Only), Warm
Cleaning Self Clean / EasyClean®
Oven Light Yes
Oven Rack 3 Standard Racks
COOKTOP
Element Configuration - Left Front 9” / 2500W
Element Configuration - Left Rear 6" / 1200W
Element Configuration - Right Front 9” / 2500W
Element Configuration - Right Rear 6" / 1200W
Cooktop Element Type Radiant
Cooktop Finish Grey Patterned on Black Ceramic Glass
CONTROL
Control Location Backsplash
Control Type IntuiTouch™ Keypad
Control Display VFD (Scrolling Display)
APPEARANCE
Available Colors Stainless Steel
Handle Matching Stainless
Oven Door Feature Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 243
Product Weight (lbs) 193
Cabinet Width (in) 30"
Overall Depth (in) 28 3/16"
Overall Height (in) 47 7/16"
Overall Width (in) 29 7/8"
Height to Cooking Surface (in) 36"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 1/2" x 9 9/16" x 18 15/16"
Oven Interior Dimensions (Lower) (in) (W x H x D) 24 1/2" x 16 5/16" x 18 15/16"
POWER/RATINGS
Amp Rating at 208V 10.3 KW
Amp Rating at 240V 13.8 W / 57.4 A
KW Rating at 208V 120/208 VAC
KW Rating at 240V 120/240 VAC
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (In Home Service), 5 Years Limited on Cooktop and Radiant Surface Units (In home service)
UPC 482313 175048

What People Are Saying

Rated 5 out of 5 by from Double oven range I love this but had to figure out where I could cook what as some things as rolls need to be in middle or tops burn or bottoms burn in top oven, which is a lot like normal ovens
Date published: 2016-04-24
Rated 2 out of 5 by from Bottom oven is terrible WHY is the heating element on the TOP do the bottom oven?? I had a very dry turkey,no juices!!!!!! This basically ia a very large BROILER! I'll take any advice you have. Thank you
Date published: 2015-12-22
Rated 5 out of 5 by from Love my new Stove I have been using my stove for 1 month now. It took some time to figure out some of the features, but they are really cool! It doesn't have a toast feature, but the Kids meal feature is nice. At first it seemed to make a lot of noise, clicking as the stove top or oven heated and rested in cycle, but I got used to it and it doesn't bother me. The only thing I don't like is the music it plays when the timer goes off, or preheat is done. I wish I could change it to just a beep. Otherwise it is a really awesome addition to my new kitchen!
Date published: 2015-04-23
Rated 5 out of 5 by from Great Kitchen Addition!! Fits in well with our lifestyle, use, kitchen space and looks great. Wish the small burners were in front but its not a real problem. Great support with use tips and ideas. Thanks!!
Date published: 2015-03-07
Rated 5 out of 5 by from The features of this product are great. Glass range top is wonderful had never had one before. Love the double oven came in so handy during the holidays. Really like the music features that let you know when oven is preheated.
Date published: 2015-03-03
Rated 5 out of 5 by from love the controls and fast heating Purchased this stove 1 month ago. Works perfect, looks great, very fast to warm up. Nice size ovens, perfect for small or large baking jobs. Love the idea of baking two items at once. Nice bright, easy to read displays
Date published: 2015-02-15
Rated 4 out of 5 by from Love the double oven! I really love the double ovens. Since there are only two of us I always hated to heat up a big oven for something small and a toaster oven just won't work for some things. I have used my oven more since I bought this stove than ever before. I do have a couple of concerns about the cook top. It's a pain to have to push the controls repeatedly to change the setting. It was much easier to just turn a knob. But the smooth control panel looks very nice. Secondly, there isn't enough space between the back burners and the control panel. When a pan is centered on a burner it touches the panel. I like the two options for cleaning the ovens. I haven't had to do a deep cleaning yet. The easy clean keeps the oven clean for the most part. Overall, I'm very happy with my purchase.
Date published: 2014-12-19
Rated 5 out of 5 by from Love the double oven. I love the controll I have on the cook top.. as I can see the digital read out of how hot the burner is. The double oven I love. And the pizza setting is awesome. Easy to use.
Date published: 2014-11-15
  • 2016-05-03T14:18CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.0
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_17
  • loc_en_US, sid_MD05037397, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 209ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LDE3031ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Can you tell me if this can work on 220 volts whot 3 power cord outlet( 1 hot wire 220 volts, 1 neutral and 1 ground) in Europe

Asked by: BlakeJ
In the US, the LG 6.7 cu. ft. Capacity Electric Double Oven Range with a 6”-High Upper Oven and EasyClean®, Model # LDE3031ST requires a single-phase, 3 wire, A.C 120/208V or 120/240V 60Hz electrical system. It must be installed and grounded on a branch circuit by a qualified technician in accordance with the National Electrical code ANSI/NFPA NO. 70 - latest edition. All wiring should conform to Local and NEC codes and regulations. Europe has it's own standards so grounding and wiring, you would have to conform to the Electrical Standards in that country in Europe...^IFV
Answered by: LGJoel
Date published: 2016-03-19

Can you pls tell me if this can be connected into 220 volts power outlet whit 1 hot wire on 220volts 1 ground wire and 1 neutral whire in Europe

Asked by: Alekscho
In the US, the LG 6.7 cu. ft. Capacity Electric Double Oven Range with a 6”-High Upper Oven and EasyClean®, Model # LDE3031ST must be installed and grounded on a branch circuit by a qualified technician in accordance with the National Electrical code ANSI/NFPA NO. 70 - latest edition. All wiring should conform to Local and NEC. This range requires a single-phase, 3 wire, A.C 120/208V or 120/240V 60Hz electrical system. Use only a 3-conductor or a 4-conductor UL-listed range cord with closed-loop terminals, open-end spade lugs with upturned ends or similar termination. DO NOT install the power cord without a strain relief. A range cord rated at 40 amps with 120/240 minimum volt range is required. If a 50 amp range cord is used, it should be marked for use with 13/8” diameter connection openings. This appliance may be connected by means of conduit or power cord. For wiring in Europe, you will have to conform to the standards as dictated in the country in Europe in which you intend to use the unit in...^IFV
Answered by: LGJoel
Date published: 2016-03-17

Can you buy new oven racks for this model and if so we're and how much

Asked by: Sharky16
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for these racks is MHL61952101.
Answered by: NeilE
Date published: 2016-01-27

Is the IntuiTouch keypad glass or plastic on the LDE3037ST? I have a plastic keypad now (not an LG) on my range and it is hard to clean.

Asked by: TLTL
It is plastic, but super easy to clean!
Answered by: ng02
Date published: 2015-04-24

the model LDE3031ST we just purchased is the stove top considered to be Induction cook top ?

Asked by: sassylooo
I apologize, but no; this oven does not have an Induction Cooktop.
Answered by: NeilE
Date published: 2015-03-24

Does model # LDE3031ST have the hidden element in the lower oven?

Asked by: ojoles
No but they are low profile
Answered by: Lucas2
Date published: 2015-02-15

where are the anti-tip devices packaged?

LED3031ST
Asked by: chuckm65
The Anti-tip brackets can be located in a number of locations within the packaging. They will likely be found bagged inside the oven cavity.
Answered by: NeilE
Date published: 2013-11-20

What power cord do you recommend for model LDE3031ST?

Asked by: Stanofmichigan
According to the installation guide for this electric oven, a range courd rated at 40 amps with 120/240 minimum volt range is required. If a 50 amp range cord is used, it should be marked for use with 1 3/8” diameter connection openings. This appliance may be connected by means of conduit or power cord.
Answered by: NeilE
Date published: 2013-12-16
