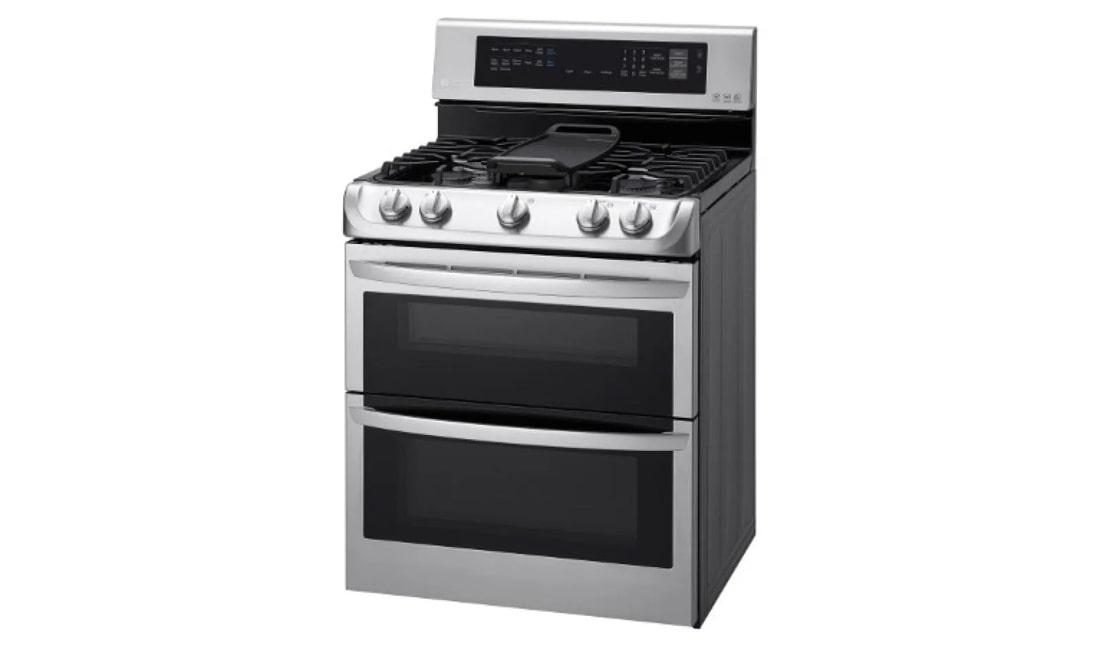

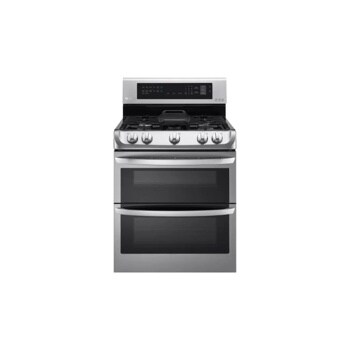

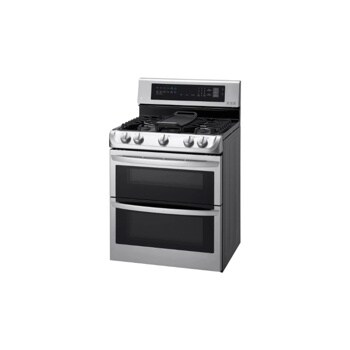

6.9 cu. ft. Gas Double Oven Range with ProBake Convection®, EasyClean® and Gliding Rack

  • LDG4315ST

  • Stainless Steel

Key Features

  • ProBake Convection®
  • EasyClean®
  • Largest Capacity Double Ovens (6.9 cu. Ft- 2.6 upper, 4.3 lower)
  • Fastest Boiling 18,500BTU Burner

Baked to Perfection
on Every Rack, Every Time

LG ProBake Convection® delivers even baking results on every rack, every time*. Inspired by pro-style ranges, this new LG range moved the heating element from the bottom of the oven to the back wall for optimal heat distribution.

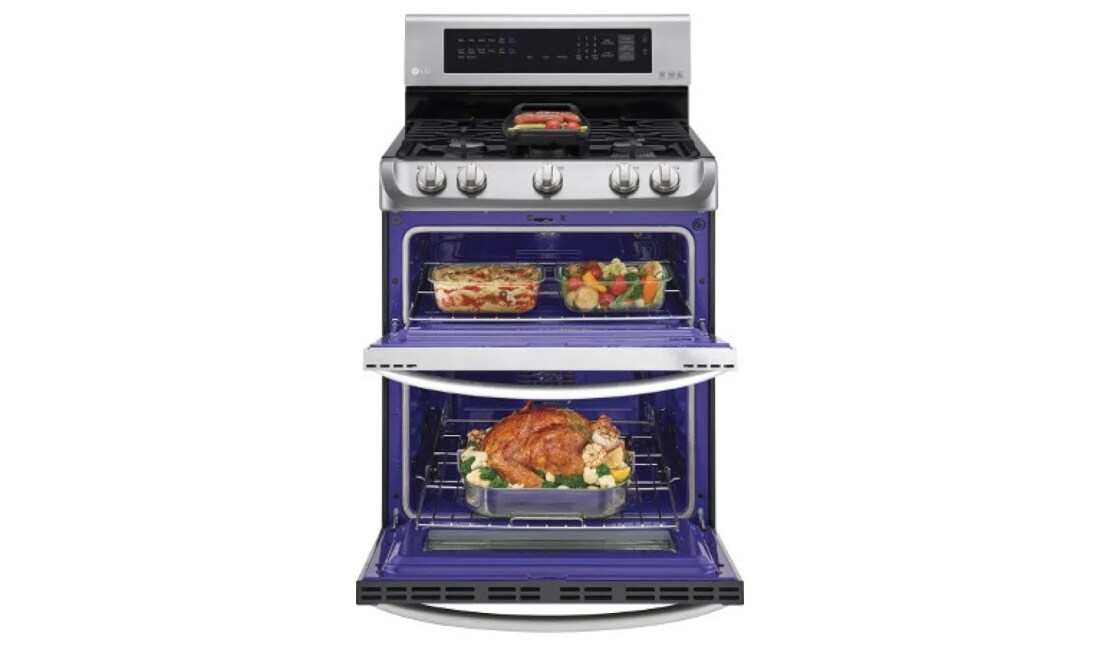

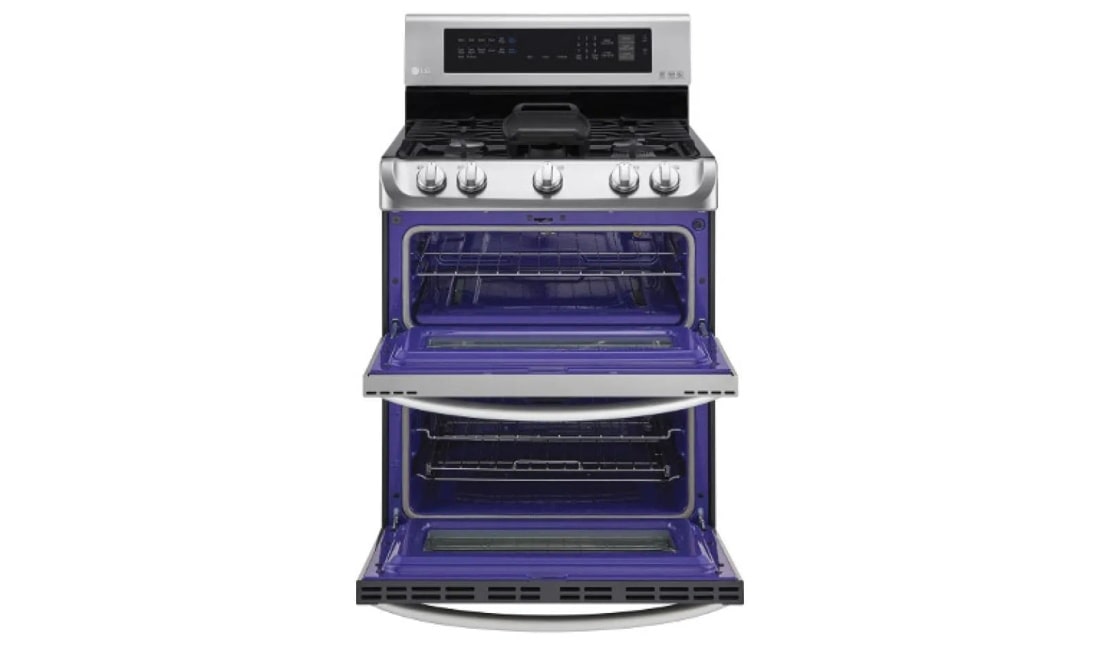

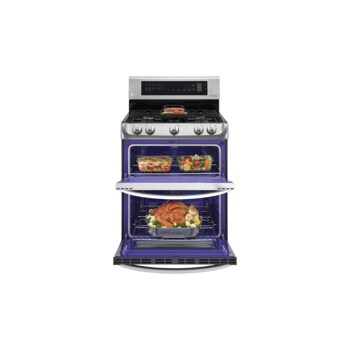

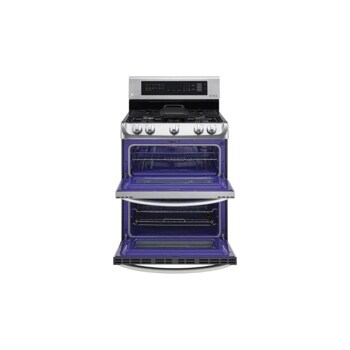

Multiple guests? Multiple dishes? No problem.

Simplify dinnertime with LG’s 6.9 cu. ft. double oven offering the largest capacity available. Use the quick-heating upper oven for smaller meals on the go. For big events, you’ll have the room you need to cook all your favorite dishes, at different temperatures, at the same time. With LG, no meal (or guest list) is too big.

10 Minutes. 1 Spotless Oven.

LG EasyClean® delivers the fastest oven-cleaning feature yet. In 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime.

Features

A stylish take on convenience

Stop reaching over hot pans to adjust your cooktop burners. Sleek, angled controls put power and visibility at your fingertips while bringing an updated, stylish look to your kitchen.

Features

LG’s Fastest Boiling Burner

Busy cooks, rejoice: LG UltraHeat™ 18,500 BTU burners deliver every bit of the precision you love about gas with even more power. No more waiting around to bring water and other liquids to a boil.

CAPACITY
Upper Oven 2.6 cu. ft.
Lower Oven 4.3 cu. ft.
Total Capacity 6.9 cu. ft.
OVEN FEATURES
Configuration Double Oven
UPPER OVEN FEATURES
Configuration Freestanding Double Gas Range
Broil Element (BTU/h) 14,500 / 12,500 (LNG/LPG)
Bake Element (BTU/h) 14,500 / 12,500 (LNG/LPG)
Oven Cooking Conventional
Oven Cooking Modes Bake, Broil, Delay Bake, Delay Clean, Warm, Pizza
Oven Control Features Glass Touch
EasyClean® Yes
Self Clean Yes
GoCook Smart Oven Light Yes (1 Light)
No. of Rack Positions 2
Door Lock Yes
Automatic Safety Shut-Off After 12 hours
LOWER OVEN FEATURES
Convection Element (Watt) 14,000 / 13,000 (LNG/LPG)
Convection Conversion Yes
Convection System/Mode/Cooking System ProBake Convection®
Oven Cooking Modes Bake, Convection Bake, Convection Roast, Multi-Rack Convection Baking, Delay Bake, Delay Clean, Proof, Warm, Pizza
Oven Control Features Glass Touch
EasyClean® Yes
Self Clean Yes
GoCook Smart Oven Light Yes (1 Light)
No. of Rack Positions 4
Door Lock Yes
Automatic Safety Shut-Off After 12 hours
COOKTOP
Burner Configuration - Left Rear 9,100
Burner Configuration - Right Rear 5,000
Burner Configuration - Left Front 12,000
Burner Configuration - Right Front 18,500
Burner Configuration - Center Rear 10,000 (Oval-Burner)
Cooktop Finish Porcelain
CONTROL
Cooktop Control Type Front Tilt-Control Knobs
Oven Control Type Glass Touch
Display VFD
Clock 12 hr or 24 hr (option)
Temperature Unit of Measure ˚F or ˚C
Cooking Complete Reminder 1. High 2. Low 3. Mute
APPEARANCE
Available Colors Stainless Steel
Handle/Knobs STS Finish (AI)
Oven Door Feature WideView™ Window
DIMENSIONS
Shipping Weight (lbs) 247
Product Weight (lbs) 224.9
Cabinet Width (in) 30"
Overall Width (in) 29 7/8"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 13/16" x 9 1/4" x 20"
Height to Cooking Surface (in) 36"
Depth (including handle) 28 15/16"
Overall Height (in) - including backguard 47 5/16"
Oven Interior Dimensions (Lower) (in) (W x H x D) 24 13/16" x 14 1/4" x 20"
Carton Dimensions (in) (W x H x D) 32 1/2" x 51" x 30 1/2"
POWER/RATINGS
Amp at 120V 8.0A
kW at 120V 0.96kW
Requirements 120 VAC
ACCESSORIES
Griddle Yes
Standard Rack 1
Offset Rack 1
Gliding Rack Yes
Scouring Pad Yes
Spray Bottle Yes
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231319171

What People Are Saying

Rated 3 out of 5 by from Awesome but falls short. He appearance of these are awesome. But if you plan on using them they will scratch vary easily.
Date published: 2017-07-09
Rated 4 out of 5 by from User ubfriendly Love the product but the registration was an exercise in major frustration.i was not here when installed in February and so the serial # was not accessible until i fpund two young people to pull the stove out and get the #. At 81 i do not move large heavy ewuipment. When I called about locating the #, the phone consultant was totally blaze and almost rude.
Date published: 2017-06-14
Rated 5 out of 5 by from We purchased this LG gas stove in August of 2016. It has the double ovens and I absolutely LOVE having 2 ovens. I don't know how I ever cooked huge meals before with just one oven. This is an awesome stove. It has great features, heats up to the proper temp. in such a short amount of time. ( I was having to wait about an hour or so for the oven to get to the temp. on my old gas stove.) So this is amazing. I LOVE my LG Double Oven Gas stove.
Date published: 2017-04-05
Rated 4 out of 5 by from Lovely addition to our kitchen This range is exactly what I wanted when I bought it three months ago. I used it to make Thanksgiving dinner and the two ovens were a feature that I had hoped would be perfect. The problem became evident when the lower rack of the lower oven did not heat the same as the top shelf. It was a bit harrowing to not have the turkey breast heat up after one hour. I promised myself I would read the manual to see if there is a technique that I missed but I have not done that to date. I spot clean the top after cooking and clean the grills and surfaces completely once a week. That said, the black surface is cleaned with a microfiber cloth and looks new. The stainless is not so easy to keep spotless and not scratch.
Date published: 2017-02-14
Rated 5 out of 5 by from Love the double oven The double oven is so versatile - I can bake in the upper oven and roast in the lower oven at two different temperatures - at the same time! The oven is easy to clean and easy to use. The musical timers took some getting used to, but now I really like them - it makes my kitchen unique. The ultra heat burner is also a winner - it quickly heats up a large enamel dutch oven, just be careful not to rest your cooking utensils on the side of the pot - they can heat up quickly! Overall, I'm so happy with this purchase.
Date published: 2017-02-10
Rated 5 out of 5 by from Great Product cooking makes easier My wife is happy about completing her kitchen and cooking on gas range is much better.
Date published: 2017-02-03
Rated 5 out of 5 by from LG LDG4315BD gas range Range and features are terrific! Purchased online from Costco. they set up delivery/installation/haul away of old range, all included in price, lower than anyone locally. Range and ovens are excellent, easy to program and use.
Date published: 2017-01-28
Rated 1 out of 5 by from Uneven Cooking We purchased this oven in 6 months ago. It cooks nothing even. Cakes are not done in the middle. Items burn on the edges. I was told to use the convection oven. Nice solution, that means one of the ovens is useless
Date published: 2017-01-20
  • y_2017, m_7, d_19, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_172
  • loc_en_US, sid_MD05217322, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LDG4315ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I need a product number for the extra large burner cap for model LDH4315BD

Asked by: Pozza
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: MBL66377902.
Answered by: NeilE
Date published: 2017-06-30

I have lg stove model number ldg4315st And I need a gas regulator and I can not find it any where ? Any suggestions plz

Asked by: Amir gaballa
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders and pricing information, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. For components such as interior parts, it is highly recommended to enlist the assistance of a qualified service technician for purchase and installation. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-06-29

What temperature is the "Proof" setting? and does it turn off automatically after three hours as the "Warm" setting?

Asked by: RicardoinSalem
Unlike the 'Warm' function in the LG 6.9 cu. ft. Gas Double Oven Range with ProBake Convection®, EasyClean® and Gliding Rack, Model # LDG4315BD that will maintain an oven temperature of 170 °F, the 'Proof' feature maintains a warm oven for rising yeast leavened products before baking and it does not operate above 125 °F...^IFV
Answered by: LGJoel
Date published: 2017-06-06

I would like to purchase a gliding rack for our LDG4315ST oven. We damaged our original one. Where can I get one and what is the part number?

Asked by: Bob37379
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AHT74173802.
Answered by: NeilE
Date published: 2017-06-04

Is there any way to "lock" the knobs on the front? We have accidentally turned the gas on several times while reaching the microwave above! SCARY!

Asked by: Theonetocall
I apologize, but no; this model has not been designed with a method for locking the range knobs into place. Knob covers may be available from a local appliance retailer, but there are none which the manufacturer might recommend.
Answered by: NeilE
Date published: 2017-06-04

Which rack is center on bottom oven?

Asked by: Ljl53
The lower oven in the LG 6.9 cu. ft. Gas Double Oven Range with ProBake Convection®, EasyClean® and Gliding Rack, Model # LDG4315ST has 4 rack positions so that would make rack position 2 the middle. The oven comes with one standard rack, one offset rack and a gliding rack that you can position to your preferences...^IFV
Answered by: LGJoel
Date published: 2017-06-14

Is there insulation in this oven? I had a mouse living in their and I would like to replace it but can't find insulation or a part number anywhere on any diagram. Before I take it apart I want to make sure I have the replacement insulation. Can you help?

Asked by: Eyesack15
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders and pricing information, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. For components such as interior parts, it is highly recommended to enlist the assistance of a qualified service technician for purchase and installation. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-05-12

What do I need to hook this up to a propane line?

Asked by: Lghabour
The LP Conversion Kit comes attached on the back of the LG 6.9 cu. ft. Gas Double Oven Range with ProBake Convection®, EasyClean® and Gliding Rack, Model # LDG4315ST and the conversion MUST be performed by a Qualified Service Technician, LP InstallerV
Answered by: LGJoel
Date published: 2017-05-26
