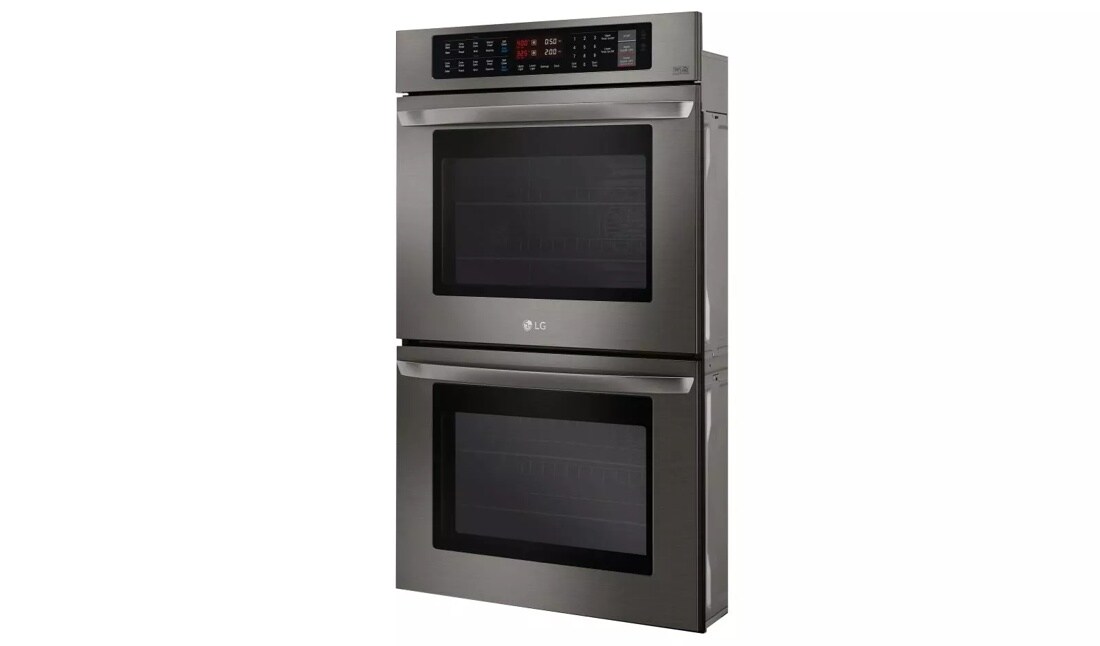

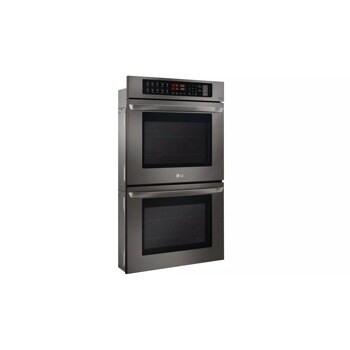

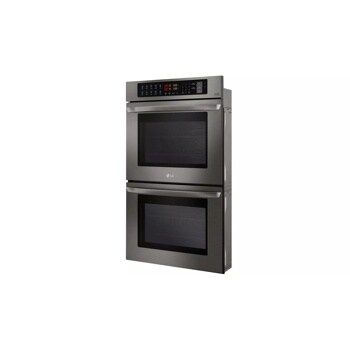

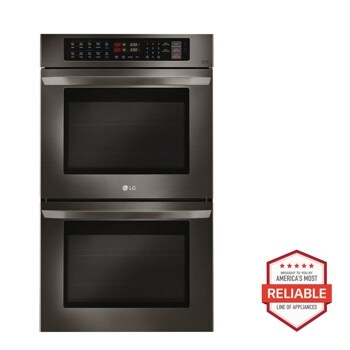

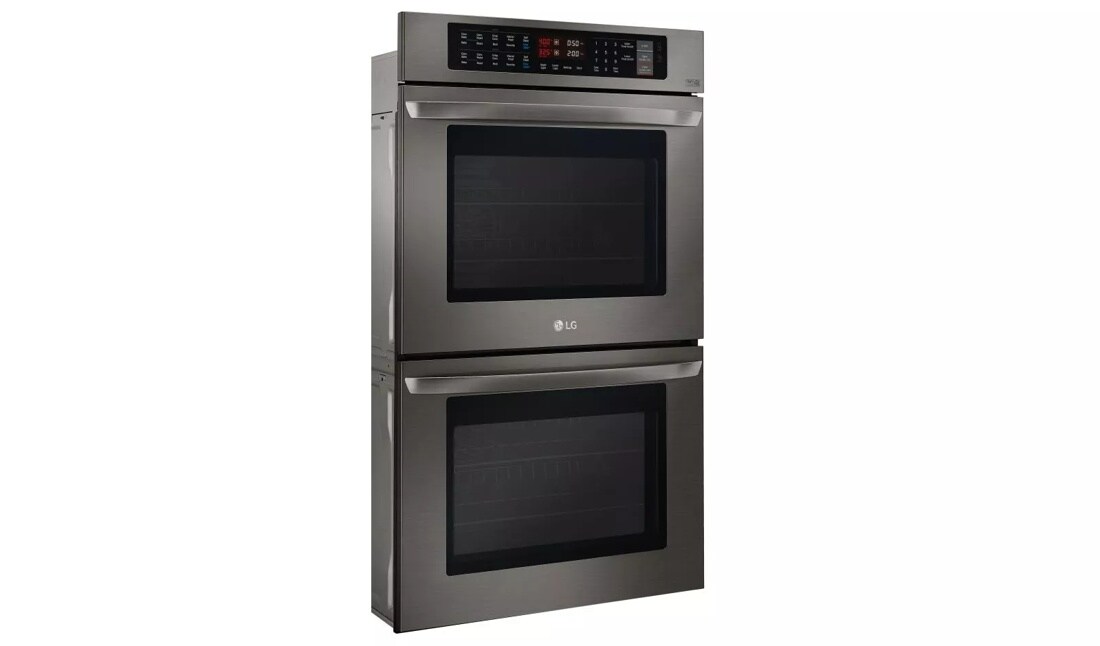

LG Black Stainless Steel Series 9.4 cu. ft Total Capacity Double Wall Oven

  • LWD3063BD

  • Black Stainless Steel

Key Features

  • 9.4 cu. ft. Total Capacity (4.7 cu. ft. upper/lower)
  • Crisp Convection
  • EasyClean® Technology
  • NFC Tag On
  • Brilliant Blue Interior

Design is all in the finish.

Channel your inner designer to create your ideal custom kitchen with the new LG Virtual Designer

Flawless new finish lets your style shine.

Deep yet brilliantly appealing, LG Black Stainless Steel Series brings an undeniable luster to kitchens. It elevates the traditional stainless steel look that's become the standard in today's homes with a satin-smooth, warm and sophisticated finish—a timeless expression that pairs beautifully with any style or color.

10 Minutes. 1 Spotless Oven.

LG EasyClean® delivers the fastest oven-cleaning feature yet. In 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime.

BRILLIANTLY LIT LWD3063BD

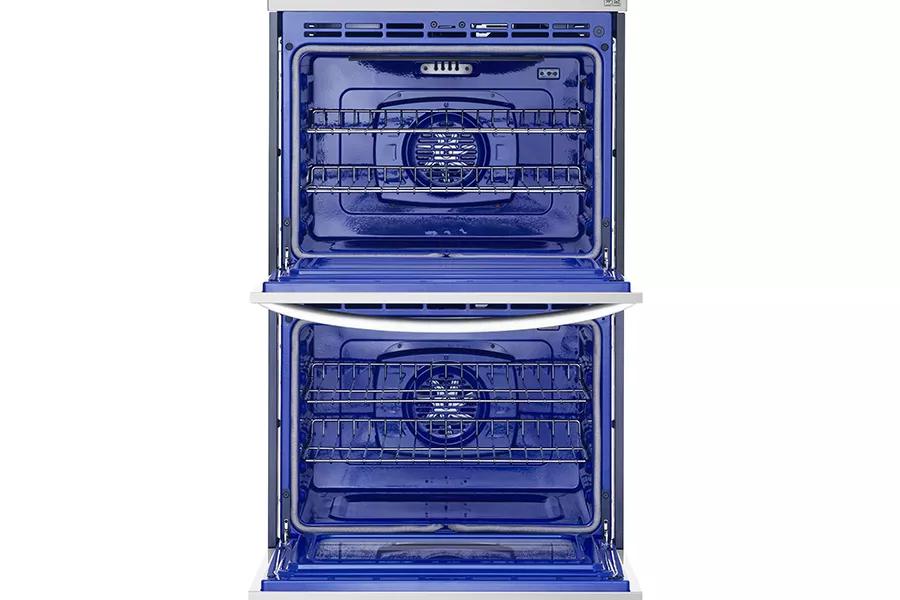

Brilliantly Lit

A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.

SUMMARY
Range Type Double Door
UPPER OVEN
Capacity (cu.ft) 4.7
Interior Color Blue
Cleaning EasyClean® / Self-Clean (3,4,5 hours)
Variable cleaning time Yes (3,4,5 hrs)
Variable broil Yes( Full,Center / High,Med,Low)
Broil element 2,500 watts inner / 1,500 watts outer
Broil element pass 8
Bake element 2,500 watts
Bake element type Hidden (8 pass)
# of rack position 5
12 hrs. shut-off Yes
- # of light 3 (Halogen Lamp - 3 dimension lighting)
Convection conversion Yes
-Convection element Yes (2,000 watts Sheath heater)
Proof Yes
Meat probe -
Variable warm Yes (High,Med,Low)
Favorites menu 3 (1. Bread,2. Meat,3. Chicken)
# of My menu -
Gourmet recipe bank (e-cookbook) -
Specialized cooking -
LOWER OVEN
Capacity (cu.ft) 4.70
Interior Color Blue
Cleaning EasyClean® / Self-Clean (3,4,5 hours)
Variable cleaning time Yes (3,4,5 hrs)
Variable broil Yes( Full,Center / High,Med,Low)
Broil element 2,500 watts inner / 1,500 watts outer
Broil element pass 8
Bake element 2,500 watts
Bake element type Hidden (8 pass)
# of rack position 5
12 hrs. shut-off Yes
- # of light 3 (Halogen Lamp - 3 dimension lighting)
Convection conversion Yes
-Convection element Yes (2,000 watts Sheath heater)
Proof Yes
Variable warm Yes (High,Med,Low)
Color & Material STS Finish(Al) / Black Stainless
DIMENSIONS & WEIGHT
Product 29-3/4"(W) x 52-1/16"(H) x 24-3/8"(D)
Cut-out 28- 1/2"(W) x 51-15/16"(H) x 23-1/2"(D)
Packing 33"(W) x 30"(D) x 57"(H)
Net weight (Kg) Approx. 122.6 kg (270lbs)
Gross weight(Kg) Approx. 137.6 kg (303bs)
POWER/RATINGS
Rating 7.8 KW
Electrical Supply 120/240 VAC,120/208 VAC
Max. Amp Load 32.5 A
ACCESSORIES
Broiler pan 1
Grid 1
Meat probe -
Heavy Duty Rack 4
Gliding Rack -
Cook book -
Spray Water Tank 1
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048232336504

What People Are Saying

Rated 5 out of 5 by from Awesome oven! I remodel my kitchen and updated all appliances to LG . Very satisfied with their products!
Date published: 2017-10-23
Rated 5 out of 5 by from Easy to operate. Blue interior aids cooking observ As part of our remodeled kitchen and replacing some aging products we are very pleased with LG.
Date published: 2017-10-23
Rated 1 out of 5 by from Product support is a joke I purchased this oven after my home flooded, it works good but it had a defect in the coating from the factory and after many tries I was unable to get it repaired under warranty. They do not warranty "cosmetic defects". I will never buy LG again since they do not stand behind their products.
Date published: 2017-09-22
Rated 4 out of 5 by from All good, but the ice and water dispensers We have had them for several months now and don't have any problems ourselves, but everytime someone new comes over and goes to get water, they drop ice and or water on the floor because they come out of different places.
Date published: 2017-09-22
Rated 5 out of 5 by from Great features, very user friendly and stylish! I bought my double oven 6 months ago and absolutely love it!!
Date published: 2017-09-22
Rated 4 out of 5 by from My work horse!!! I've had my double ovens for almost a year and I use them everyday! I live on a ranch in Wyoming so I feed large groups of people frequently. The capacity is wonderful, the racks move easily and the bright speckled interior was a bright surprise. The only reason I gave it a four star instead of a five is the cleaning feature. I've used it three times - the first time it was great. There were still some places that it didn't clean all the way but not bad at all. The second time - it didn't do as well but again I finished cleaning it myself. The third time - it blew the thermal protection fuse in the back and I had to order the part, do without my ovens for two weeks waiting for the part to come in, and then pull that big beast out of the wall to replace the fuse. We live in a very rural area and after calling LG to report the problem they informed me that they didn't have a service person in our area and that they would get back to me in 5 - 7 days. I knew I couldn't wait so luckily there was information online. Anyway, I love my ovens but won't be using the cleaning feature again.
Date published: 2017-09-22
Rated 5 out of 5 by from Dream Come True I upgraded to a double oven about 6 months ago. Having a double oven has been a dream of mine (well, one of many dreams). I did a lot of research....as I do with every big purchase in my life. I have been very happy so far.
Date published: 2017-09-22
Rated 5 out of 5 by from Beautiful inside and out I purchased this in December, I have not installed it yet, but we love it, can't wait to start using it.
Date published: 2017-01-31
  • y_2017, m_11, d_17, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_US, sid_MD05601257, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LWD3063BD Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Where can I get an installation diagram (on-line) for the LWD3063st double oven. I do not yet have the unit, but need to rough in the electrical etc for wall installation.

Asked by: Pelon
The LG 9.4 cu. ft Total Capacity Double Wall Oven, Model # LWD3063ST shares the same installation guide as the LWS3081ST, LWD3081ST, LWS3010ST, LWD3010ST, LSWS306ST, LSWD306ST, LWS3063BD, LWD3063BD, LSWS309BD, and LSWD309BD, and the installation guide with all the pertinent installation drawings for all these models can be found and downloaded from the support page for the LWS3081ST at http://www.lg.com/us/support-product/lg-LWS3081ST#manuals, under 'Additional Link'...^IFV
Answered by: LGJoel
Date published: 2017-10-23

I need to know where the electrical connections are so I can rough in correctly. LWD3063st

Asked by: Chris Daniel
The LG 9.4 cu. ft Total Capacity Double Wall Oven, Model # LWD3063ST has to be hard wired (direct wired) into an approved junction box. A plug and receptacle is not permitted on wall ovens. The junction box must be recessed and the conduit connector must be used at the junction box. The minimum height for the location of the junction box has to be 42" above the support platform. The oven should have come with installation instructions and if you need another copy of the installation instructions, please contact our Support Center at (800) 243-0000 to see if they can send you a copy...^IFV
Answered by: LGJoel
Date published: 2017-10-21

Is there an easy glide rack available. To purchase for this wall oven

Asked by: Beatlelvr79
We appreciate your interest in this wall oven. Regrettably, no Easy Glide Racks have been developed for compatibility with this model.
Answered by: NeilE
Date published: 2016-11-30

Hi - my cabinet maker needs installation instructions for the LG LWD3063BD that I ordered. We have the cutout size, he just needs to know where the mounting brackets go. Can you email me the install instructions? Thanks Cheri

Asked by: Cheri7
I apologize, but no; it appears that the only currently available installation guide for this specific model is that which is packaged with the unit. For assistance, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-05-26

Do you make a black stainless single wall oven?

Asked by: Becca1994

Is this a "gas" oven.... because it doesn't say. Also, what are the 'inside' dimensions of each oven unit?

Asked by: trlip

What size does the electrical outlet be need to be to power this?

Asked by: Jeff33

Where does the power source/outlet need to be located for installation clearances?

Asked by: Spanky69
