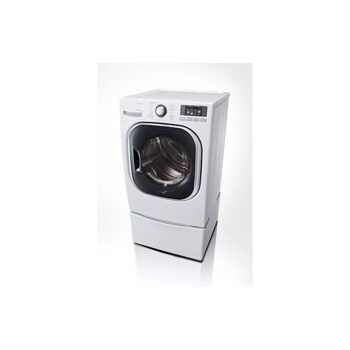

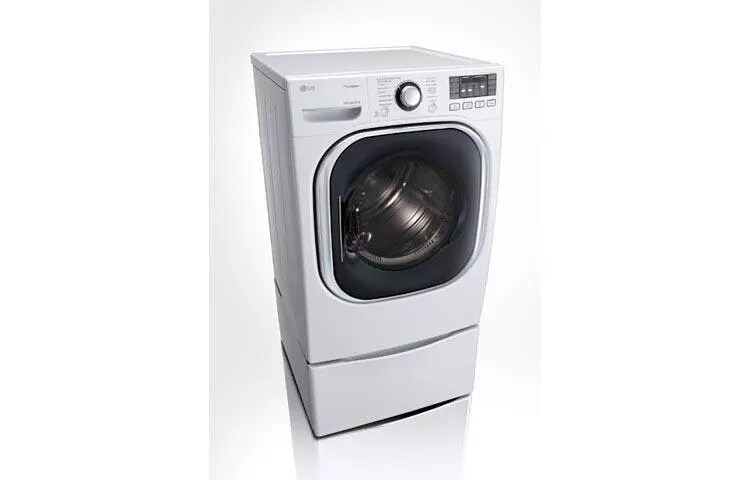

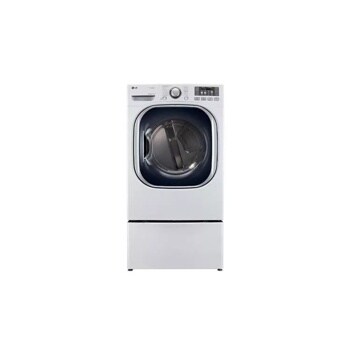

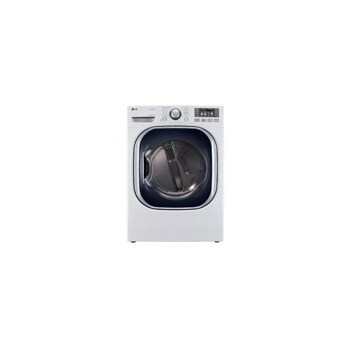

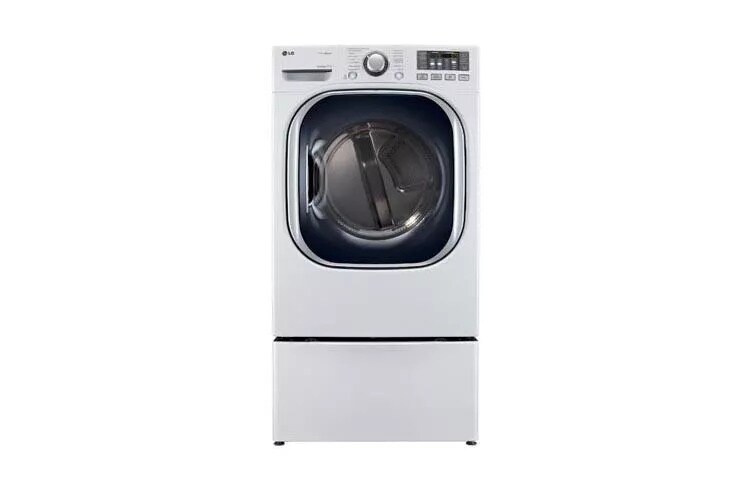

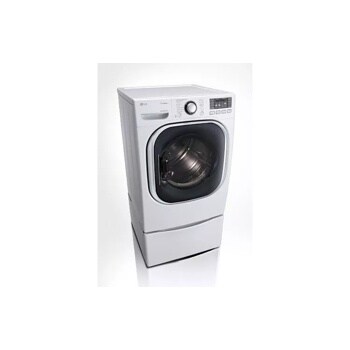

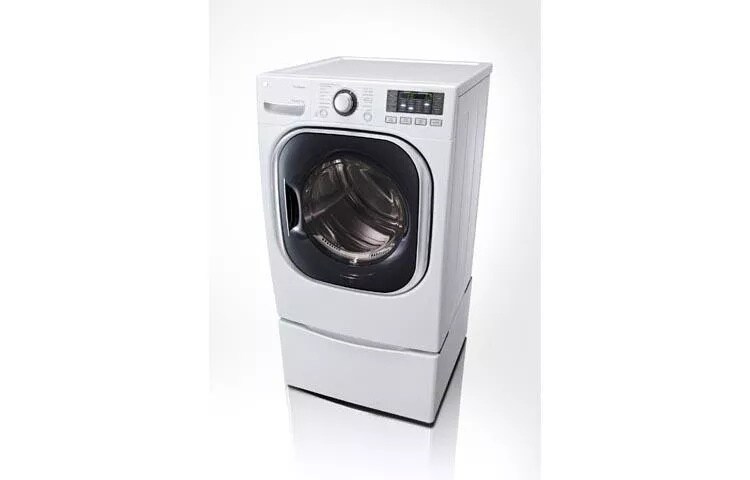

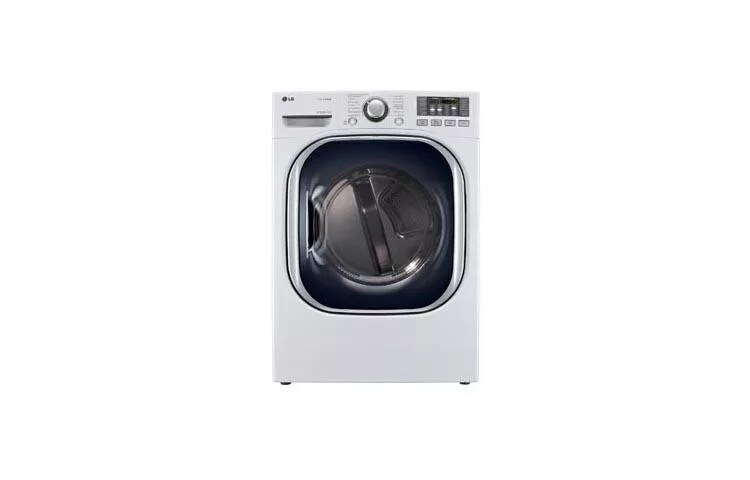

7.4 cu. ft. Ultra Large Capacity SteamDryer™ (Electric)

  • DLEX4070W

  • White

Key Features

  • 7.4 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
Big time saver

Big time saver

Do laundry a little less often. With 7.4 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Dryer Type Electric
Stackable Yes
SteamDryer™ Yes
Capacity 7.4 cu. ft.
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, Bulky/Large, Anti-Bacterial, Eco Dry, Sports Wear
Programs (Manual Dry) Speed Dry, Air Dry, Rack Dry
No. of Options 11
Options More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
NeveRust™ Stainless Steel Drum Yes
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Available Colors White (W), Graphite Steel (V)
Door Rim Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
Pedestal WDP4W
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
Side Venting Kit 3911EZ9131X
Product (WxHxD) 27" x 38 11/16" x 29 3/4" (51" D with door open)
Carton (WxHxD) 29 1/2" x 42 1/4" x 31 1/4"
Weight (Product/Carton) 147.4 lbs./165 lbs.
Limited Warranty 1 Year Parts and Labor
UPC 048231 012812

What People Are Saying

Rated 5 out of 5 by from Very Happy I love my new dryer. It works so well and has so many options. My clothes dry quickly, it's quiet and I am very happy I bought the unit.
Date published: 2015-08-19
Rated 5 out of 5 by from We love LG We are more prone to buy LG because of the reliability and the products are user friendly
Date published: 2015-08-05
Rated 5 out of 5 by from Efficient and Speedy Love the dryer for its speed and efficiency. I runs quiet and does a really nice job on drying clothes just the way you'd like them to be dried. I love the flat drying rack for sweaters. Very nicely designed and has an array of features for every drying need. I highly recommend this item.
Date published: 2015-05-05
Rated 5 out of 5 by from Great dryer This dryer is fantastic if your house is not equipped with a gas line. We had the gas equivalent in my previous house. Much more efficient but that is normal. This electric dryer is a solid second to the gas version. I would definitely spend the cash for this dryer if you don't have a gas hook up.
Date published: 2015-02-18
Rated 5 out of 5 by from Dryer is fast This dryer is fast and clothes come out wrinkle free. I like the features and the look of my washer and dryer. We have had units for a couple of months and so far everything has been great. Washing clothes is no longer a chore. I get my laundry done super fast and don't have as much ironing now.
Date published: 2015-02-11
Rated 5 out of 5 by from Super quiet! Bought as a replacement for a dryer that had always given us we actually know what a properly working dryer is like. It's so super quiet that we don't even know it's on. Love that it actually dries our clothes in the anticipated time. It's our first LG...but it won't be our last!
Date published: 2015-01-18
Rated 5 out of 5 by from Satisfied customer This dryer is the best thing since sliced bread. It dry's clothes in half the time my other dryer did. It is easy to set the dryer for what you are drying. I like the rack that you can put shoes on. It looks great next to my matching washer.
Date published: 2014-10-23
Rated 5 out of 5 by from Great dryer!! I LOVE this dryer. It dries the load very quickly and the steam cycle is AWESOME.
Date published: 2014-10-14
  • 2015-11-27T07:12CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_33
  • loc_en_US, sid_MD05020441, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 411ms

We're here to support you with our product.

View DLEX4070W Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Are these dryers Energy Star certified?

Asked by: Exdev
Answered by: DesertDiva
Date published: 2015-05-05

How do I make the light inside the dryer stay on?

It always goes out before I can get all of the clothes out. Same goes for my washer.
Asked by: Tracy500
We regret the trouble you have experienced with this electric dryer. According to page 2 of the owner’s manual, the DRUM LIGHT is supposed to be a yellow light that remains active while the door is open, and deactivates when the door is closed. If it becomes inactive before the door is closed, there may be a problem with this light, or it may have been active long enough to overheat, and have shut off for safety concerns. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2015-04-07

do you need water source for steam to work

Do you need a seperate water source to the dryer for the steam feature to work? Or does it use the wetness of the clothes to make it produce the steam. If a water source is needed do I have to use the steam option. I wish I could find a dryer like this with out the steam dry option. Thank you
Asked by: purdyenough
No. There is a reservoir that you will have to periodically fill. Be sure to use filtered water to reduce the amount of scale build up from regular water. Do not use distilled water (check with the Owner's Manual first). I would recommend downloading the Owner's Manual as 90% of questions will be answered there.
Answered by: Toonces
Date published: 2015-02-19


What should the clearances be on the sides and back of this product?
Asked by: Noraleon
Your best best is to download the Owner's Manual.
Answered by: Toonces
Date published: 2015-02-19

can I change the right side henged door to a left side henged door

Tis is an LG 7.4 Ultr Large Capacity Steamdryer DLEX4070V
Asked by: shicks
Your best bet is to download the owner's manual
Answered by: Toonces
Date published: 2015-02-19

Is there a setting for a dry down/feather pillow (that has not been put in the washer first)?

Asked by: LexiA
I apologize, but no; there is no setting specifically for use with down/feather pillows. It is recommended to check the fabric care label on the item to see what cleaning/drying method has been suggested by the manufacturer.
Answered by: NeilE
Date published: 2014-10-24

Where exactly is the bottom vent located on the DLEX4070?

Please give me the center point location of the bottom vent on the DLEX4070. I have already purchased this dryer and need to cut a hole in our laundry room platform to allow the venting to egress through the bottom stand and connect to the exterior vent. Please provide at the very least measurements to bottom duct center from back of machine and righthand side as you're looking at it from the front. Also, could you include the diameter of the vent. Thanks, Walt
Asked by: Waltsb
We appreciate your interest in this dryer and its specifications. Please view the attached document that will assist with this information. Bottom venting uses the same conversion kit as side venting. Figuring the lower dimensions would be equivalent to the distance from the back to the side vent hole, and the center dimension the same as that on the back of the unit.
Answered by: NeilE
Date published: 2014-05-28

Will my bulky king size comforter fit in this dryer?

Model DLEX4070W.
Asked by: SusanA
We appreciate your interest in this dryer. We have no way to determine how large the comforter is, or how much space it takes. This dryer is designed with a drum capacity of 7.4 cubic feet of space.
Answered by: NeilE
Date published: 2015-04-30
