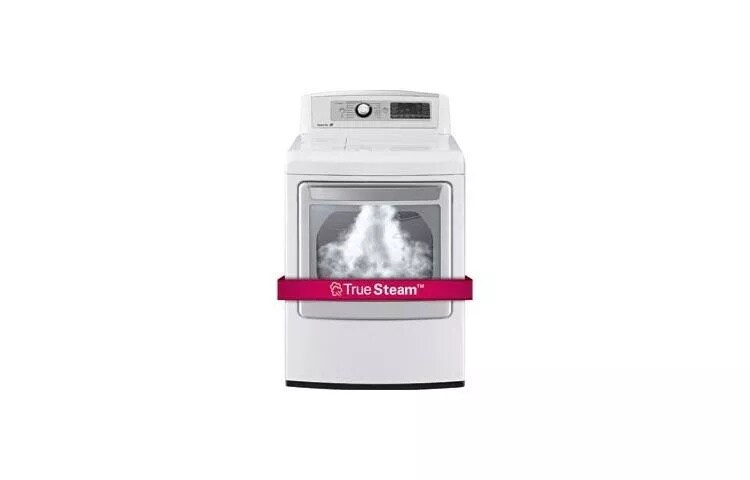

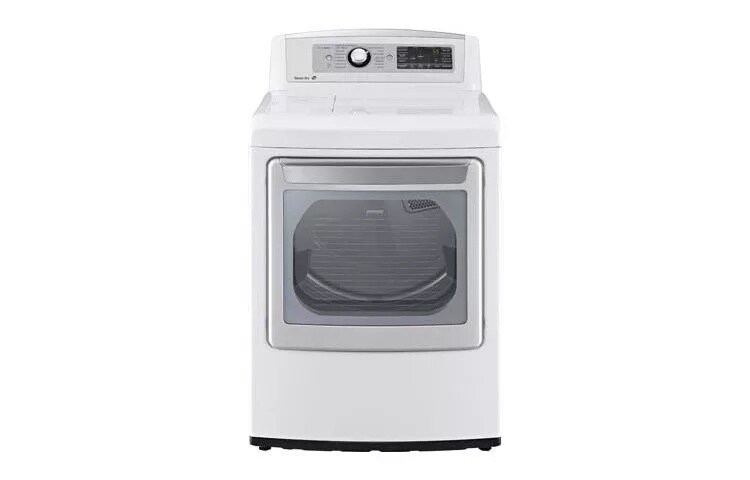

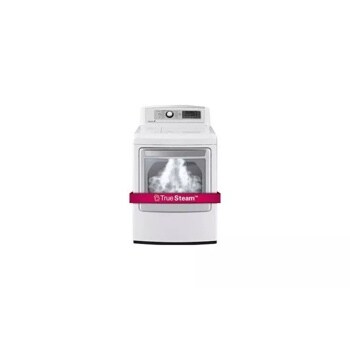

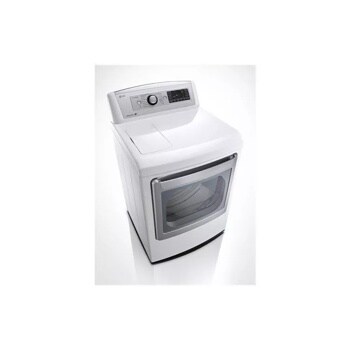

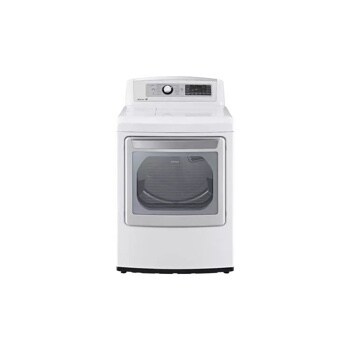

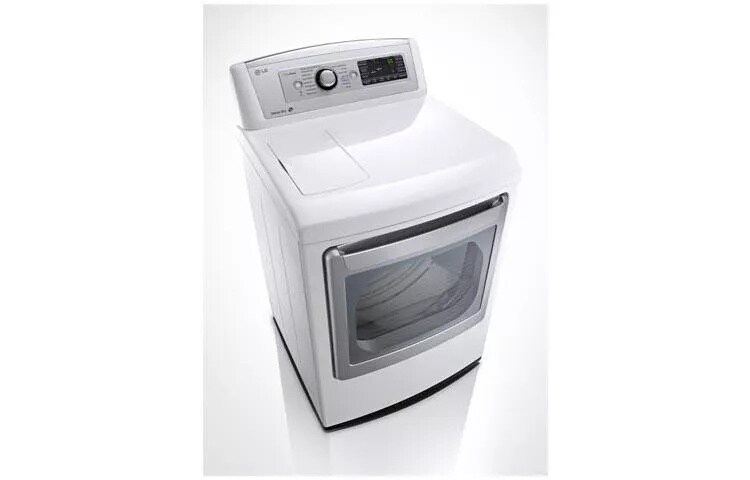

7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™

  • DLGX5681W

  • White
  • Discontinued Product

Key Features

  • Ultra Large 7.3 cu. ft. Capacity
  • Steam Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
AVAILABLE COLORS:
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Rear Control
Intelligent Electronic Controls with Dual LED Display Yes
Touch Buttons Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, A nti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Freshen Up, Air Dry
No. of Options 10
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, E asyIron™, Damp Dry Signal, End of Cycle Signal, Rack Dry
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option Electric: 4 Way Venting / Gas: 3 Way Venting
3 Minute Installation Check Yes
Drying Rack Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Top Cover Painted Steel
Diamond Glass Door Transparent (White), Dark Gray Tint (Graphite Steel)
Available Colors White (W), Graphite Steel (V)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
Type Gas/Electric
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 383EEL9001B
DIMENSIONS
Product (WxHxD) 27" x 45 3/8" x 28 3/8" (50 1/4" H with door open)
Carton (WxHxD) 29 1/2" x 48" x 31 1/4"
Weight (Product/Carton) 138 lbs/159 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013550

What People Are Saying

Rated 4.8 out of 5 by 20 reviewers.
Rated 5 out of 5 steam away cool steam feature and large capacity several features for picking drying needs and time cool drying rack included July 2, 2015
Rated 5 out of 5 by Love It I love this dryer! It has so many settings to choose from. I especially like the bulky/bedding setting for my quilts. It dries everything beautifully May 21, 2015
Rated 5 out of 5 by Great Dryer We have owned our LG dryer for just over one month and so far my say's it's great. It drys faster than our old dryer, my wife loves the settings on this dryer. We bought this dryer just over one month ago and so far we are in love with it. The main reason we bought an LG product was the consumer report on the excellent reliability of LG dryers. Would I tell a friend about our LG dryer and recommend it yes I would. April 9, 2015
Rated 5 out of 5 by Amazing!!!! I can't say enough how much i love this dryer. we have two teenagers who wear clothes for one minute and then it's into the dirty clothes hamper so i do laundry every other day and i use to hate it with our other dryer that took 2 cycles to dry them all. but with this, It's once and done and i love it. March 24, 2015
Rated 1 out of 5 by Broken on arrival Steam system was broken and it just dumped water into the dryer tub and soaked all the clothes. March 19, 2015
Rated 5 out of 5 Great feature-set and quality, super performance Excellent washer, with a great feature-set. The steam wash option works great, and the HE features are wonderful. Auto-sense makes sure your clothes come out dry in the most optimum time. Definitely recommend. March 10, 2015
Rated 5 out of 5 by awesome purchase Happy to say that I'm glad to of purchased this particular series and as a combo set, lots of great features, how they changed, and very quiet compared to your basic dryers, better quality and stylish. I have owned the products for a few months, so far so good, crossing my fingers. Hope their warranty program is as value and worth the added purchase. March 7, 2015
Rated 5 out of 5 by Huge Capacity The dryer drum is huge. You can dry bed comforter with no problems. It is expensive and takes some getting used to. Haven't figured out the steam yet, but I'm working on it. January 14, 2015
  • 2015-08-27T13:35:44.172-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_20, tr_20
  • loc_en_US, sid_MD05083317, prod, sort_default
2 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

8 Questions & 3 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

changing the door hinges

i am trying to change the door on my dryer to the opposite side
model number DLEX5101W
Category: I own this product
Interested in: Troubleshooting
10 months ago
User Name:
TRACYE
Alabama, USA

Please wait while more information about TRACYE is loaded.
Additional information about TRACYE could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Open the door and remove the two plastic hole caps on the catch side by gently prying them up with a flat blade screwdriver. Save these for later. While supporting the door, remove the 4 screws (2 from each hinge). Set the door aside, face down on a protected surface, to prevent damage to the door or the work surface. Remove the 16 screws on each side of the door and lift off the inner door frame using a flat blade screwdriver. Remove the latch hook and blank and move them to the opposite side. Remove the 4 screws securing the hinges to the door frame. Remove the 2 plastic cover caps. Reinstall the hinges and cover caps on the opposite sides from which they were removed. With the hinges and cover caps in the new locations, remount the inner door frame onto the outer door frame with the screws removed previously. Reinstall the door onto the hinges, now located on the opposite side of the cabinet. Reapply the 2 plastic hole caps. Test the swing of the door to make sure the hinges and latch are properly aligned, and that the door closes and latches properly.
9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Is the DLGX5681W energystar?

I can get a rebate from NJ if my new unit is energystar rated. I can't tell if this unit is or not. Is it?
Category: I own this product

Products related to my question



1 month, 3 weeks ago
User Name:
Susanne
Woodland Park, NJ, USA

Please wait while more information about Susanne is loaded.
Additional information about Susanne could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I apologize, but no; it appears that this gas dryer is not listed as qualifying for an Energy Star rating. Information about qualifying models can be found at http://www.energystar.gov/productfi....
3 weeks, 2 days ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I own this product
Interested in: Troubleshooting
3 months, 1 week ago
User Name:
mcphail

Please wait while more information about mcphail is loaded.
Additional information about mcphail could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Hi Mcphail, your inquiry is appreciated. As shippped, the LG 7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™, Model # DLGX5681W comes configured for use with natural gas. Conversion for use with Liquefied Propane (LP) gas is optional so the LP Conversion Kit, part # 4948EL4002B will have to be purchsed separately and can be ordered from the following LG Authorized Parts Distributors:
Encompass Parts 866-779-7906 http://www.encompassparts.com/lgcon...
MCM Electronics 800-824-9491 http://www.mcmelectronics.com/lgpar...
Andrews Electronics 800-274-4666 http://lge.andrewselectronics.com
...^IFV
Gender: male
3 months, 1 week ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
1 year, 4 months ago
User Name:
CRUBOS

Please wait while more information about CRUBOS is loaded.
Additional information about CRUBOS could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful
Spec sheet and manual only show height including rear control panel. I have a door that opens adjacent to the dryer location and need to make sure the latch both will clear the dryer height..
