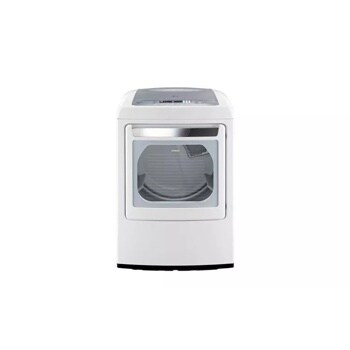

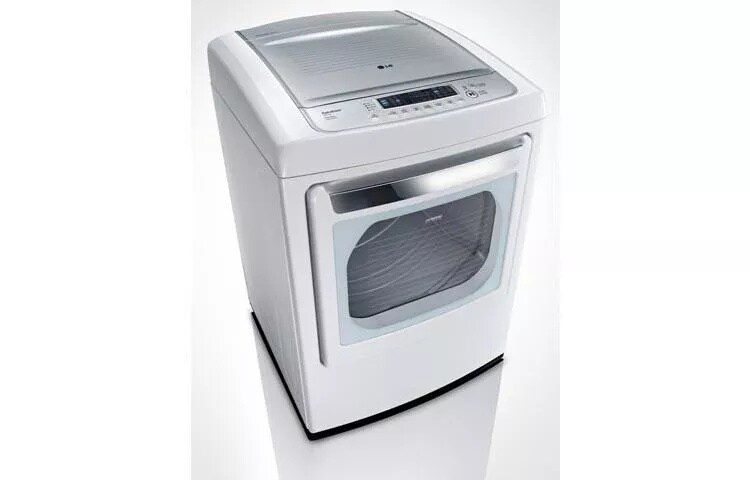

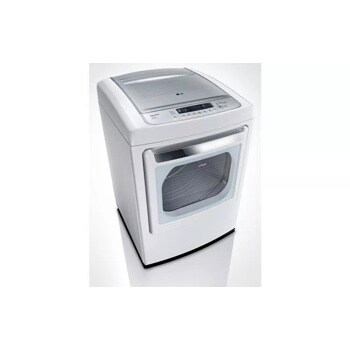

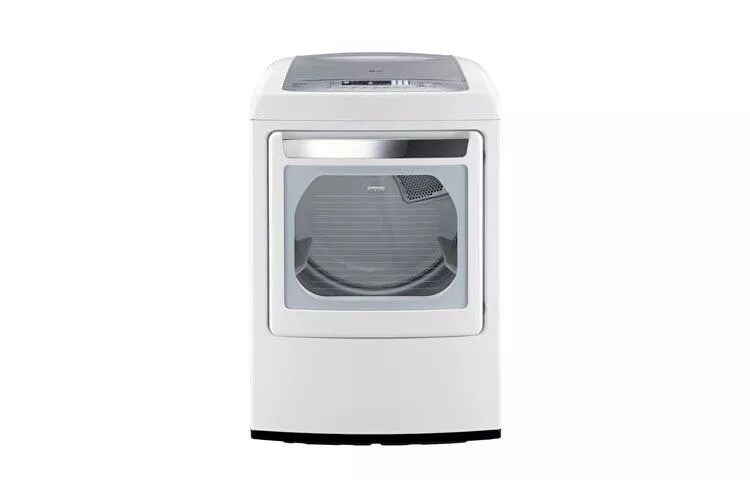

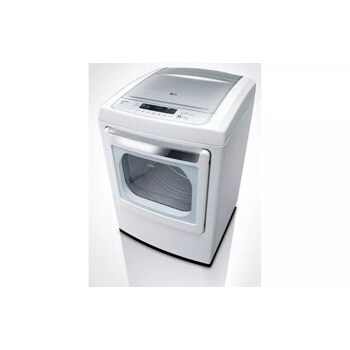

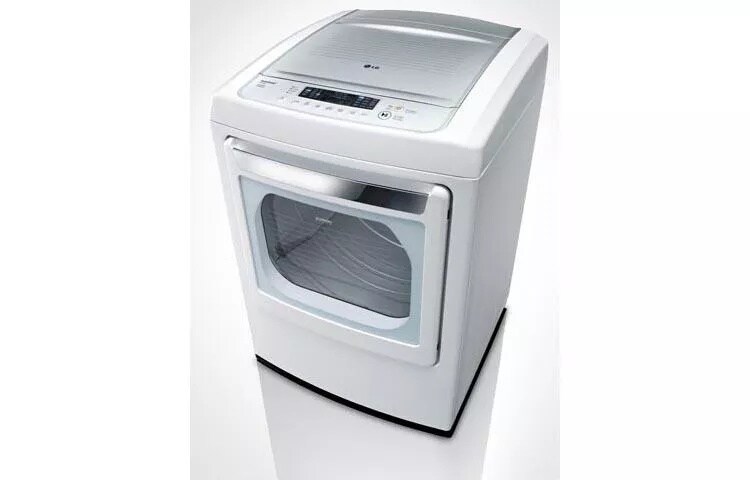

7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle

  • DLGY1202W

  • White

Key Features

  • Ultra Large 7.3 cu. ft. Capacity
  • Front Control Design
  • SteamFresh™ Cycle
  • Smart Diagnosis™
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

A revolutionary spin on laundry.

A revolutionary spin on laundry.

LG puts a modern design spin on the traditional top load laundry pair. By moving the control panel from the back to the front, the buttons and LED display are easier to read and use. This simple change makes for a more intuitive and functional design and a look that is unlike anything you’ve ever seen.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

SUMMARY
Dryer Type Gas
SteamDryer™ Yes
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Front Control
Front Electronic Control Panel with LED Display Yes
DRYING PROGRAMS
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Small Load, Bulky/Bedding, Anti-Bacterial, Towels, Delicates, SteamFresh™, Wrinkle Free
Programs (Manual Dry) Speed Dry, Air Dry
No. of Options 7
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
Wrinkle Free Cycle Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drum Light Yes
Venting Option 3 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Aluminized Alloy Steel Drum Yes
Top Plate Plastic
Cabinet Painted Steel
Control Panel Plastic
Chrome Edged Diamond Glass Door Yes
Available Colors White (W), Graphite Steel (V)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2" x 43 7/10" x 31 1/4"
Weight (Product/Carton) 125.4 lbs. / 143.3 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013352

What People Are Saying

Rated 4.7 out of 5 by 58 reviewers.
Rated 4 out of 5 by So far as good!! Easy to use and is drying my clothes!!!! Super Happy!!! July 17, 2014
Rated 5 out of 5 by Great features I like the design. Most important, I like the steam fresh cycle for my husband's shirts. The dryer matches WT1202CV. They make a great pair. July 16, 2014
Rated 4 out of 5 by I'm ironing more delicates Having to iron blouses that I didn't prior to this dryer. They have go go in on 'air' as I can't use any heat that might shrink them. Results: wrinkled where they didn't used to be. Disappointing. May 19, 2014
Rated 5 out of 5 by Great Dryer for the Price Dries clothes well. Lots of cycles to use for drying clothes. June 4, 2014
Rated 5 out of 5 by Love the Steam Fresh feature I really love this dryer. The steam fresh feature is the best. I hate ironing and I have thrown my clothes back into the machine for the "bachelor press" and they come out like they were just washed and dried. Capacity is large and it can handle a full size sleeping bag or huge blankets with no problem and dry them perfectly. Lots of features and selections for different variations of loads which is very helpful. June 4, 2014
Rated 5 out of 5 by Easy to use, very quiet We've been using a different brand of washer and dryer because we thought it's better to buy an expensive, well known brand to make sure that it will last for long time. But we got really disappointed with our last dryer, not only that it last for less than 10 years but it's also very loud that everytime we wash our clothes we need to turn up the volume of our tv just to hear the conversation better. With this dryer everything is superb, very quiet, easy to setup, nice looking exterior, easy to use and huge capacity for one load. We have another LG brand of appliances in our kitchen and another washer and so far for 3 years we didn't experience any problem yet. May 31, 2014
Rated 5 out of 5 by Great performance! I went from a very old dryer to this one and it's amazing how quicker this one dries clothes! It seems like it takes half the time. The steam cycle definitely is worth the extra cost - freshens the items and reduces wrinkles. May 23, 2014
Rated 5 out of 5 Excellent Dryer I installed my gas dryer in March 2014. The dry time is amazingly short. The steam wrinkle free cycle which I thought I would never use is amazing. It runs so quietly I don't know it is on. And I love the music rather than an irritating buzz when my clothes are dry. May 21, 2014
2 3 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

20 Questions & 17 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Instructions call for "the new water supply hose," does this come with the dryer?
Category: I do not own this product
1 year ago
User Name:
Cleanbean
California

Please wait while more information about Cleanbean is loaded.
Additional information about Cleanbean could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The long and short water hoses and required "Wye" fitting are included. All you do is disconnect the water hose to the washing machine from the hose bib in the wall, connect one end of the included short hose to the bib, the other end to the bottom of the Wye fitting and then reconnect the washing machine hose to one side of the Why and the included long hose to the other side and to the dryer.
10 months ago
User Name:
David099
Modesto, CA, USA

Please wait while more information about David099 is loaded.
Additional information about David099 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
The water for the steam feature will be filled into the steam feeder as needed. The steam seeder is a small convenient compartment.
1 year ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
-3points
0out of 3found this answer helpful.
HelpfulNot Helpful

2 answers

Aluminum dryer hose

Is the aluminum dryer hose provided with the dryer? if not what is the length i need to buy? What is the diameter? Is it a standard 4" hose?
Asked by another customer while visiting BestBuy.com
11 months ago
User Name:
Anonymous
Closed to new answers

Answers

Answer:
The hose was purchased separately. It comes in a pre-packaged kit that gives you the correct length and diameter for the set-up built into laundry rooms.
6 months ago
User Name:
Kris65
El Dorado Hills, CA
0points
0out of 0found this answer helpful.

Answer:
The length depends on your space and the required elbows/distance. Please take a look at the quote below from the manual and the attached image.

"Follow the guidelines below to maximize drying performance and
reduce lint buildup and condensation in the ductwork.
Ductwork and fittings are NOT included and must be purchased
separately.
• Use 4-inch (10.2 cm) diameter rigid or semirigid metal ductwork.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must point away from
the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas in order to
reduce condensation and lint buildup on duct surfaces.
• Incorrect or inadequate exhaust systems are not covered by the
dryer warranty. Failures or poor performance caused by such
exhaust systems will not be covered by the dryer warranty."
11 months ago
User Name:
LGAnswers
0points
0out of 0found this answer helpful.
If not as a Lowes store employee, how do we go about ordering them for a cusstomer?
Category: I do not own this product
1 year, 3 months ago
User Name:
stupidrequirement

Please wait while more information about stupidrequirement is loaded.
Additional information about stupidrequirement could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The correct orifice for LP conversion is: order part number 383EEL3002D. It should be installed by a qualified technician and the change should be noted on the dryer. (It has to be ordered additionally to the dryer, the part is not included.) In case your retailer does not offer it, please follow the link below:
http://www.lg.com/us/support/parts-accessories
1 year, 3 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Installer didn't install the water supply line. Can I still use the dryer?
Category: I own this product
Interested in: Troubleshooting
1 year, 1 month ago
User Name:
Gus1Gus1

Please wait while more information about Gus1Gus1 is loaded.
Additional information about Gus1Gus1 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in the operations of this dryer. According to page 19 of the owner’s manual, the dryer must be connected to a cold water tap using the new water supply hose.
1 year, 1 month ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Problems with this model?

Are there known issues with this dryer? I received mine ~8wks ago & love the set. However, I had 3 issues with the dryer: 1) steam cycle dumps water on clothing & makes clothing inconsistently wet 2) a loud thumping upon starting up the dryer for several minutes 3) a piercing buzz during multiple cycles of drying. My dryer was replaced & very quickly the 3rd issue started with the replacement! I'm very torn. Do I try one last time or just resign myself to the fact I need to choose a new make/model for a washer/dryer set that doesn't have issues right away?
Category: I own this product
Interested in: Troubleshooting
1 year ago
User Name:
lizdents

Please wait while more information about lizdents is loaded.
Additional information about lizdents could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the trouble you have experienced with this gas dryer. This buzzing sound is not something that is common with these dryers. The unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
1 year ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
