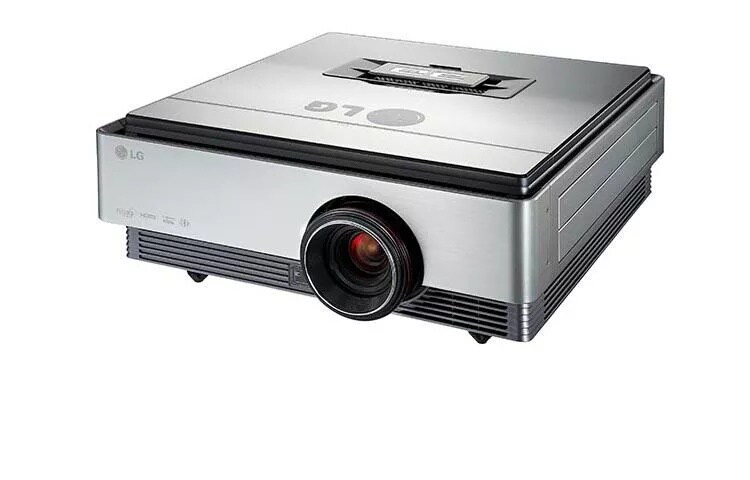

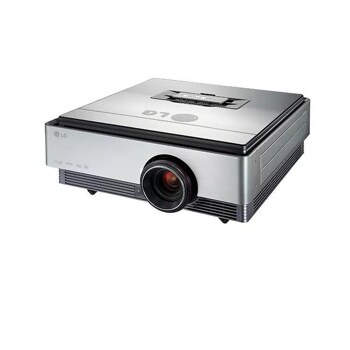

Full HD 3D LCoS Projector

  • CF3DAT

  • Discontinued Product

Key Features

  • 1080p (1920x1080)
  • LG Cinema 3D
  • 2D to 3D Converting
  • 2500 ANSI (2D) 1250 ANSI (3D)
System LCOS (SXRD 0.61")
Native Resolution 1080p (1920x1080)
Brightness (ANSI-Lumens) 2500 (2D), 1250 (3D)
Contrast Ratio (FOFO) 7000:1
Noise (High Brightness) 37dB
Noice (Economic) 32dB
Uniformorty > 90 %
Projection Lens (Focus) Manual
Projection Lens (Zoom) Manual 1.3
Projection Image (Screen Size) 100" - 300"
Projection Image (Standard) 100”@3m
Projection Image (Throw Ratio) 1.36/1.77
Projection Offset ±100%
Lamp (Type) 220W x 2ea
Lamp (Life High Brightness) 3,000 Hrs
Lamp (Life Economic) 3,500 Hrs
General Specification
Menu Language English/Korean
Aspect Ratio Correction Native 16:9/Set by Pro/4:3/Just Scan/Cinema Zoom/Zoom
Dimension (WxDxH) 22.05" x 19.72" x 7.48"
Shipping Dimensions (WxDxH) 27.2" x 25.6" x 12.8"
Weight 46.52 lbs.
Shipping Weight 54.9 lbs.
Power Consumption 700W
Stand by Power < 1W
Power Supply AC DC Adaptor(100~240 free voltage), 50/60Hz
Operation Temp 0º ~ 104º
Input Signal Compatibility - Digital (HDMI) Up to 1080p (60Hz/50Hz/24Hz)
Input Signal Compatibility - RGB Up to 1600x1200 (1920x1080) 60Hz
Input Signal Compatibility - Component Video 1080p/1080i/720p/576i/480p/480i
Input Signal Compatibility - Composite Video NTSC/PAL/SECAM/NTSC4.43/ PAL-M/PAL-N/PAL60
Input / Output Terminals
RGB in 1
Composite(AV) in 1
Component (YPbPr) 1
Audio out 1
RS-232C 1
RJ45 1 (Ethernet)
HDMI™ 2 (Ver 1.4A)
USB (SVC, Interactive) 1 (SVC)
RF In 1
Special Features
3D Yes (PG)
2D to 3D Yes
Digital Keystone Correction Advanced (H/V)
Picture Still Yes
Auto Source Detection Yes
Auto Sleep Yes
Blank Yes (Blue, Green, Logo)
Image Flip Horizontal / Vertical
Color Temperature Yes
Lens Shift Vertical
Overscan Yes
Black Level Control Yes
Expert Control Yes
Power On Sound Yes
Cabinet Color Dark Silver
Local Key Yes
Leg Stand Yes
3D Glasses Yes (6 pairs included)
Remote control Yes
Cable D-sub 15 & Power Cord
CD Manual Yes
Limited Warranty 2 Years Parts and Labor
UPC 719192584105
