Large Capacity Swing Door Bottom Freezer Refrigerator

  • LBC24360ST

  • Stainless Steel

Key Features

  • Capacity, 24 cu. ft.
  • Multi-Air Flow Freshness System
  • Swing Door Freezer
  • Sophisticated Style & Design
Largest Capacity.*

Largest Capacity.*

Get the space you need in a refrigerator that's right for your kitchen. With 24 cu. ft. of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Convenient Access.

Convenient Access.

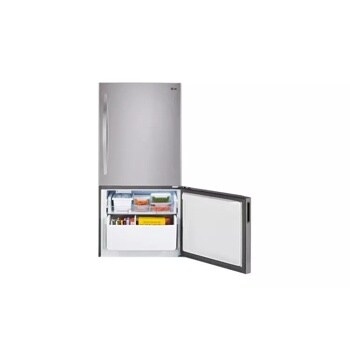

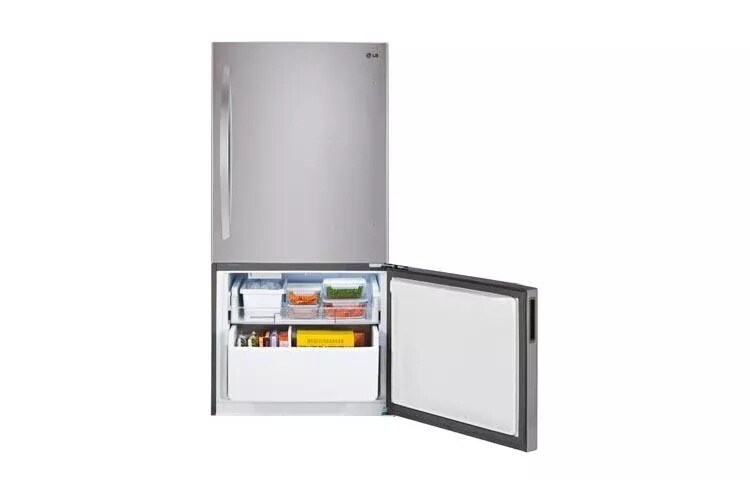

Having the fresh food section above the freezer, bottom freezer refrigerators put the food you use at eye level. The Swing Door freezer is well designed with maximum space efficiency and easy roll-out drawers.

Fresher is better.

Fresher is better.

Multi-Air Flow Freshness System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.Fresher is better.

Adaptable and Easy Access Storage.

Adaptable and Easy Access Storage.

Full width door shelving is designed to easily accommodate items of different shapes and sizes to allow for more fresh food space. Adjustable door drawers fold-in to create more vertical storage space and accommodate tall food items.

Great Light.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.



This ENERGY STAR certified LG refrigerator exceeds new 2014 federal energy standards to positively impact your energy bill and your energy consumption.

Door Type Bottom Freezer
Total Capacity 24.1 cu. ft.
Size (W x H x D) 32 3/4" x 69 7/8" x 34 7/8"
Color Stainless Steel
Refrigerator 16.40 cu. ft.
Freezer 7.70 cu. ft.
Total 24.1 cu. ft.
Energy Rating 2014 ENERGY STAR ® Compliant
Ice System Factory Installed Ice Maker
Daily Ice Production 2.0 lbs
Ice Storage Capacity 4.0 lbs
Smart Cooling System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Linear Compressor Yes
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
No. of Shelves 1 Full / 2 Split
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Hybrid Cantilevered Shelving
Crisper Bins 2 Humidity Crispers
Glide N’ Serve™ Drawer Yes
Refrigerator Light Premium LED
No. of Shelves/Bin 5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction Clear
Dairy Corner Yes
Drawers 2
Handle SmartPull™ Freezer Handle
Ice Bin Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Smooth White, Stainless Steel
Handles Matching Commercial Handles
Depth with Handles 34 7/8"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 62 3/4"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 249 lbs. / 271 lbs.
Carton Dimensions (WxHxD) 34 3/8" x 70 1/2" x 36 6/8"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 785983

What People Are Saying

Rated 3 out of 5 by from Very nice, but... We bought this refrigerator nearly a year ago and have been happy with it. If you leave the door open for a few seconds it has an annoying chime to let you know, but that is probably a good thing. In the last month we have started to experience a very loud grinding noise which lasts maybe 3 seconds. It happens once every week or two. We're going to have it serviced, but since the noise isn't predictable we have some concern about being able to remedy it. Right now I would not recommend it, but that may change.
Date published: 2015-06-09
Rated 5 out of 5 by from Everything we expected it to be - good reputation 24 cubic feet in a 33" wide space is hard to find, this is about it and it's a nice unit! Makes lots of ice Big fridge drawers, and the third drawer is neat and use-able! LED lighting is bright, easy to see all areas. Spill proof shelving can save a mess before it happens. Alarm telling you the door is open too long is a great feature too! Buy this fridge!
Date published: 2015-04-29
Rated 4 out of 5 by from Rating applies replacement refrigerator We had this refrigerator for a very short time when it began to make "grinding" noises and not holding the temperature setting. I contacted Sears (which is where it was purchased) and, since it was within the 30 day return policy, it was replaced with like kind. Since then, the new one has been very quiet and has been holding the temperature. We are happy with the refrigerator at this point.
Date published: 2015-01-07
Rated 5 out of 5 by from Great refrigerator/freezer It works fine and is much quieter than our old Amana refrigerator/freezer. If you keep a door open overly long it plays a tune to wake you up, which is amusing. The freezer is nice and fairly accessible. I guess there's no good way to design a small freezer for accessibility, but this is acceptable and it works nicely. Lots of space. Small point: the door handle is smooth so it cleans nicely unlike matte finish appliances which always seem to hold the dirt. Good purchase, good product.
Date published: 2014-12-02
Rated 5 out of 5 by from Very pleased I ended up spending a little more than i planned on a new fridge but i'm glad i did. It runs quietly and i love the bottom freezer. Side by side didn't work for me because the fridge is located next to a wall. The delivery man swapped the door to open to the left and solved all my problems.
Date published: 2014-11-19
Rated 5 out of 5 by from Happy Consumer! I have been shopping and researching for months for a very specific style and quality. I am so happy to have waited and purchased this refrigerator. The interior lighting is excellent. I love the ease of having everything within reach up top. The freezer drawer closes smoothly. The ice dispenser is precisely located (the ice is abundant). It is very solid. It is quiet and very attractive. I previously had a side by side with water and ice in the door. I was not happy with the look or more importantly the problems that came with faulty water dispensing.
Date published: 2014-10-08
Rated 5 out of 5 by from Big unit for narrow space! The webpage has the features, and I'm here to say it's a great fridge! We chose LG for good reviews, even from repair techs! This was an "online-only" special and well priced so we took a chance we'd like it! 24 cubic feet in a 33" wide space is hard to find, this is about it and it's a nice unit! Makes lots of ice, cubed or crushed. Big fridge drawers, and the third drawer is neat and use-able! LED lighting is bright, easy to see all areas. Spillproof shelving can save a mess before it happens. Alarm tellin you the door is open too long is a great feature too! Buy this fridge!
Date published: 2014-06-16
Rated 5 out of 5 by from Very happy with all the features. My family an I are very happy with this model. We had an old fridge for a long time. So we are more than happy with this one. We love the door shelves, and the grand space with the inside shelves A quality product indeed.
Date published: 2014-05-01
  • 2015-11-27T07:10CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_MD05068401, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 7ms

We're here to support you with our product.

View LBC24360ST Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

convert to split shelves

Can you purchase the rear bar and shelves to convert from 2 full size shelves to adjustable 1/2 shelves?
Asked by: shelves
I apologize, but no; it will not be possible to provide information relating to the modification of a product to something different than the original specifications.
Answered by: NeilE
Date published: 2015-03-30


Asked by: 1CPWQDrJ
We regret the trouble you have experienced with this refrigerator. The upper two shelves both appear to be constructed in a manner, so as to not be taken apart. Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at The part number of the Refrigerator Shelves is MHL62812402.
Answered by: NeilE
Date published: 2015-02-19

The ice maker

Does the ice maker has a water filtration system?
Asked by: TTMA
No ice maker
Answered by: Scott106
Date published: 2015-04-21

How do I get the shelf out about the crisper drawers

I have liquid spilled under the glass on the shelf above the crisper drawers. I can't get it to come out so I can clean it. What can I do
Asked by: mtngal
We regret the trouble you have experienced with this product. The glass for the shelf over the crisper drawers is designed to be lifted out from inside the drawers. Open and/or remove the crisper drawers and lift the glass from beneath it. Information about this can be found on page 40 of your owner’s manual.
Answered by: NeilE
Date published: 2014-07-23

Does the LBC24360SW have a linear compressor

The spec sheet on this website indicates that it does under the warranty statement but, none of the other literature mentions it. I just ordered this model but my hopes of the linear compressor are fading.
Asked by: chauncy
We appreciate your interest in this refrigerator. According to our service materials on this model, it would appear that this model was designed with a ROTARY Compressor. It appears that this one notation mentioned may have been in error.
Answered by: NeilE
Date published: 2015-03-27


Are both the refrigerator and freezer doors reversible ?
Asked by: sbarr
YES. The Home Depot crew did mine for me, and no extra charge!
Answered by: Rife
Date published: 2015-06-18

Does the door add to the width when opened?

Does either the refrigerator or freezer door swing open wider than the 33" width of the unit? If I want the doors to swing open to the left and there is a wall directly on the left side of the fridge, will the doors open with no clearance between the left side of the unit and the wall?
Asked by: jeffdgr8
The door will need about One Inch of clearance.
Answered by: Bruto4
Date published: 2014-05-20

Door swing

Are the doors reversible? and what is a contour door?
Asked by: Dahveed
Yes, they are reversible/ I believe there are no stand out handles,
Answered by: Bruto4
Date published: 2014-06-27
